2x Lagarde Type 2BE Auto Clave Retorts for 4-Baskets (Year 2016)

Description

These Lagarde Type 2BE steam-and-air retorts are over-pressure autoclaves designed for reliable thermal processing of shelf-stable foods in cans, glass jars, pouches, and trays. Using direct steam injection with a high-efficiency circulation fan, they deliver uniform temperature distribution and precise over-pressure control, helping protect packaging integrity while achieving target values. Typical units feature a stainless-steel pressure vessel, static multi-basket loading and a PLC/HMI with recipe management, automatic cycle control, and batch data logging for full traceability. Utilities include steam, compressed air, and a recirculated process-water loop, which helps trim water and energy use compared with water-immersion systems. These retorts suit a wide mix of applications like ready meals, vegetables, soups, sauces, baby food, and dairy and offering a robust, easy-to-integrate solution for consistent sterilisation and pasteurisation results.

Specification

• Make: Lagarde Autoclaves, France
• Type: 2BE
• Function: Retorts / Autoclaves / Static Batch Pasteurisers

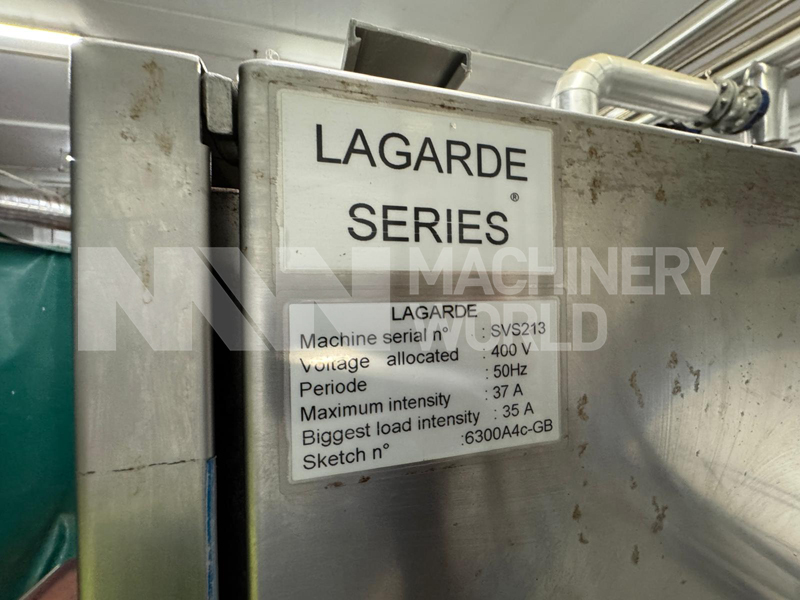

• Serial Number: SVS213 & SVS214
• Group: 2
• Volume: 6820 Litres
• Fluid: Steam + Air
• Maximum Temperature: 158 deg C

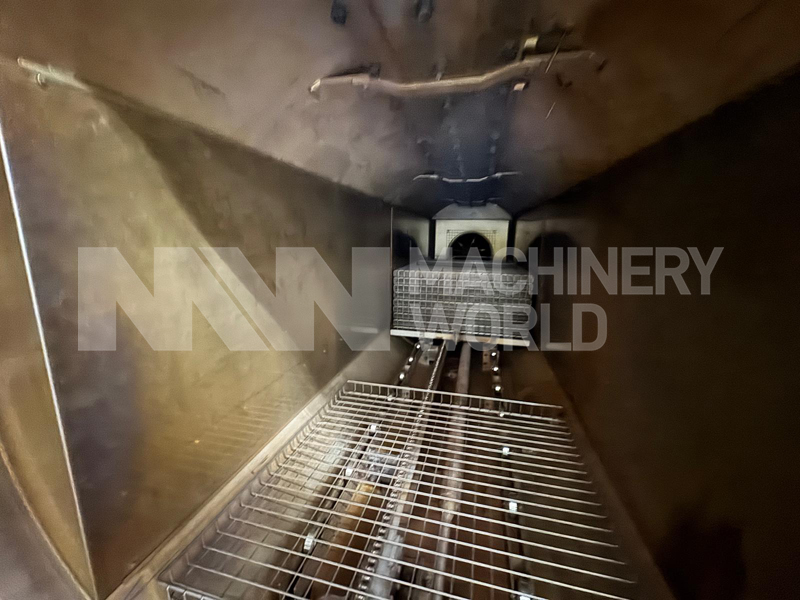

• Total Number of Baskets Accommodated: 4x Baskets
• Diameter of the Chamber: 1400mm

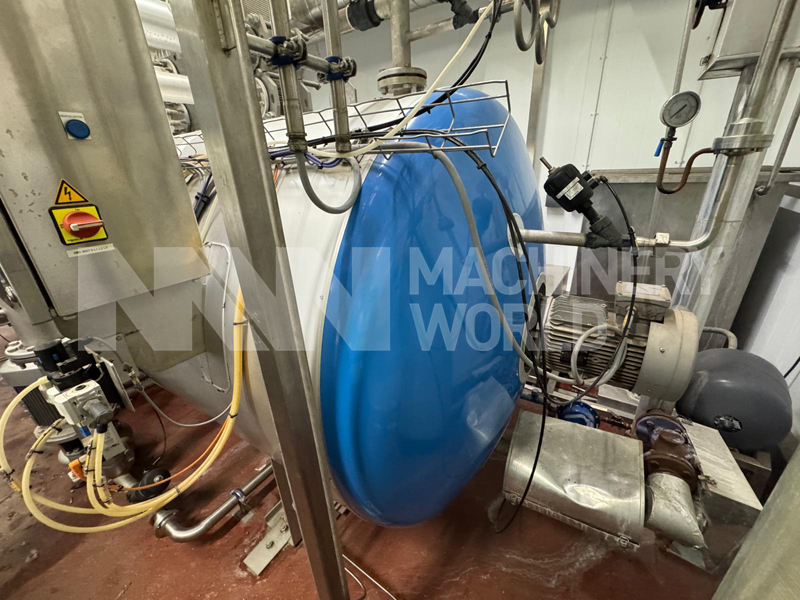

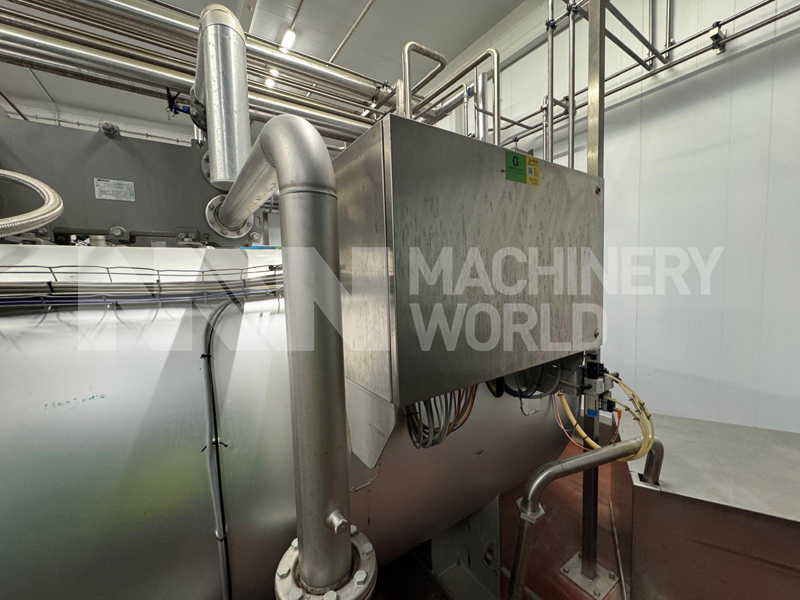

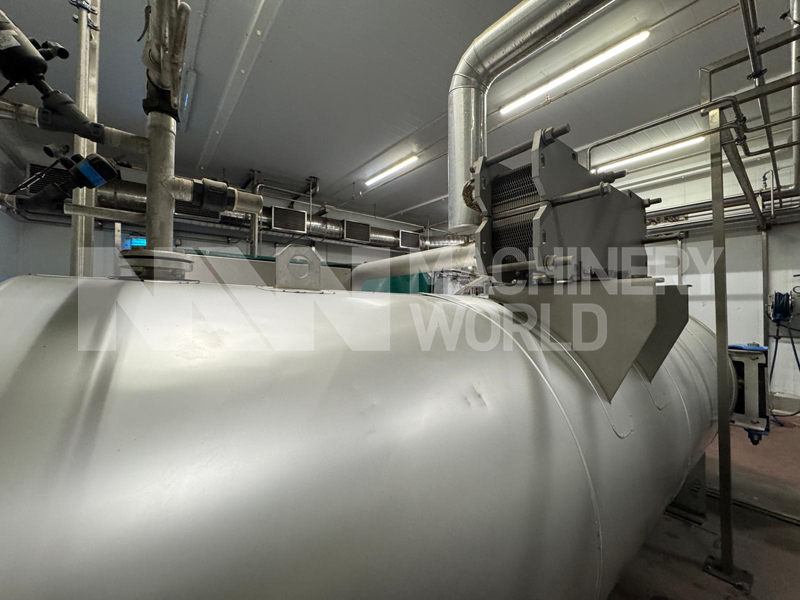

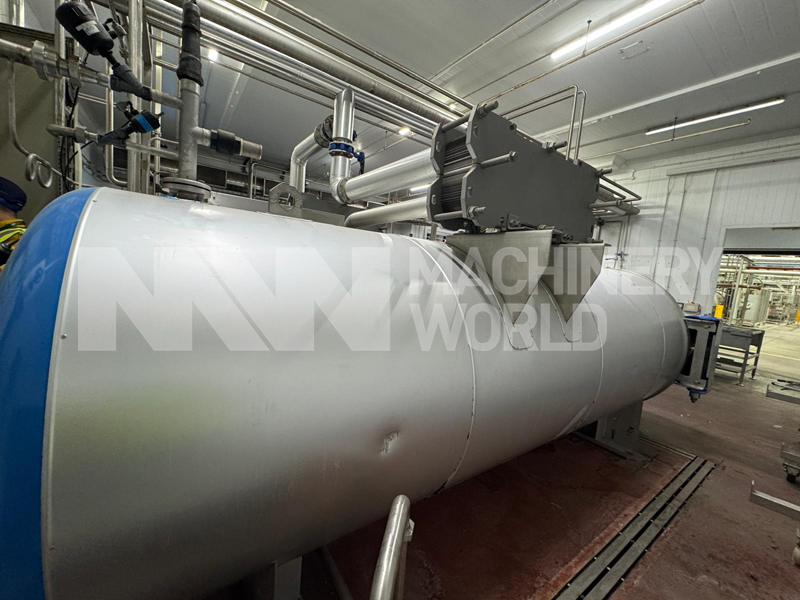

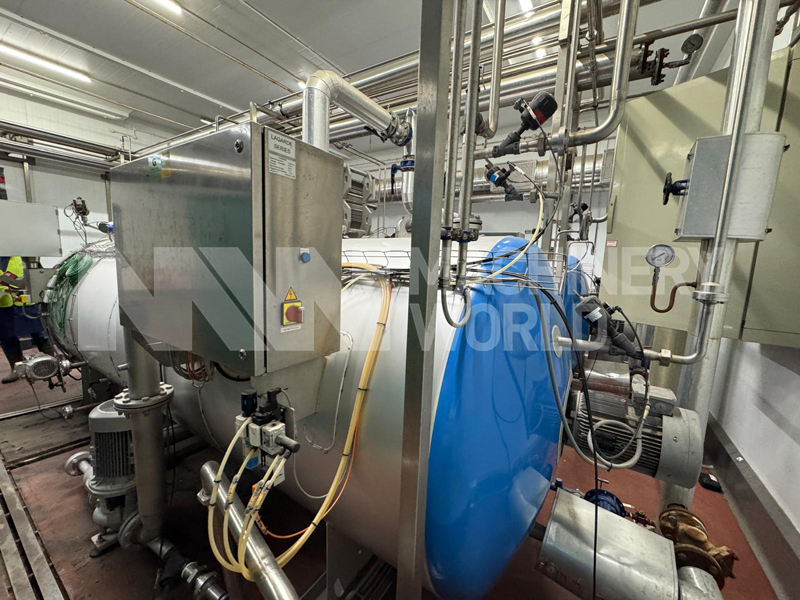

• Comes with Plate Heat Exchanger, Control Panel with PLC, Associated Pumps & Valves

Dimensions

• Length: 6580mm
• Width: 2450mm
• Height: 2483mm

Country of Manufacture

France
