450 LPH APV Type 18.38 (400 Bar) High Pressure Homogeniser

Description

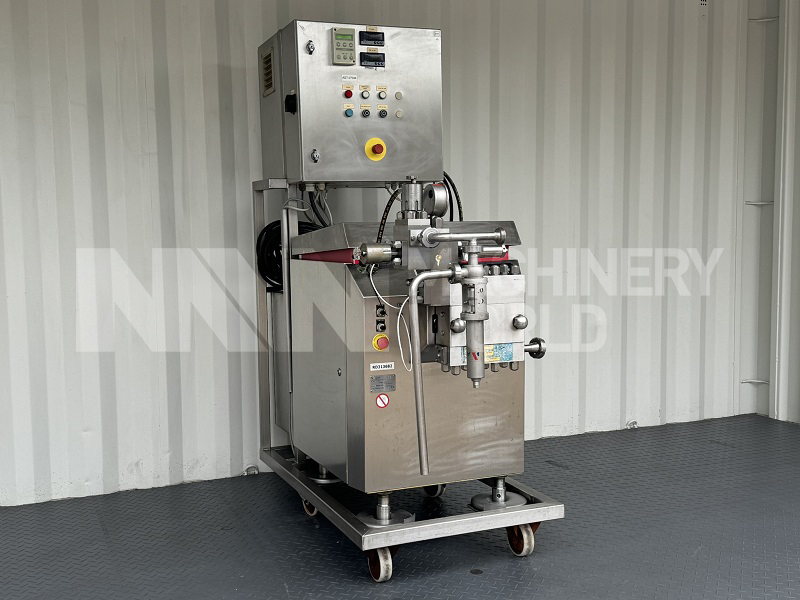

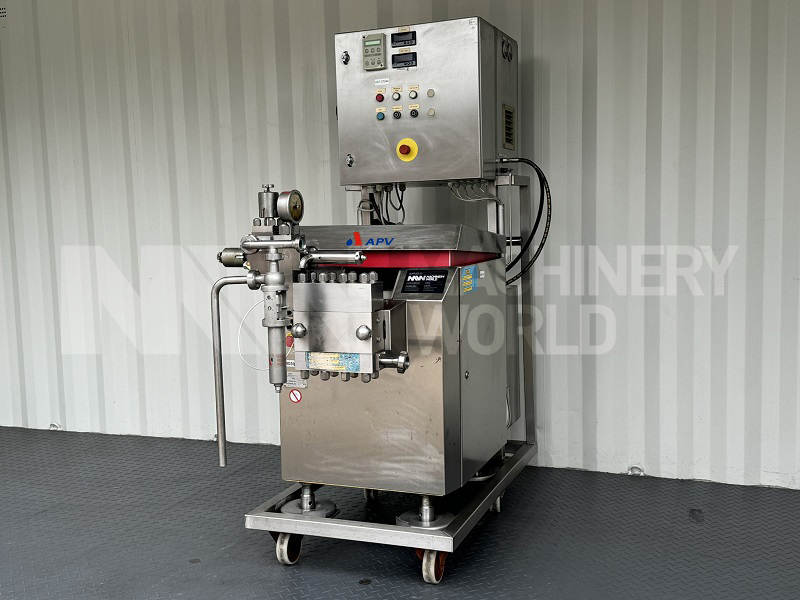

This is a used APV Type 18.38 High Pressure Homogeniser. This APV 18.38 High Pressure Homogeniser has a working capacity of approx 450 LPH (Variable Speed via Frequency Inverter) and capable of working at a maximum rated pressure of 400 Bar (5800 PSI). This APV Type 18.38 High Pressure Homogeniser comes with 2 Stages Homogeniser Valve assembly and has 3x plungers (Pistons). APV Type 18.38 High Pressure Homogeniser was previously used on Pilot/Small scale production plant. Currently held as stock, this APV Type 18.38 High Pressure Homogeniser 400 Bar High Pressure Homogeniser is available for immediate sale.

Features

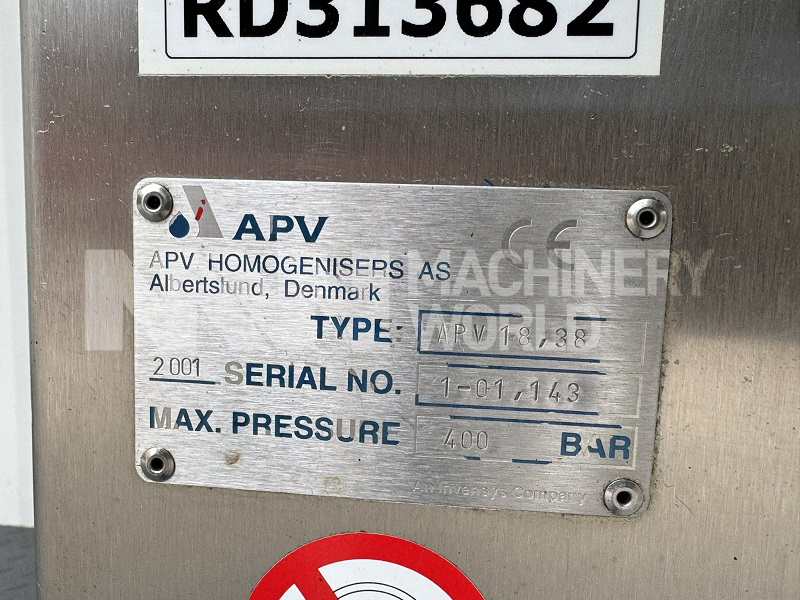

• Manufacturer: APV Homogenisers, Denmark
• Type: Gaulin Type 18.38
• Serial Number: 1-01.143
• Function: High Pressure Piston Homogeniser Pump
• Capacity: Approx 450 LPH
• Max. working pressure: 400 bar (5800 PSI)
• Main Drive Motor: 7.5kw, 3-Ph & 50/60Hz

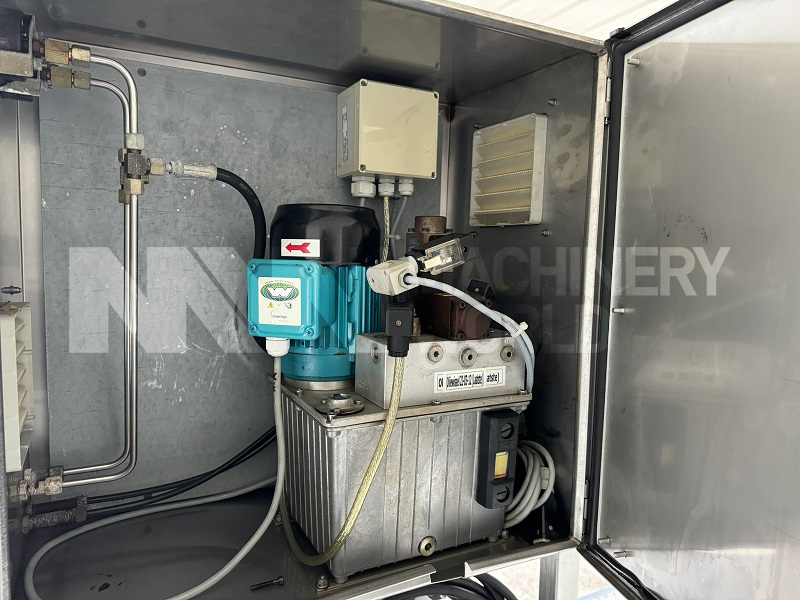

• Valve Control: Hydraulic (Comes with Inbuilt Hydraulic Power Pack)

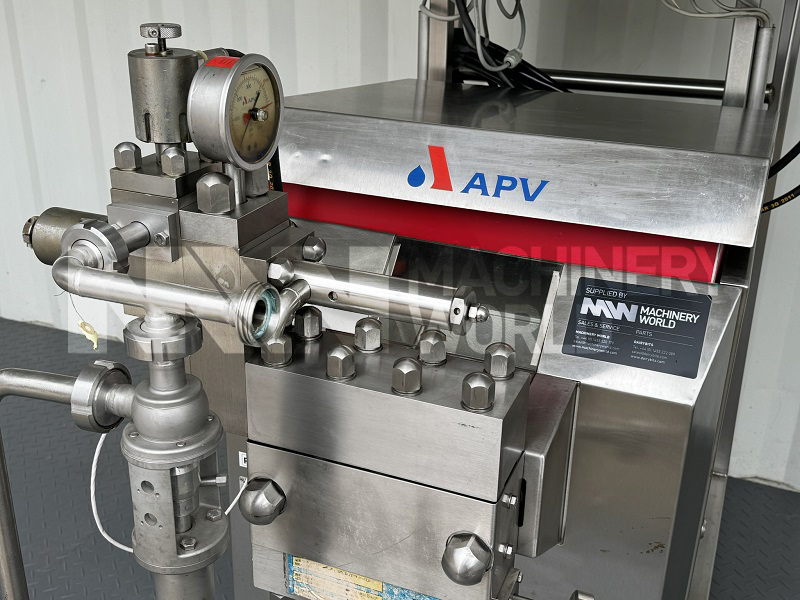

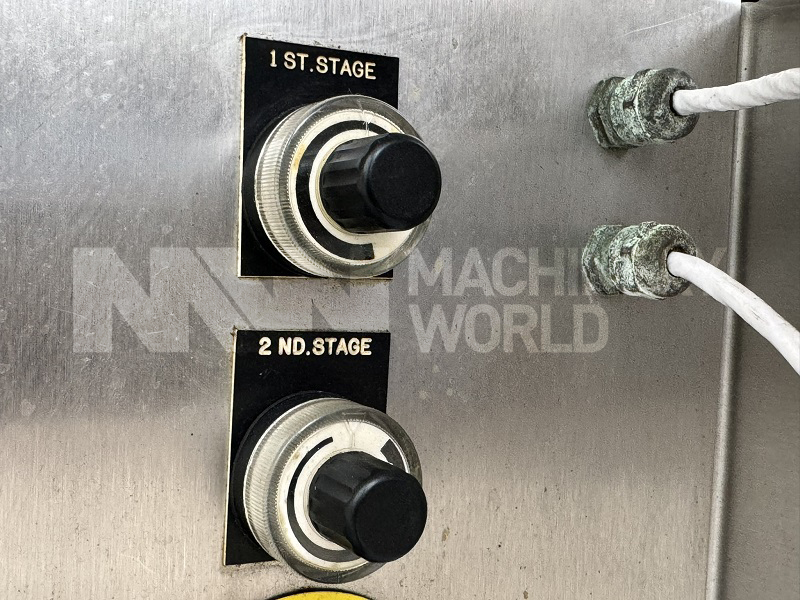

• Number of stages: 2 Stage Homogeniser Valve Assembly
• Valve Type: Poppet Valve
• Number of Pistons (Plungers): 3x Pistons/Plungers
• Piston/Plunger Diameter: 18mm
• Finish: Stainless Steel Covers

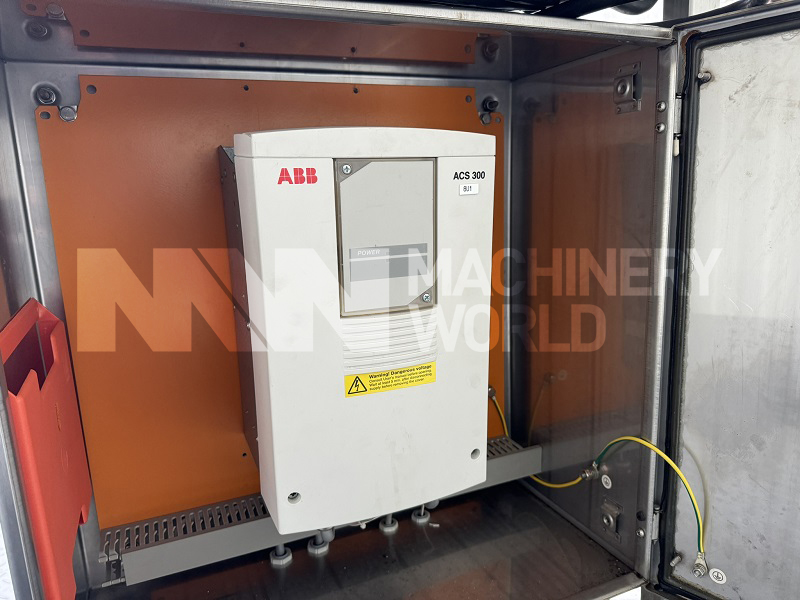

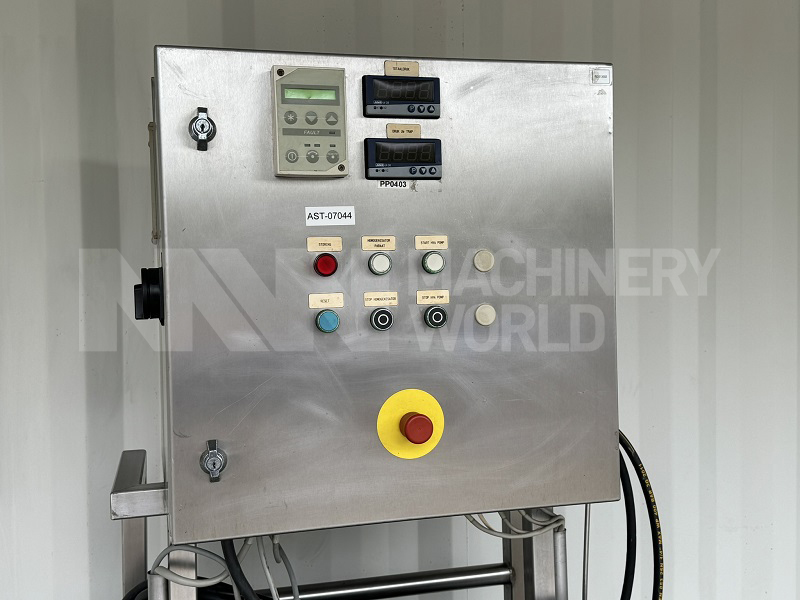

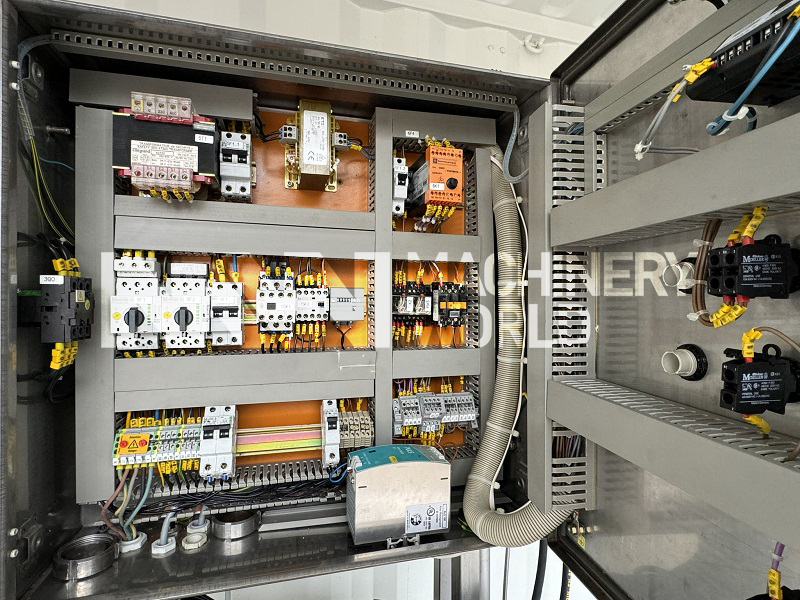

• Controls: Fully Integrated with ABB Frequency Controlled Inverter for Speed Control
• Additional Details: Mobile & comes mounted on Castor Wheels

Dimensions

• Depth: 1590mm
• Width: 900mm
• Height: 2150mm
• Weight: Approx 850 kgs

Country of Manufacture

Denmark
