500 Ltr ROKK R-MX Stainless Steel Jacketed Double Turbo High Shear & Scraped Surface Mixer – Brand New

SOLD - SOLD - SOLD - SOLD - SOLD

Description

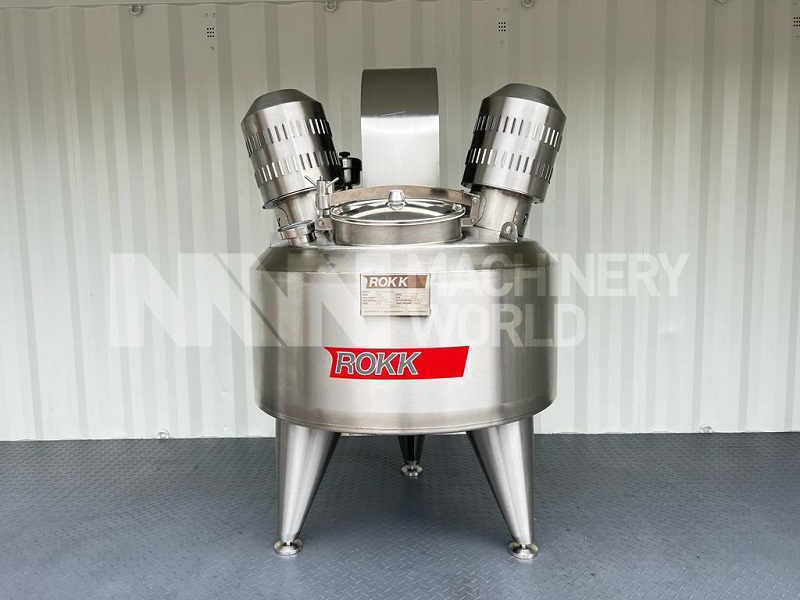

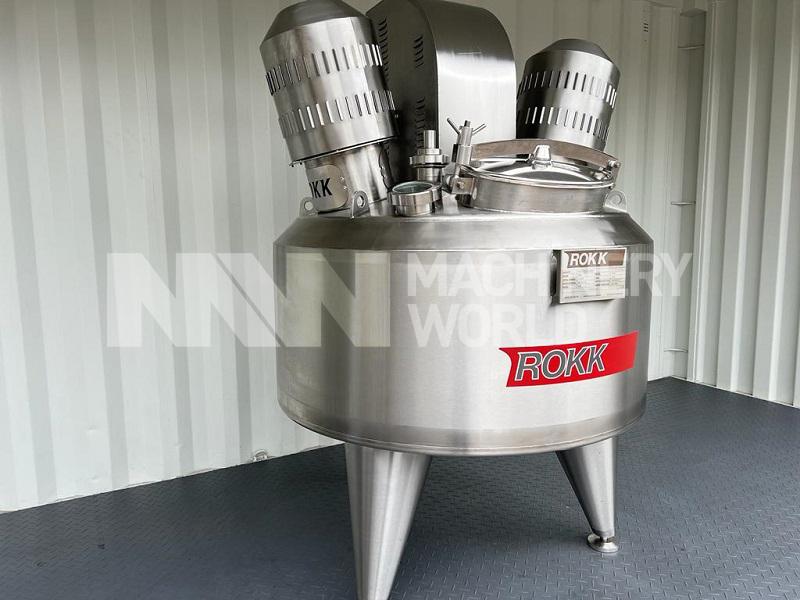

ROKK Processing offers this R-MX Batch Turbo High Shear Mixer & Process Tank which comes with Double (Twin) Top Entry High Shear Mixers with Shearing assembly and Scraped Surface Mixers. This ROKK R_MX Turbo High Shear Mixer is of 304 Grade stainless steel construction and comes fitted with a re-circulation jacketed on the sides and bottom, which can be used for heating (or) cooling, depending on the intended process. There are two Top Entry Turbo High Shear Mixer which run at a speed of 900 RPM, which can be run individually or together depending on the product and process requirement, coupled with a slow speed Scraped Surface Mixer. The presence of double High Shear Mixers along with Scraped Surface Mixer creates ample turbulence & agitation inside the tank, which results in efficient homogenisation of product including dispersion.

Specification

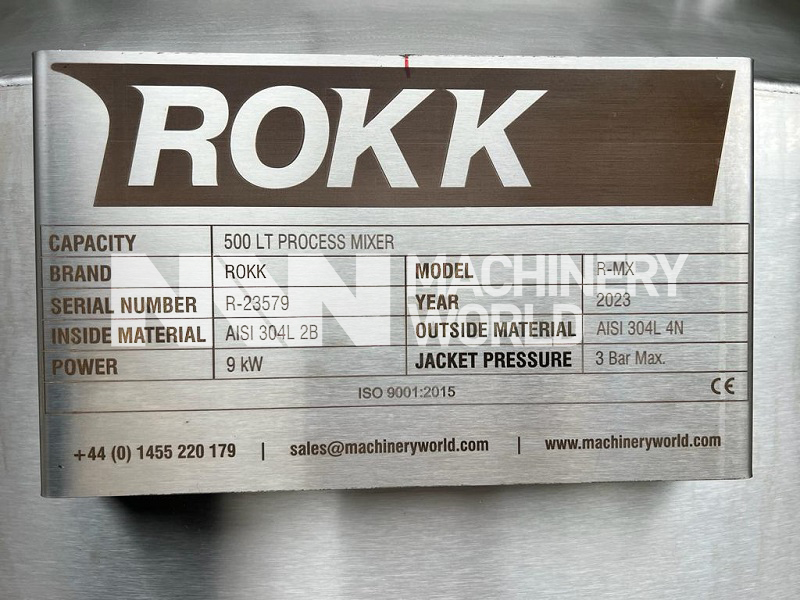

  • Make: ROKK Processing, United Kingdom
  • Model: R-MX
  • Type: Batch High Shear Universal Jacketed Process Mixer
  • Serial Number: R-23579
  • Year of Manufacture: 2023
  • Total Internal Volume: Approx 600 Litres
  • Working Volume: Approx 500 Litres (Varies depending on product & process)
  • Construction: 304 Grade Stainless Steel
  • Jacket: Yes Jacketed for Heating (or) Cooling (Depending on the Product & Process)
  • Jacket Working Pressure: 3 Bar
  • Jacketed Area: Sides & Bottom
  • Insulation: Yes, 70mm Rockwool Insulation

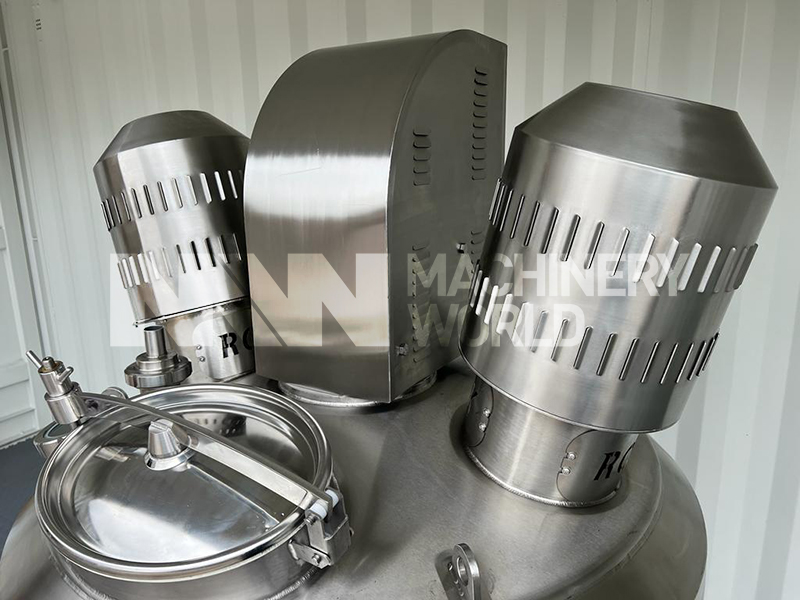

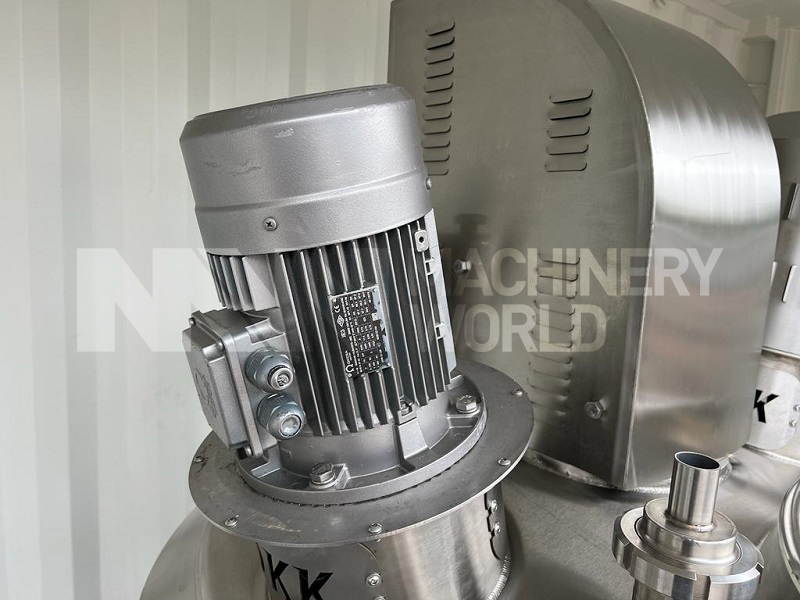

  • High Shear Mixer
    • Type: Top Entry
    • Model: High Speed Cutting-Dispersion Assembly
    • High Shear Head: 2x Cutting Knife Assembly
    • Mixer Speed: 900 RPM

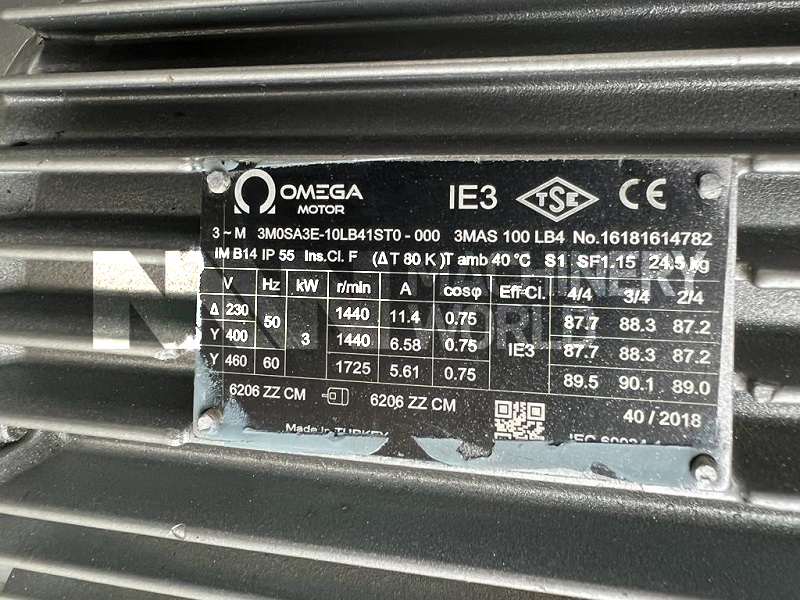

    • Motor Power: 3kw + 3kw
    • Motor Speed: 1440 RPM

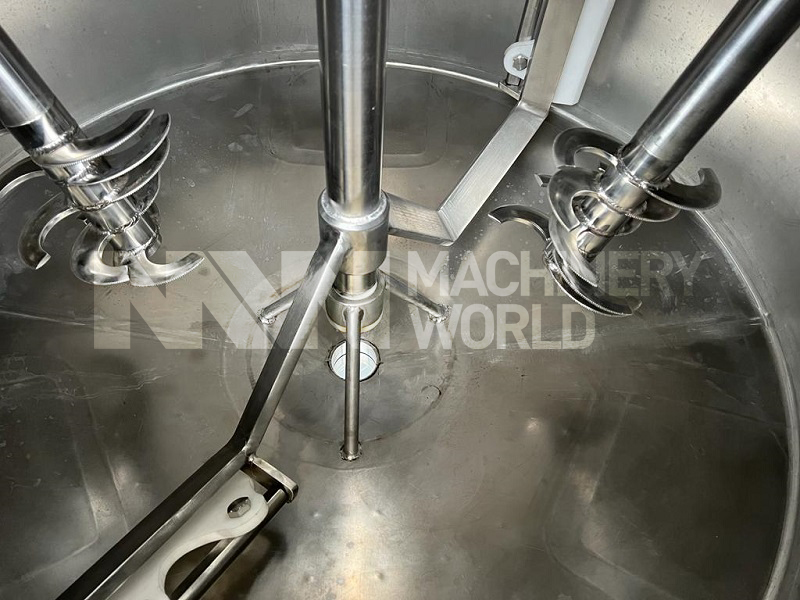

    • Number of Mixers Installed: 2x Mixers on both sides of Scraped Surface Mixer

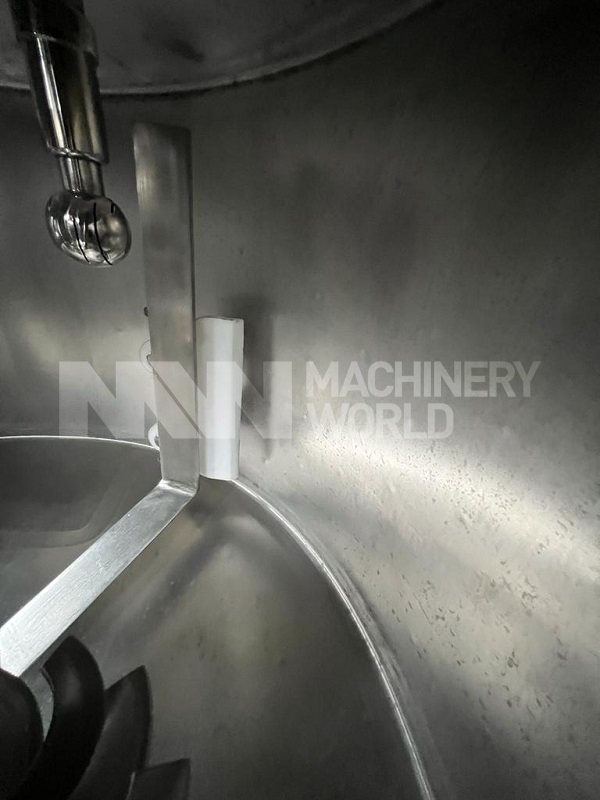

  • Scraped Surface Mixer
    • Type: Anchor Style
    • Scraped Area: Sides & Bottom
    • Mixer Speed: 22 RPM
    • Motor Power: 3kw
  • Manway: Top Manway with Secured Oval Lid (Will be supplied with Safety Grill)

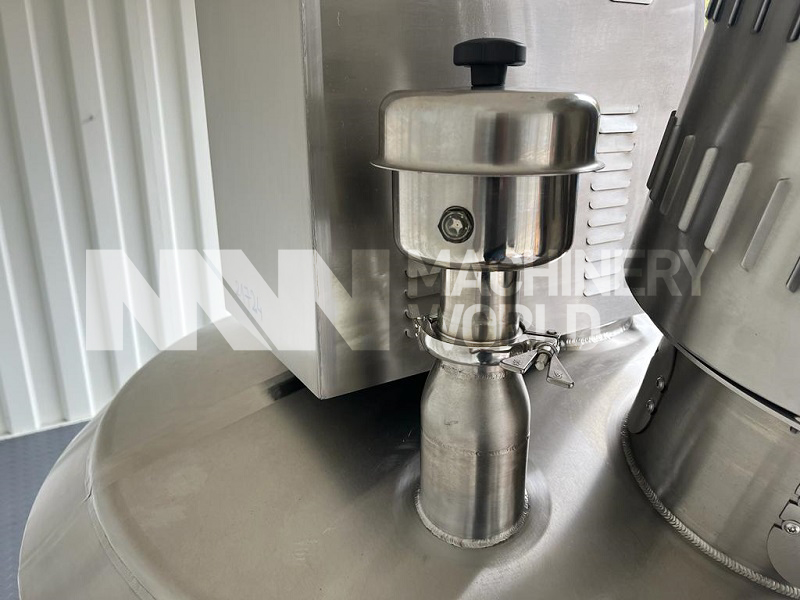

  • CIP: 2x CIP Spray Heads Top Mounted
  • Inspection Port: Provided with Sight Glass

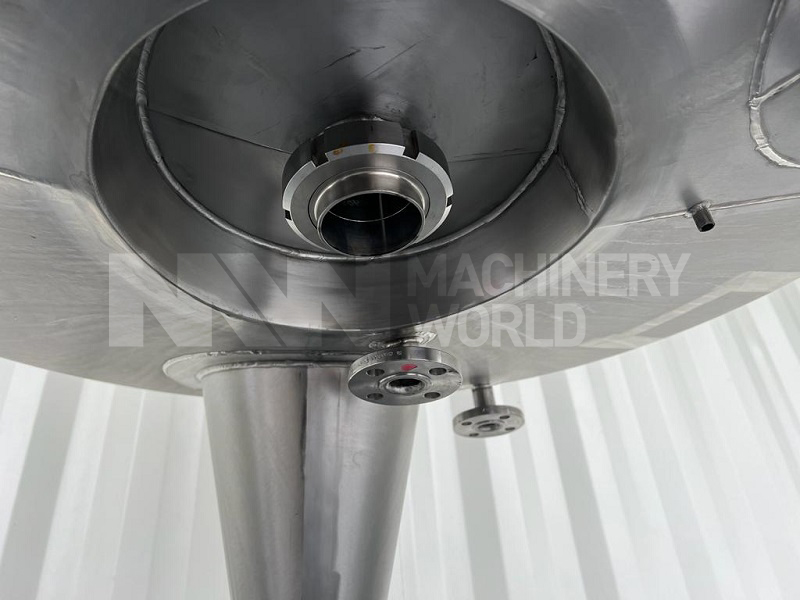

  • Outlet: 2.5 inch
  • Height of Outlet from Floor Level: 500mm
Dimensions
  • Overall Height: 2000mm
  • Outer Diameter: 1240mm
  • Internal Diameter: 1100mm
