500 Ltr ROKK RMELT-500 Jacketed Frozen Fat Oil Butter Chocolate Batch Melter (Brand New)

Description

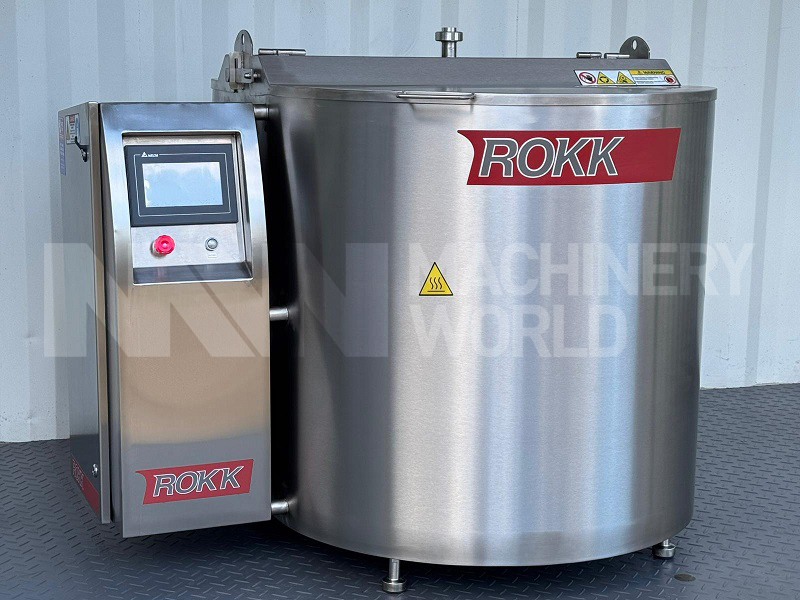

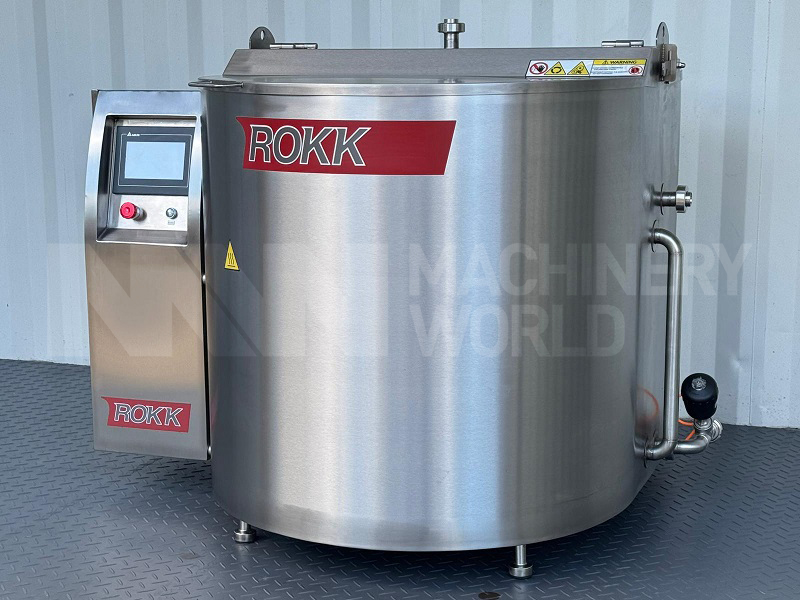

This is a Brand New ROKK Processing RMELT-500  Batch Melting Tank (Melter). This ROKK Processing RMELT-500  Batch Melting Tank (Melter) has a capacity of approx 500L, which is varies depending on the type and specific gravity of the product. ROKK Processing RMELT-500 Batch Melting Tank (Melter) has a Jacketed Tank and comes installed with an internal Melting Grid, which can be heated using Hot Water, supplied from an external source. ROKK Processing RMELT-500  Batch Melting Tank (Melter) is of 304 grade Stainless Steel construction and comes installed with the top split open hinged lid. ROKK Processing RMELT-500  Batch Melting Tank (Melter) includes Melted product transfer pump, flow sensor and fully integrated Control Panel with Touchscreen HMI. Please refer to ‘Download Tech Doc‘ to view drawing on ROKK RMELT-500 Melter.

Features

• This Tank is designed to melt Butter/Fat/Palm Oil/Chocolate blocks.
• All product contact parts are of Cr-Ni 304 grade Stainless Steel.

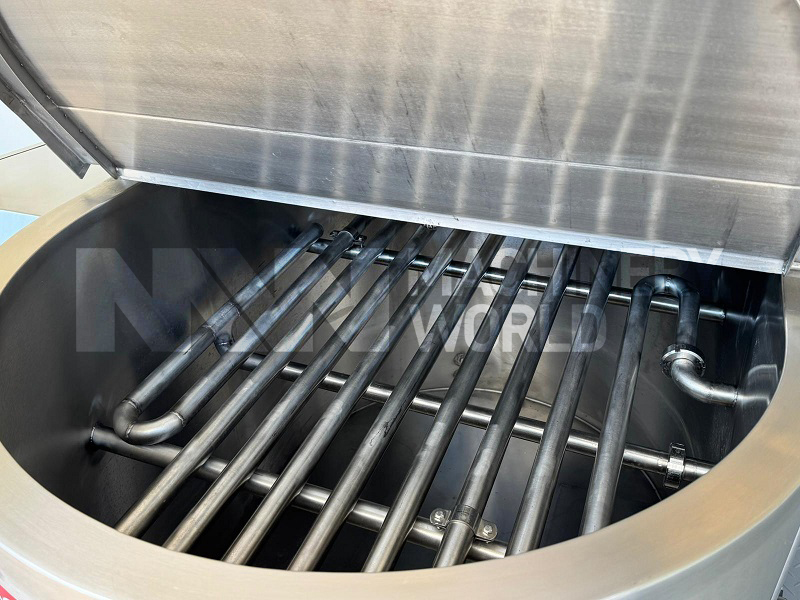

• There is an internal Serpentine heating coil, to melt Butter/Fat/Oil Blocks/Chocolate.
• There is an external re-circulation Hot Water Jacket on the side wall of tank to keep melted product warm.
• Tank is Insulated with Aluminium faced Rockwool & Clad in stainless steel.

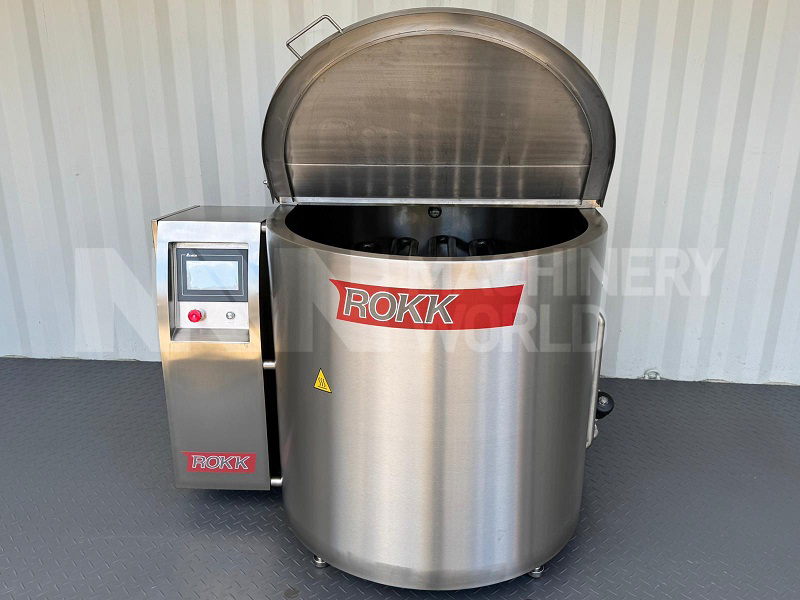

• The machine has top split open lid secured with hinges and dampers on both sides.
• It is suitable for heating with Hot Water for Internal Serpentine Coil & External Jacket.

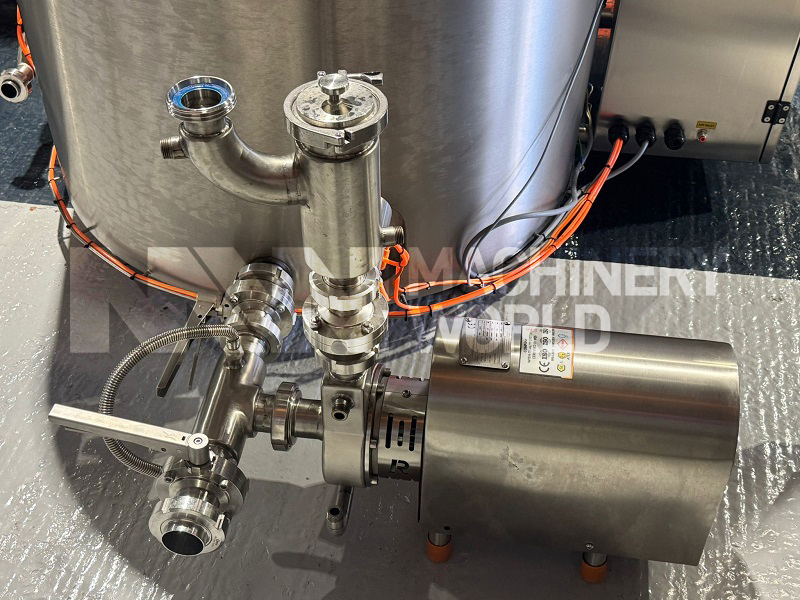

• Melted Oil Metering via Flow Meter & Pump.
• Pump and Temperature can be controlled through the Control Panel.
• Melt Tank’s Control Panel has touchscreen HMI Display.
• Oil transfer pump
• The appropriate design for easy maintenance and cleaning (CIP cleanable)
• Stainless steel construction (frame) and electrical panel
• Compact design

Specification

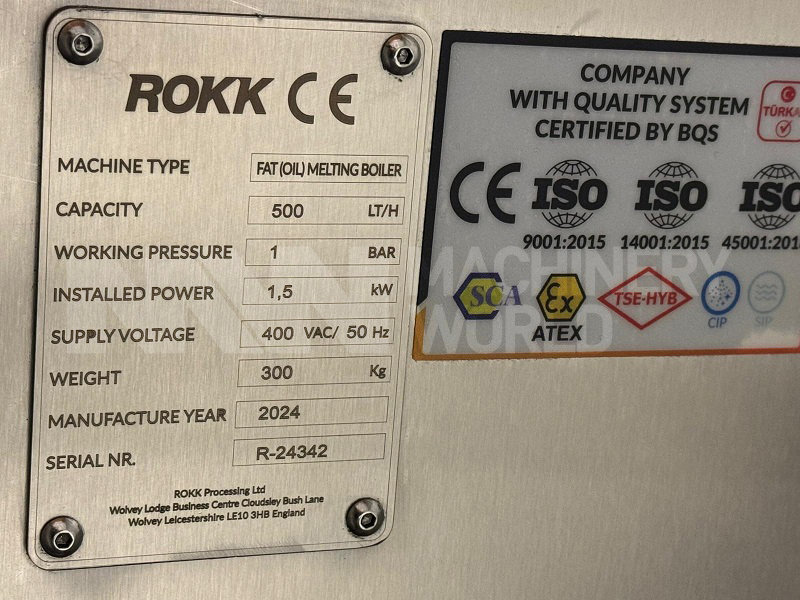

• Brand: ROKK Processing, United Kingdom
• Type: RMELT-500
• Function: Batch Frozen Fat/Butter/Oil/Chocolate Melter – Melting Tank
• Volume of Tank: Approx 500 Ltr (Varies depending on Specific Gravity of Melted Product)
• Year of Manufacture: 2024
• Installed Power: 1.5kw, 3-ph, 50Hz
• Working Temperature: 40 deg C to 80 deg C
• Jacket: Yes, Jacketed for Hot Water
• Jacket Working Pressure: 2 Bar
• Melting Grid: Internal Serpentine Melting Grid heated using Hot Water
• Insulation: Aluminium Faced Rockwool Insulation

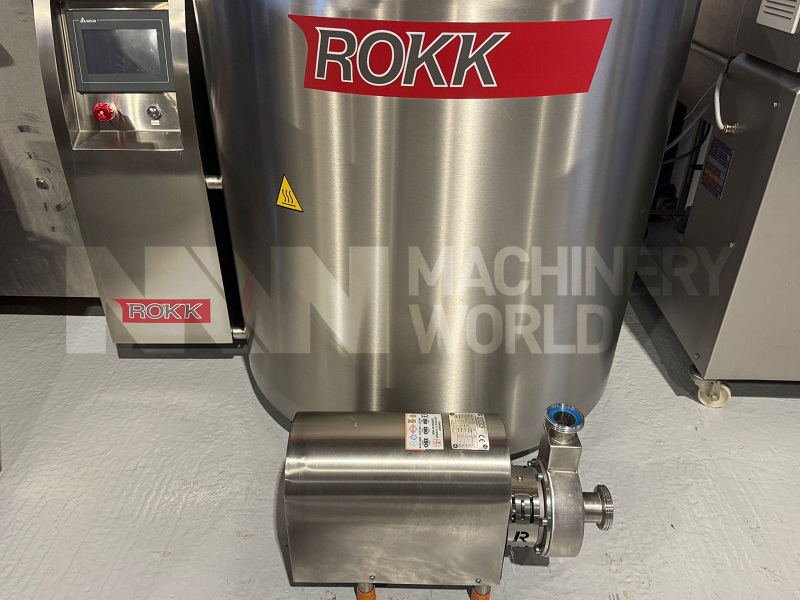

• Product Transfer: Includes Pump
• Control Panel: Fully Integrated with Touchscreen HMI Display.

Dimensions

• Length (Without Melted Product Pump): 1358mm
• Overall Length (With Melted Product Pump): 1825mm
• Width: 1610mm
• Height: 1092mm
• Weight: Approx 320kg
