500 Ltr Scanima SRB500 Jacketed Vacuum Rated Universal High Shear Mixer

Description

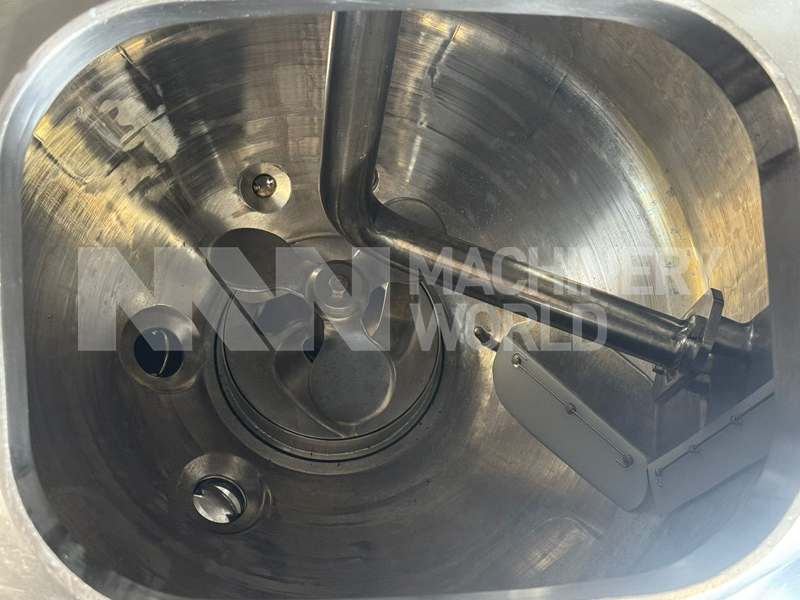

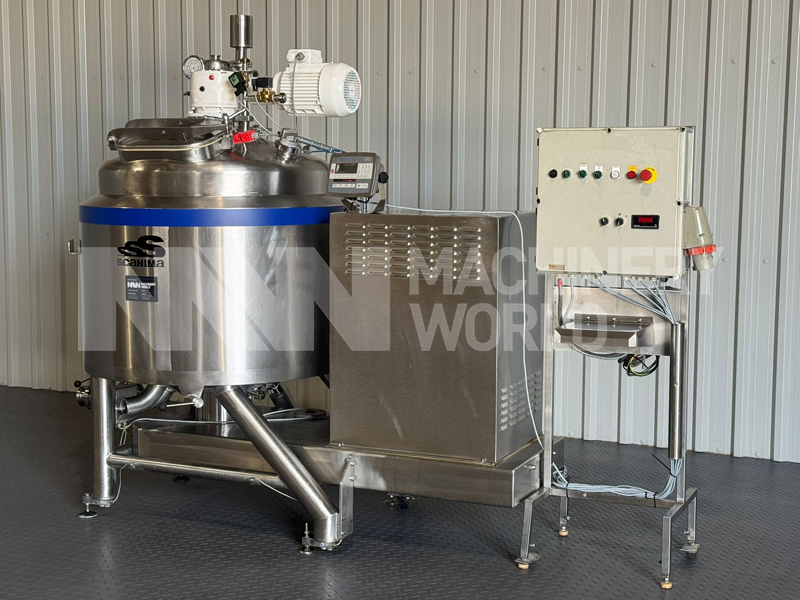

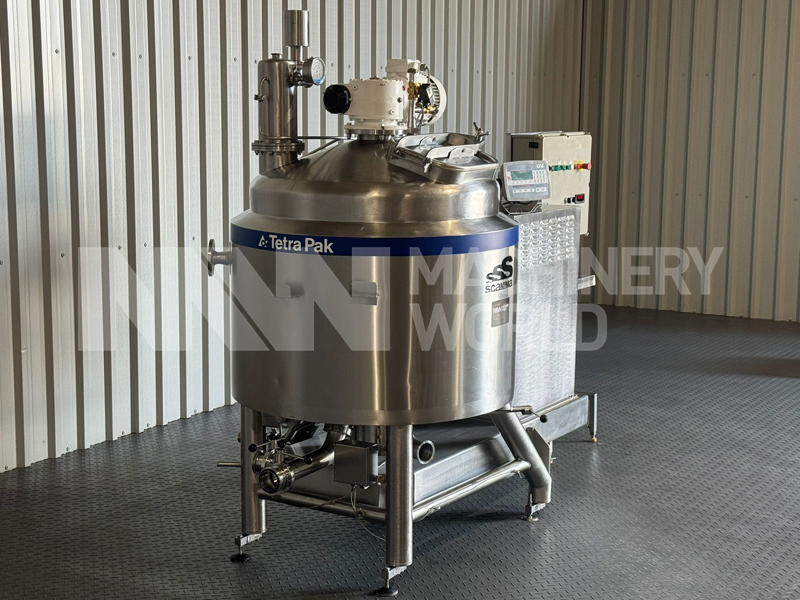

This is a Used Scanima SRB500 Jacketed & Vacuum Rated Universal High Shear Mixer designed for efficient and versatile processing in the food, dairy, confectionery, and other process industries. The unit has a gross capacity of 650 litres and working volume of 500 litres and is equipped with a bottom-mounted High Shear Turbo Mixer featuring a disintegration high shear head, along with a top-mounted scraped surface mixer for effective mixing, emulsifying, and continuous product scraping during heating or cooling cycles. The vessel is jacketed for thermal regulation and is vacuum capable, supplied with an integrated vacuum pump to allow processing under vacuum conditions for cooking, concentration, or de-aeration to enhancing product texture, consistency, quality & shelf life. Currently in stock and available for immediate sale, this Scanima SRB500 offers robust construction, reliable operation, and flexibility for a wide range of demanding production applications. For an overview of the general working principle of a Scanima mixer, please click “Download Technical Doc” below. Please note that certain features of the actual SRB500 offered here may differ slightly from those shown in the generic technical document.

Specification

• Make: Scanima A/S, Denmark
• Type: SRB 500
• Model: Jacketed High Shear Vacuum Capable Universal Mixer

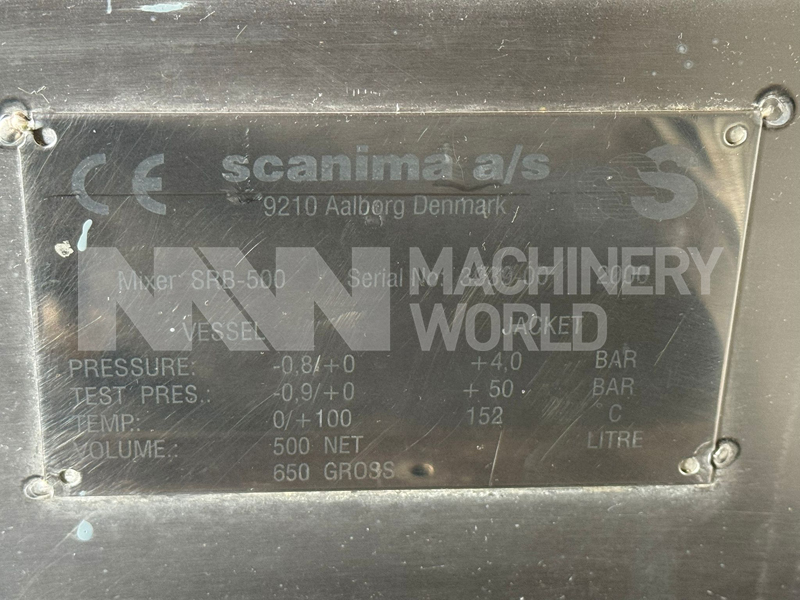

• Serial Number: 393900
• Year of Manufacture: 2000
• Nett Working Volume: Approx 500 Ltr (Varies depending on product & process)
• Gross Volume of Tank: 650 Ltr
• Jacket: Yes, External Re-circulation Jacket for Hot Water or Steam
• Jacket Working Pressure: 4 Bar
• Vessel Internal Pressure: -1/0 (Vacuum Capable)
• Vessel Working Temperature: 0 to +100 deg C
• Mixers:
  Bottom Entry Turbo High Shear Mixer - 1470 RPM 22kw/3-ph Motor

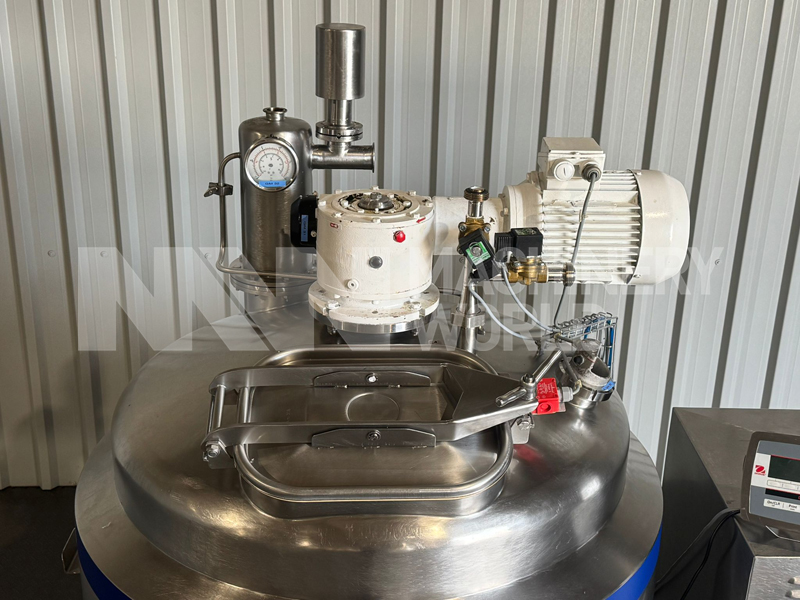

  Top Entry Scraped Surface Mixer - 1.5kw/3-ph  Motor

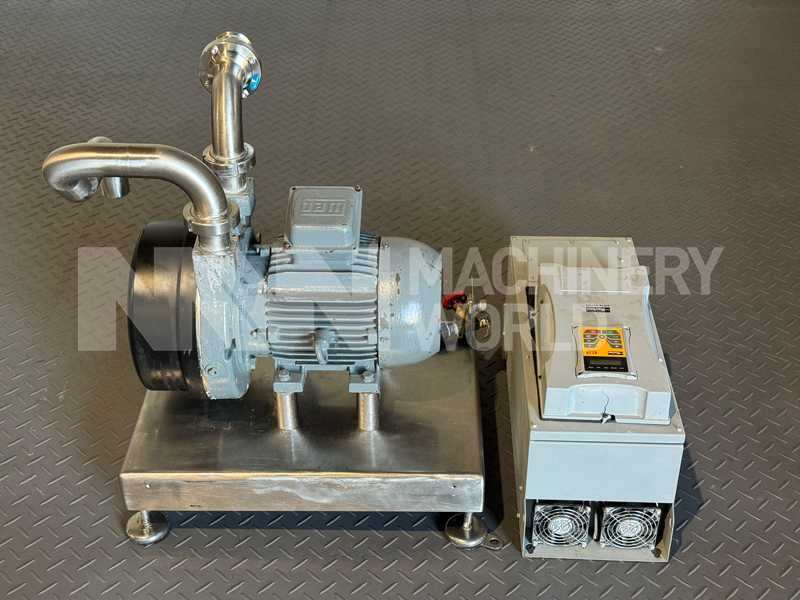

• Vacuum: Comes with Integrated Vacuum Pump - 4kw/3-ph Motor
• Rectangular Manway with Secure Lid.

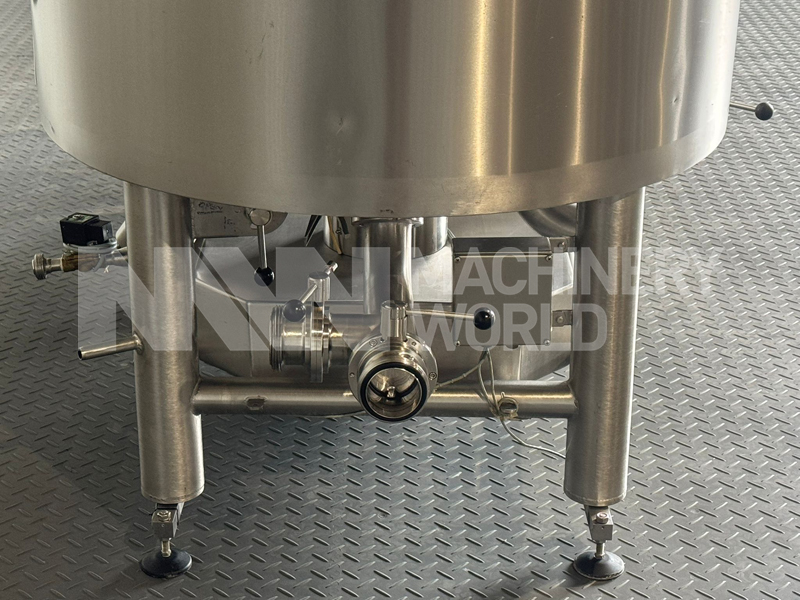

• Come with additional bottom feed ports for Ingredient Feed
• Cleaning: Comes with top mounted CIP Spray Head
• Controls: Manual Controls with Frequency Controlled Inverter

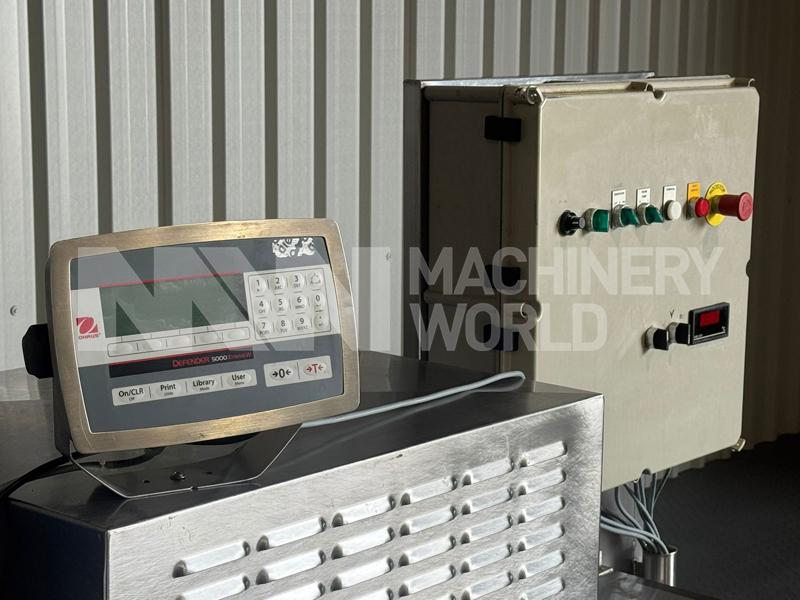

• Additional Details: Mixer comes mounted on Load Cells with Digital Readout.

Dimensions

• Length: 2100mm
• Width: 1400mm
• Height: 2200mm

Country of Manufacture

Denmark
