5,000 LPH DSS Tetra Pak Batch Reverse Osmosis RO Plant

Description

This is a used DSS Batch Reverse Osmosis RO Plant. DSS which is owned by Tetra Pak, is Europe's leading Membrane & Filtration equipment manufacturer. This DSS Batch Reverse Osmosis RO Plant has a working capacity of approx 40,000 Litres per day, which would equate to approx 5,000 LPH taking into account 8hrs working shift. DSS Tetra Pak Batch Reverse Osmosis RO Plant is completely skid mounted and includes 4x Membrane Modules, Pumps, balance Tank, Flowmeter, Valves and Control Panel with Siemens PLC. Currently held as stock, this plant is available for immediate sale.

Specification

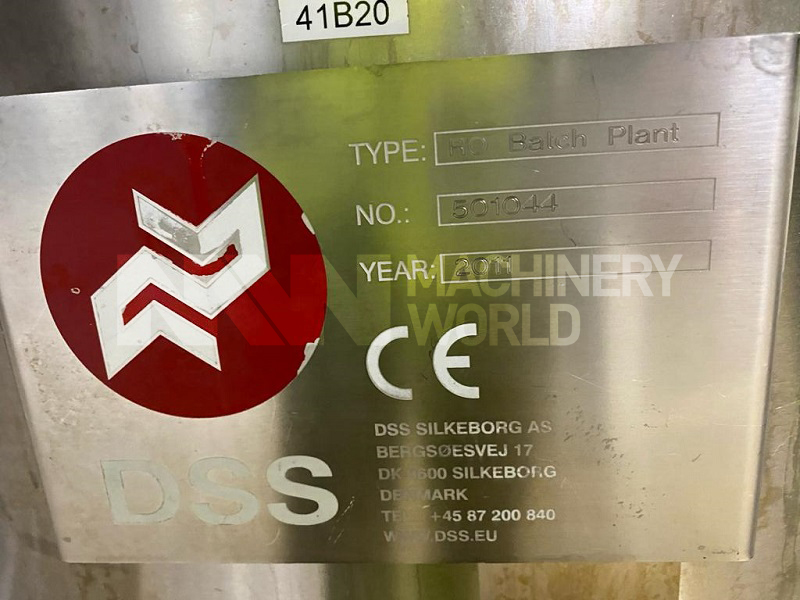

• Make: DSS Silkeborg, Denmark (Tetra Pak)
• Type: Reverse Osmosis RO Batch Plant
• Serial Number: 501044
• Year of Manufacture: 2011

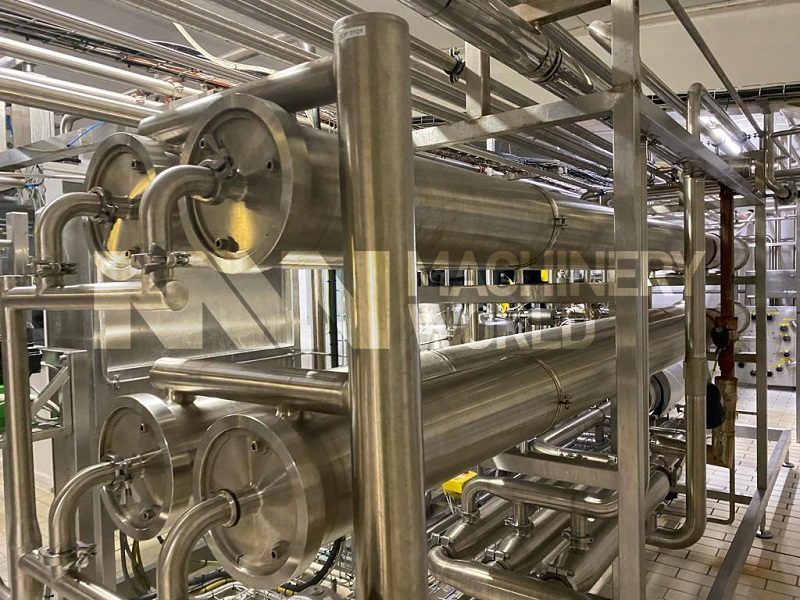

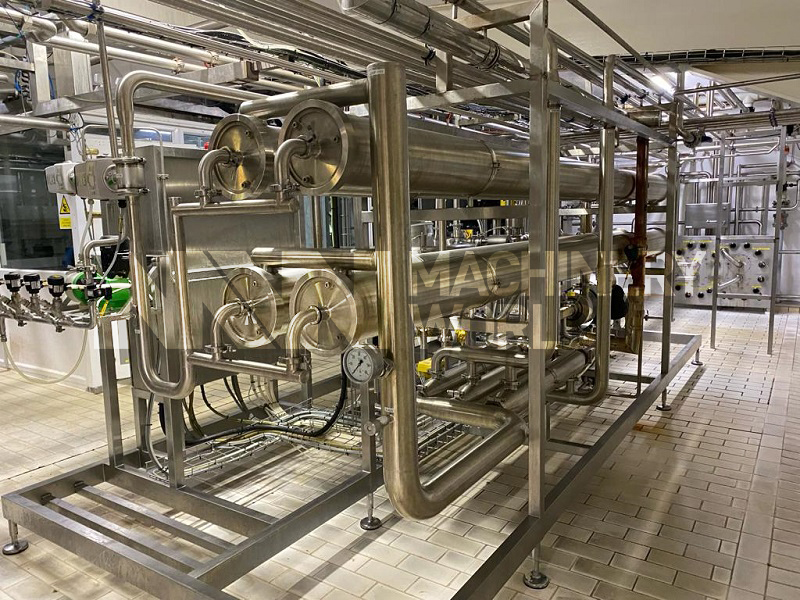

• Total Number of Membrane Modules: 4
• Working Capacity: Approx 40,000 Litres Per Day
• Hourly Capacity: Approx 4,000 to 5,000 Litres Per Hour
• Product: Concentration of Skim Milk to 220% Total Solids at the rate of approx 40,000 Litres per day.
• RO Plant Operating Temperature: 5 to 8 deg C
• Feed:
  Fresh Skimmed Milk of good quality pH (6.4 to 6.7) 40,000 kg/8-10h at 5 deg C and 9% Total Solids
• Permeate:
  23,703 kg/8-10h at 8 deg C
  Outlet: 60-5,070 kg per hour
  Minimum CIP Flowrate for Line: 10,000 LPH
• Retentate:
  16,279 kg/8-10h at 8 deg C
  Outlet: 10,152 - 15,162 kg per hour
  Minimum CIP Flowrate for Line: 10,000 LPH
• Steam:
  3 Bar 133 deg C at 415 kg/h
• Cooling:
  Ice Water 27,500 LPH at 2 deg C

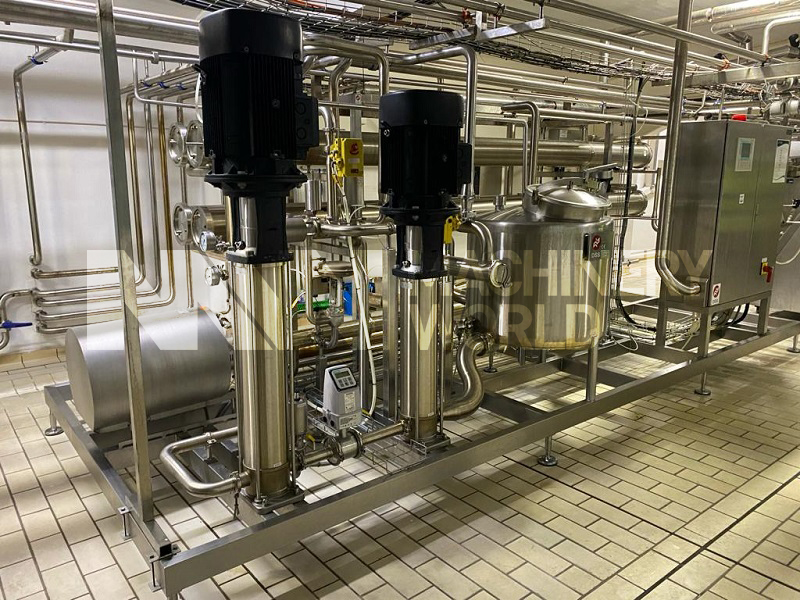

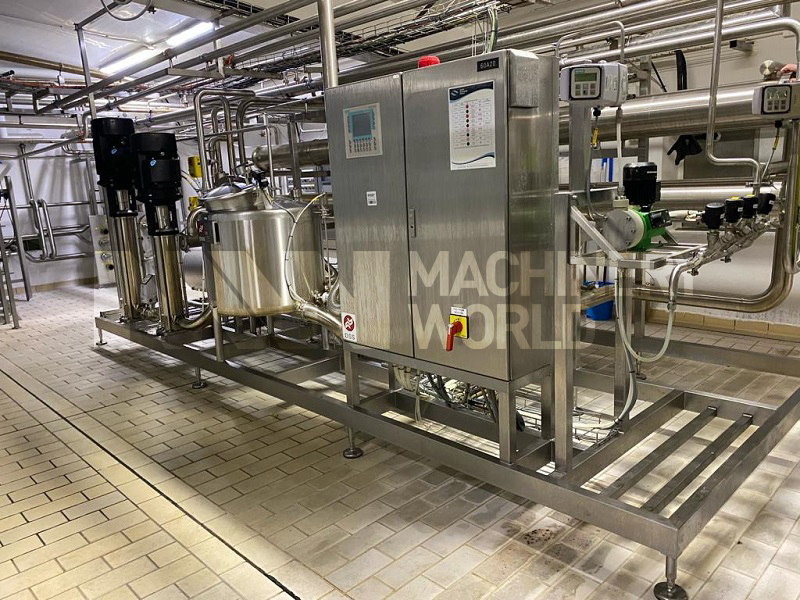

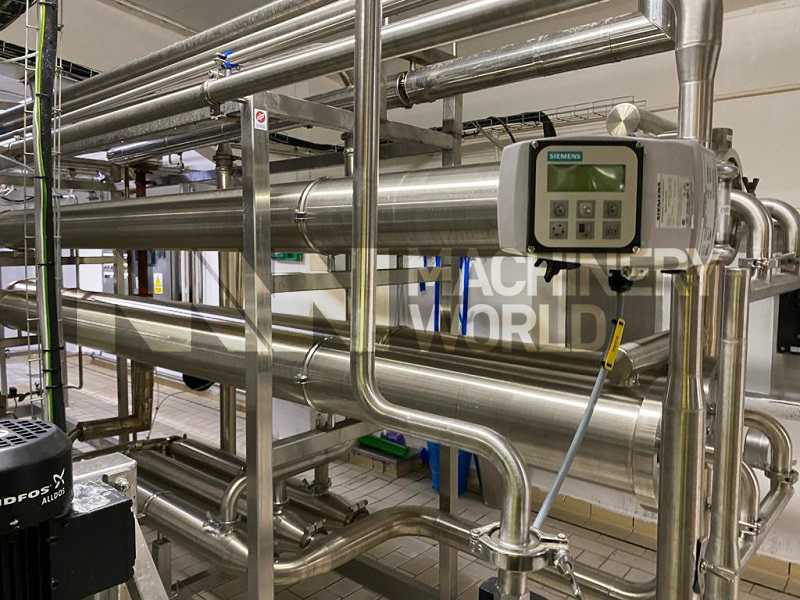

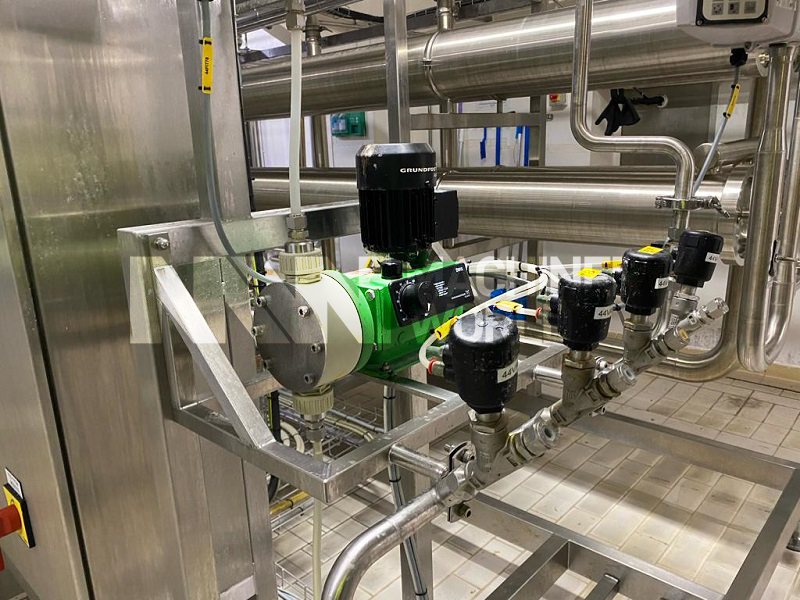

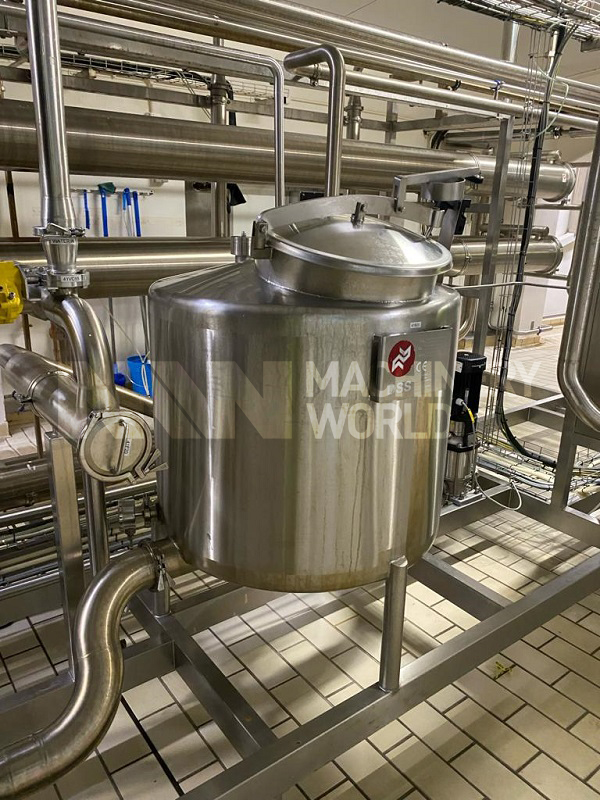

• Skid comes mounted with Pumps, Valves, Stainless Steel Balance Tank, Flowmeters and Interconnecting Pipework

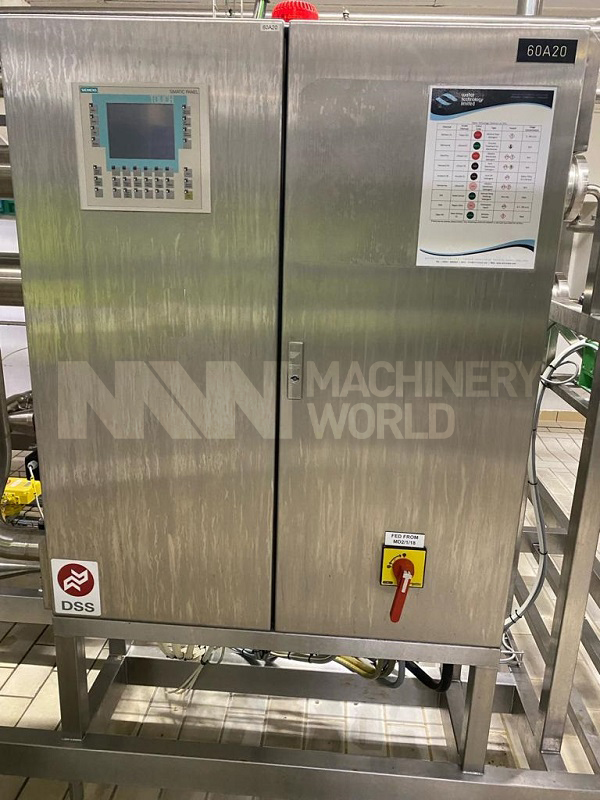

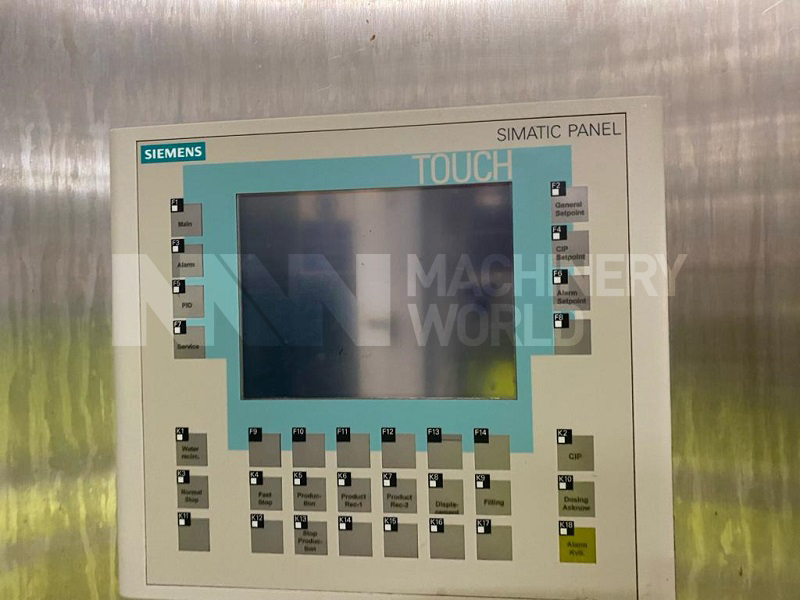

• Control Panel:
  Fully Skid mounted with PLC and Inverter
• Comes with full set of documentation & drawings

Dimensions

• Length: 5200mm
• Width: 2000mm
• Height: 1977mm

Country of Manufacture

Denmark
