5,000 LPH GEA Niro Soavi NS3075H (400 Bar) High Pressure Homogeniser

Description

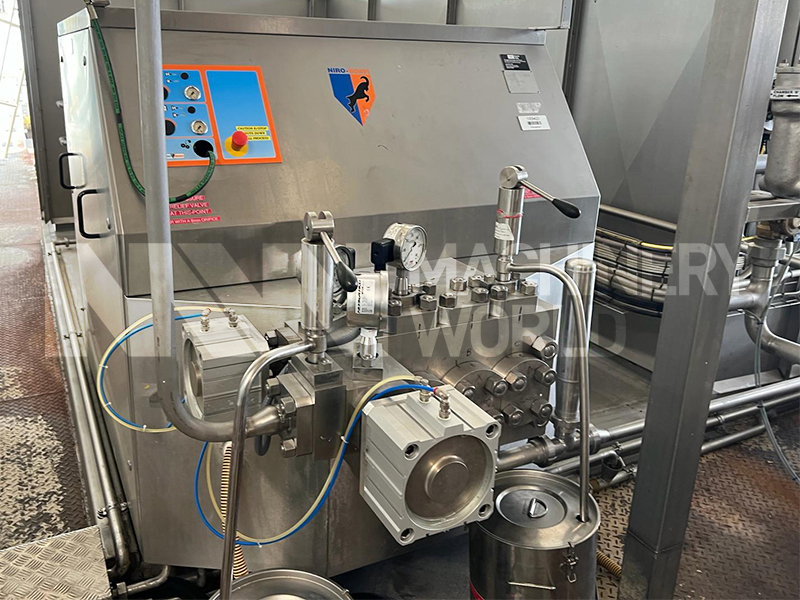

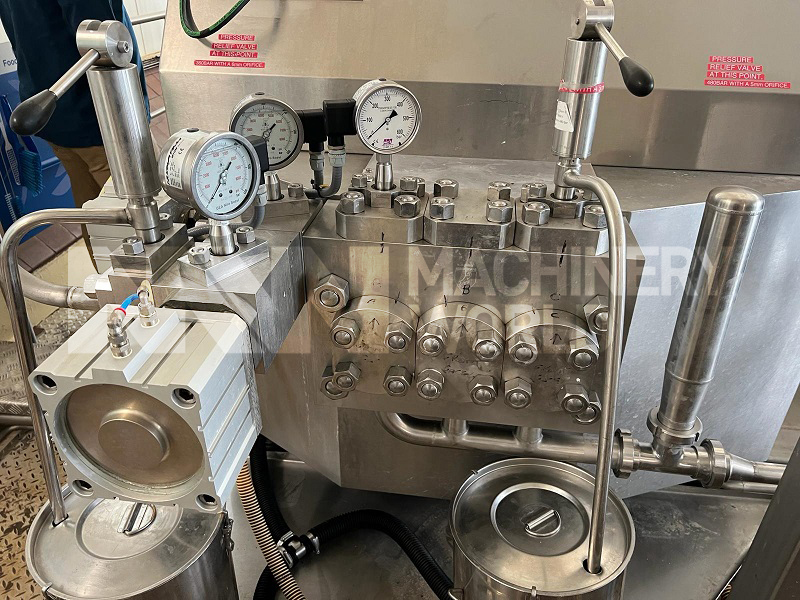

This is a used GEA Niro Soavi NS3075H High Pressure Homogeniser. This GEA Niro Soavi NS3075H High Pressure Homogeniser has a capacity of approx 5,000 LPH with a maximum operating pressure of 400 Bar (5,800 PSI) and has 2-Stages. This GEA Niro Soavi NS3075H (400 Bar) High Pressure Homogeniser was previously used at a major food processing facility in the UK and used as a High Pressure Pump to feed a Spray Dryer. Currently held as stock, this GEA Niro Soavi NS3075H (400 Bar) High Pressure Homogeniser is available for immediate sale.

Features

• Manufacturer: GEA Niro Soavi, Italy
• Model: NS3075H

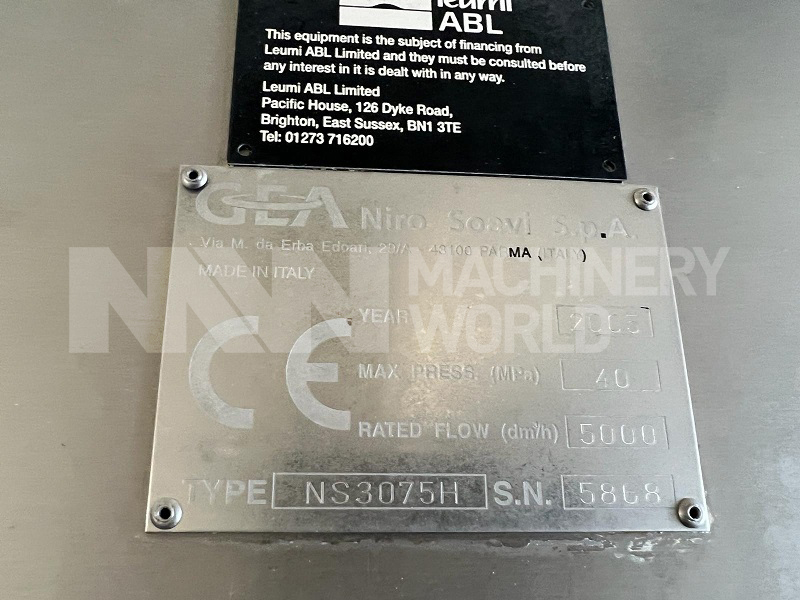

• Serial Number: 5868
• Function: High Pressure Piston Homogeniser
• Capacity: 5,000 LPH
• Year of Manufacture: 2005
• Max. working pressure: 400 Bar (5,800 PSI)
• Number of Pistons/Plungers: 3
• Number of Stages: 2-Stage Homogeniser
• Total installed power: 75Kw
• Finish: Stainless Steel Shroud with Cast Iron Frame

Dimensions

• Length: 1470mm
• Depth: 1965mm
• Height: 1620mm
• Weight: Approx 2800kg

Country of Manufacture

Italy
