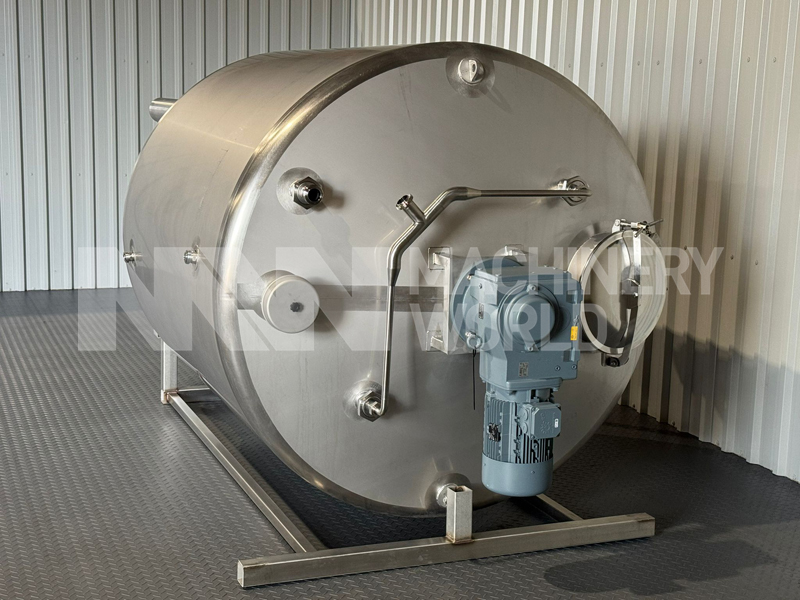

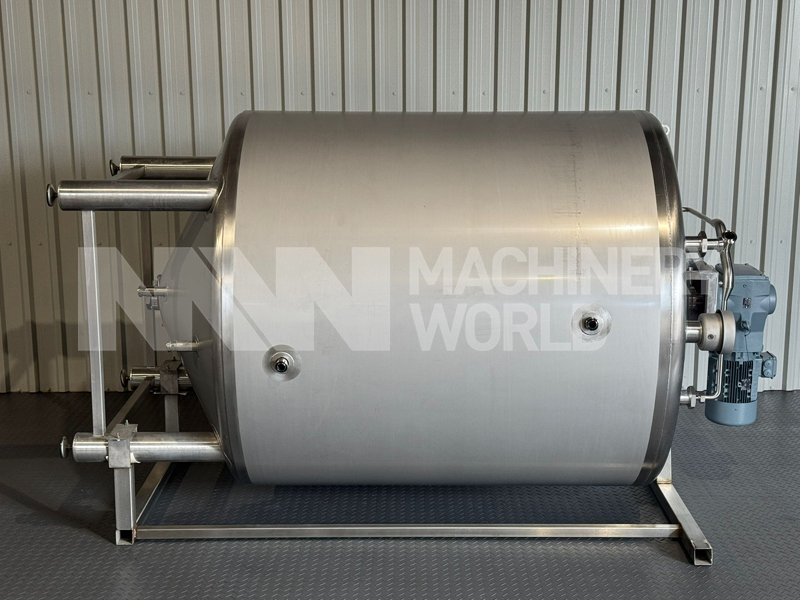

5,000 Ltr 316 Grade Stainless Steel Jacketed Tank with Full Sweep Gate Mixer – Year 2025 (Never Used)

Description

This 5,000 Ltr jacketed mixing tank, constructed from high-grade 316 stainless steel, is equipped with a heavy-duty gearbox and a full sweep, low-speed gate mixer, engineered for handling high-viscosity and thick products with ease. Purpose-built for Kefir production, it is ideal for use in the dairy, food processing, pharmaceutical, and cosmetics industries. The jacketed design provides precise thermal control for both heating and cooling processes, while the gentle, low-shear mixing action makes it suitable for delicate or heat-sensitive formulations. This tank can be used on products such as Dairy Cream (Single or Double Cream), Yogurt, Chocolate etc. Manufactured in 2025 and never used and available for immediate sale, the tank ensures long-lasting performance and superior corrosion resistance. A technical drawing is available for download below, provided for informational reference only, specifications may vary.

Specification

• Make: Walty Engineering, United Kingdom
• Function: Jacketed Tank with Full Sweep Gate Mixer
• Type: Jacketed Process Mixer

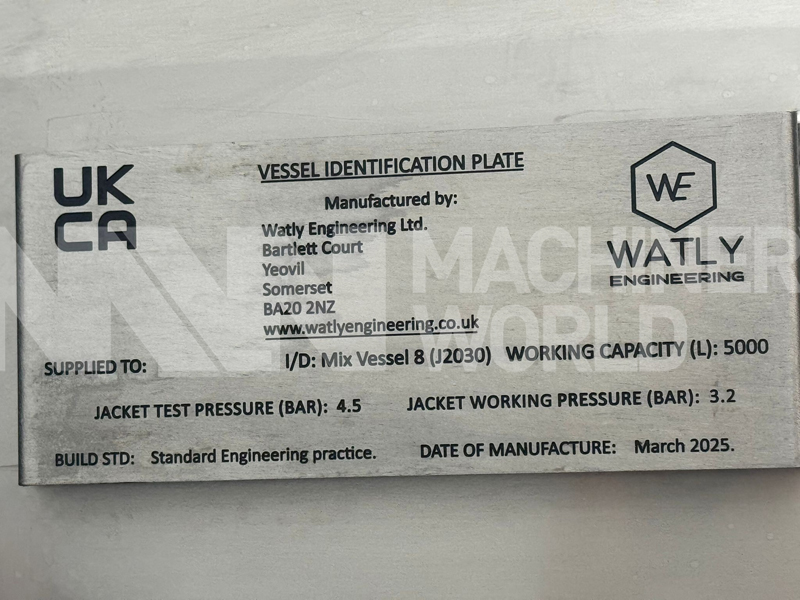

• Identification: Mix Vessel 8 (J2030)
• Year of Manufacture: March 2025
• Working Capacity: Approx 5,000 Litres
• Construction: 316 Grade Stainless Steel Product Contact Parts
• Jacket: Yes Jacketed for Heating (or) Cooling (Depending on the Product & Process)
• Jacket Working Pressure: 3.2 Bar
• Jacketed Area: Sides & Bottom
• Insulation: Yes, Rockwool Insulation

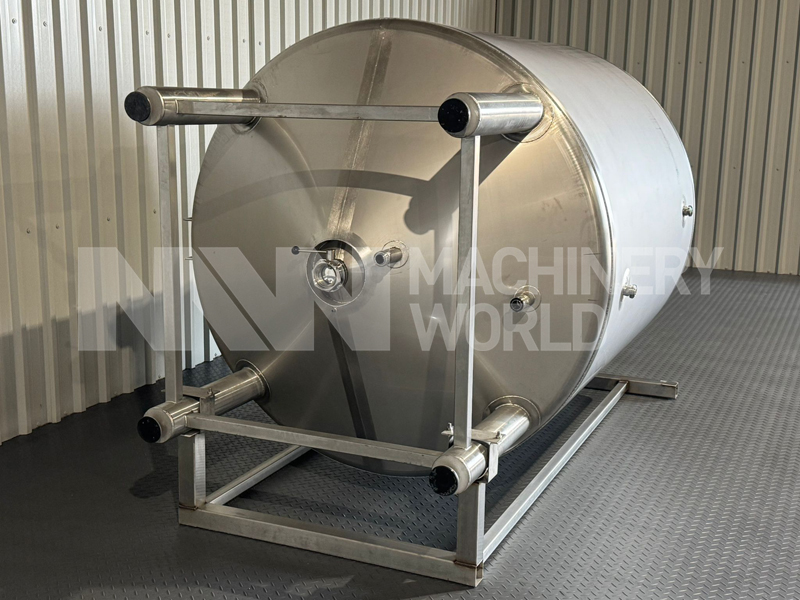

• Supports: 4x Tubular Legs with Adjustable Feet

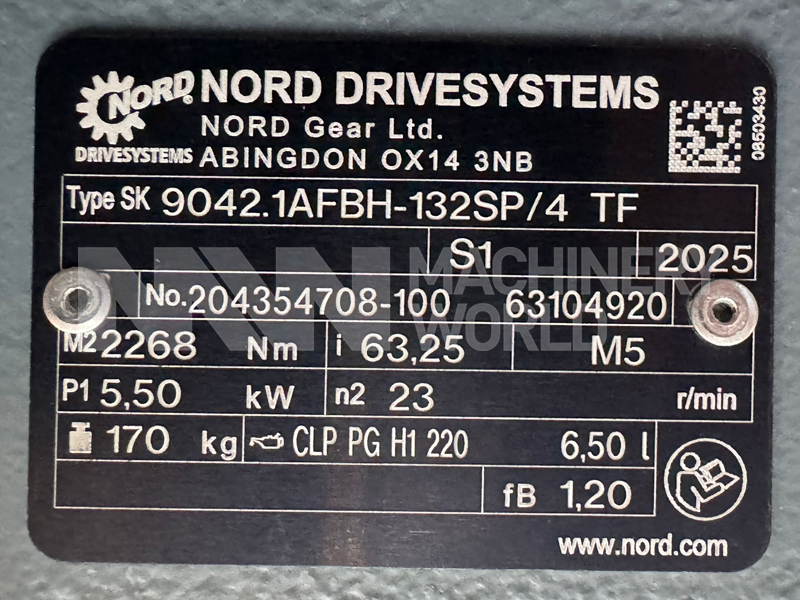

• Mixer
  • Type: Top Entry
  • Model: Slow Speed Gate Type Full Sweep Mixer
  • Mixer Speed: 23 RPM

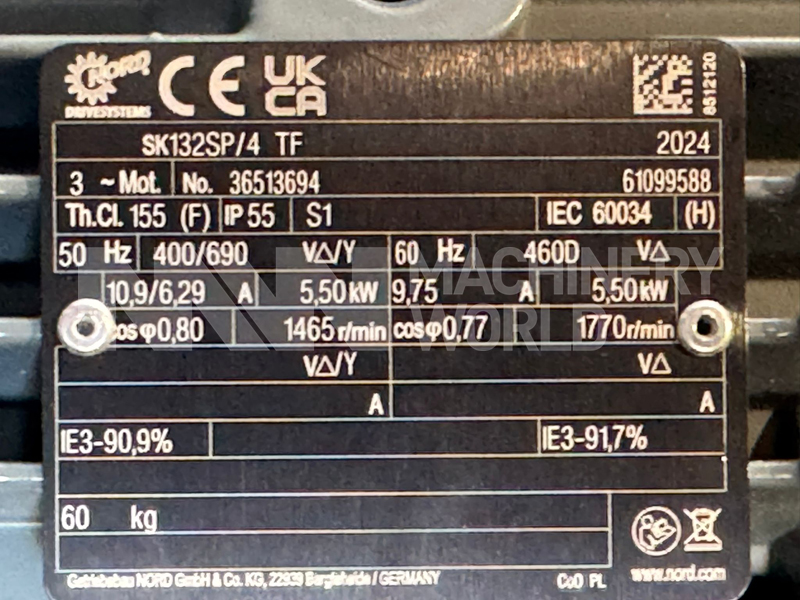

  • Motor Power: 5.5kw 3-Ph.
• Manway: Top Manway with Secured Circular Lid
• CIP: 2x CIP Spray Heads Top Mounted
• Breather Vent on Top with Vent Cap
• Inlet: 2 Inch Anti Foam Inlet
• Outlet: 3 inch
• Height of Outlet from Floor Level: Approx 300mm

Dimensions

• Overall Height: 3550mm
• Outer Diameter: 2200mm

Country of Manufacture

United Kingdom
