5,000 to 10,000 LPH Tetra Pak Homogenizer 30G (250 Bar) Aseptic Homogeniser (Year 2018)

Description

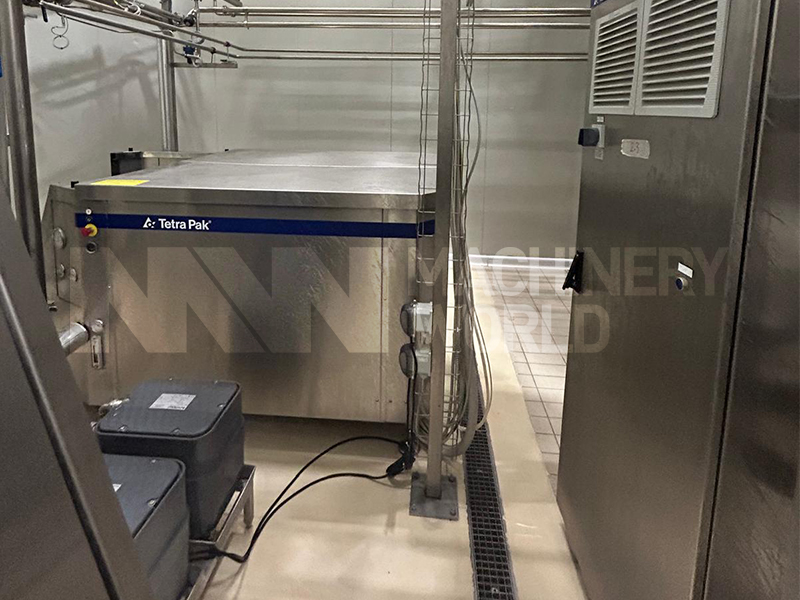

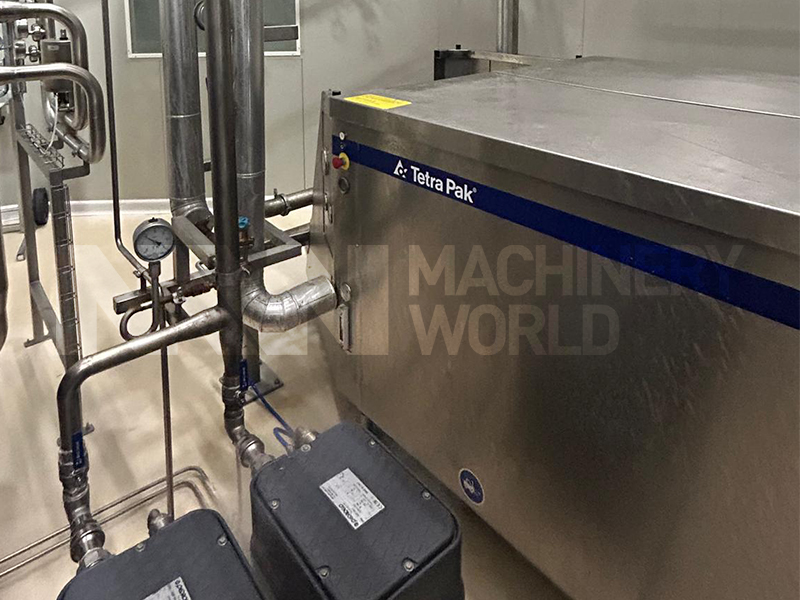

This is a used Tetra Pak Homogenizer 30G Aseptic Homogeniser. This Tetra Pak Homogenizer 30G Aseptic Homogeniser, 2018 year of manufacture has a working capacity of approx 5,000 LPH to 10,000 LP (Variable flowrate via Frequency Controlled Inverter) and operating at a maximum pressure of 250 Bar (3,635 PSI). This Tetra Pak Homogenizer 30G (250 Bar) Aseptic Homogeniser comes with a Control Panel which includes a Frequency Controlled Inverter for speed control. Currently held as stock, this Tetra Pak Homogenizer 30G (250 Bar) Aseptic Homogeniser is available for immediate sale. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Specification

• Manufacturer: Tetra Pak, China
• Model: Tetra Pak Homogenizer 30G
• Function: High Pressure 2 Stage Aseptic Homogeniser

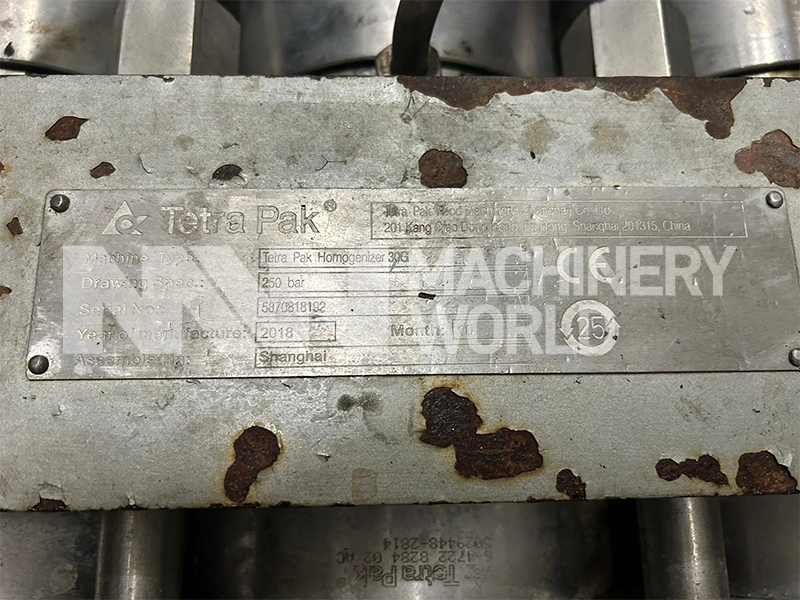

• Serial Number: 5870818192
• Capacity: Approx 5,000 LPH to 10,000 LPH (Variable using Frequency Inverter in the Control Panel)
• Year of Manufacture: 2018
• Max. Working Pressure:250 bar (3,625 PSI)
• Valve Type/Design: Unique TD
• Piston Diameter: 56mm
• Piston Material: Tungsten Carbide
• Drive Motor Power: 90kw
• Number of Stages: Two-Stage (Double Stage) Homogeniser High Pressure Pump
• Steam Pressure: 2-4 Bar
• Steam Consumption: Approx 25 kg per hour
• Electrics: 400V / 50 Hz / 3 Phase
• Finish: Stainless Steel Cladding

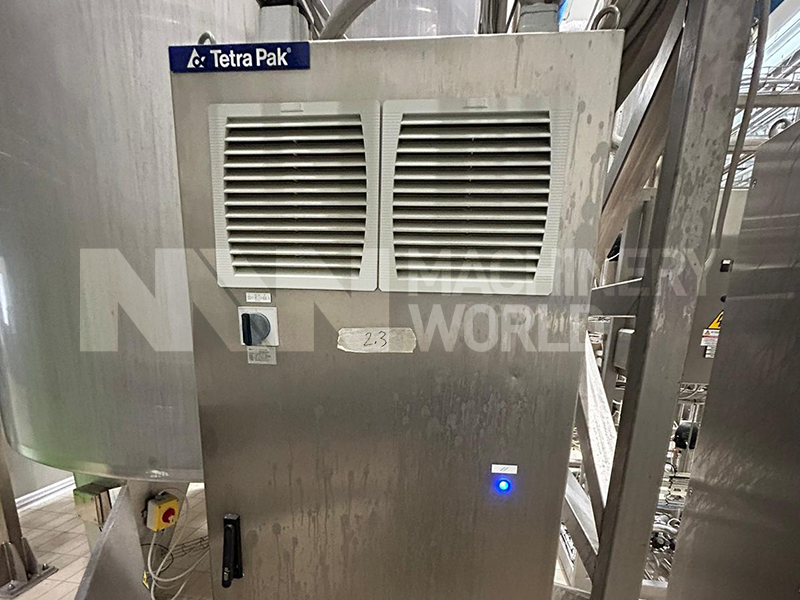

• Includes Control Panel with Frequency Inverter for precise speed control.
• See ‘Technical Doc’ link for further details

Country of Assembly

China
