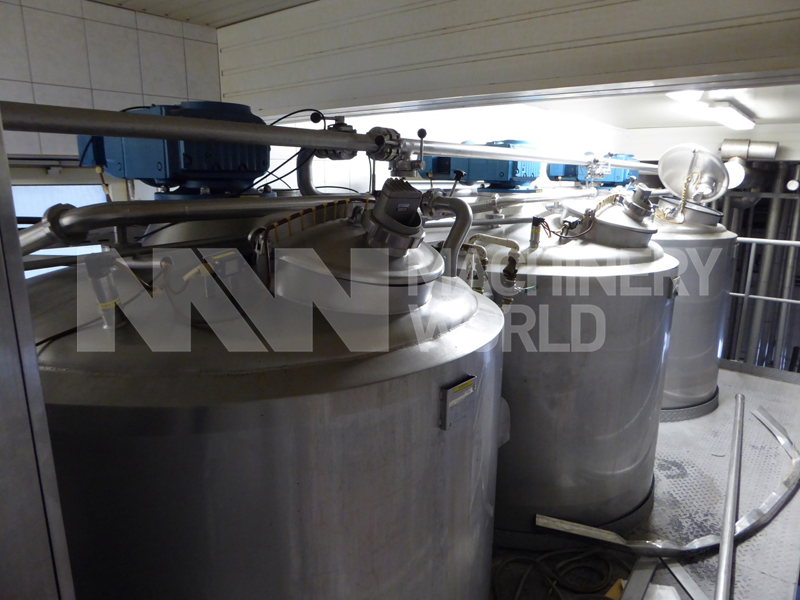

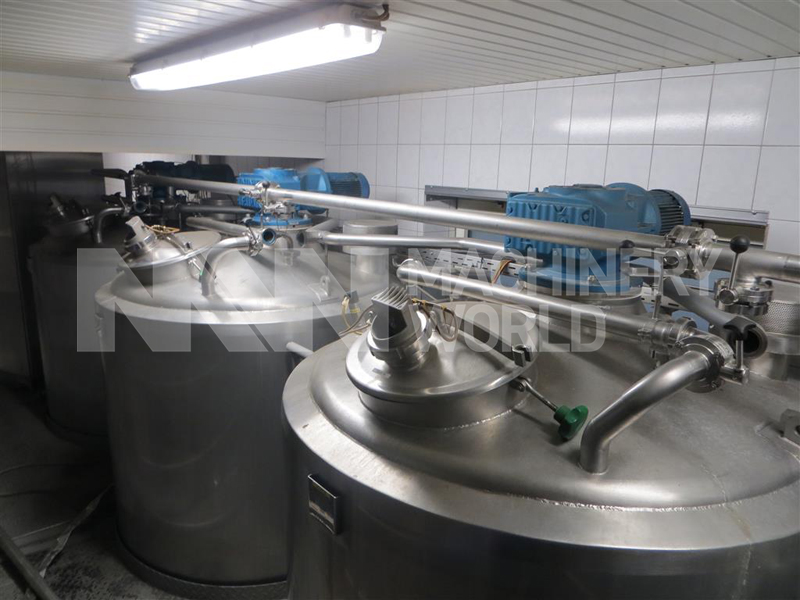

6,000 Ltr Tetra Pak Stainless Steel Jacketed Tank with Multi Stage Mixer – (3x Available In Stock)

Description

This is an Used 6,000 Ltr Tetra Pak Stainless Steel Jacketed Mixing Tank, manufactured in Germany for Tetra Pak. These 6,000 Ltr Tetra Pak Stainless Steel Jacketed Tank come with top mounted Multi Stage Paddle Mixer and currently available for immediate sale.

Features

• Manufacturer: Tetra Pak
• Function: Jacketed Mixing Tanks
• Model: TVI - DJ
• Construction: 304 Grade Stainless Steel

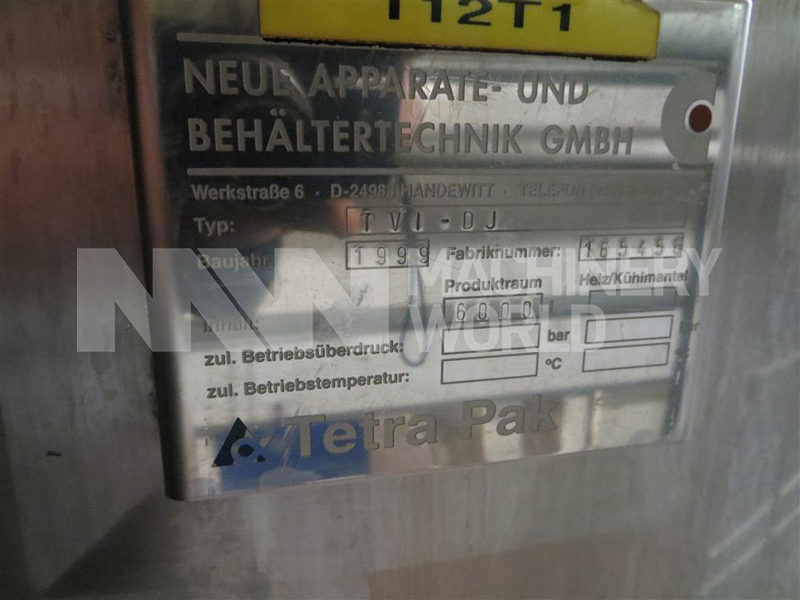

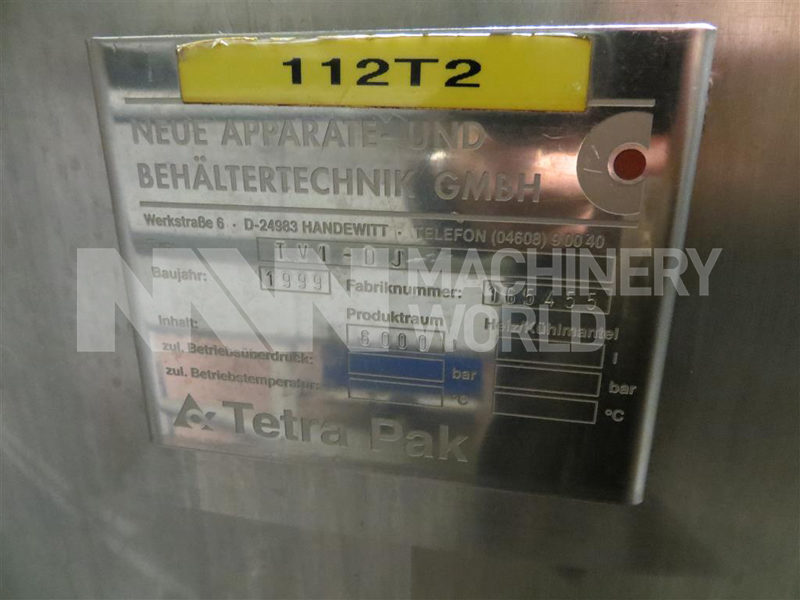

• Serial number: 165454 / 165455 / 165456
• Capacity: 6,000 Litre (Per tank)

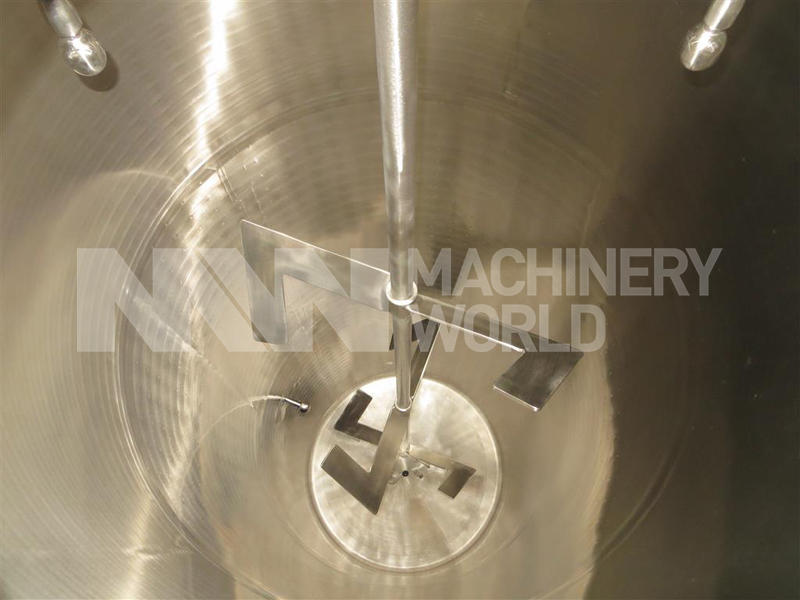

• Agitator-Mixer: Top Mounted Multi Stage Paddle Mixer
• Orientation: Vertical
• Working Pressure (Jacket): 3 Bar
• Max. Working Temperature: 140 deg C
• Supports: Side Supported (To be mounted on Support Gantry)
• Shape: Cylindrical with dished bottom
• Man access: Top manway with standard lid
• CIP Spray Head

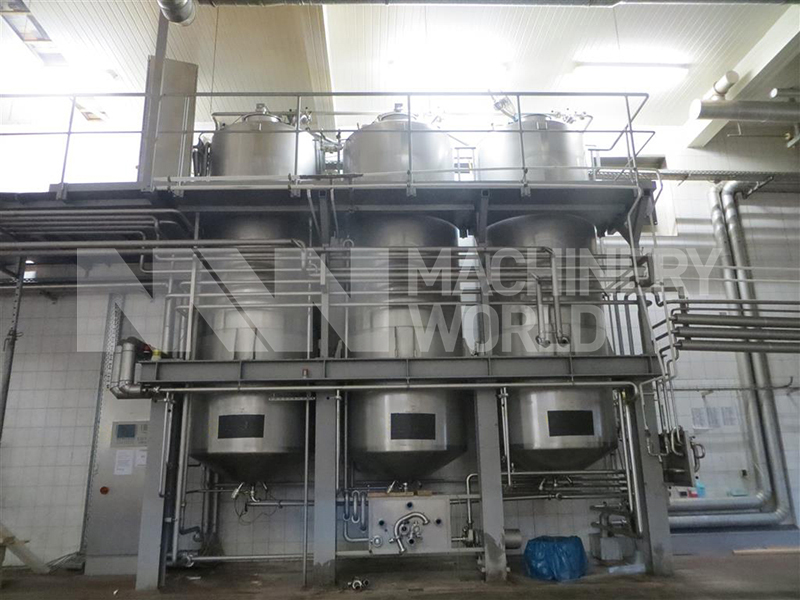

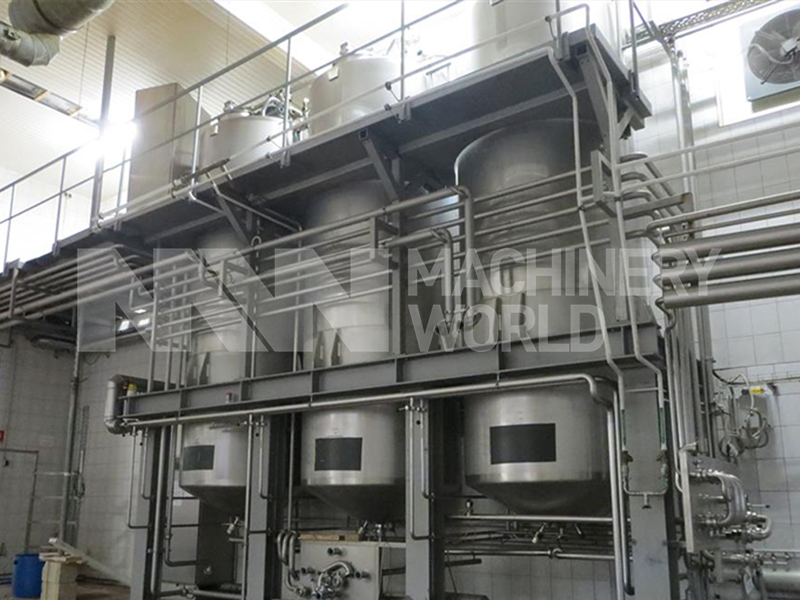

• Note: DOES NOT INCLUDE SUPPORTS SHOWN ON MAIN IMAGE

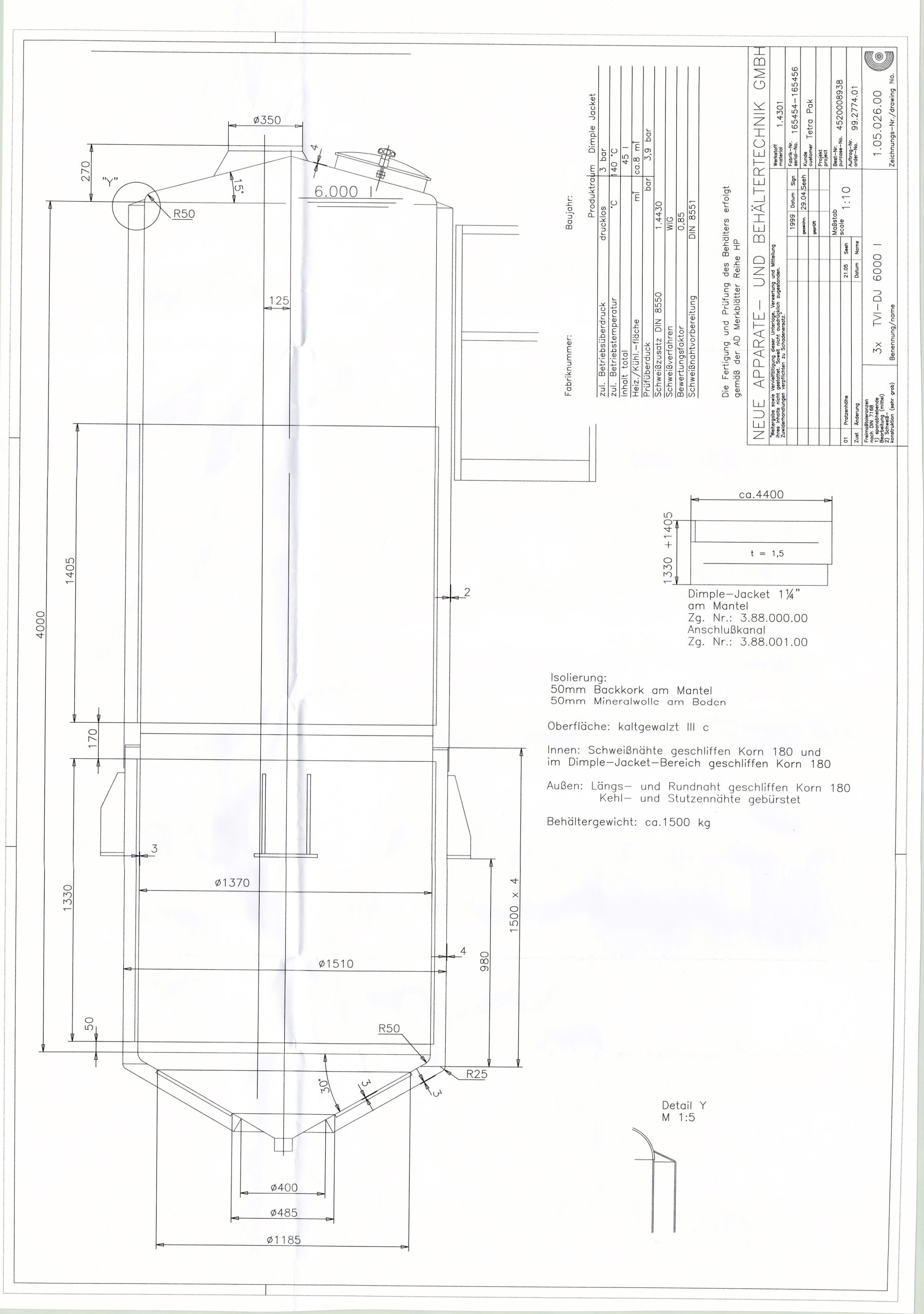

• See 'Technical Doc' link attached

Dimensions

• Diameter: 1510mm
• Overall Height: Approx 5500mm (Overall Height depends on the height of the supports)
• Weight: Approx 1,500kg

Country of Manufacture

Germany
