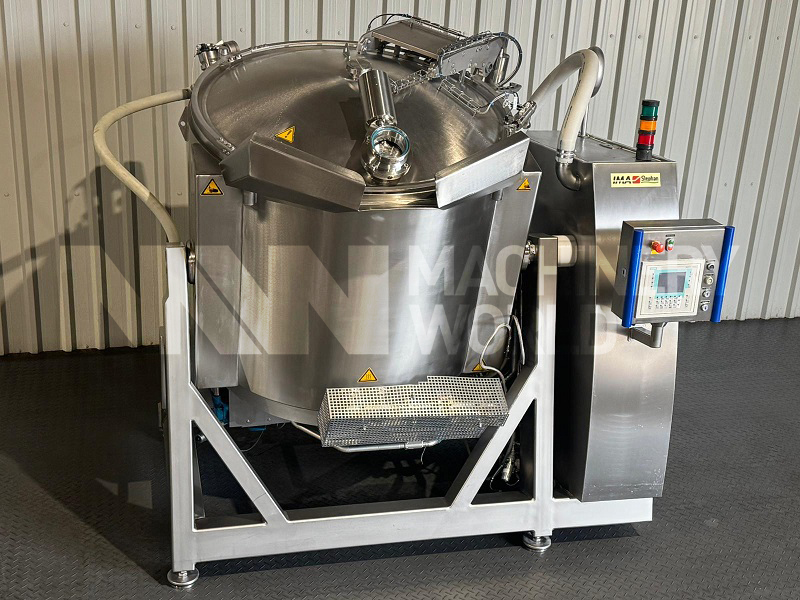

800L Stephan COOK-IT CI800 Direct Steam Jacketed Vacuum Process Mix Tank (Year 2011)

Description

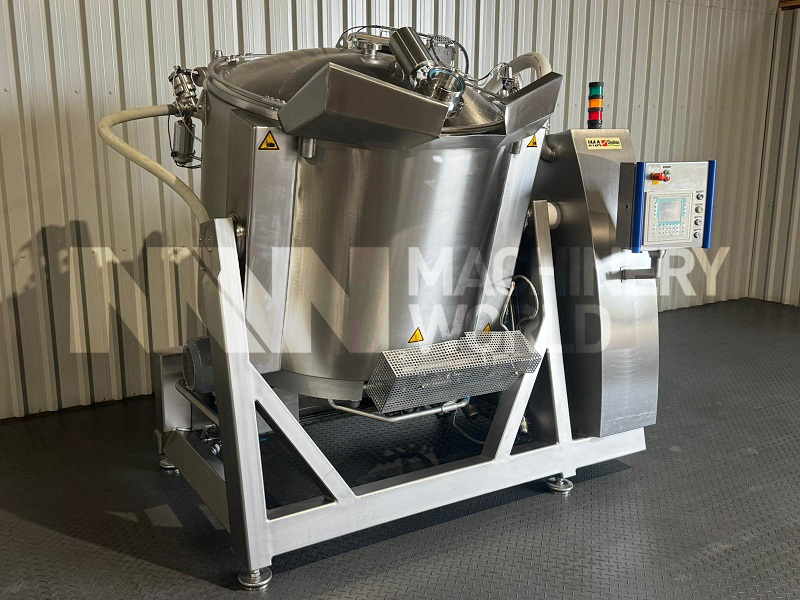

This is a used Stephan Cook-IT CI800 Direct Steam Jacketed Process Mix Tank which has a working batch volume of 800 Litres and is capable of Heating, Mixing, Cooking, Cooling, Heating under Vacuum. The Stephan COOK-IT CI800 serves as a versatile cooker for preparing traditional ready meals, ranging from hearty stews to rich pasta and flavourful rice dishes. Its gentle mixing, cooking, and roasting capabilities result in robust flavours and intriguing textures. The Stephan COOK-IT CI800 is the ideal batch system for applications that necessitate traditional cooking methods. It integrates various production line processes into a single unit. The innovative design of the Stephan COOK-IT CI800 enables mixing, roasting, heating, and cooling within one vessel. Product is heated indirectly through the double jacket or heated via Direct Steam Injection and Cooled using the Double Jacket. The Stephan COOK-IT CI800 offers high temperature surface contact to enable browning, without burns or sticking to side wall, due to the efficient side and bottom scrappers and this can done without oxidation of the product, as this mixer comes with an inbuilt Vacuum  Pump. Please note that ‘Technical Doc’ attachment shown, is for information purpose only and the actual equipment under offer might vary in specification.

Specification

• Make: Stephan Machinery GmbH, Germany
• Machine Type: CI800
• Model: Jacketed Direct Steam Cooking, Mixing, Cooling, Vacuum Mixer

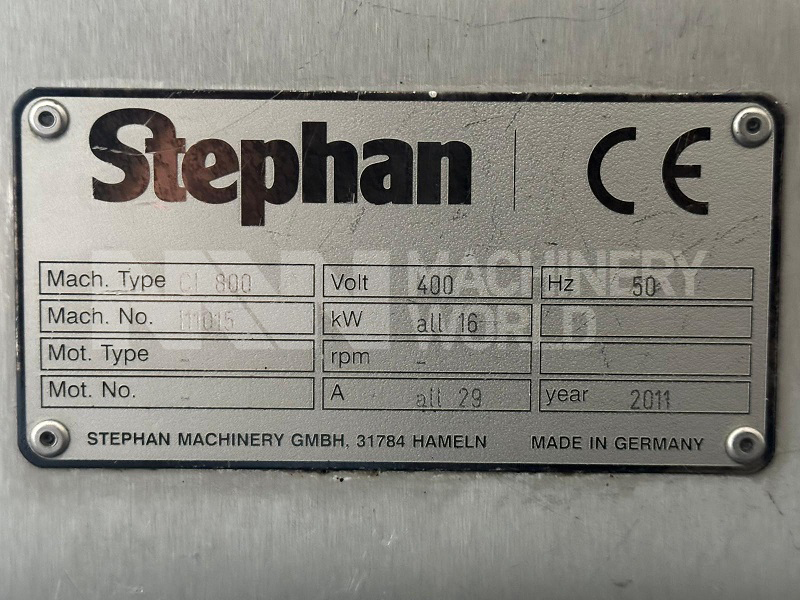

• Machine Number: 111015
• Year of Manufacture: 2011
• Working Volume (Batch Size): 800 Litres
• Orientation: Cylindrical & Inclined
• Jacket: Yes, Double Jacketed
• Heating:
  • Via External Double Jacket
  • Via Direct Steam Injection
• Cooling: Via External Double Jacket

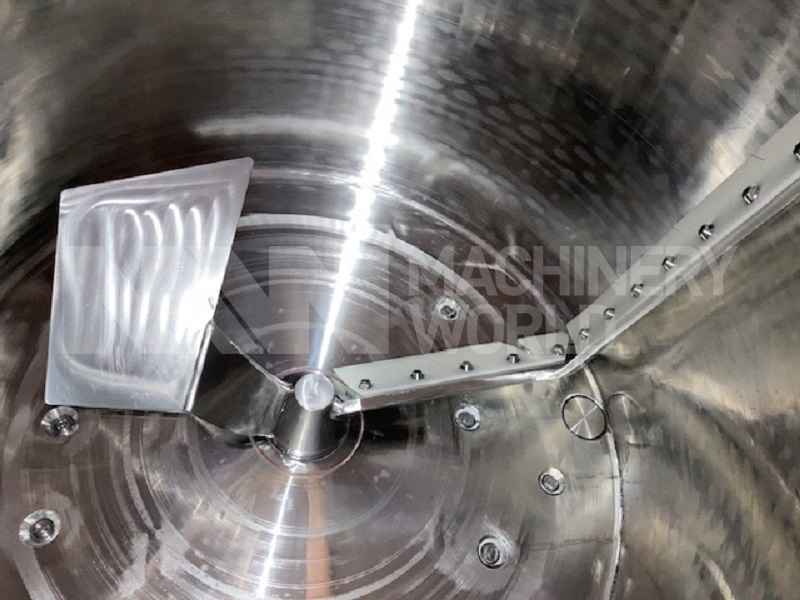

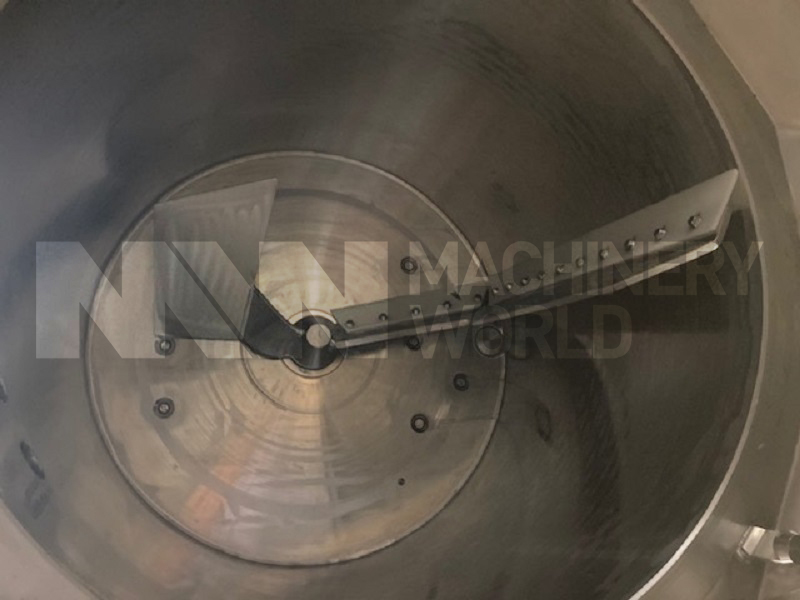

• Mixer: Bottom Mounted Scraped Surface Mixer
• Scraped Area: Bottom & Side Wall
• Vacuum: Yes, Vacuum Capable

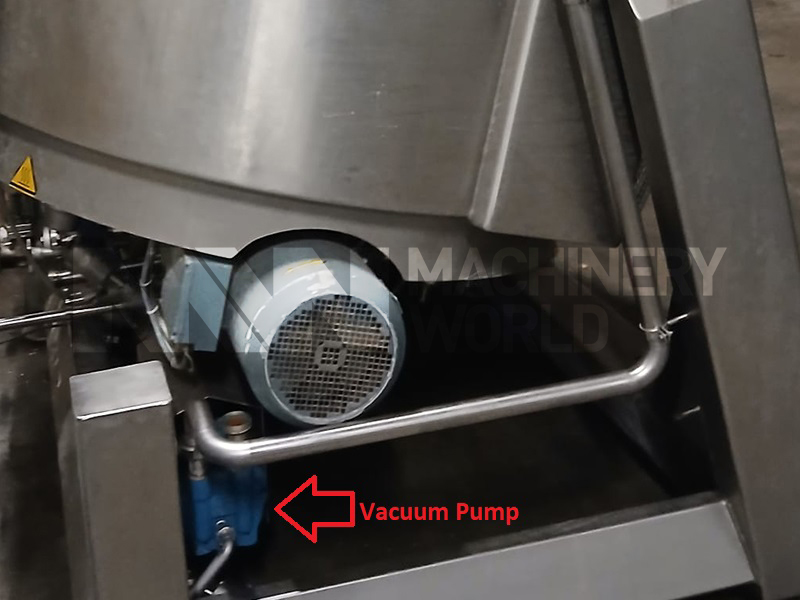

• Vacuum Pump: Comes fully Integrated
• Access: Top with Electrically Operated Lid Assembly
• Total Installed Power: 16kw (Bottom Drive Motor & Vacuum Pump), 400V & 50Hz
• Speed Control: Comes with Frequency Controlled Inverter

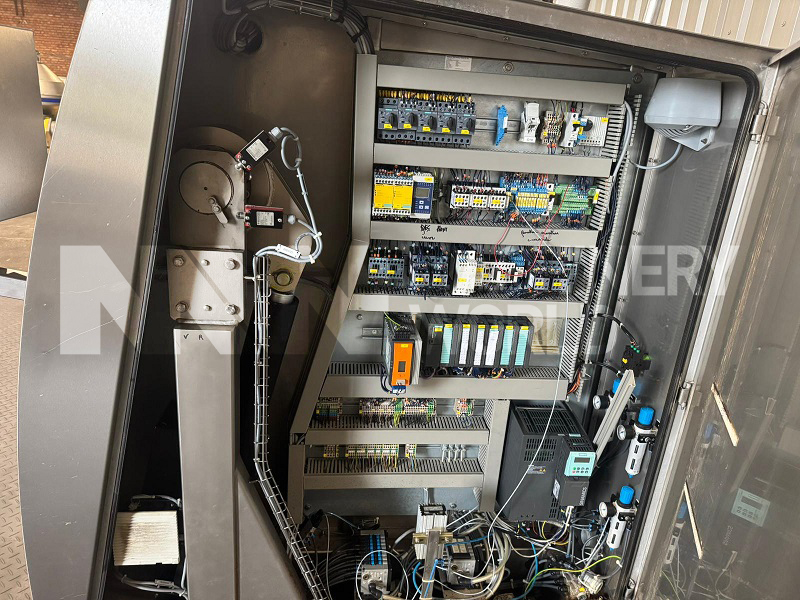

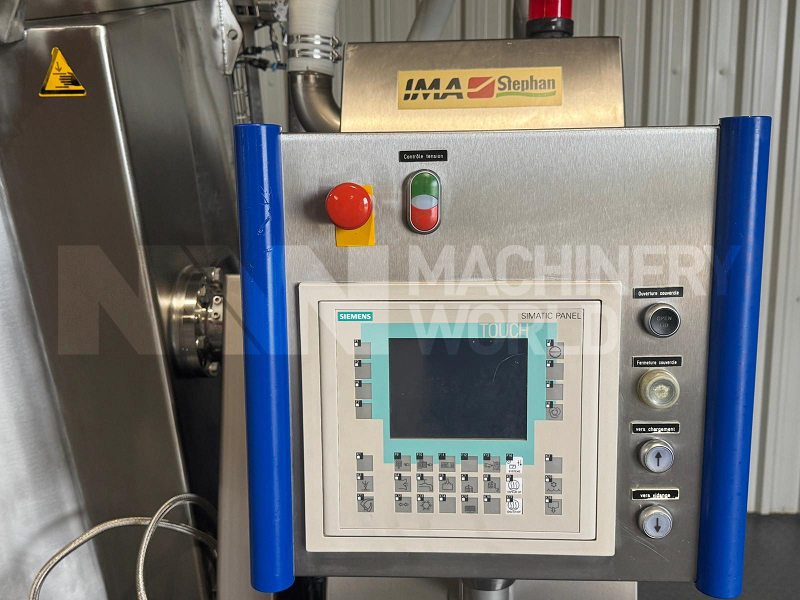

• Control System: Comes fully Integrated with Siemens S7 PLC with Siemens SIMANTIC Panel

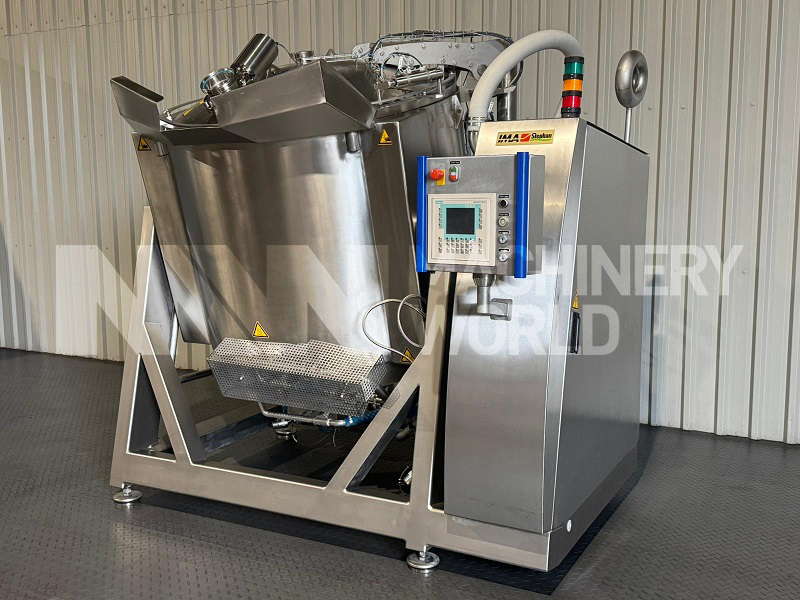

• Emptying: Mixer is Tiltable with a Pouring Spout

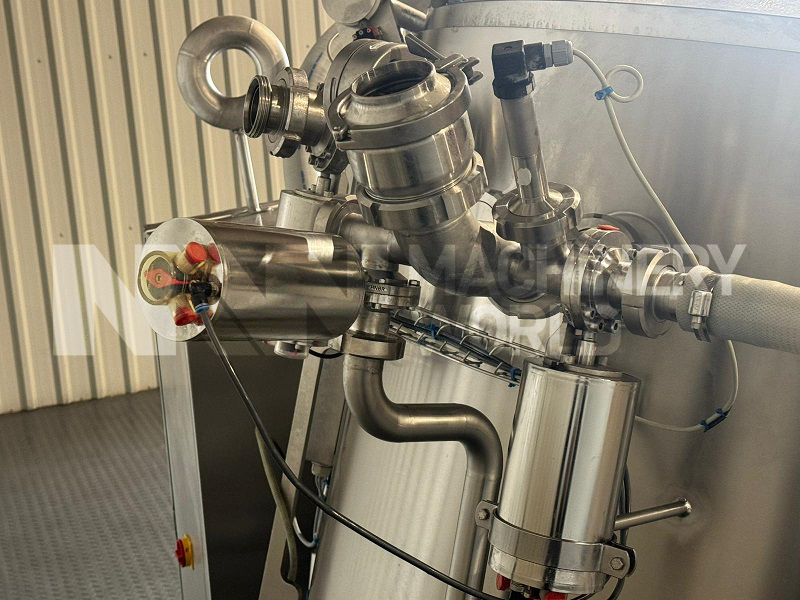

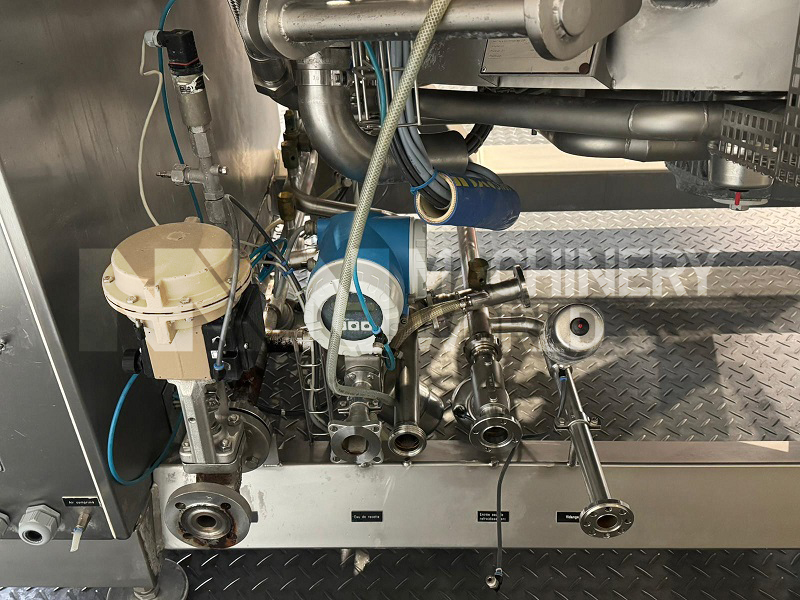

• Additional Information: Comes with Endress & Hauser Flowmeter, Regulating Valves etc.
• Support: Complete Stephan COOK-IT CI800 comes fully mounted on a Stainless Steel Skid.
• Not Included: Bin Lifter

Country of Manufacture

Germany
