Description

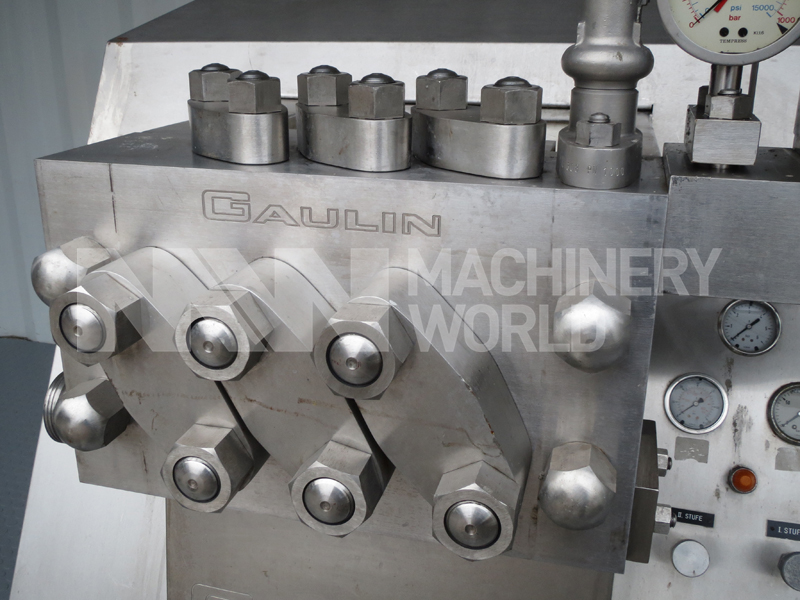

An APV Gaulin MC15-8TBS machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.

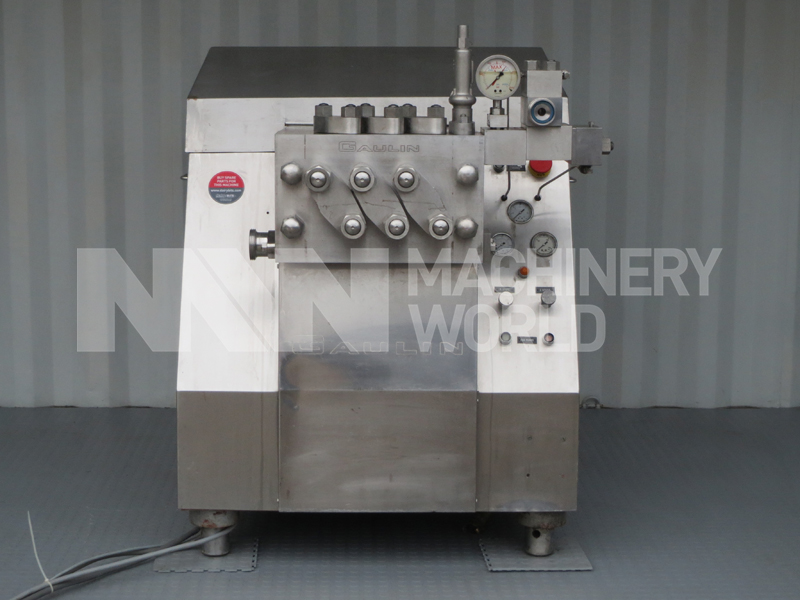

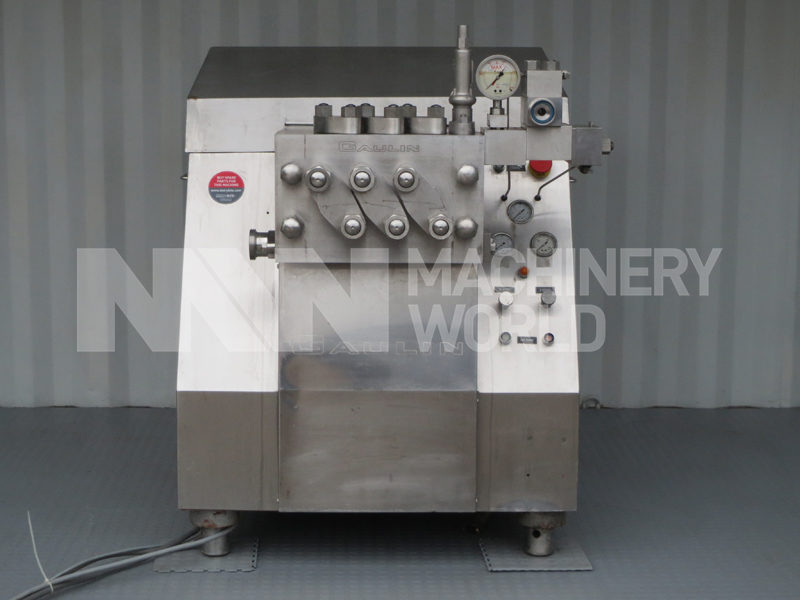

This is a Used 2,000 LPH APV Gaulin Type MC15-8TBS Homogeniser which is a ball valve machine & has a max. working pressure of 8000 psi (550 bar).
Features
- Manufacturer: APV Gaulin
- Model: MC15-8TBS

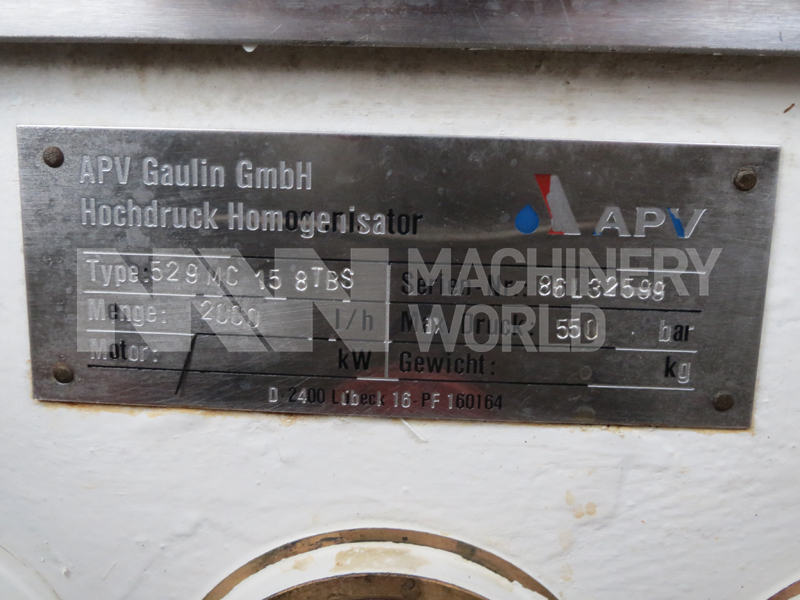

- Serial Number: 86L32599
- Function: Homogeniser
- Capacity: 2.000 litres/per hour
- Year of manufacture: 1986

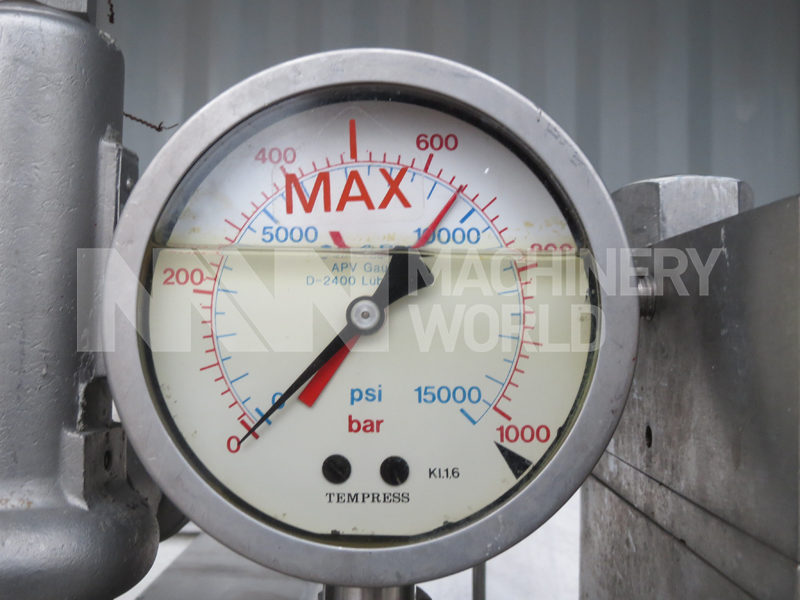

- Max. working pressure: 550 bar (8000 PSI)
- Valve design: Ball
- Number of stages: 2-Stage
- Electrics: 380V / 3Phase / 50Hz
- Finish: Stainless steel covers
- Instruction manual included
Dimensions
- Depth: 180 cms
- Width: 120 cms
- Height: 140 cms
- Weight: 2500 kgs
Country of Manufacture
Germany
