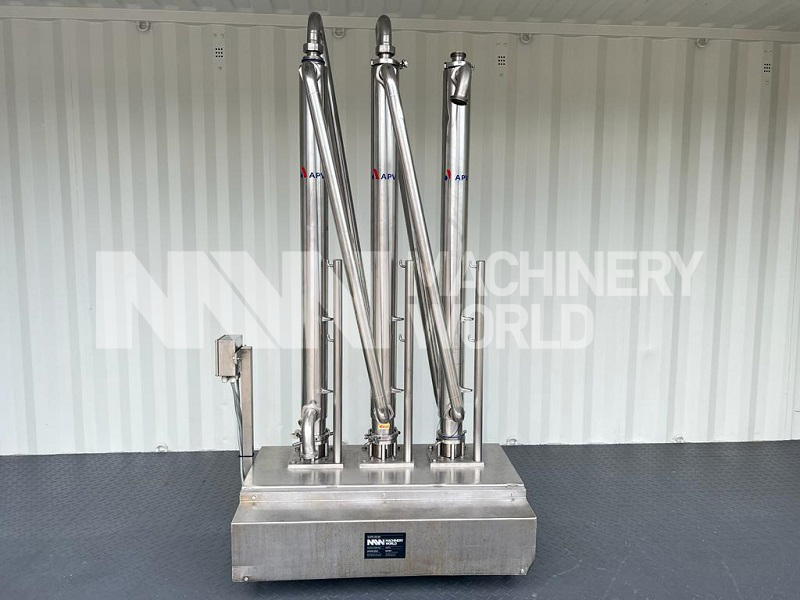

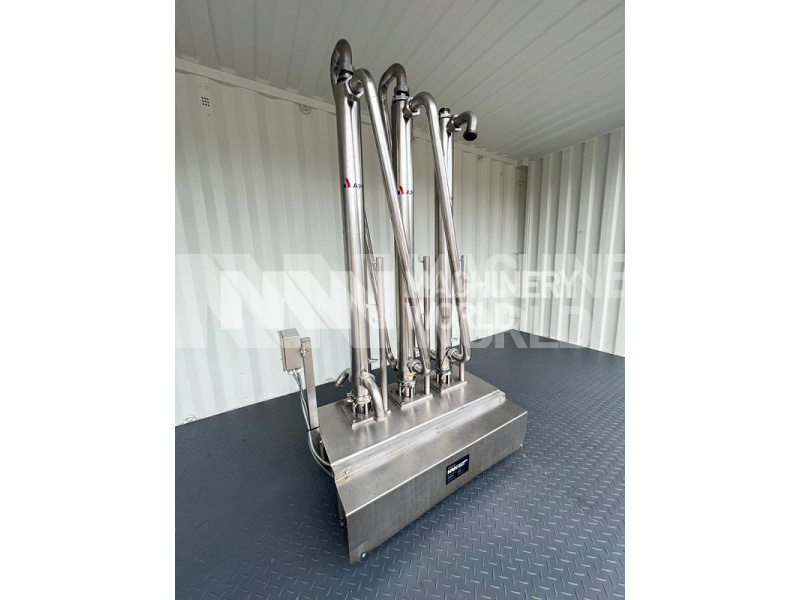

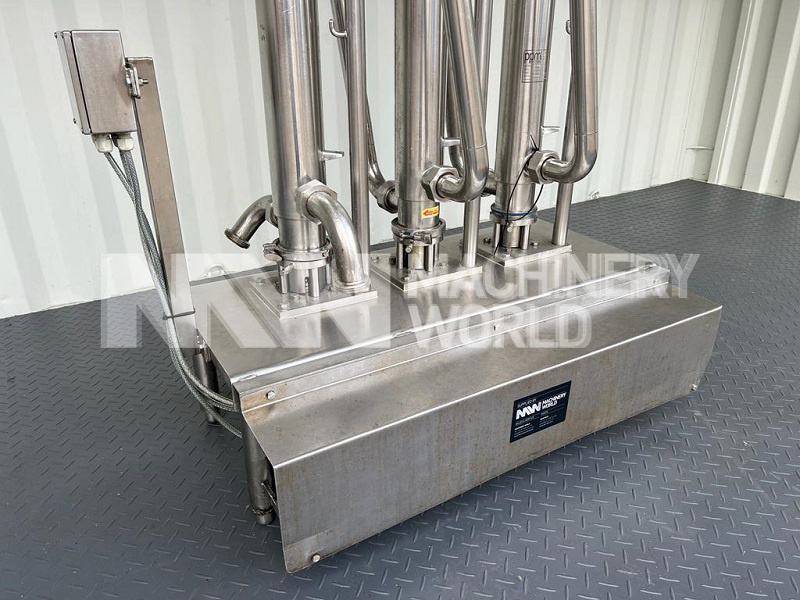

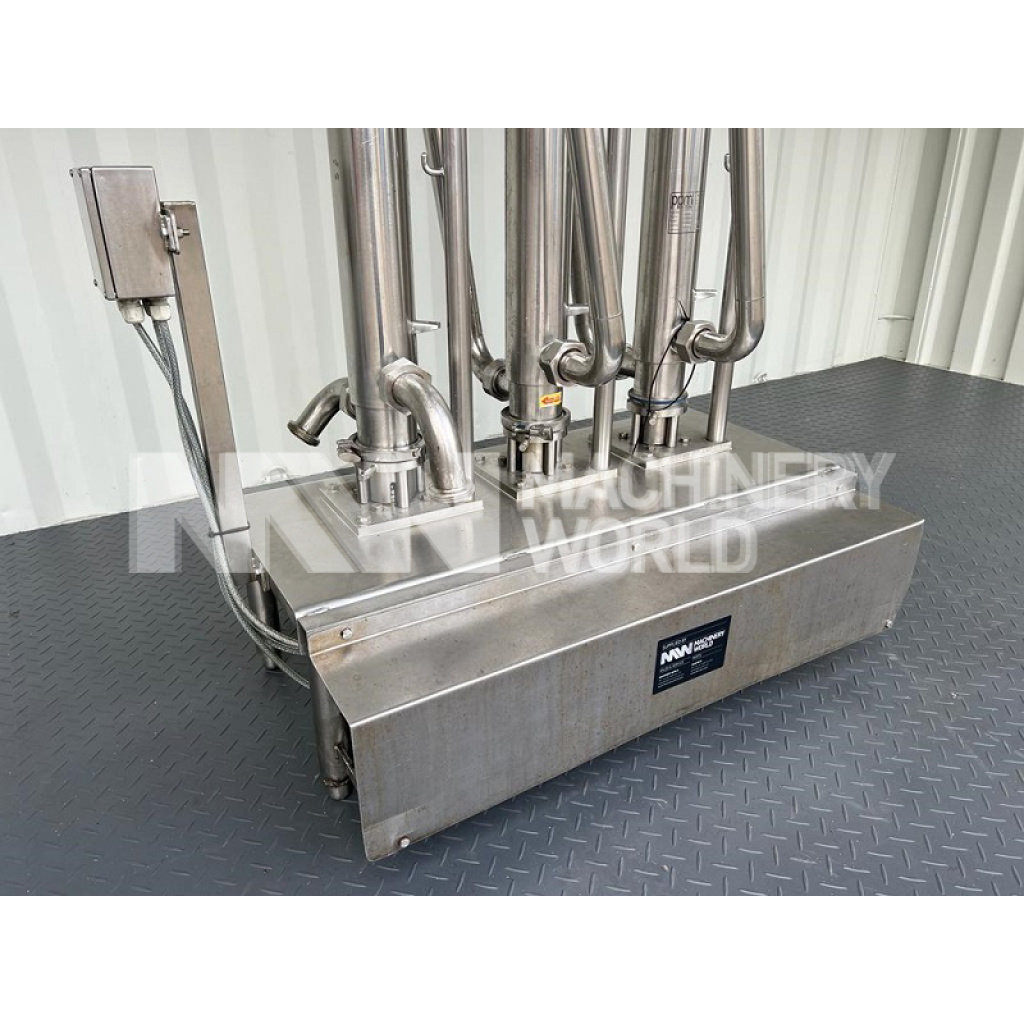

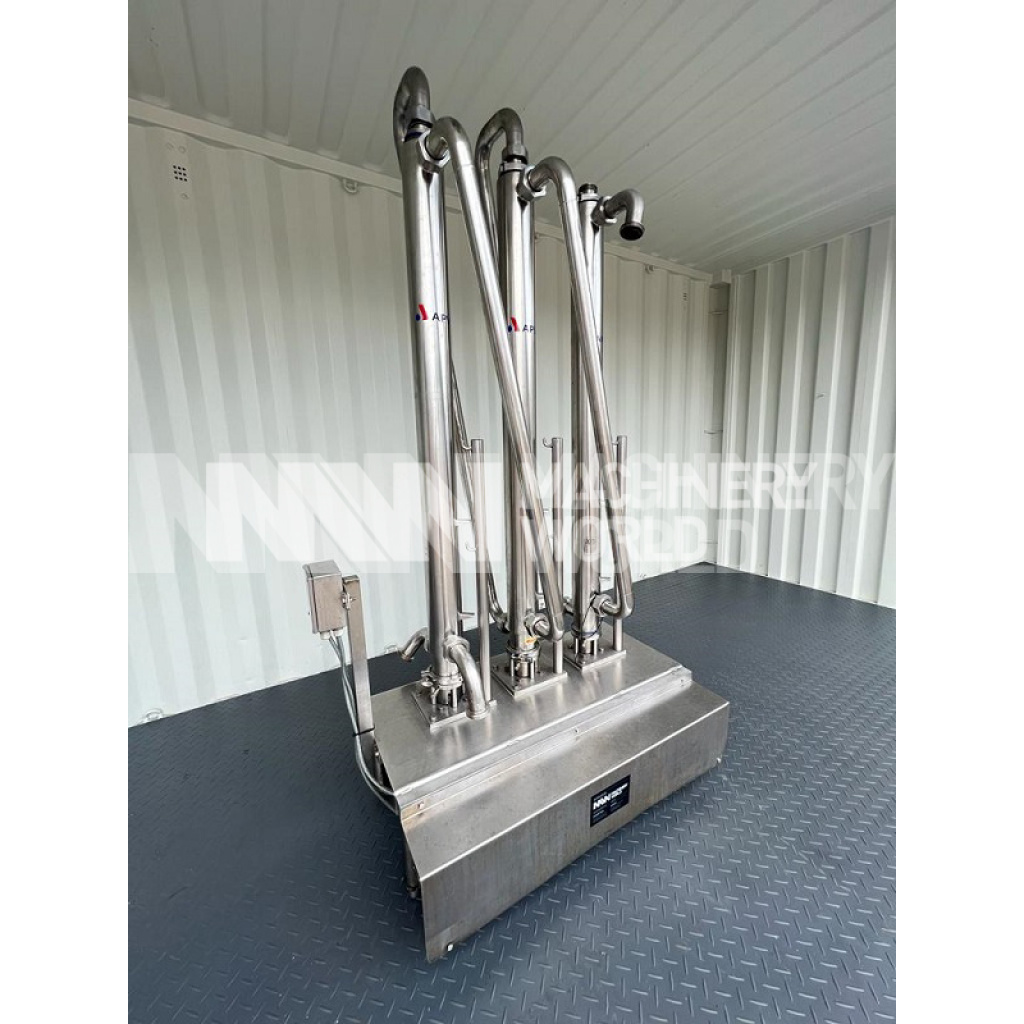

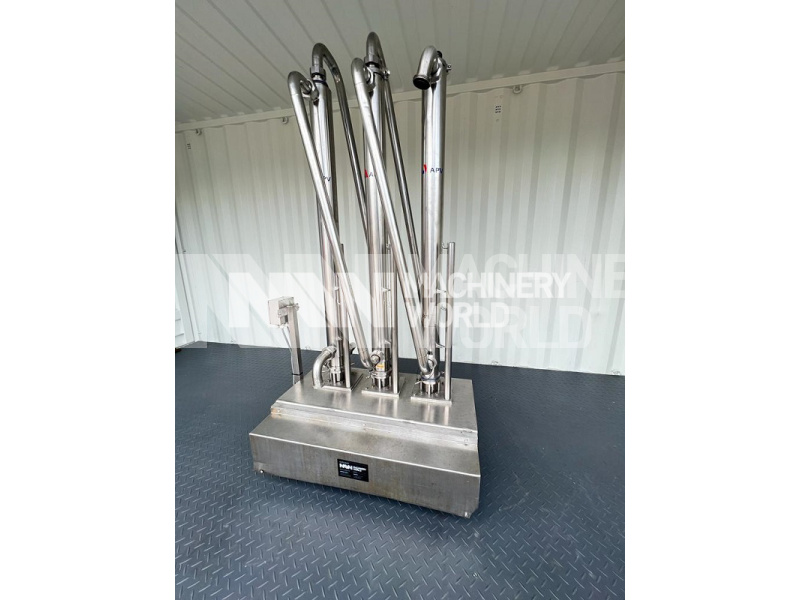

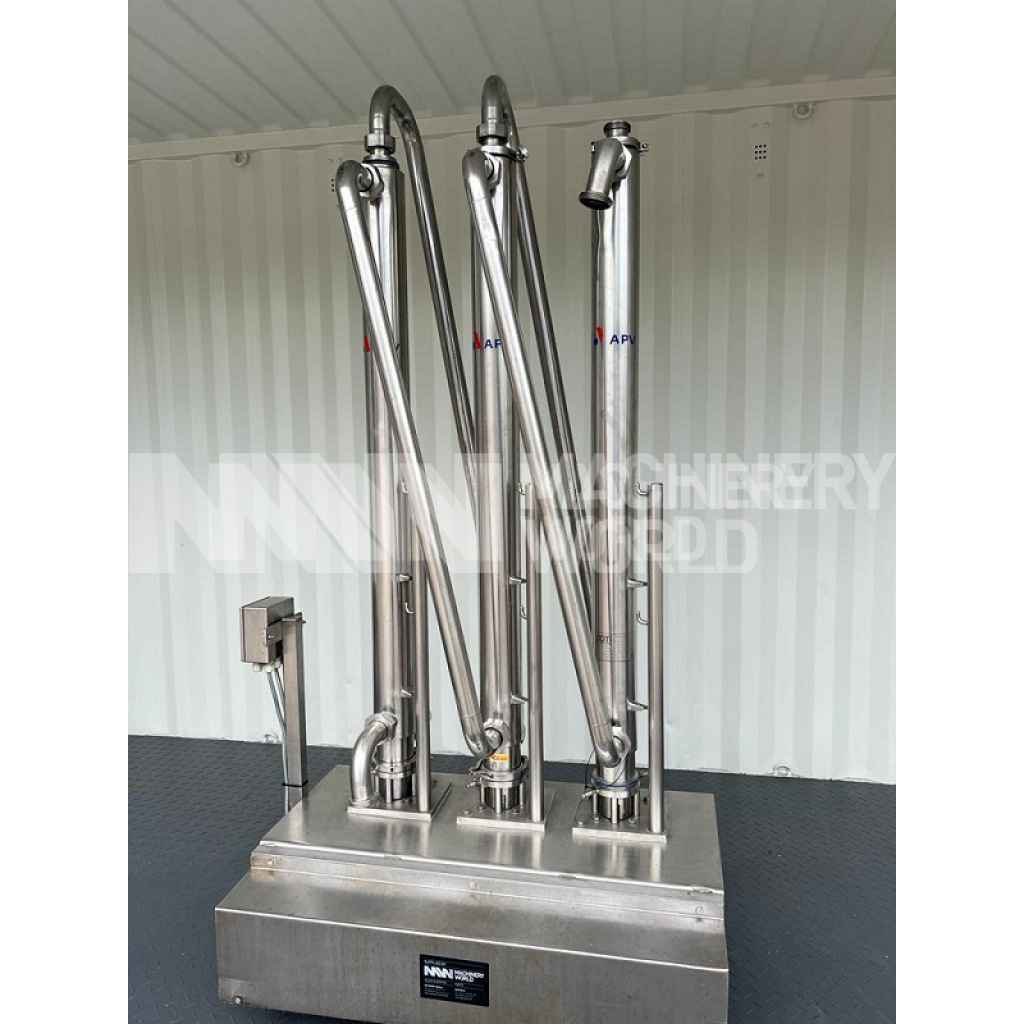

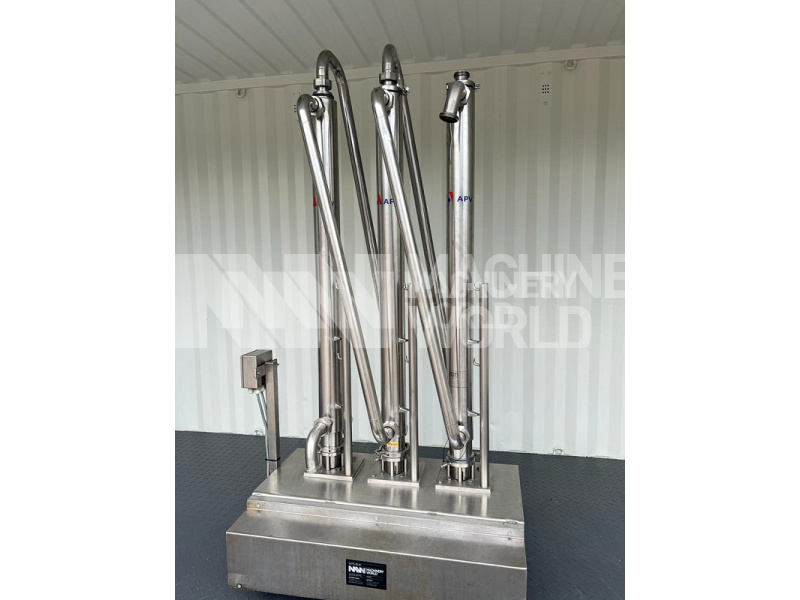

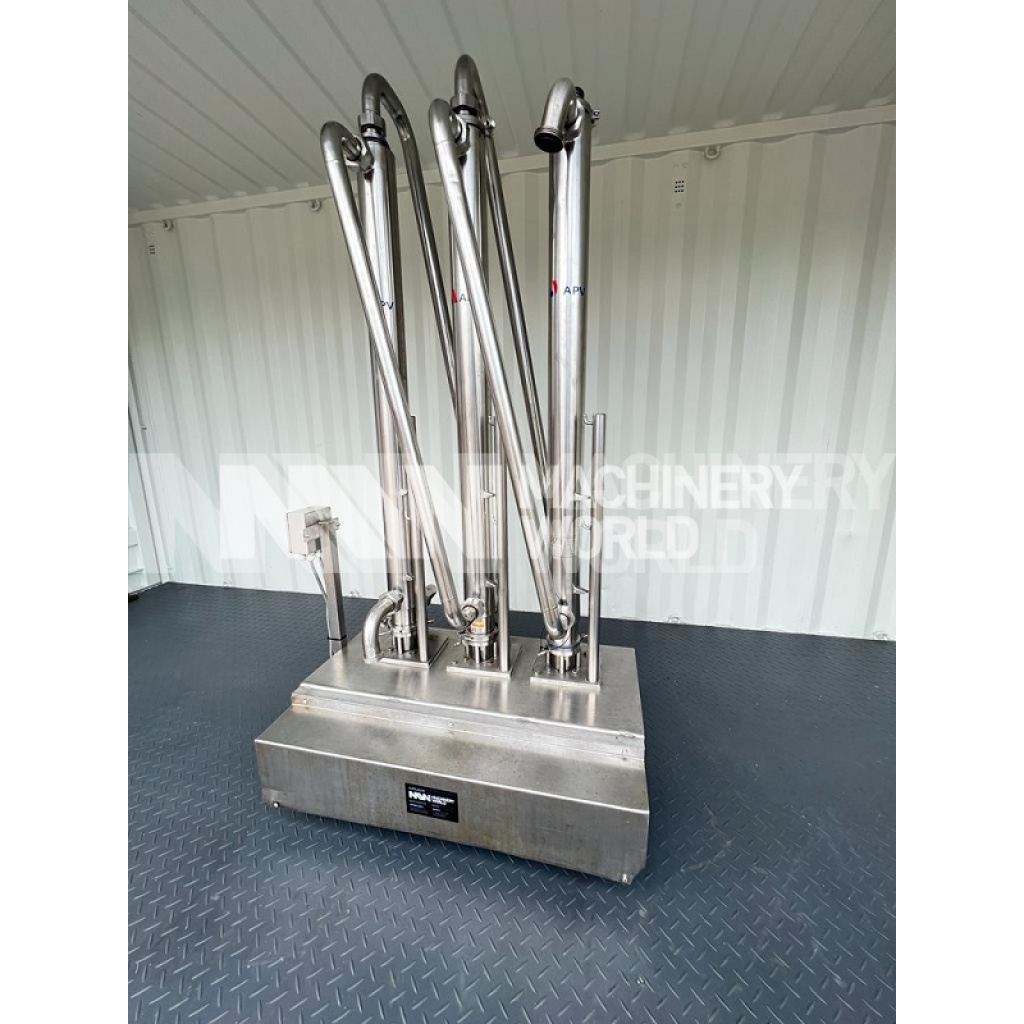

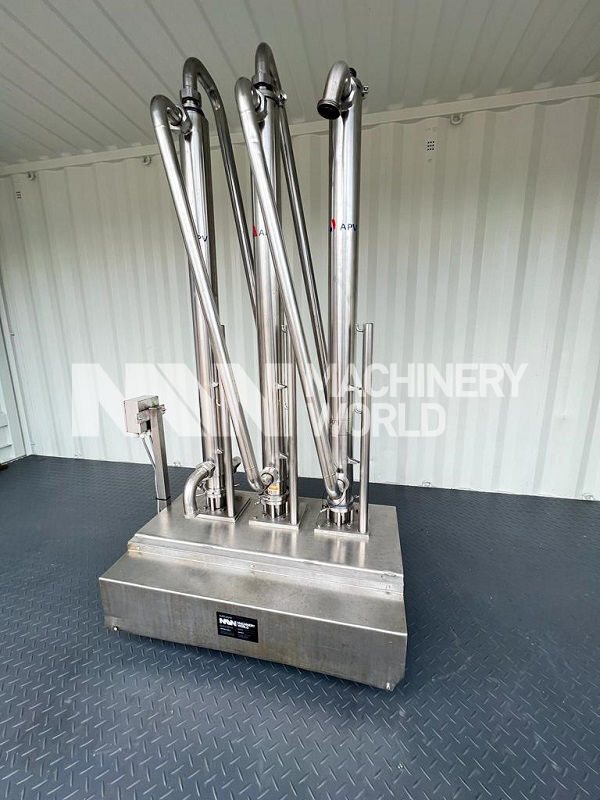

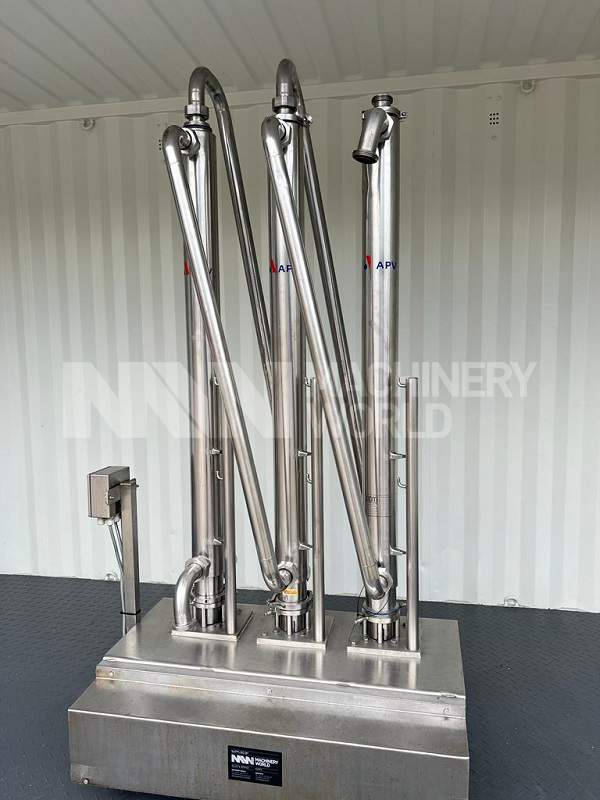

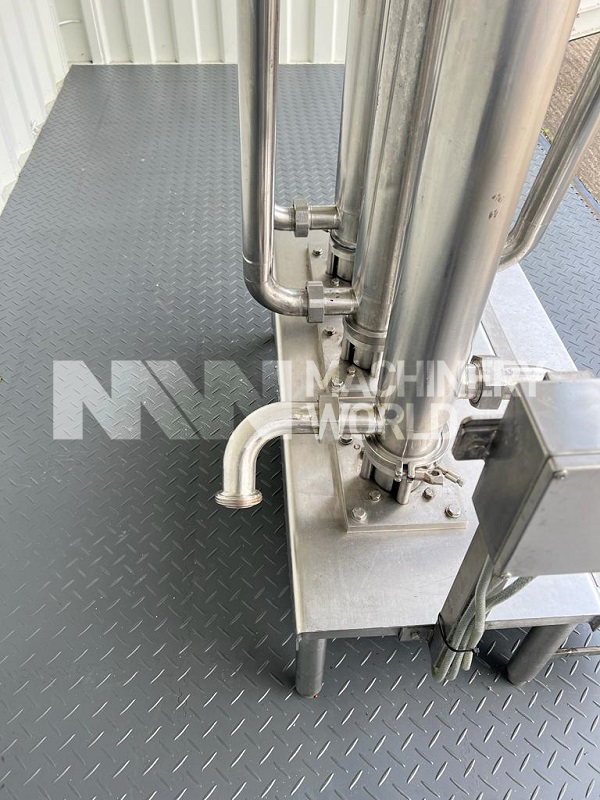

APV SSHE 3VT460 Scraped Surface Heat Exchanger

Description

This is an used APV VT 460 Scraped Surface Heat Exchanger. These APV VT+460 Scraped Surface Heat Exchangers are widely used in the food & dairy processing industries and their main purpose includes heating, pasteurising, sterilising, cooling products and they can handle low, medium to high viscous products with particles upto 30mm. They have very high temperature handling capabilities and can also be used for crystalisation, whipping and heat sensitive products.

Specification

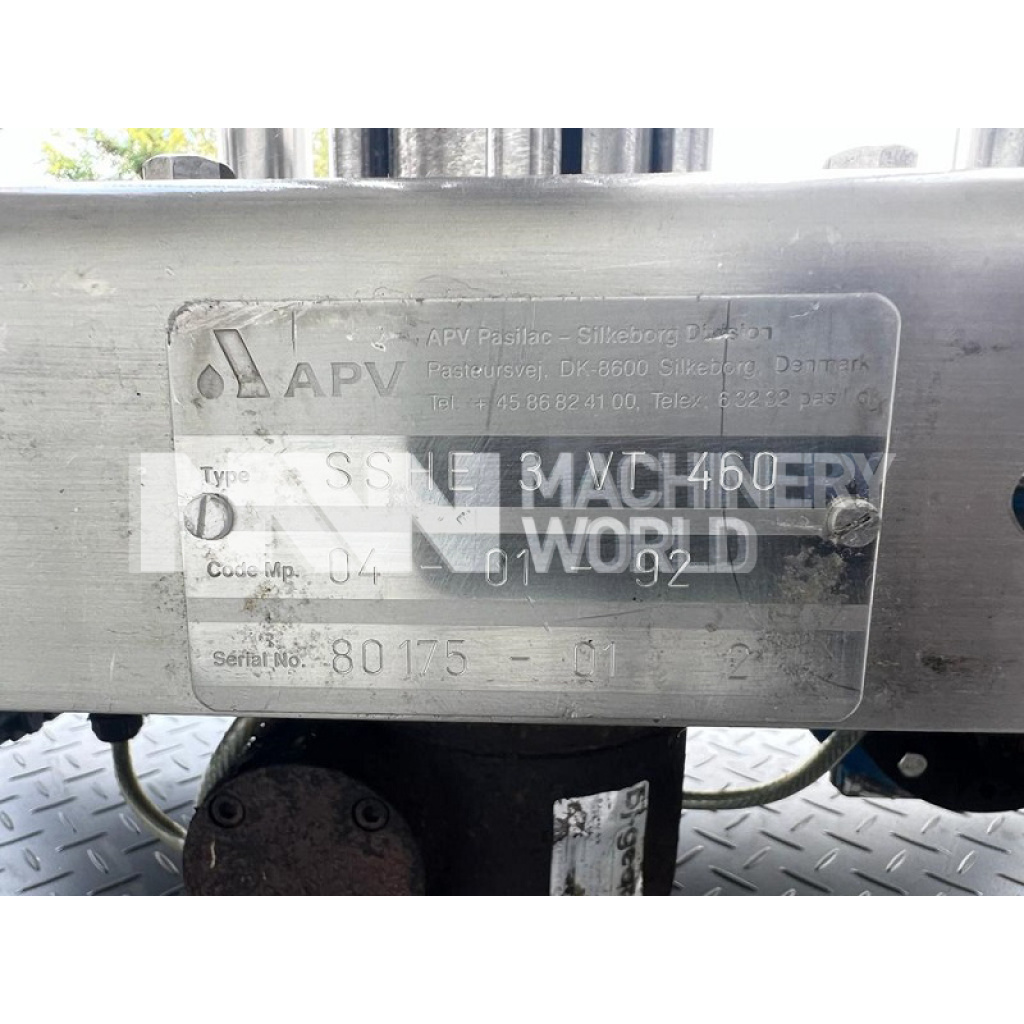

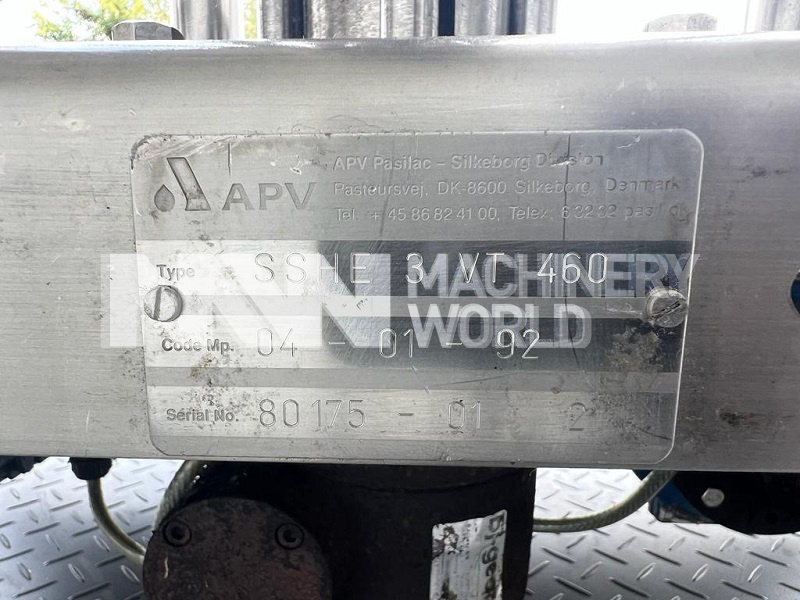

• Make: APV Pasilac-Silkeborg, Denmark
• Type: SSHE 3VT 460
• Model: Scraped Surface Heat Exchanger
• Serial No: 80175-01
• Number of Cylinders: 3x Cylinders
• Heat Exchanger Surface Area: 0.44 sq M per Cylinder

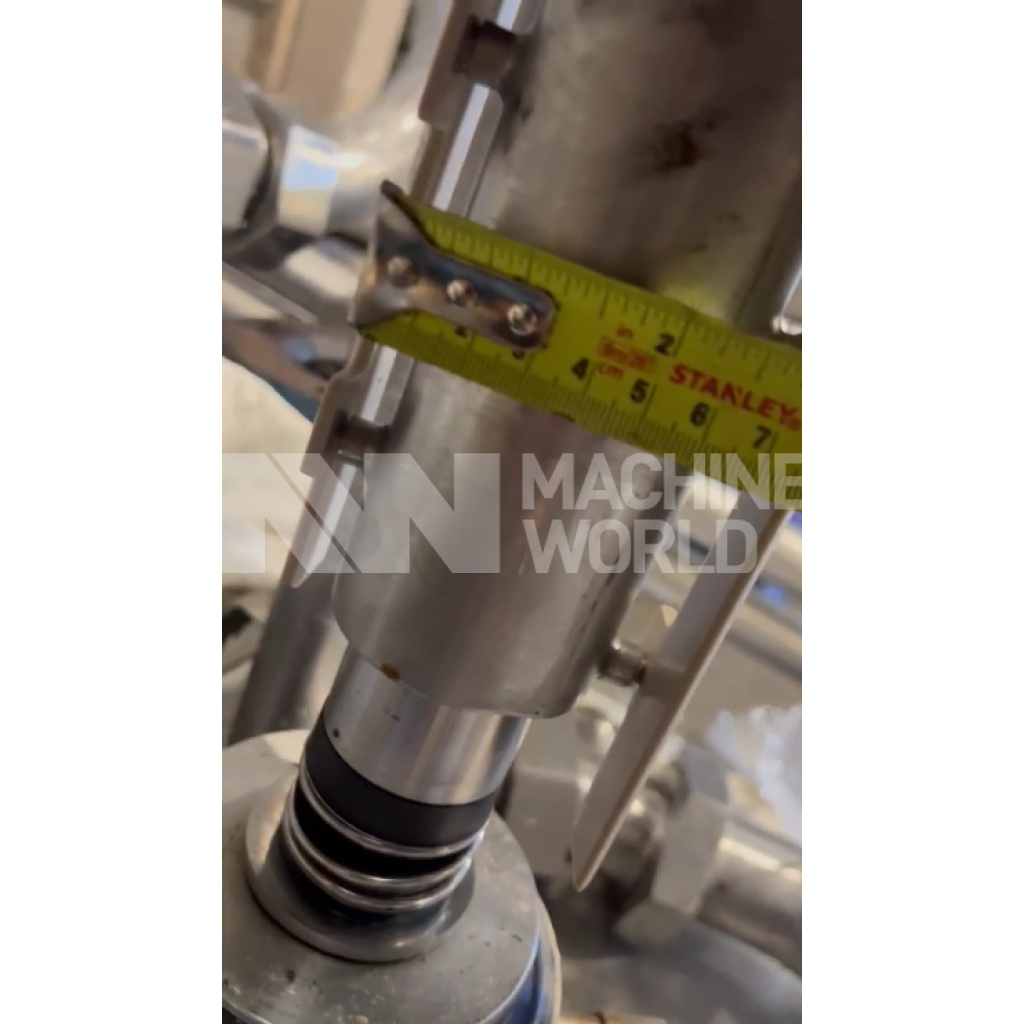

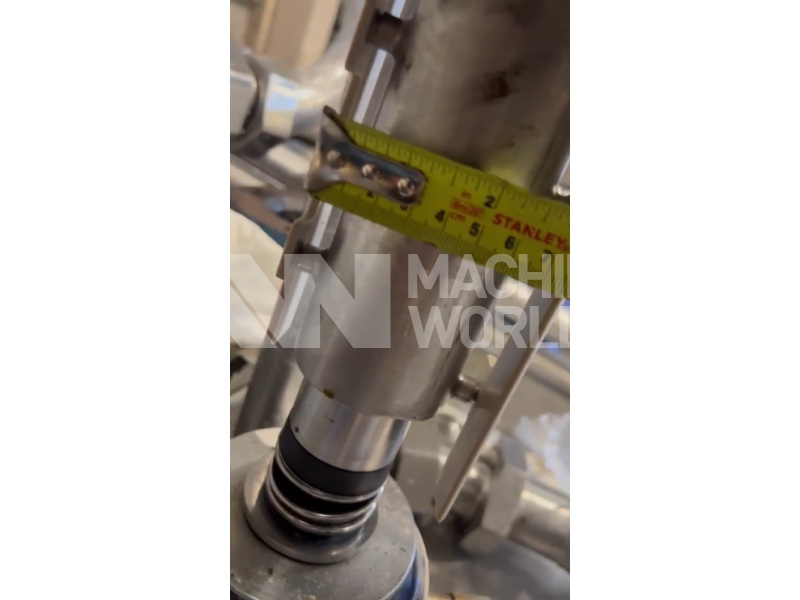

• Diameter of Dasher: Approx 60mm
• Max Product Pressure (Low Displacement Dasher): 16 bar
• Maximum Temperature: 150 deg C
• Nett Volume in Cylinder: Approx 7 Litre

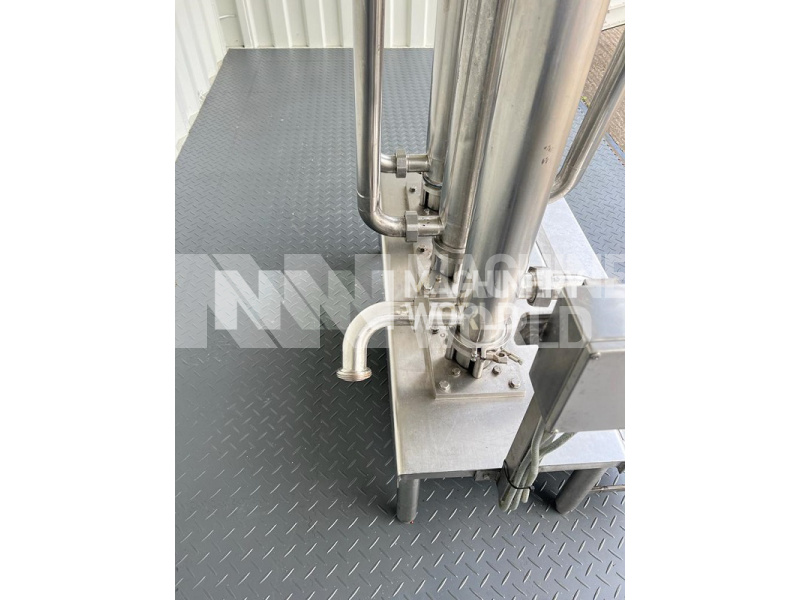

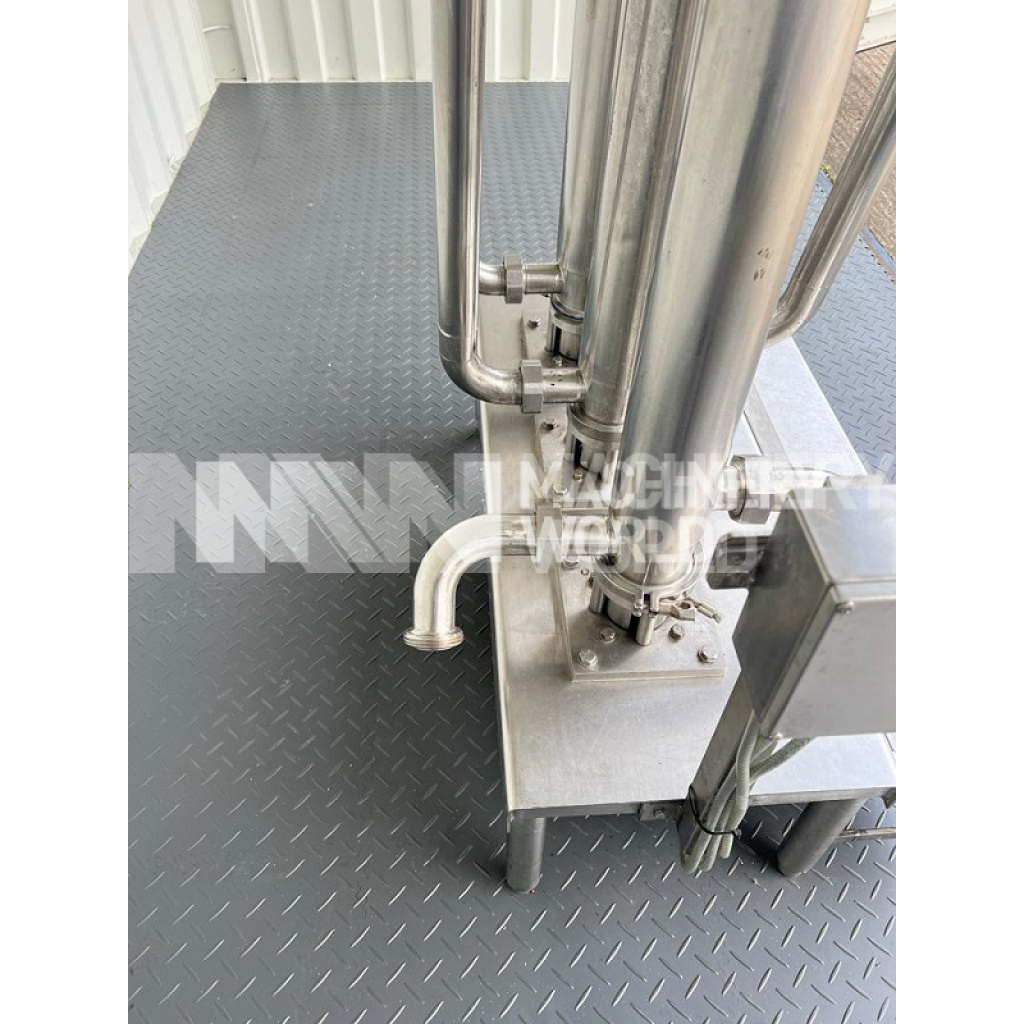

• Product Inlet & Outlet Connection Size: 2 Inch
• Heating or Cooling Media Max Pressure: 10 Bar
• Heating or Cooling Media Recommended Flow: Approx 5,000 LPH
• Drive Motor Power: 2.2kw per Cylinder (6.6kw Total)

Dimensions

• Overall Length: 1250mm
• Overall Width: 650mm
• Overall Height: 2250mm
• Height to Product Inlet from Floor Level: 2060mm
• Height to Media Inlet from Floor Level: 1830mm

Country of Manufacture

Denmark
