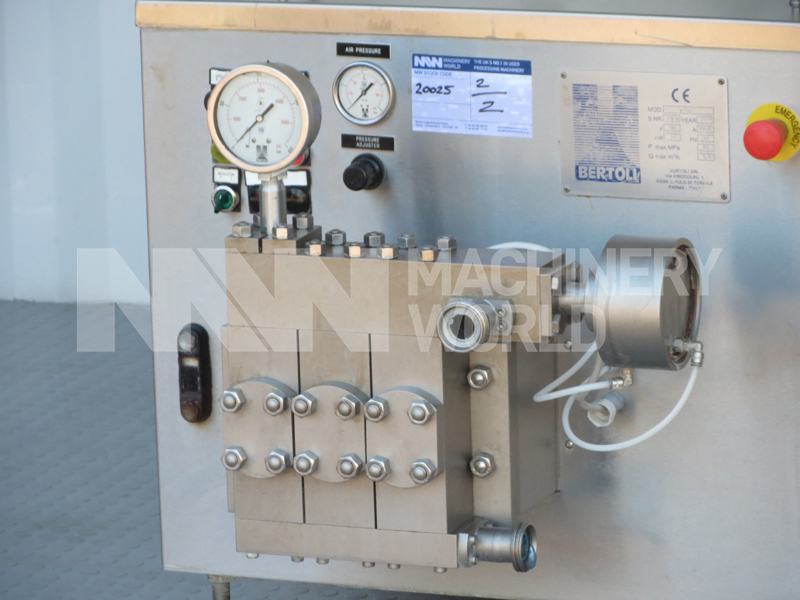

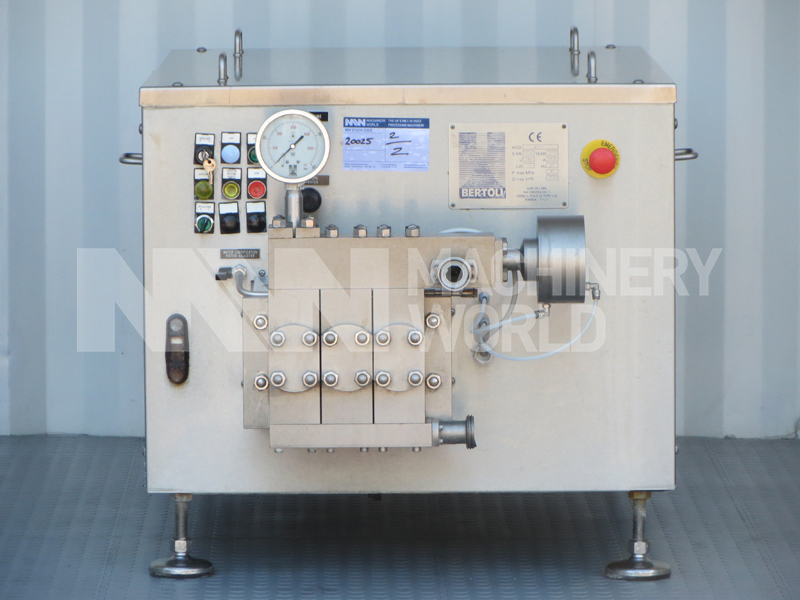

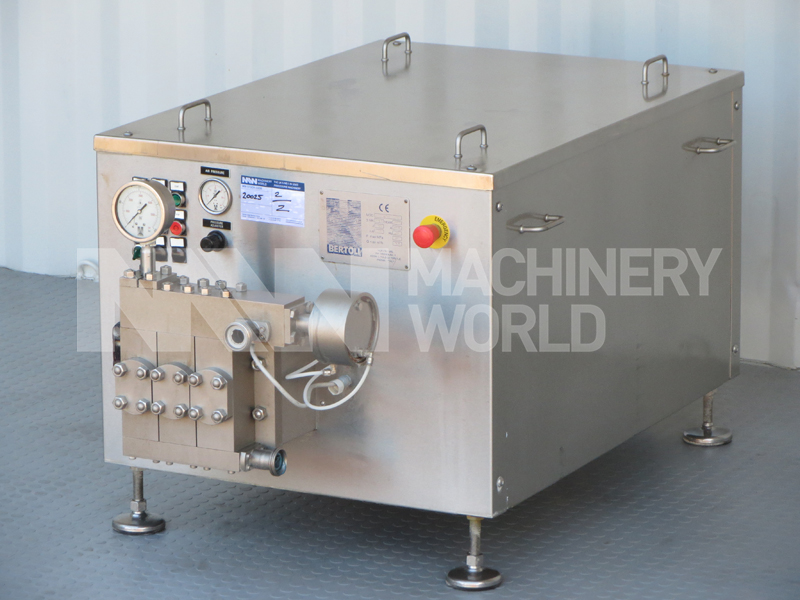

Bertoli H3007 Homogeniser, 1.200 l/h

Add to quote
SKU: 20025 (2/2) Category: Tag:
Description

An Bertoli Homogeniser or high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.

This is a Used 1,200 LPH Bertoli H3007 Homogeniser which has a Max. Working Pressure of 3600 psi (250 bar).

Features

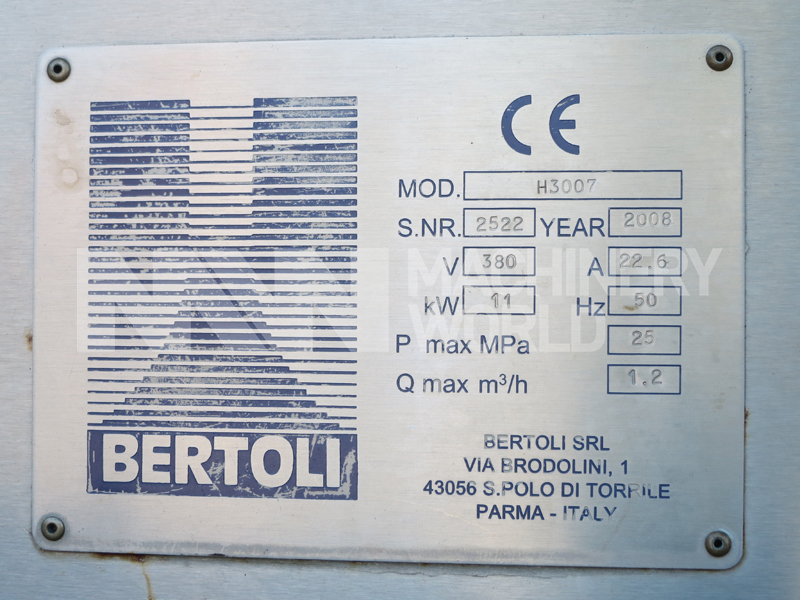

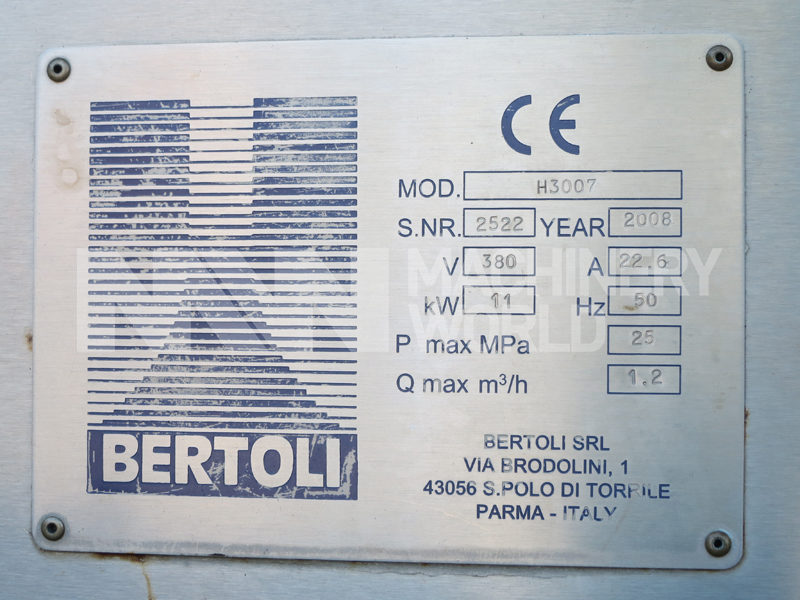

  • Manufacturer: Bertoli
  • Model: H3007
  • Function: Homogeniser
  • Capacity: 1.200 litres / per hour
  • Serial number: 2522
  • Year of manufacture: 2008
  • Max. working pressure: 250 bar
  • Revolutions: 240 RPM
  • Piston diameter: 28mm
  • Piston stroke: 50mm
  • Electrics: 380V / 3Phase / 50Hz
  • Number of stages: 2-stage
  • Total installed power: 11 kW
  • Instruction manual available
Dimensions
  • Length: 146 cms
  • Width: 90 cms
  • Height: 76 cms
  • Weight: 600 Kgs
Country of Manufacture

Italy
