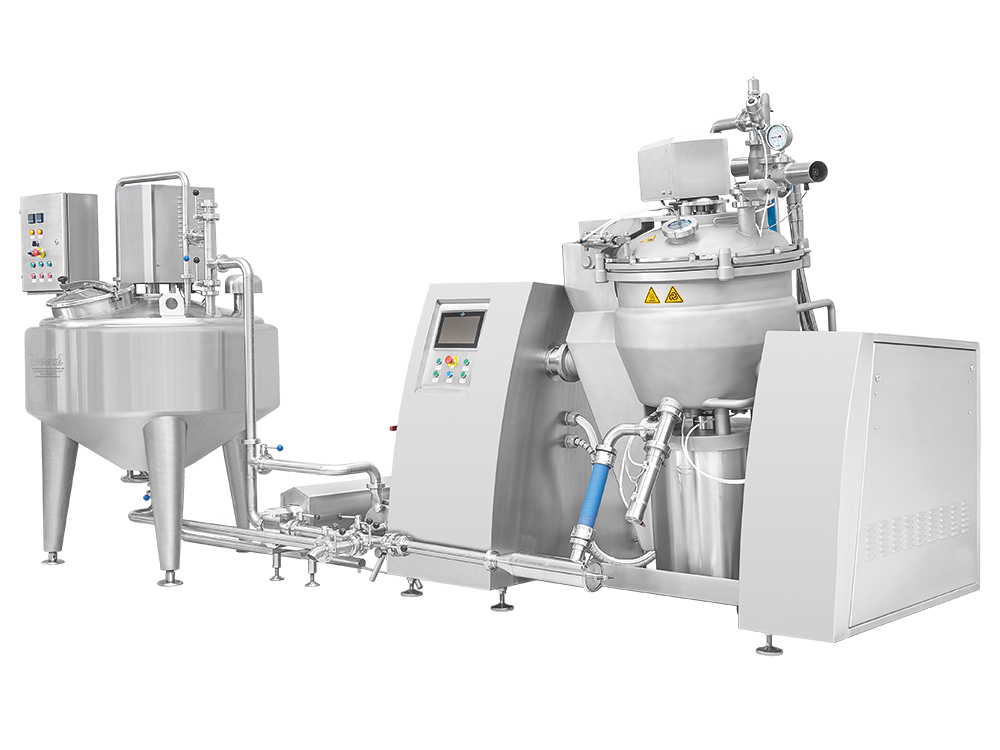

These Multifunctional Industrial Mixers (Cooker& Cooler& Mixer) are configurable for many different applications, some examples are processed cheese, dressings, sauces, baby food, confectionery fillings, almond paste, mayonnaise & ketchup and be able to handle different tasks such as mixing, emulsifying, heating up, cooling, grinding, emulsifying, size reduction, direct or indirect cooking under vacuum, deaerating (vacuum) and homogenizing.
Main Features
- Bowl capacity: 200 liters
- Product processing capacity: 170 liters/ batch
- Batch time: 8-12 minutes
- Processing temperature: max 95 C
- Automatic tilting
- Automatic opening & closing of lid
- Direct steam injection
- Double jacket (Heating/ cooling)
- Vacuum pump (controlled negative pressure %)
- Discharge valve/ fitting
- PLC and touch panel
- Water flowmeter
- Axial face seal
- Main motor: 3 knives with 0-3000 rpm
- Frequency controlled main motor
- Scrapper’s motor: 2 scrappers
- Steam separation & filtration & pressure regulation station
Optional Items
- Vacuum condenser for cooling & dehumidifying
- Processing temperature: max 125 C
- Buffer tank
- Discharge pump
- Flowmeter for oil dosing
- Flooring funnel
- Hoppers
- Inline mechanical homogenizer (micro-cut)
- Lifter
Advantages
- Short batch time
- Energy efficient
- Easy to integrate in a production line
- PLC process controlling system
- Component from the most reliable brands
- Configurable for many different applications
- Complete product emptying (Minimal losses)
