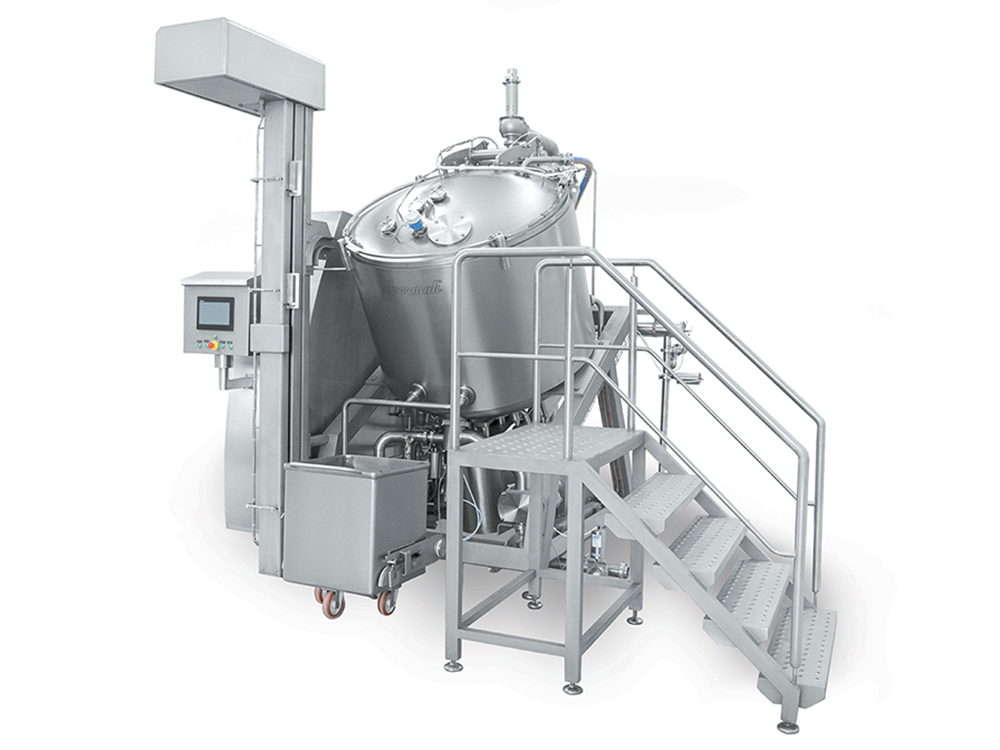

The ROKK 800 Ltr CM800 Universal Vacuum Capable High Shear Mixer (Cook & Cool & Mix) are configurable for many different applications, some examples are processed cheese, dressings, sauces, baby food, confectionery fillings, almond paste, mayonnaise & ketchup and be able to handle with different tasks such as mixing, emulsifying, heating up, cooling, grinding, emulsifying, particle size reduction, direct or indirect cooking under vacuum, deaerating (vacuum) and homogenizing.
Main Features
- Bowl capacity: 800 liters
- Product processing capacity: 700 liters/ batch
- Batch time: 18-25 minutes
- Processing temperature: max 95 C
- Automatic tilting
- Automatic opening & closing of lid
- Direct Steam Injection
- Double jacket (Heating/ cooling)
- Vacuum pump (controlled negative pressure %)
- Discharge valve/ fitting
- Automatic Lifting
- PLC and Touchscreen Panel
- Water Flowmeter

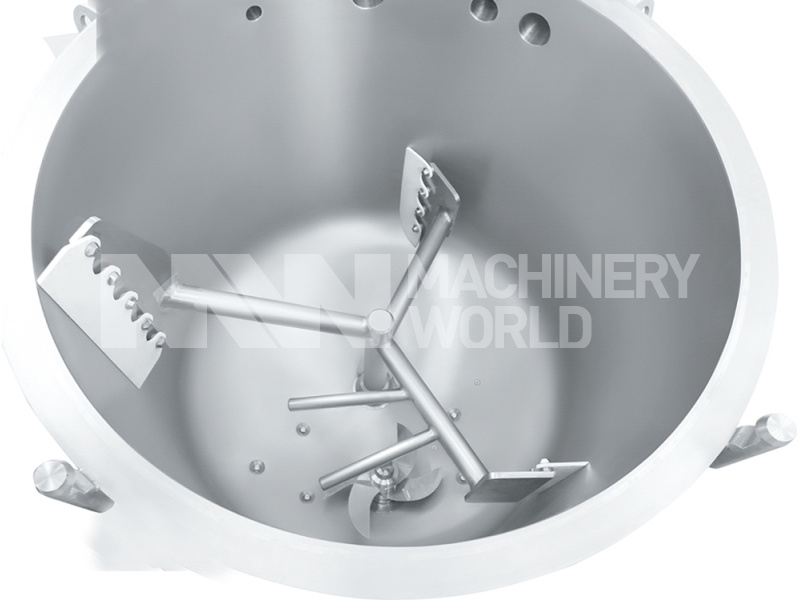

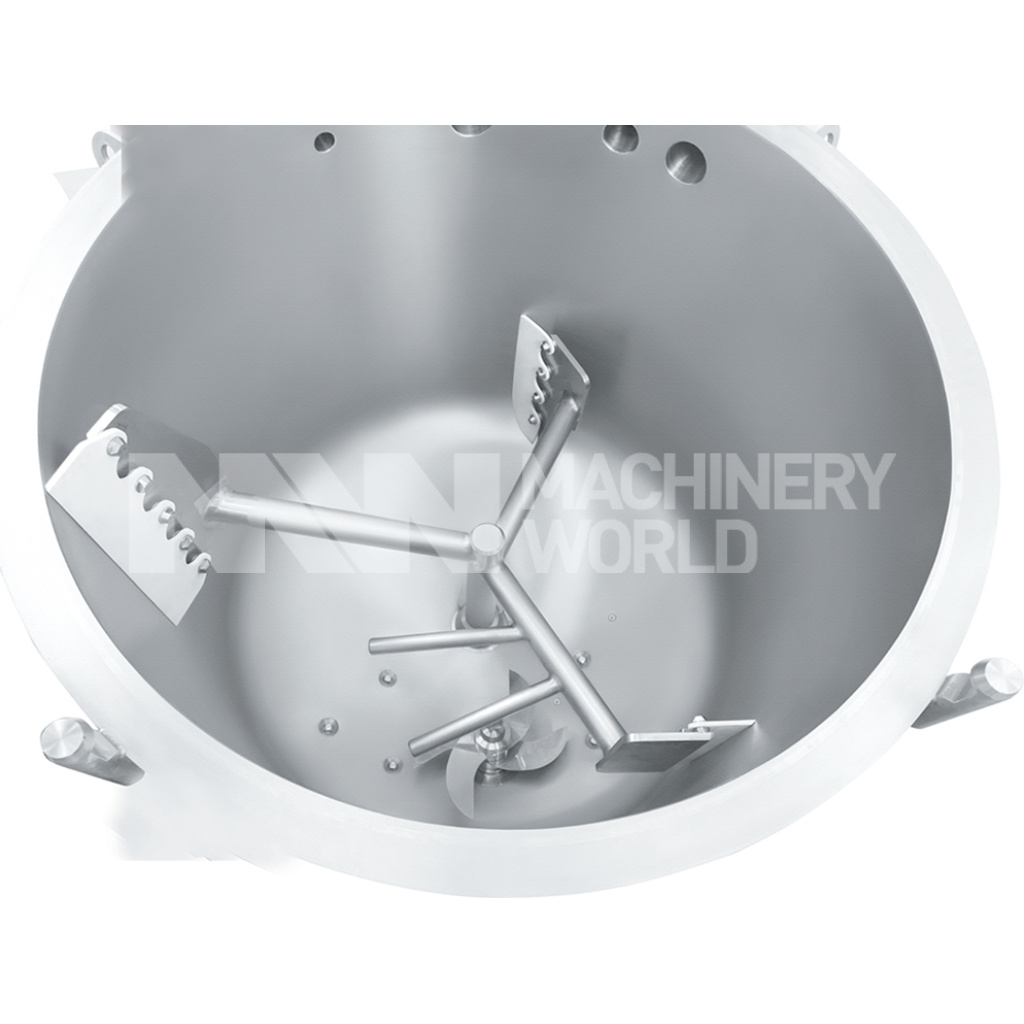

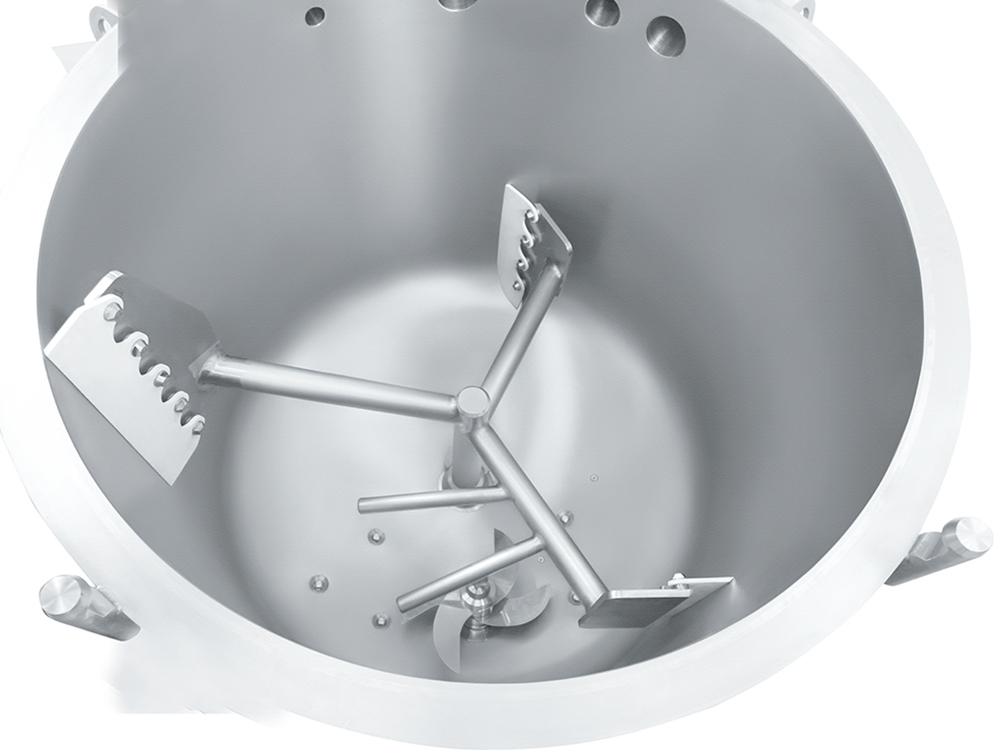

- Main Motor: 4 knives with 0-3000 rpm
- Frequency Controlled Main Motor Drive
- Side Scrapper: 3 Scrappers
- Steam Separation & Filtration & Pressure Regulation Station
Optional Items
- Vacuum condenser for cooling & dehumidifying
- Processing temperature: max 125 C
- Buffer tank
- Discharge pump
- Flowmeter for oil dosing
- Flooring funnel
- Hoppers
- Inline mechanical homogenizer (micro-cut)
- Lifter
Advantages
- Short batch time
- Energy efficient
- Easy to integrate in a production line
- PLC process controlling system
- Component from the most reliable brands
- Configurable for many different applications
- Complete product emptying (Minimal losses)
