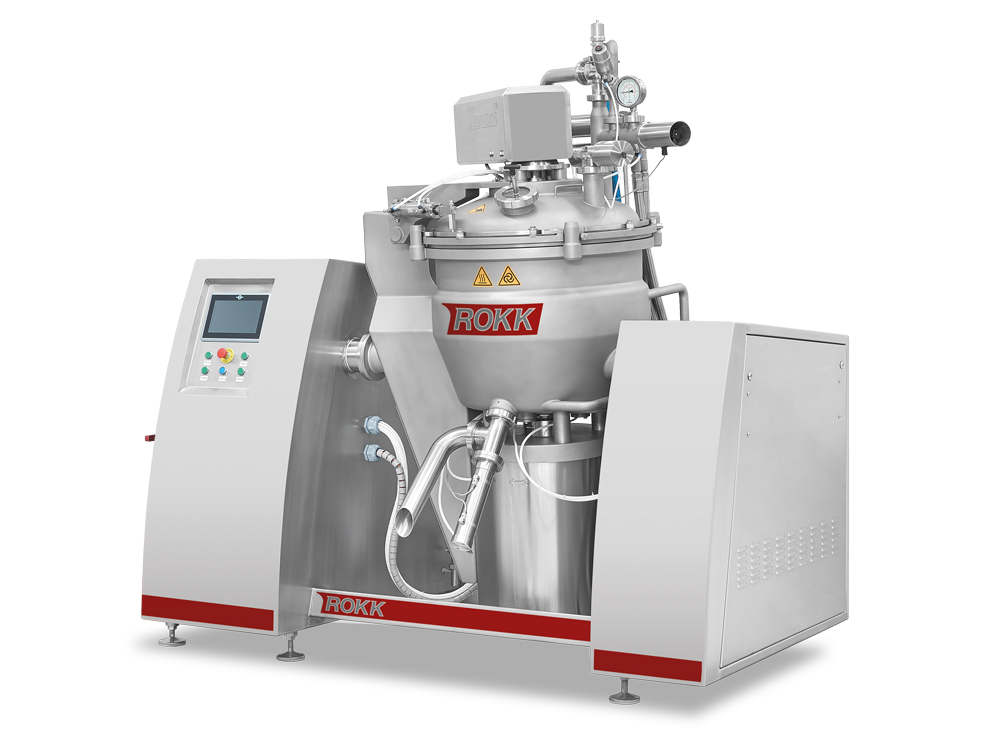

ROKK CCM110 Multifunctional Industrial Mixer

These Multifunctional Industrial Mixers (Cooker& Cooler& Mixer) are configurable for many different applications, some examples are processed cheese, dressings, sauces, baby food, confectionery fillings, almond paste, mayonnaise & ketchup and be able to handle different tasks such as mixing, emulsifying, heating up, cooling, grinding, emulsifying, size reduction, direct or indirect cooking under vacuum, deaerating (vacuum) and homogenizing.

Main Features

• Bowl Internal Volume: Approx 110 Liters
• Max Product Working Capacity: Approx 80 liters/ batch
• Batch Processing Time: Approx 4-6 minutes (Varies depending on type of product & process)
• Max Processing Temperature: 95 deg C
• Hydraulic Tilting Assembly
• Manual Opening & Closing of Lid
• Direct Steam Injection
• Double Jacket (Heating [or] cooling)
• Double Jacket Working Pressure: 2 Bar
• Vacuum Rated with In-built Vacuum Pump
• Vacuum Pump Motor: 2.2kw, 3-Ph, 380V
• Pneumatic Flushed Discharge Valve
• PLC with Touch Screen HDMI Panel
• Main Bottom Drive Motor: 18.5kw 3-Ph, 380V
• Bowl Cutter: 2 Knives
• Bottom Cutter Speed: 0 to 3000 RPM (Max)
• Frequency Controlled Inverter for main Motor (Precise Speed Control)
• Side & Top Scrapper: Top Mounted
• Side & Top Scraper Motor: 1.5kw, 3-Ph, 380V
• Direct Steam Injection – Filter Station with Culinary Steam Filters Installed

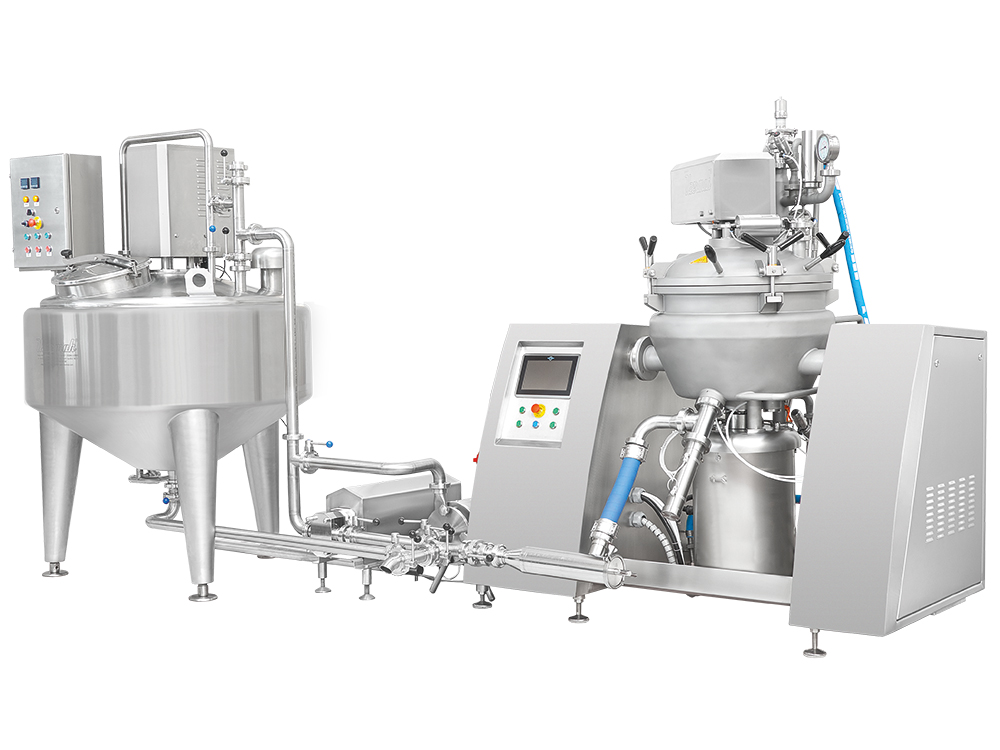

Optional Items

• Vacuum condenser for cooling & dehumidifying
• Buffer tank
• Discharge pump
• Flowmeter for oil dosing
• Flooring funnel
• Hoppers
• Inline mechanical homogenizer (micro-cut)

Advantages

• Short batch time
• Energy efficient
• Easy to integrate in a production line
• PLC process controlling system
• Component from the most reliable brands
• Configurable for many different applications
• Complete product emptying (Minimal losses)

Technical Data

Machine data

• Bowl capacity: (l) 110
• Batch quantity (product dependent): (l/batch) min/max 30-80
• Batch time: minutes 4-6
• Max. processing temperature in the bowl: C 95
• Steam: Kg/h 120
• Energy requirement:
• Main motor: kW 15
• Scrapper’s motor: kW 1.5
• Vacuum pump: kW 2.2
• Voltage: V/Hz 380/50
