MBS MLW88 Corrugated Shell-In-Tube Tubular Heat Exchanger (Year 2020)

Description

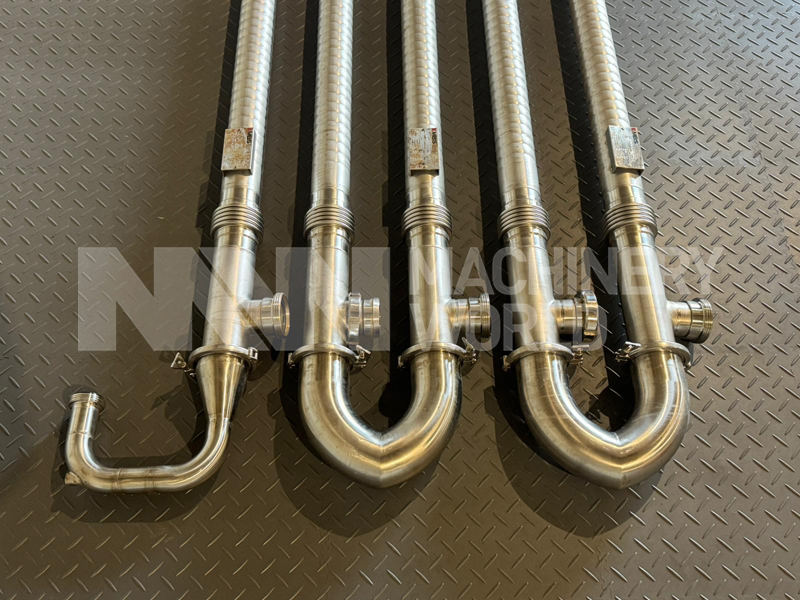

This is a pre-owned MBS MLW Multitube Heat Exchanger, designed in a corrugated shell-and-tube configuration ideal for hygienic use. It is specifically engineered for thermal exchange applications involving low to medium viscosity products, including those containing particulates. Made from stainless steel, it offers a polished, hygienic surface finish on the product side. The unit is built to handle pressures up to 12 bar and is suitable for operating temperatures of up to 110°C.

Specification

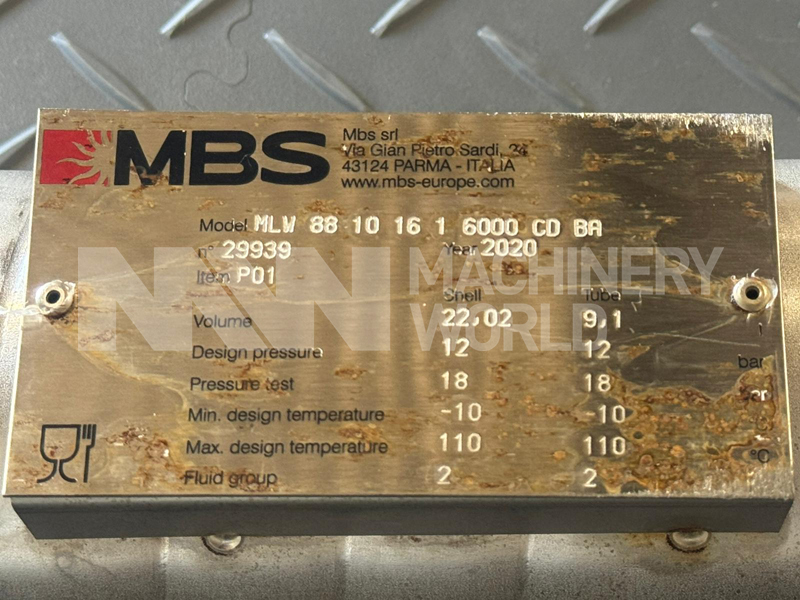

• Make: Mbs srl, Italy
• Model: MLW 88 10 16 1 6000 CD BA
• Function: Corrugated Shell-in-Tube Tubular Heat Exchanger
• Serial Number: 29939
• Year of Manufacture: 2020
• Volume:
  • Shell: 22.02.82
  • Tube: 9.1
• Design Pressure:
  • Shell: 12 Bar
  • Tube: 12 Bar
• Minimum Design Temperature:
  • Shell: -10 deg C
  • Tube: -10 deg C
• Maximum Design Temperature:
  • Shell: 110 deg C
  • Tube: 110 deg C
• Total Number of Shell-in-Tube Lengths: 5x Lengths

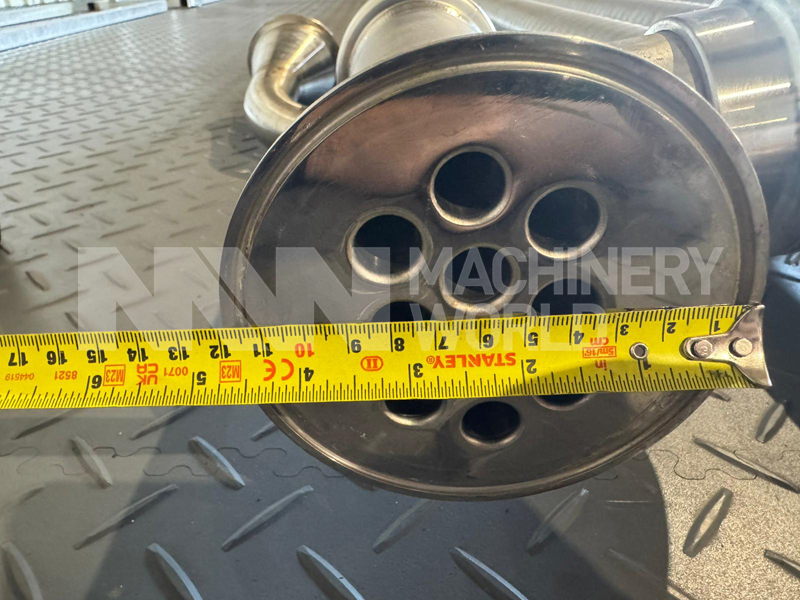

• Total number of Internal Tubes: 9 per length (9 Tubes x 5 Lengths = 45 Internal Tubes)

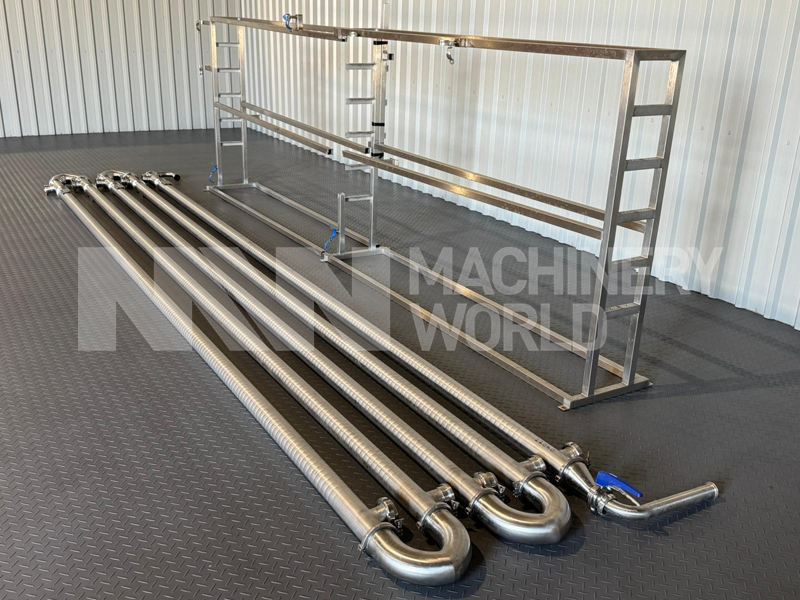

• Additional Details: Comes with Stainless Steel Mounting Frame

Country of Manufacture

Italy
