Complete Tecnofreeze Ice Cream Factory, 400-1200 Litres/Hour (Year 2018)

Description

This is a Complete Used Tecnofreeze Ice Cream Processing Factory including 1x Tecnofreeze MP 300 Ice Cream Mix Pasteurisation Plant with Electric Boiler and Water Chiller, 4x Tecnofreeze 300L Ageing (Maturation) Storage Tanks, 2x Tecnofreeze 600L Ageing (Maturation) Storage Tanks, 1x Tecnofreeze CF 1200 Ice Cream Continuous Freezer, 1x Tecnofreeze Rippy Pump and 1x Tecnofreeze CIP.

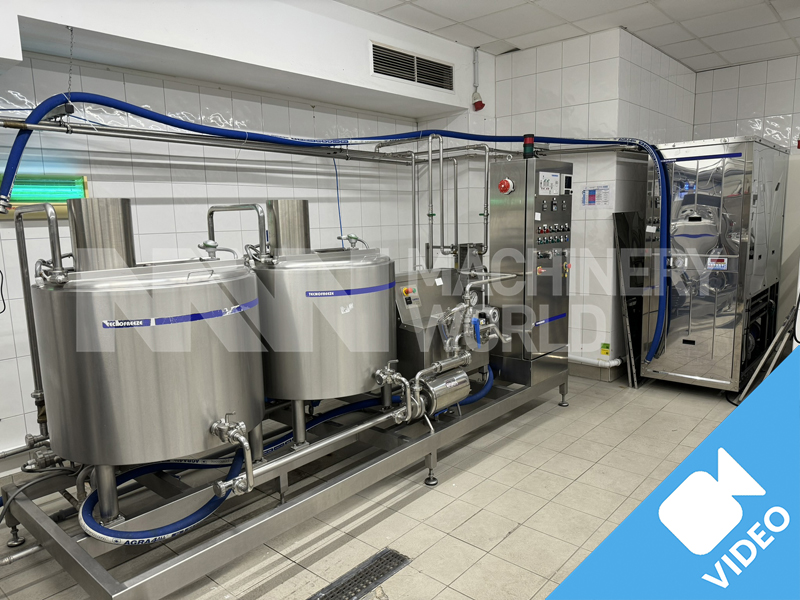

Please see video below for tour of the complete plant.

Stats

• The Mix Processing Plant is capable of producing 300 Litres of Pasteurised, Homogenised & Chilled Liquid Mix Per Hour with a total storage capacity of 2,400 Litres in the Ageing/Maturation Vats, enabling the Ice Cream Producer to run the Mix Processing Plant continuously for 8 hours per day if required.
• The Continuous Freezer has an outlet capacity ranging from 400-1200 Litres Per Hour of Finished Gelato with 100% Overrun, making this the perfect plant for any small to medium sized industrial ice cream producer and allowing plenty of scope for future growth.

Includes

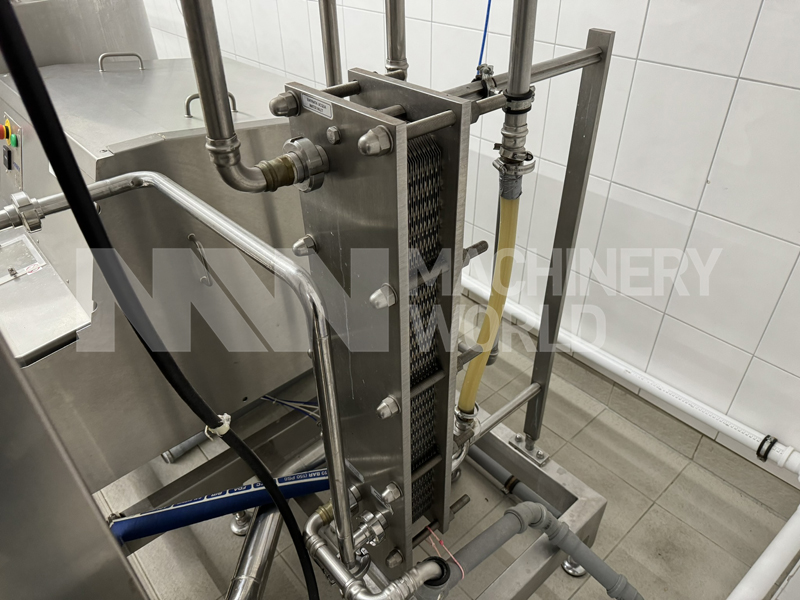

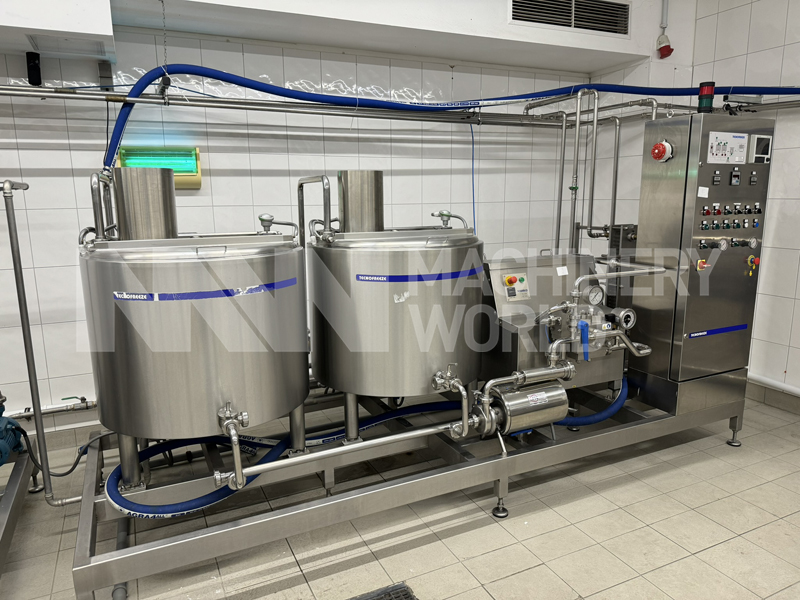

Ice Cream Mix Processing Plant

• Manufacturer: Tecnofreeze
• Model: Batch 300
• Function: Ice cream batch process mix plant
• Serial number: 2258
• Year of manufacture: 2018
• Total installed power: 10 kW
• Electrics: 400V / 50 Hz / 3 Phase
• Country of manufacture: Italy

• Skid mounted unit complete with:

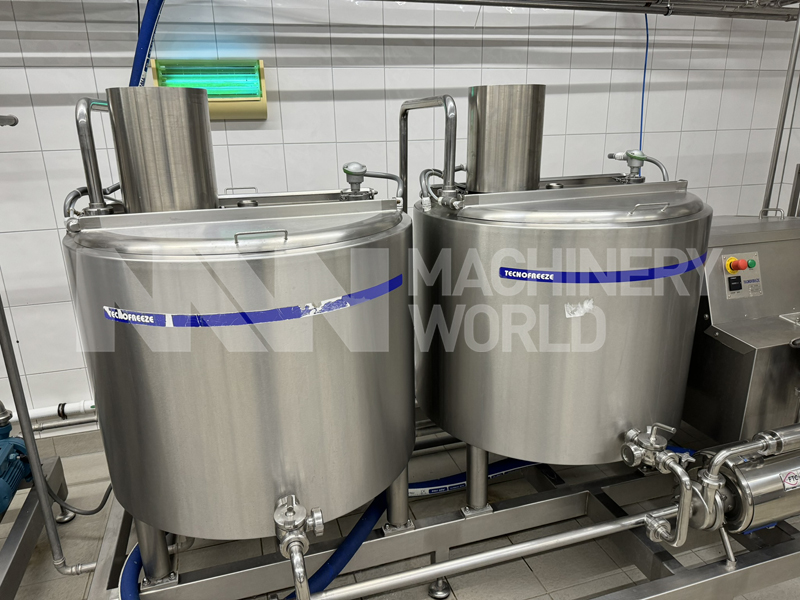

• 2 x 300L batch pasteurisation tanks

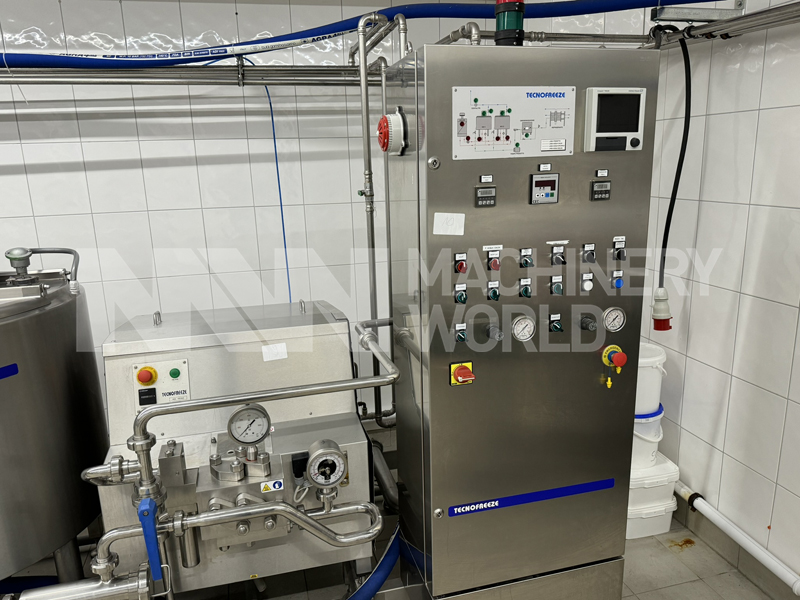

• FBF ball valve homogeniser
• Product filter
• Product and hot water pumps
• Control panel with Endress & Hauser temperature recorder

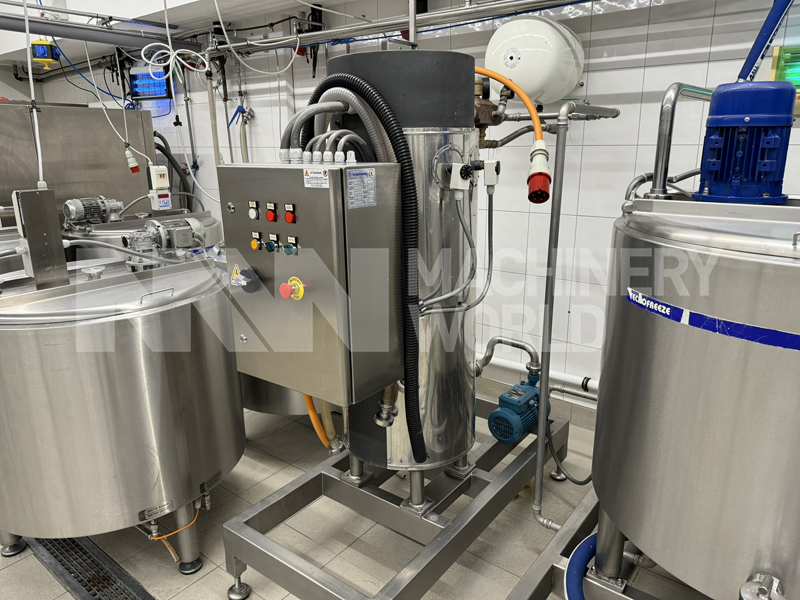

• Electric boiler

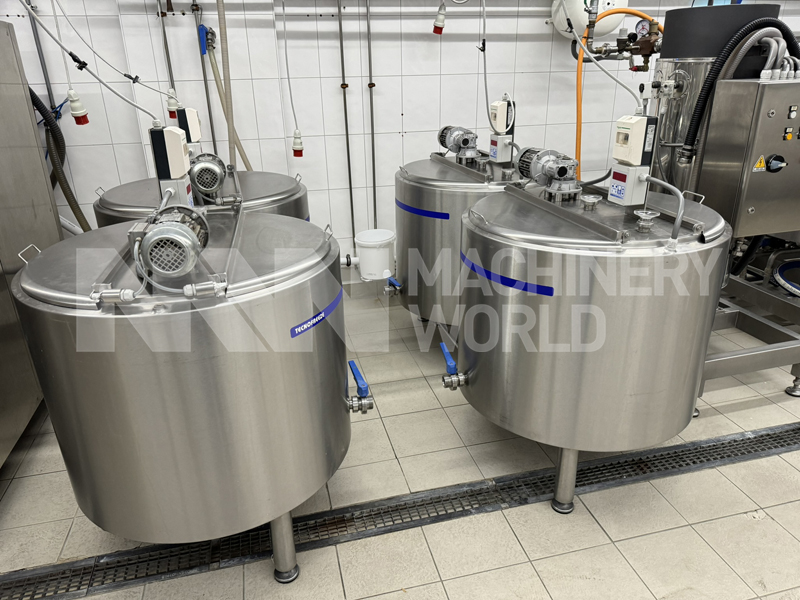

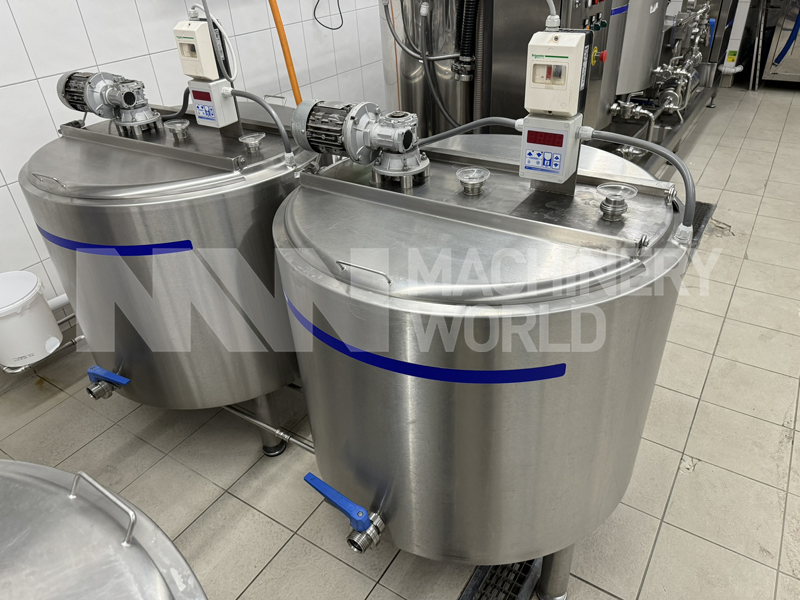

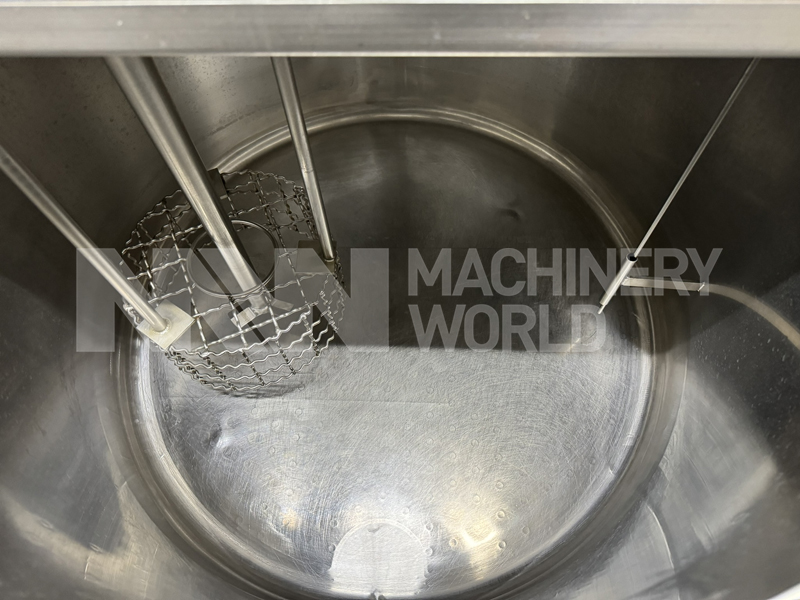

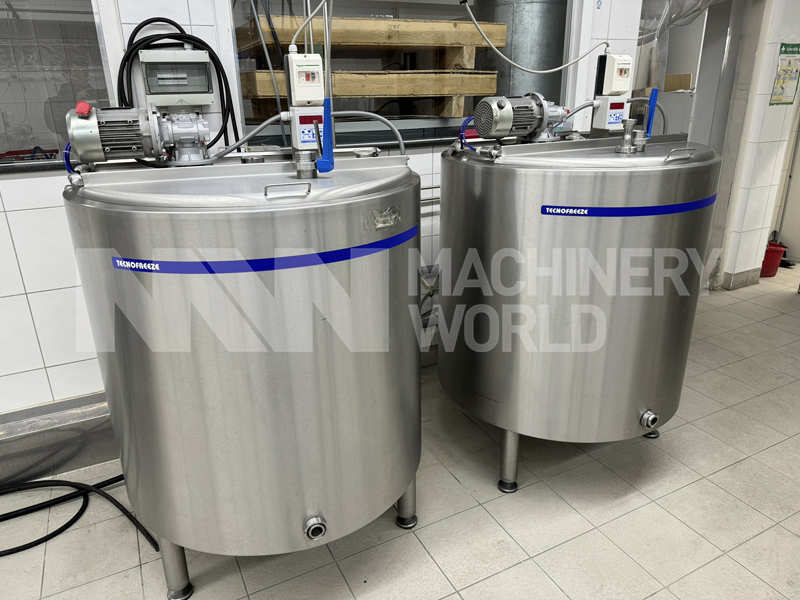

300 Ltr Ice Cream Ageing Vats (4 pcs available)

• Manufacturer: Tecnofreeze
• Model: Ageing Vat 300
• Function: Ice cream ageing maturation vats
• Year of manufacture: 2018 / 2018 / 2018 / 2018
• Capacity: 300 Litre
• Slow speed agitator speed: 30 RPM
• Equipped with digital thermostat
• Shape: Cylindrical with sloped bottom
• Orientation: Vertical
• Supports: 3x adjustable feet
• Man access: Twin lifting lids
• Total installed power: 0.18 kW
• Electrics: 400V / 50 Hz / 3 Phase
• Inner tank and outer casing made of AISI 304 stainless steel
• Country of manufacture: Italy

600 Ltr Ice Cream Ageing Vats (2 pcs available)

• Manufacturer: Tecnofreeze
• Model: Ageing Vat 600
• Function: Ice cream ageing maturation vats
• Year of manufacture: 2018 / 2018
• Capacity: 600 Litre
• Slow speed agitator speed: 30 RPM
• Equipped with digital thermostat
• Shape: Cylindrical with sloped bottom
• Orientation: Vertical
• Supports: 3x adjustable feet
• Man access: Twin lifting lids
• Total installed power: 0.18 kW
• Electrics: 400V / 50 Hz / 3 Phase
• Inner tank and outer casing made of AISI 304 stainless steel
• Country of manufacture: Italy

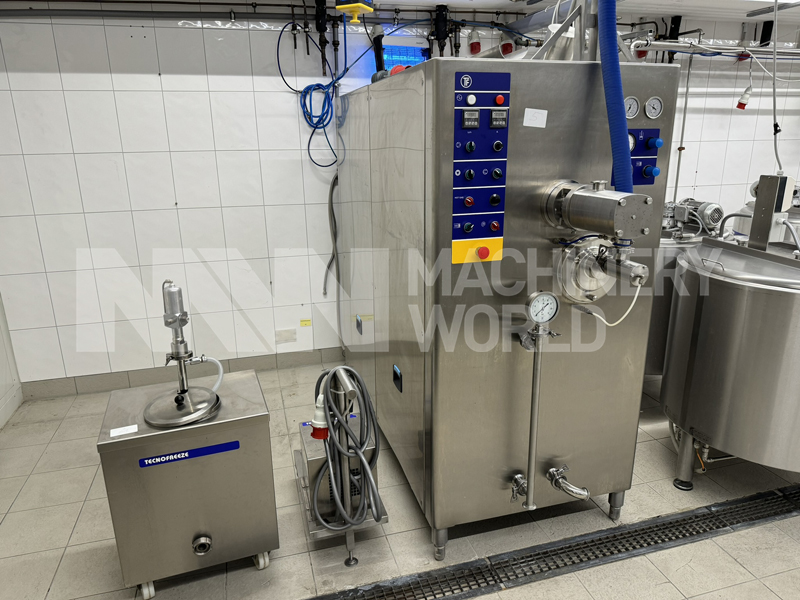

1200 Ltr/Hour Ice Cream Continuous Freezer

• Manufacturer: Tecnofreeze
• Model: CF 1200
• Function: Continuous ice cream freezer
• Capacity: 400-1200 litres/per hour
• Year of manufacture: 2014
• Total installed power: 31 kW
• Refrigerant: R507 (6.5 kg)
• Water cooling
• Horizontal barrel
• CIP cleaning
• Twin-piston inlet pump
• Rotary outlet pump
• Instruction manual supplied
• Voltage: 400V/50Hz/3 Phase

Ice Cream Ripple Pump:

• Manufacturer: Tecnofreeze
• Model: Rippy
• Function: Injection of sauce/ripple to finished ice cream
• Year of manufacture: 2018
• Variable speed control
• Minimum flow rate: 35 litres per/hour
• Maximum flow rate: 200 litres per/hour
• Air consumption: 8000 litres / hour @ 6 bar
• Hopper capacity: 15 litres
• Stainless steel construction
• Pneumatic supply
• Country of manufacture: Italy

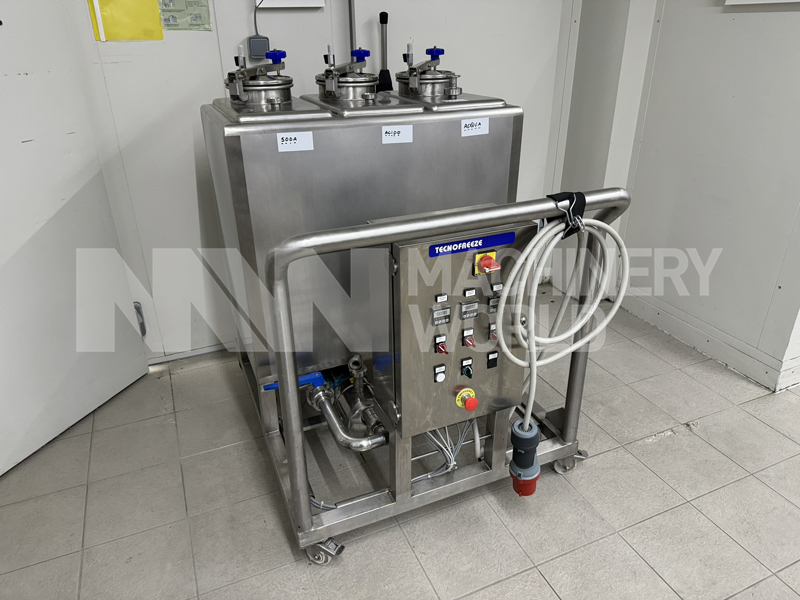

CIP:

• Manufacturer: Tecnofreeze
• Model: Mobile CIP
• Function: Cleaning in place (CIP)
• Capacity: 3x 100 litre tanks
• Year of manufacture: 2019
• Serial number: TC010002
• Electrics: 400V / 3 Phase / 50 Hz
• Total installed power: 19.5kW
• Pump flow rate: 6,000 litres / hour
• Delivery and return pump
• Control panel
• Mounted on stainless steel mobile frame with castors.
• Country of manufacture: Italy

Water Chiller:

• Manufacturer: Tecnofreeze
• Model: Red 20
• Function: Supplying chilled water to the mix processing plant and ageing vats
• Serial number: 2170075
• Year of manufacture: 2018
• Total installed power: 9 kW
• Refrigerant: R404A (Quantity: 12KG)
• Stainless steel construction
• Electrics: 400V / 50 Hz / 3 Phase
• Country of manufacture: Italy
