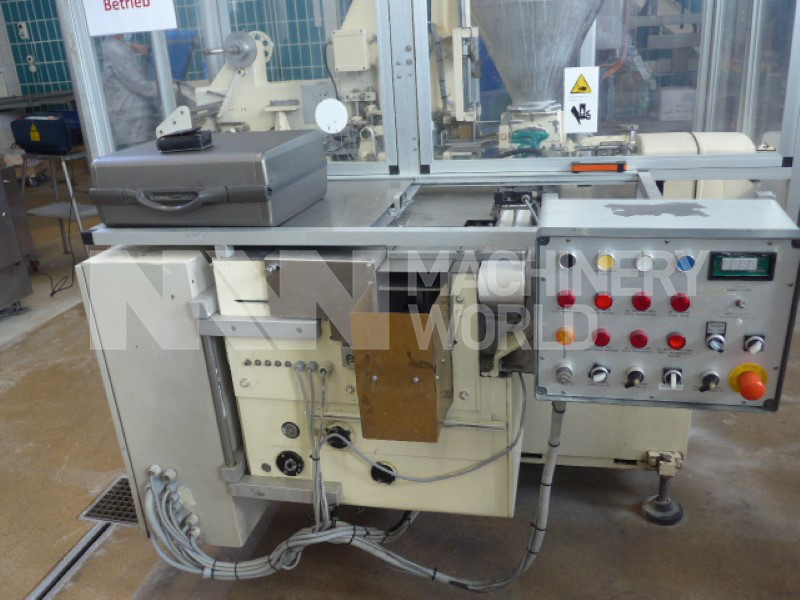

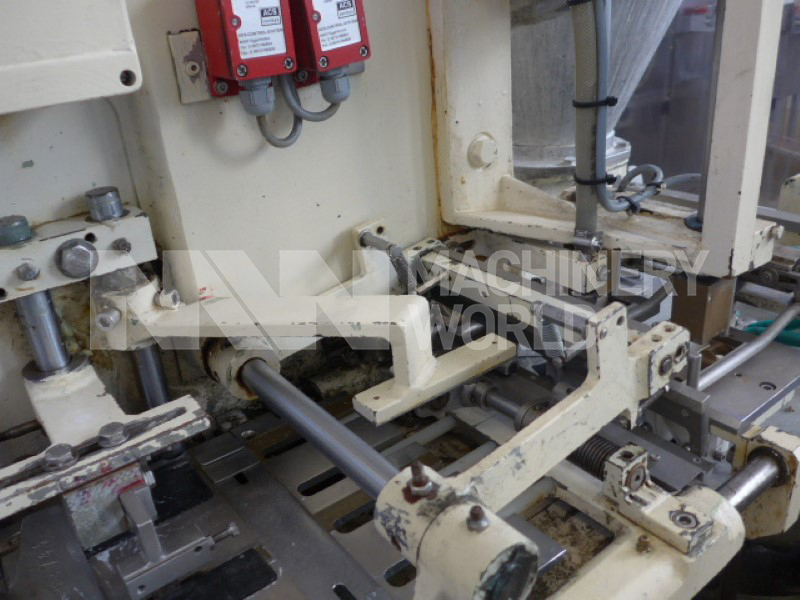

Corazza FB 220 Butter Moulding and Packaging Machine – 10 & 20 Gram

Description

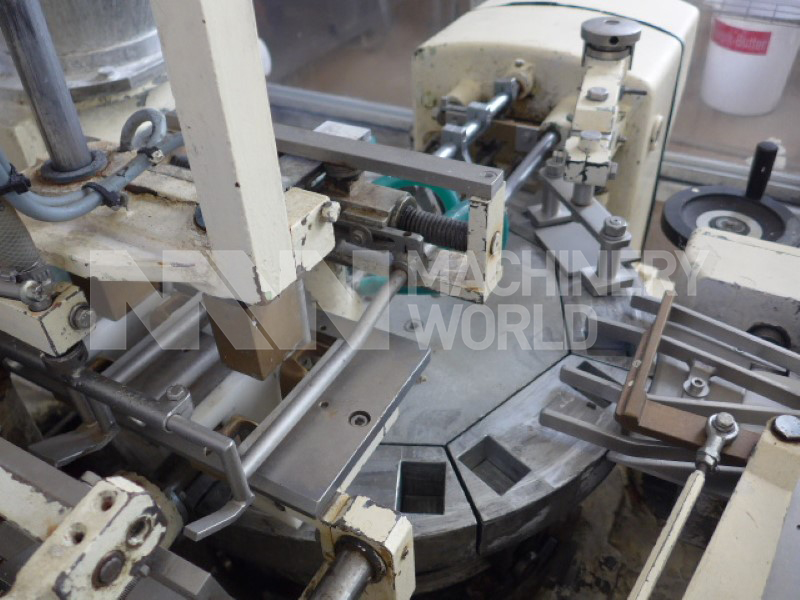

Dosage:  From the vertical funnel into the dosing flask, the butter is dosed into preformed molds on the 8-digit table. The funnel is equipped with a sensor to check the product level fitted.

Impact system: "Envelope seal"

Box group: Attached to the outlet of the machine, for stacking one certain number of servings in blocks that are semi-automatic inserted into preformed boxes.

Product arrangement: 4 x 5 x 5 layers = 2kg

The spout is equipped with a sensor that in the event of a production jam, the machine stops.

Additional data:

Machine provided with: Basic format 20 grams

Additional format sets 10 grams

Weight change is obtained by changing the portion size. This entails the replacement and adjustment of some parts on the machine and the basic dimensions of the portions are supposed to remain unchanged.

Foil centering group: Equipped with SICK type photocell for centering the printed film.

Ink coding device type: Metronic for coding a product code on the aluminium foil (max. 5-6 digits / letters).

Features

• Manufacturer: Corazza
• Model: FB 220
• Function: Dosing and wrapping small portions of butter
• Year of manufacture: 1995

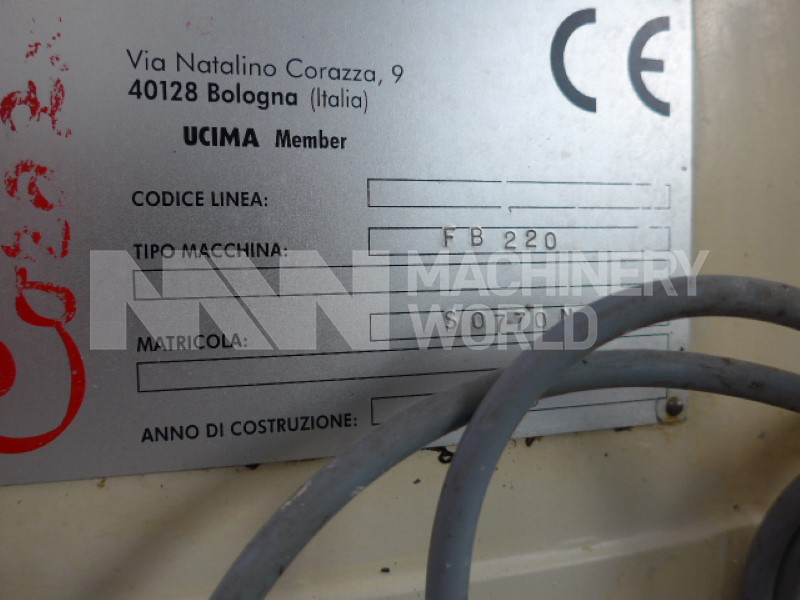

• Serial number: S770N
• Output: 280 servings per minute with an efficiency of 90% i.e. 252 servings per minute
• Portion weight: 10 & 20 grams (rectangular portions)
• Product dimensions: 40 x 30 mm

Country of Manufacture

Italy
