Description

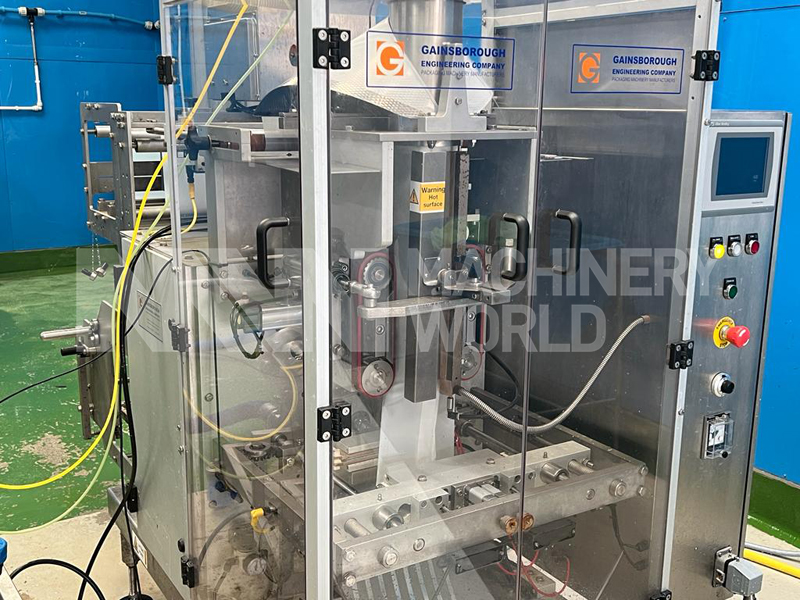

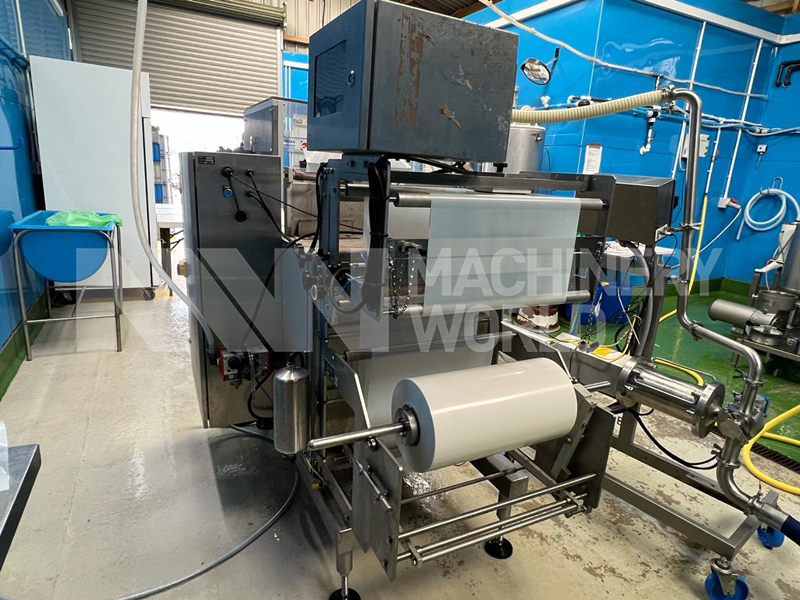

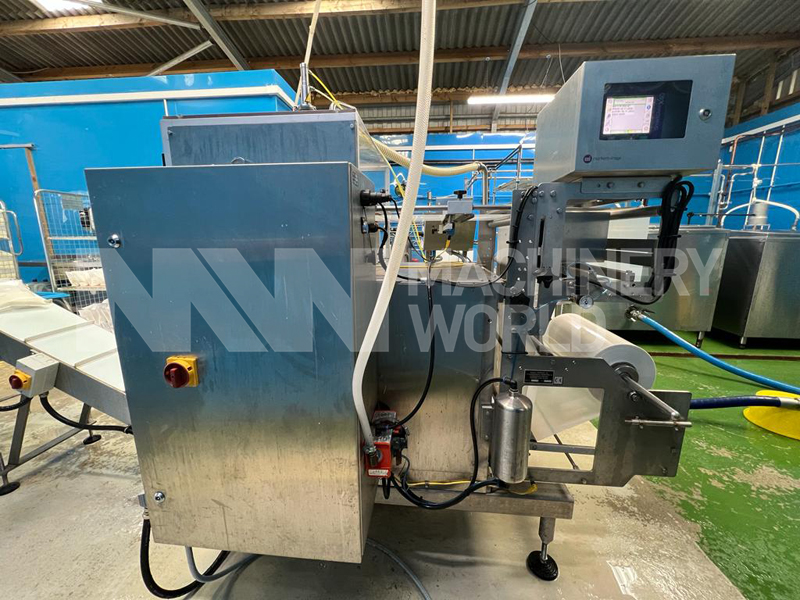

This is a USED Gainsborough VFFS machine filling 0.5-2.5 L pouches with a capacity of 30 bags per minute.
The GV2K2 machine is constructed in stainless steel and can be configured to suit individual requirements. The machine can be interfaced with various equipment such as auger fillers, weighers, counters, and have ancillary attached , like date coders, labellers, vision inspection.GV2K2 Packing machine details
The GV2K2 packaging machines feature full programmable logic control on all machines functions – bag length, print registration, over printer, product call and no product – no bag.
The PLC automatically monitors jaw obstructions, film breakage, print registration, packaging material run out and safety guard status.

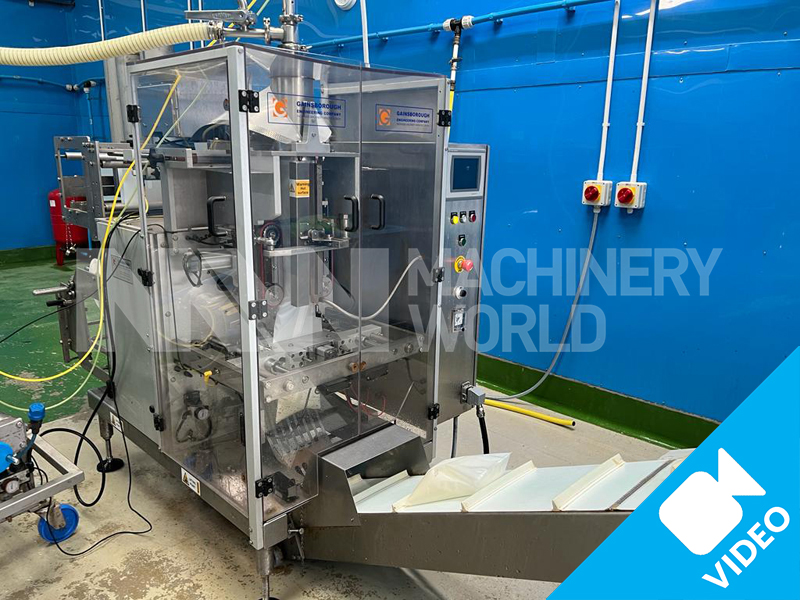

See video below of this machine installed and working in the previous dairy.
Features
- Manufacturer: Gainsborough
- Model: GV2K2
- Function: Vertical form fill sealing machine
- Capacity: up to 30 bags / minute
- Year of manufacture: 2017

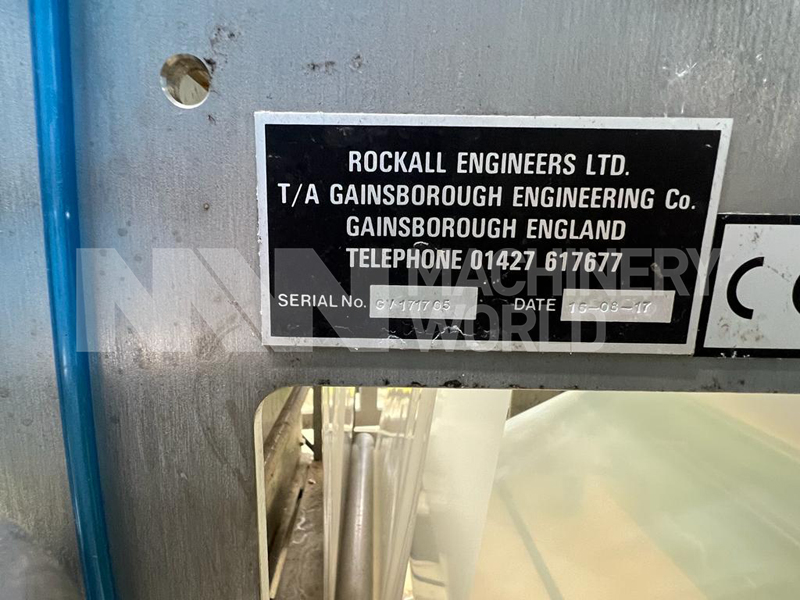

- Serial number: GB-171705
- Mix flat bag size: 50mm x 50mm
- Max flat bag size: 200mm x 350mm
- PLC interfaced for:- auger – weigher – liquid filler and batch counters
- Totalising / batch counting facility
- Jaw obstruction detection
- Film run out detection
- Belts with encoder feedback measurement of pack length
- All product contact parts stainless steel
- Configured for flat bag former as standard
- Photoelectric cell registration
- Impulse seal jaws (2 sets)
- Omron PLC as standard with touch screen and product code menu’s
- Electrics: 400V / 50 Hz / 3 Phase
- Air consumption: 600-900 litres per minute @ 5.5 bar
- Construction: Stainless steel and anodized aluminum
- Riggs product pump not included (as seen on video)
Country of Manufacture
UK
