GEA Niro Soavi NS2002H ‘Ex-Demo’ Lab Homogeniser, 55 l/h

Description

The GEA Niro Soavi Twin Panda 400 (NS2002H) is a small table-top laboratory / pilot unit designed for continuous operation up to 400 bar, suitable for microsizing tests on many different fluids and pilot scale process trials. The Twin Panda 400's flexibility makes it a useful tool for many different sectors, such as the food, dairy, chemical industries.

Features

• Manufacturer: GEA Niro Soavi
• Model: NS2002H, Twin Panda 400
• Serial Number: 11850
• Function: Homogeniser
• Capacity: 50 litres/per hour
• Year of manufacture: 2015
• Max. working pressure: 400 bar
• Total installed power: 1,5 kW
• Number of stages: 2-Stage machine
• Compact design for easy installation, use and maintenance
• Suitable for viscous pumpable products, up to 1000 cP without feading pump
• SS feeding hopper supplied as standard
• Suitable for CIP/SIP
• Suitable for in-line installation, with Tri-Clamp® connections to a feeding and a discharge tank
• Three-phase electricity is the only utility needed, the machine is supplied with in-built motor starter
• No need for cooling/lubrication water

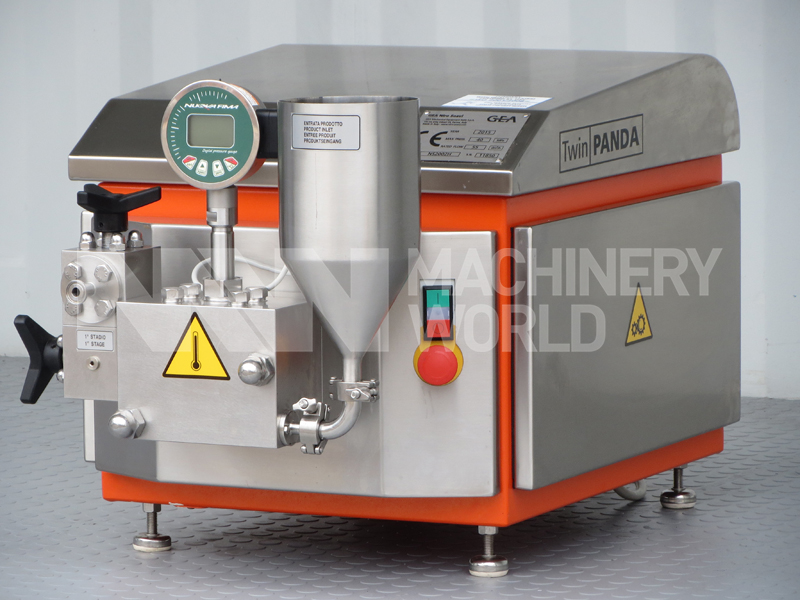

• Includes spare parts kit and tools (as seen in the photo)

Dimensions

• Length: 84 cms
• Width:53 cms
• Height:50 cms
• Weight:143 kgs

Country of Manufacture

Italy
