Tetra Pak Ice Cream Pasteurisation Plant – 300 Litres/Hour (Year 2010)

Description

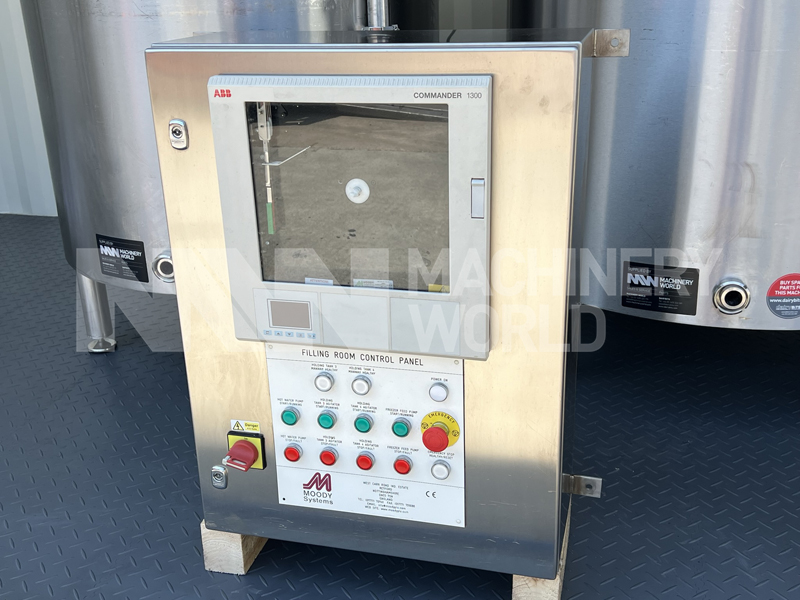

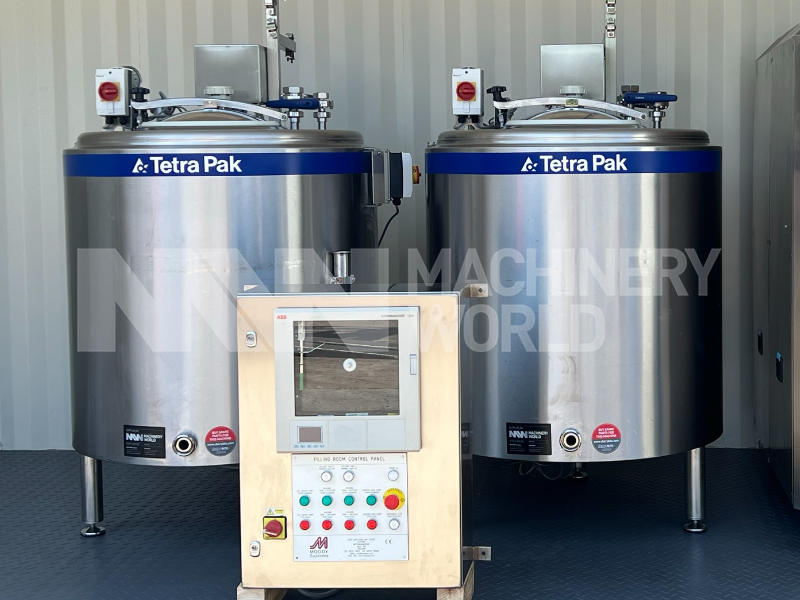

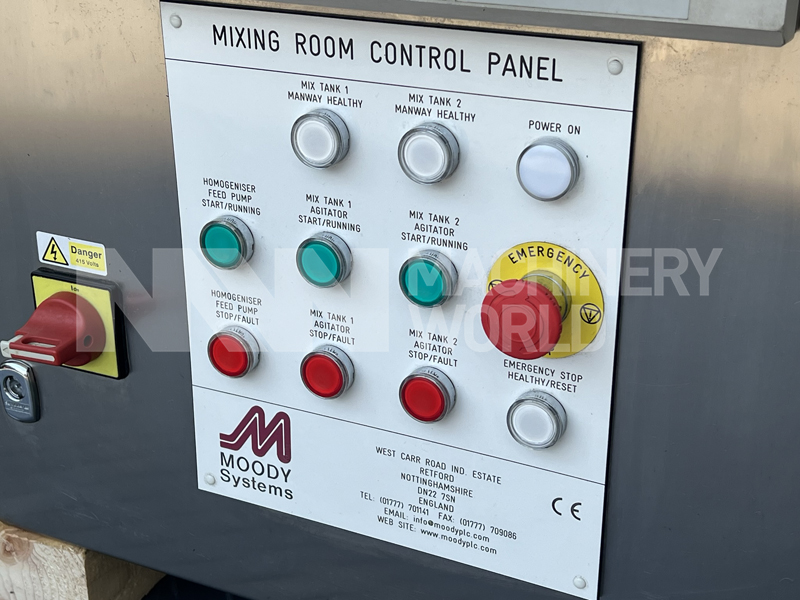

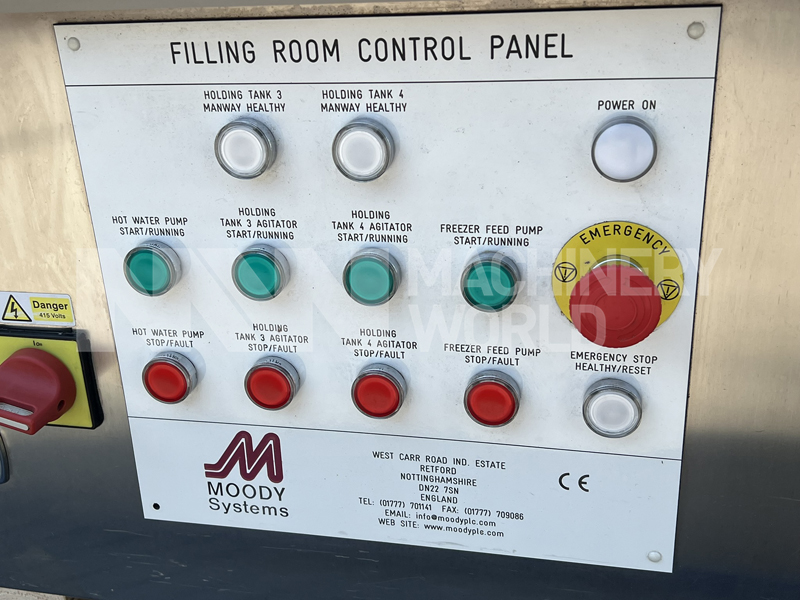

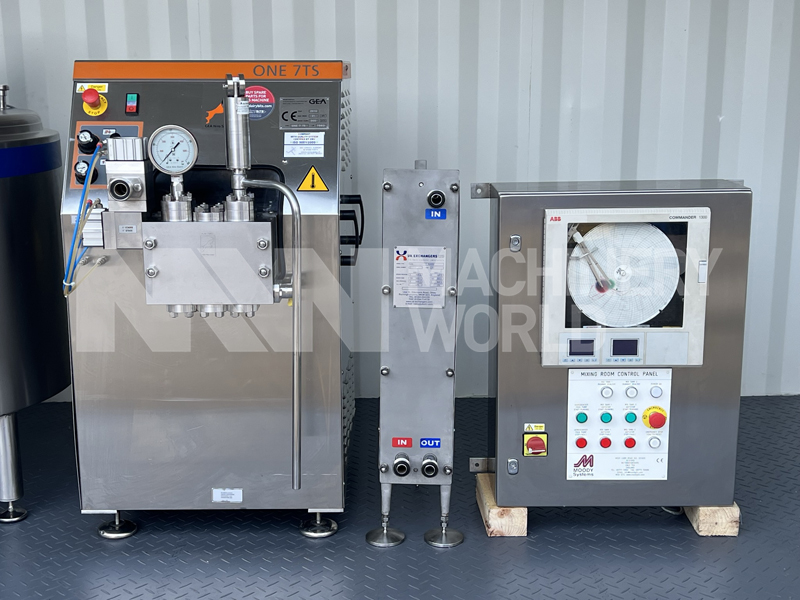

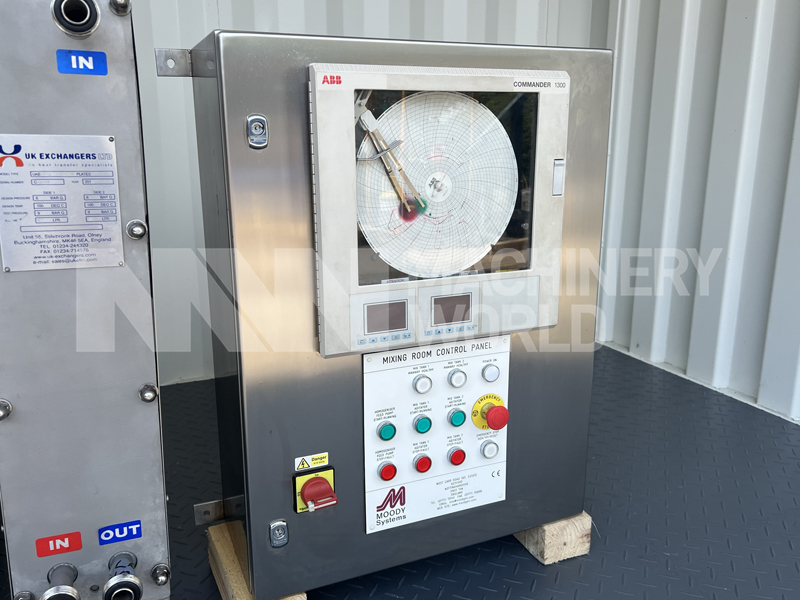

This is a Pre-owned Ice Cream Pasteurisation Plant available in stock capable of producing 300 litres per hour of pasteurised gelato. The plant includes 2x Tetra Pak TPW 300 Ice Cream Batch Pasteurisation Tanks, 1x GEA Niro ONE 7TS Homogeniser, 1x Plate Heat Exchanger, 2x Tetra Pak TMW 600 Ice Cream Ageing Tanks and 2x Control Panels. Offer excludes service equipment (boiler, chiller etc).

Includes

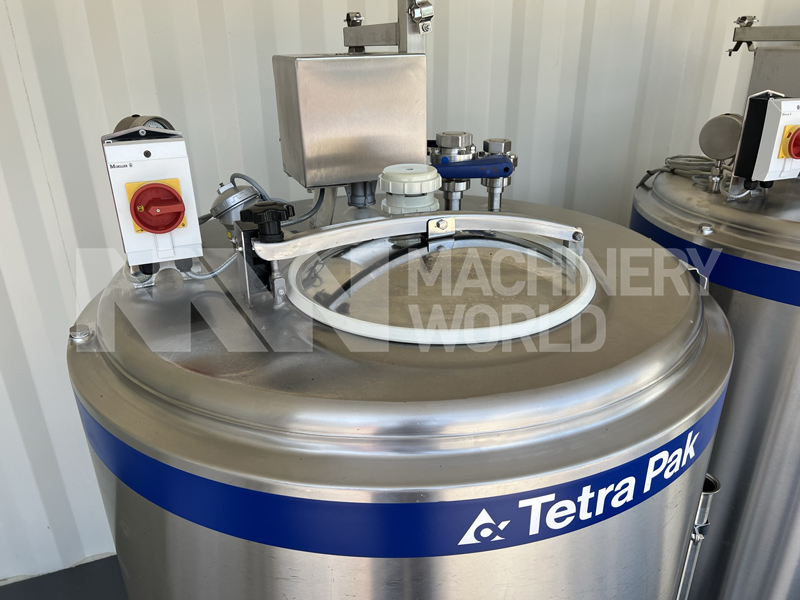

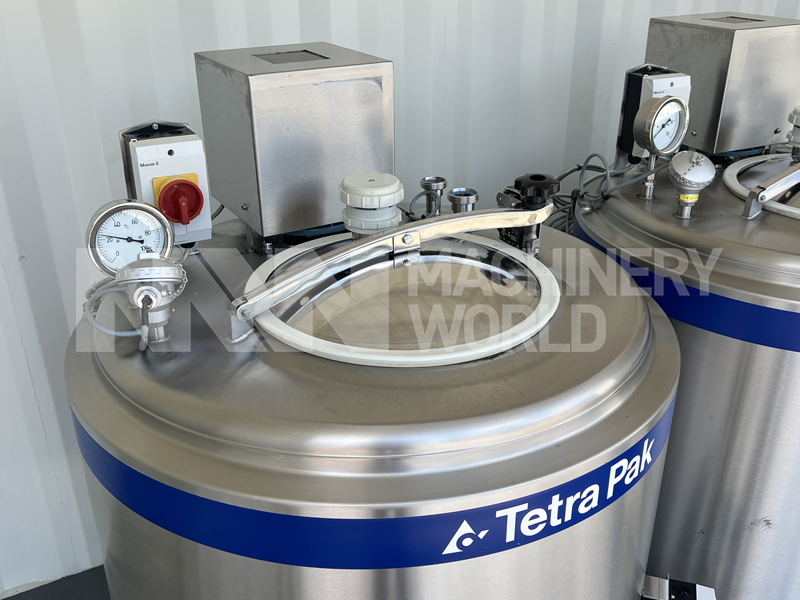

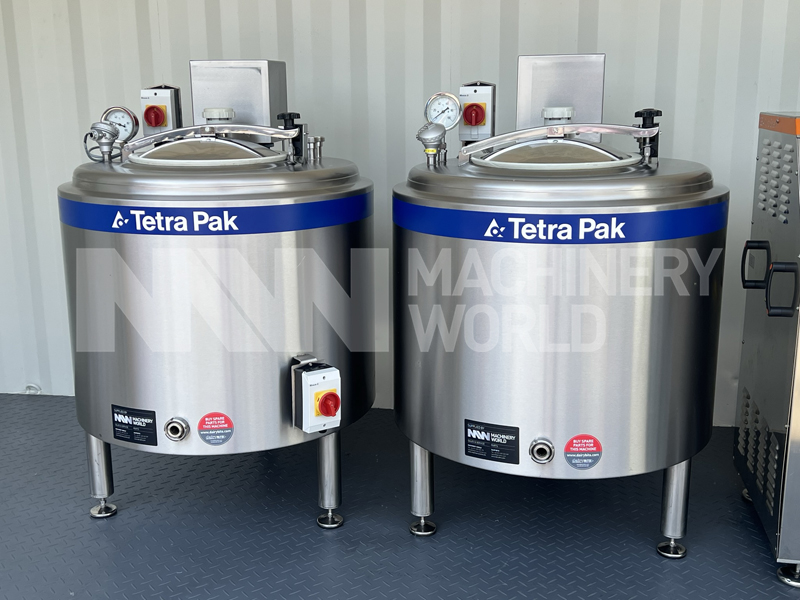

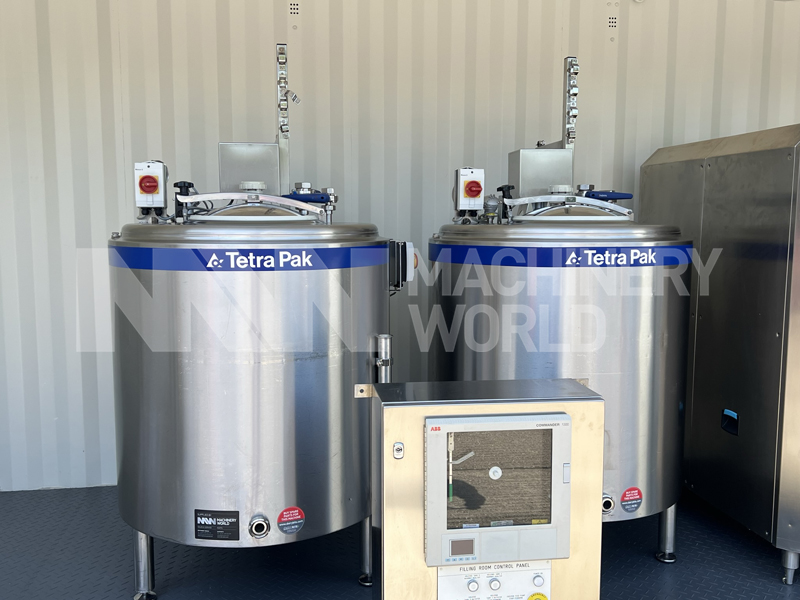

Ice Cream Pasteurisation Tanks (2 pcs available):

• Manufacturer: Tetra Pak
• Model: TPW 300
• Function: Ice cream batch pasteurisation tank
• Electrics: 400V / 50 Hz / 3 Phase
• Total installed power per tank: 2.2 kW (4.6 amps)
• Year of manufacture: 2010
• Country of manufacture: Italy
• CIP connection: DN32
• Load connection: DN25
• Outlet connection: DN25
• CIP ball & fittings
• Man access: Top manway with standard oval lid
• Dimensions: 923x923x1310mm (LxWxH)
• MW stock code: 21718 & 21719

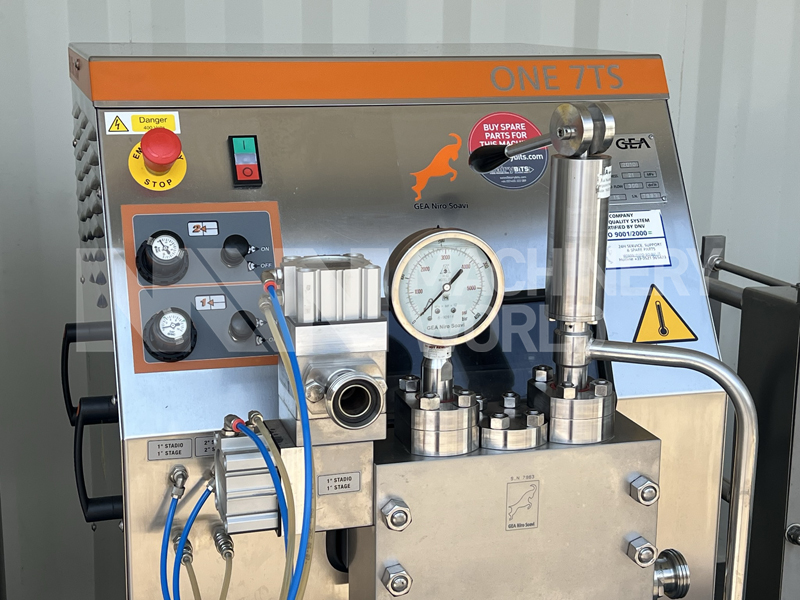

Homogeniser:

• Manufacturer: GEA Niro Soavi S.p.A, Italy.
• Model: ONE 7TS
• Serial number: 7983
• Function: Homogeniser
• Capacity: Approx 300 Litres per hour
• Max. Working pressure: 210 bar (3045 PSI)
• Total installed power: 7,5 kW
• Year of manufacture: 2010
• Number of stages: 2-Stage machine
• Number of plungers: 3
• Piston stroke: 40mm
• Valve arrangement: Ball valve
• Electrics: 400V / 50 Hz / 3 phase
• Net weight: 350kgs
• Dimensions: 830x760x1170mm (DxWxH)
• Country of manufacture: Italy
• MW stock code: 21720

Plate Heat Exchanger:

• Manufacturer: UK Exchangers LTD, UK
• Model: UKE-2AS, 17-18 Plates
• Serial number: C-10594
• Function: Plate Heat Exchanger (for the purpose of cooling)
• Capacity: Approx 300 Litres per hour
• Year of manufacture: 2010
• Number of stages: 2-Stage machine
• Design pressure: 6 Bar / 6 Bar
• Design temperature: 100degC / 100degC
• Test pressure: 9 Bar / 9 Bar
• Volume: 4 Ltr / 4 Ltr
• Country of manufacture: UK

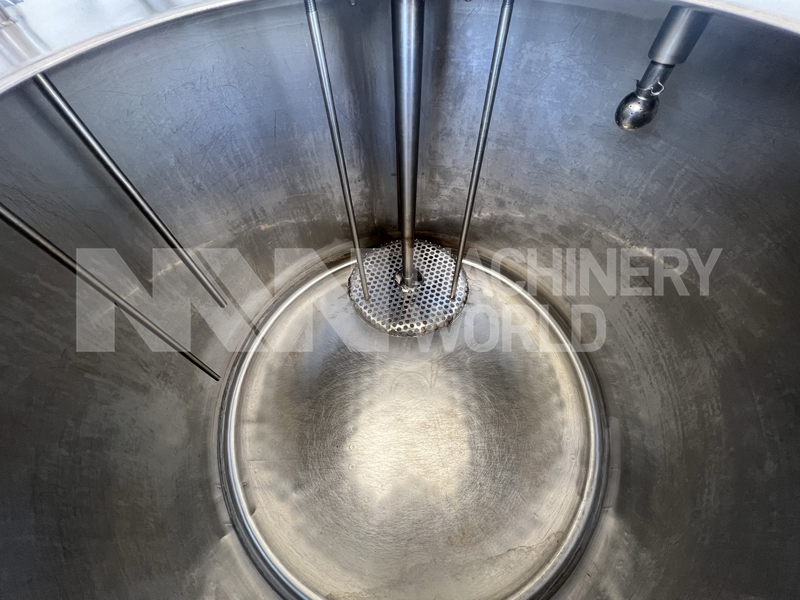

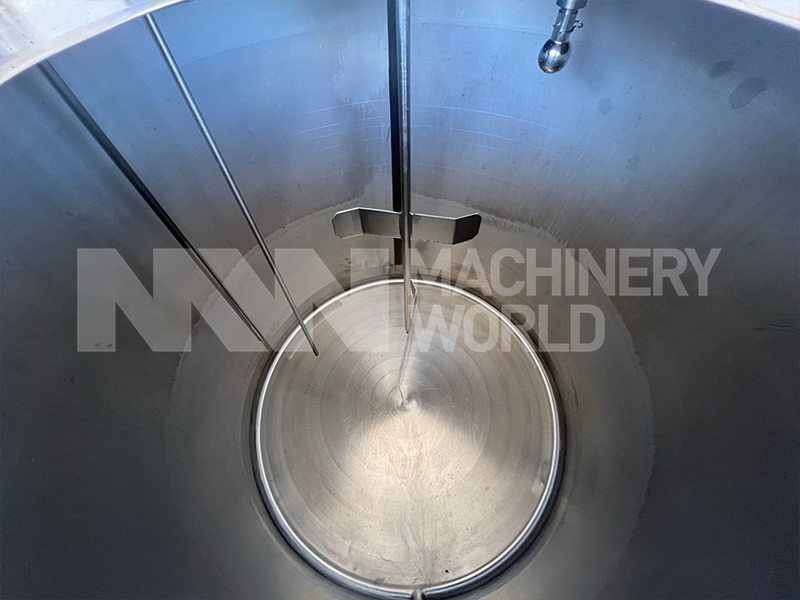

Ice Cream Ageing Vats (2 pcs available):

• Manufacturer: Tetra Pak
• Model: TMW 600
• Function: Ice cream ageing vats
• Electrics: 240V / 50 Hz / Single Phase
• Total installed power per vat: 0.7 kW  (0.35 AMPS)
• Capacity: 660 Litre
• Year of manufacture: 2010
• Agitator speed: 30 RPM
• Equipped with digital thermostat
• Shape: Cylindrical with sloped bottom
• Orientation: Vertical
• Supports: 3x adjustable feet
• Man access: Top manway with standard oval lid
• CIP ball & fittings
• Country of manufacture: Italy
• MW stock code: 21716 & 21717
