Ice Group Heated Chocolate Sauce Tank with Gear Pump (Year 2017)

Description

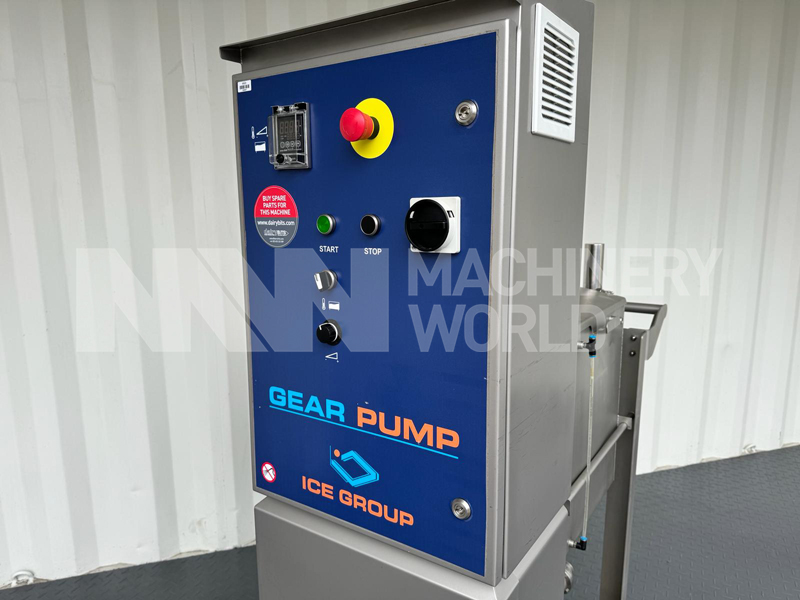

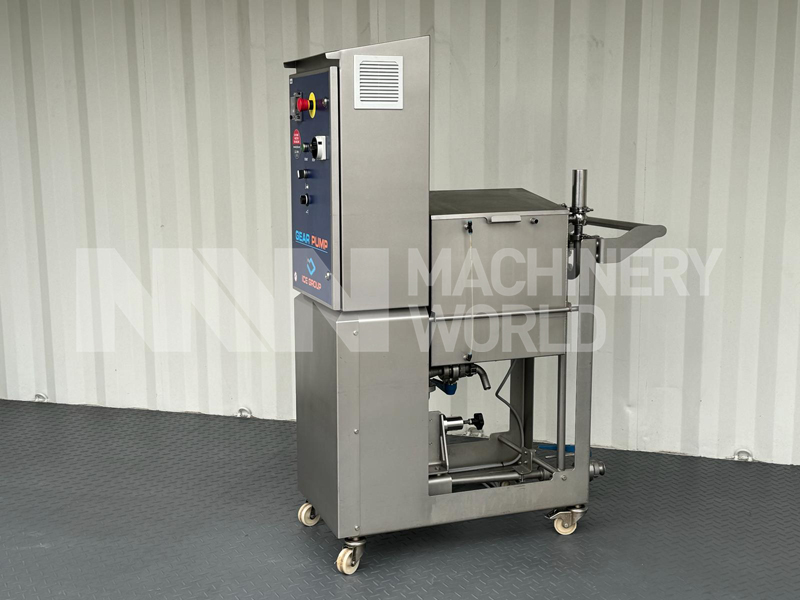

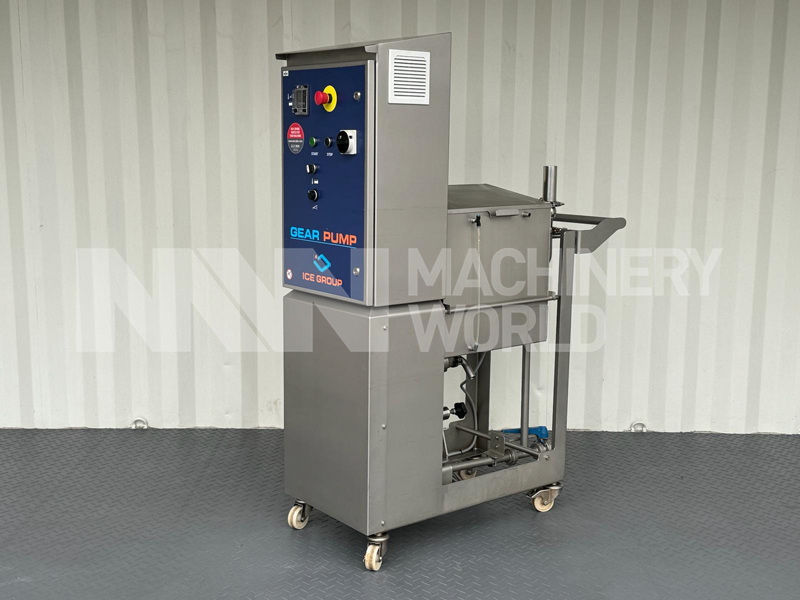

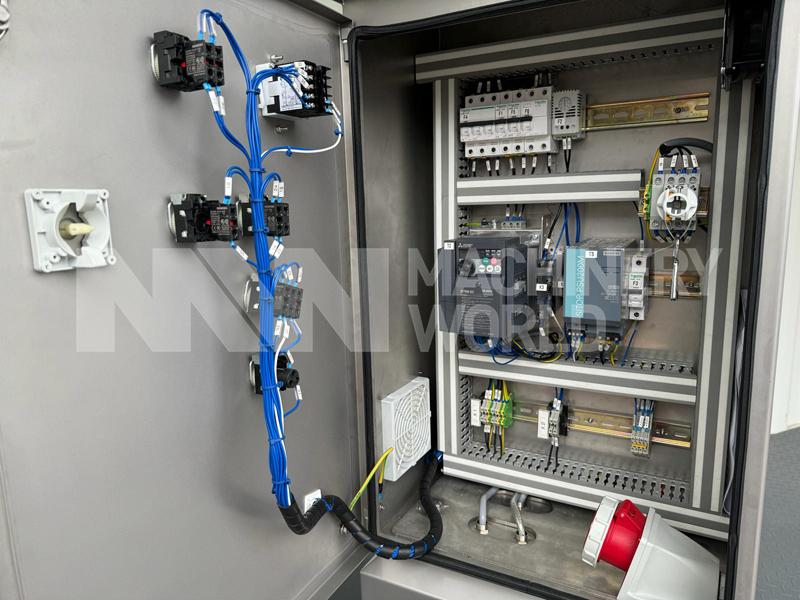

This is a Used Heated Chocolate Tank with Gear Pump manufactured in 2017 by Ice Group, in Poland. The machine is used to inject chocolate or syrup and similar products into the ice-cream as it extrudes from the continuous freezer. It is made up of a vat equipped with heating elements, with a discharge tap and gear pump that doses the product. Adjusting the sauce quantity is made effortless via the control panel, managed by an inverter regulating the gear pump. This grants you the flexibility required to meet diverse preferences and production needs, simplifying the creation of ideal flavor combinations for your clientele.

Features

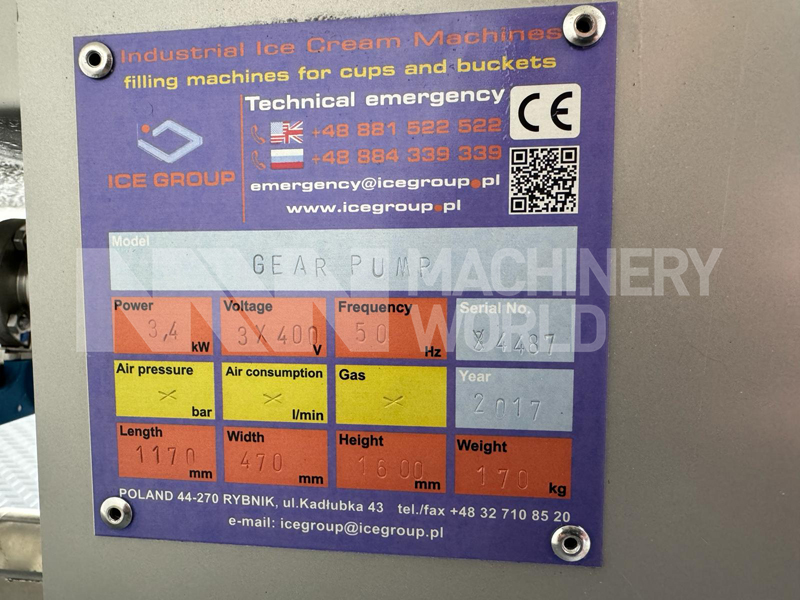

• Manufacturer: Ice Group
• Model: Gear Pump
• Function: Heated Chocolate Tank
• Year of manufacture: 2017
• Serial number: 4487

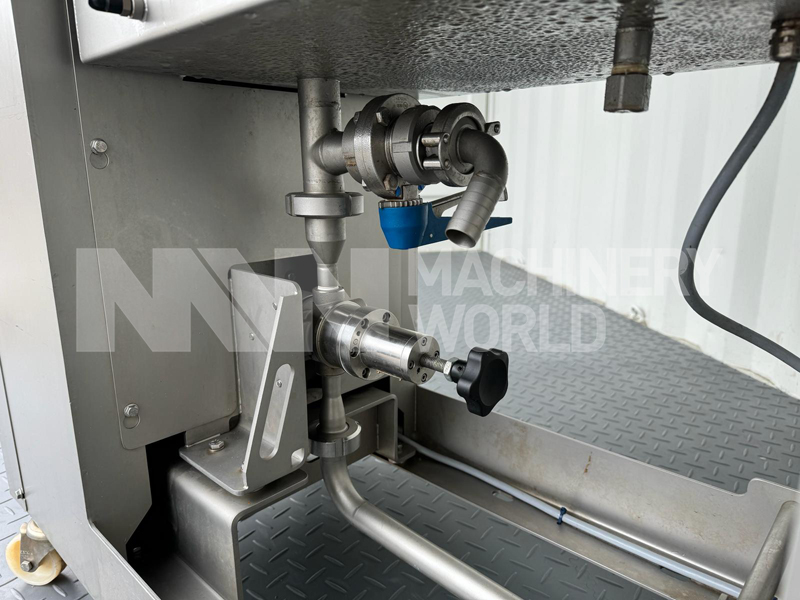

• Variable speed gear pump to alter dosage of syrup

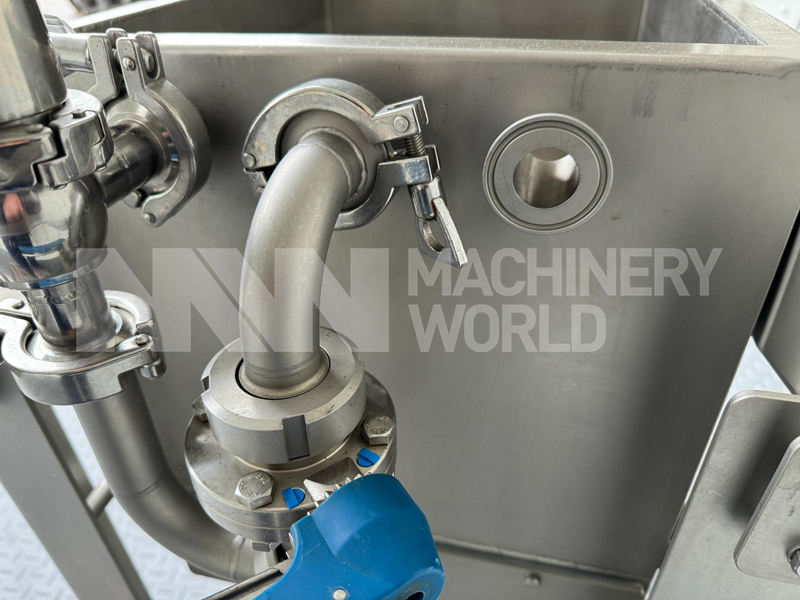

• Syrup supply inlet pipe diameter: DN20 Ø17mm

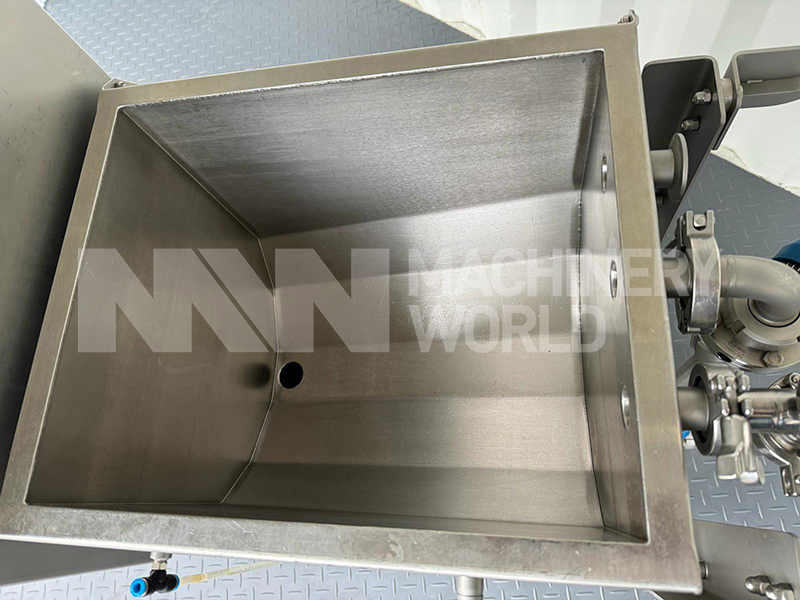

• Jacketed hopper equipped with heating elements
• Total installed power: 3,4 kW
• Electrics: 400V, 3ph, 50HZ
• Stainless steel construction
• Instruction manual available and included

Dimensions

• Length: 1170mm
• Width: 470mm
• Height: 1600mm
• Weight: 170 kgs

Country of manufacture

Poland
