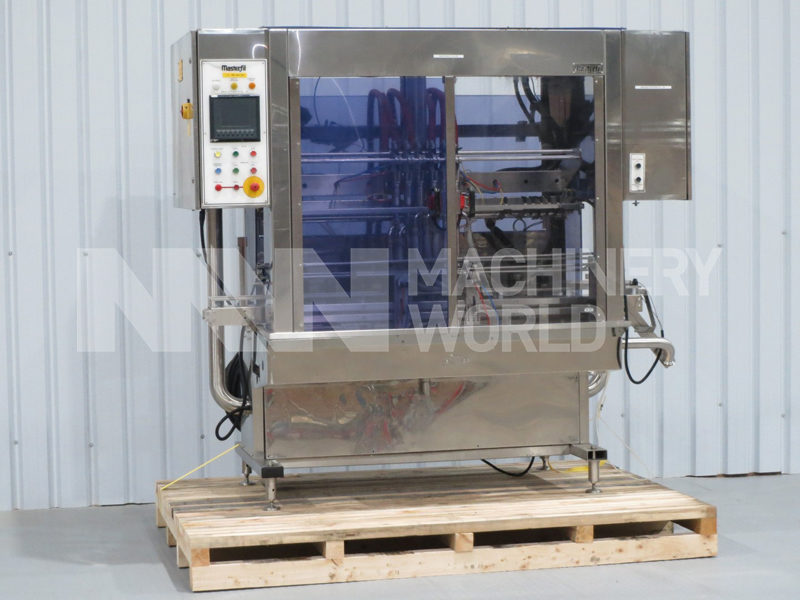

Masterfil S5000-FM 6 Head Inline Volumetric Filling Machine

Description

The Masterfil 'Multifil' is an automatic pneumatically operated precise mass filler. All the machine settings and parameters are set on a Digital display unit, located on the main machine control panel. The machine can be fitted into any production line where there is a continuous flow of containers. The'Multifil' is normallysupplied with its own conveyor, to accept containers from a proceeding operation, fill them and pass them on for capping.

This particular machine was previously working on an 'Innocent' fruit smoothie drink. It also includes the Arol Euro PF 4 Head Capper, 100 litre pressure vessel, SOCO case sealer and additional conveyor.

Features

• Manufacturer: Masterfil
• Model: S5000-FM, 6 Head
• Function: Inline filling machine
• Serial Number: 4716
• Year of manufacture: 2003
• Capacity: 4,300 pcs/hour
• Max. fill time: 60 seconds
• Filling volume: 222ml (6-12 gram available)
• Construction: Stainless steel contact parts
• Maximum bottle height: 300 mm
• Interchangeable nozzle tubes (9.5mm - 25mm / 3mm periphery)
• Voltage: 380V /50Hz / 3 Phase
• Instruction manual supplied
• Includes Arol Euro PF 4 Head Capper, SOCO case sealer and a 100 L pressure vessel
• Videoof this machinein operation(See below)

Country of Manufacture

United Kingdom
