100kg to 360kg per hour Mondomix VA 15L Continuous Aeration (Aerator) Creaming Mixer

Description

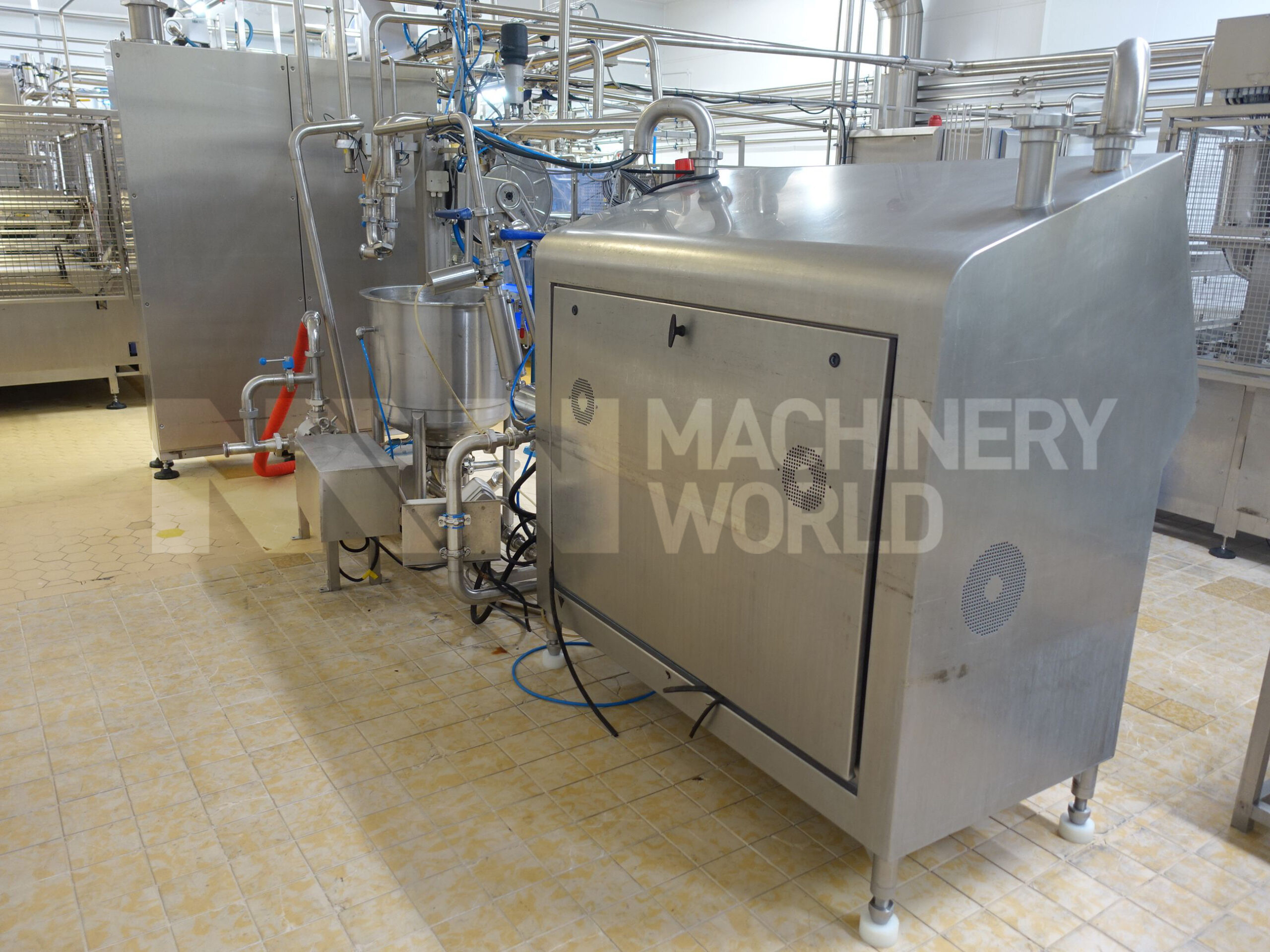

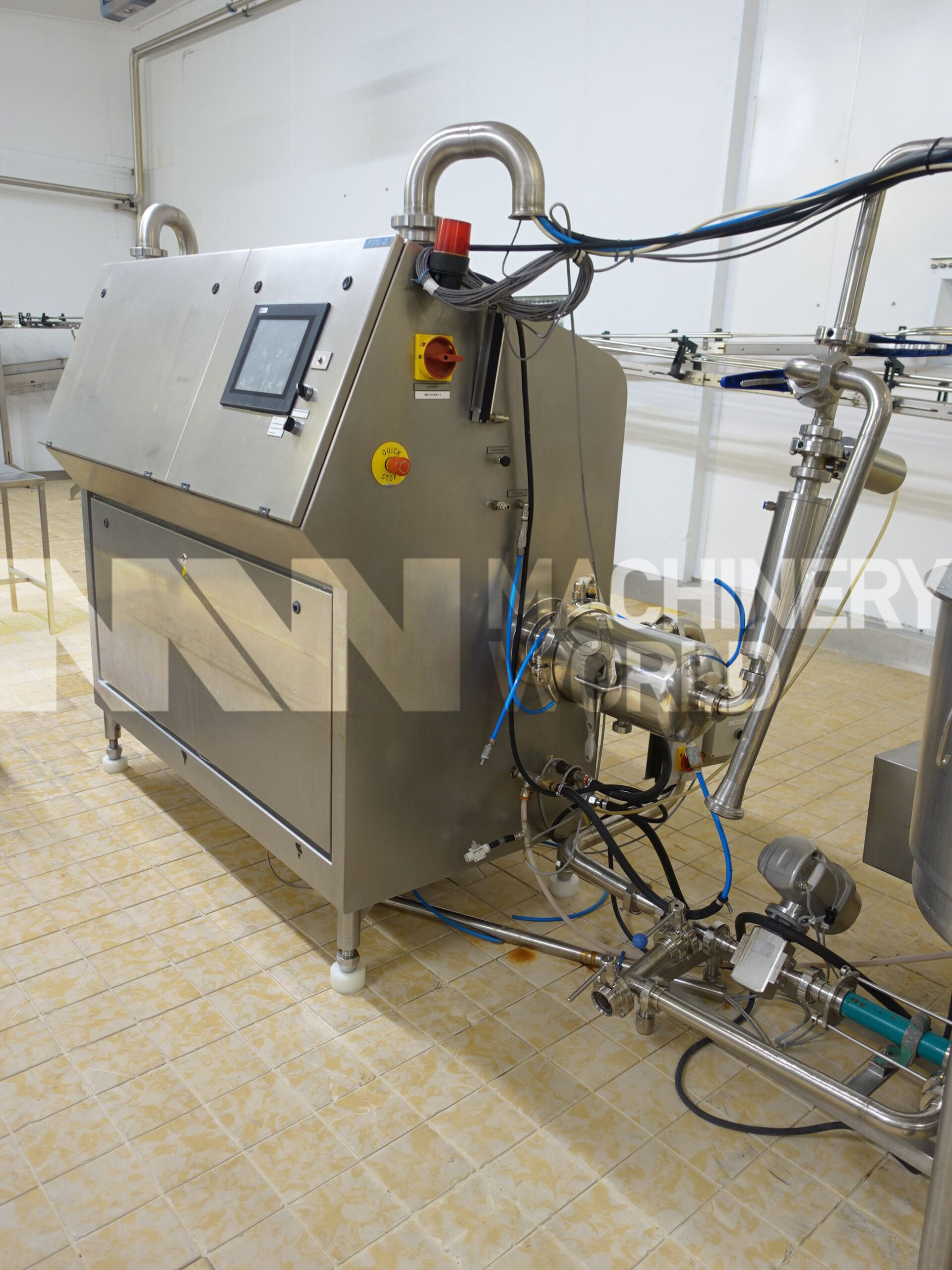

This is a Mondomix VA 15L Continuous Aeration (Aerator) Creaming Mixer in good used condition, with an approximate working capacity of 360kg per hour (Capacity varies depending on the type of product and its viscosity). This used Mondomix VA 15L can be used for continuous mixing and aeration of different types of products such as marshmallow, mousse, aerated dairy cream, whipped cream, light batters, fillings, chocolate, aerated cheese cake mix and other foams. Mondomix VA 15L Continuous Aeration (Aerator) Creaming Mixers are specially designed for thorough & even mixing and aeration of product and they work on the principle of Rotor Stator mechanism using its axial mixing head and comes fitted with Multiple Pins, which inter-mesh to provide continuous shear of product including aeration. This Mondomix VA 15L includes Mono Pump (Positive Displacement Pump) for Product Feed-In with Stainless Steel Jacketed Balance, Valves and Endress & Hauser Flowmeter. Currently held as stock, this used Mondomix VA 15L Continuous Aeration (Aerator) Creaming Mixer is available for immediate sale.

Features

• Manufacturer: Mondomix B.V, The Netherlands
• Type: VA 15L
• Project Number: P13750
• Function: Aeration (Aerator) / Creaming / Mixer
• Capacity: Approx 100kg to 360 kg per hour (Varies depending on the type of product, recipe and its viscosity)
• Mixing Head Speed: Variable (Comes with Frequency Controlled Inverter for precise Speed Control)
• Max. Working Pressure:10 bar
• Electrical Power: 4kw
• Electrics: 415V / 3Phase / 50Hz

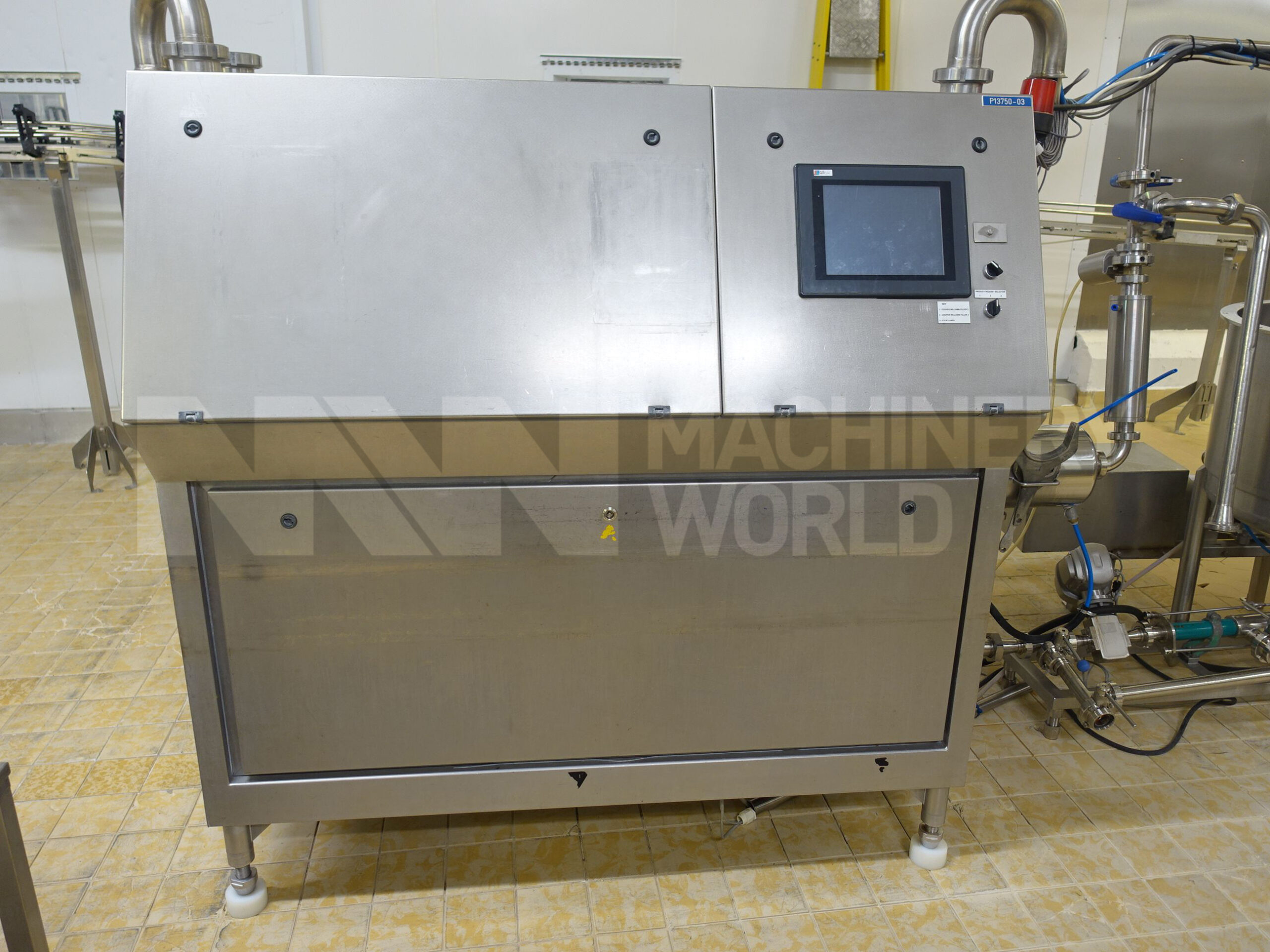

• Control Panel: Fully Integrated Control Panel with Allen Bradley PLC and GE Fanuc Quick Panel HDMI Touchscreen Operators Console & Frequency Controlled Inverters for Speed Control.
• Stainless steel construction

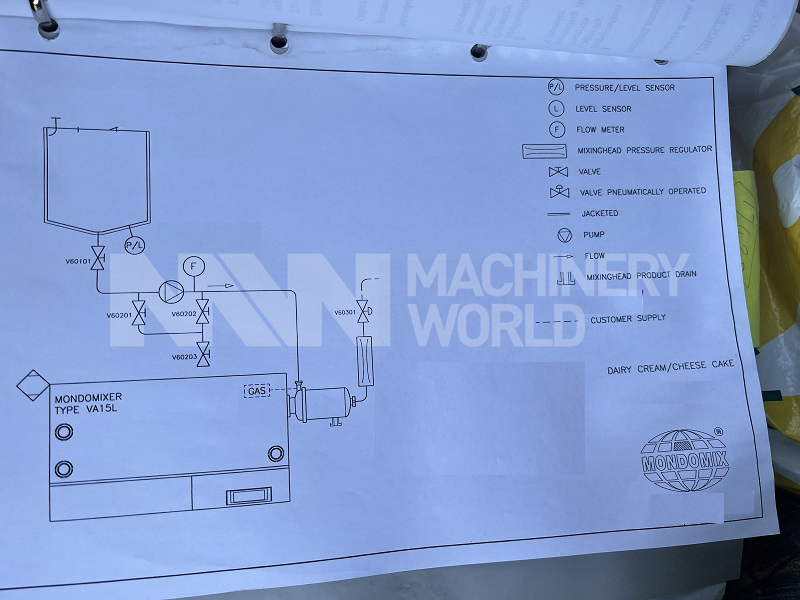

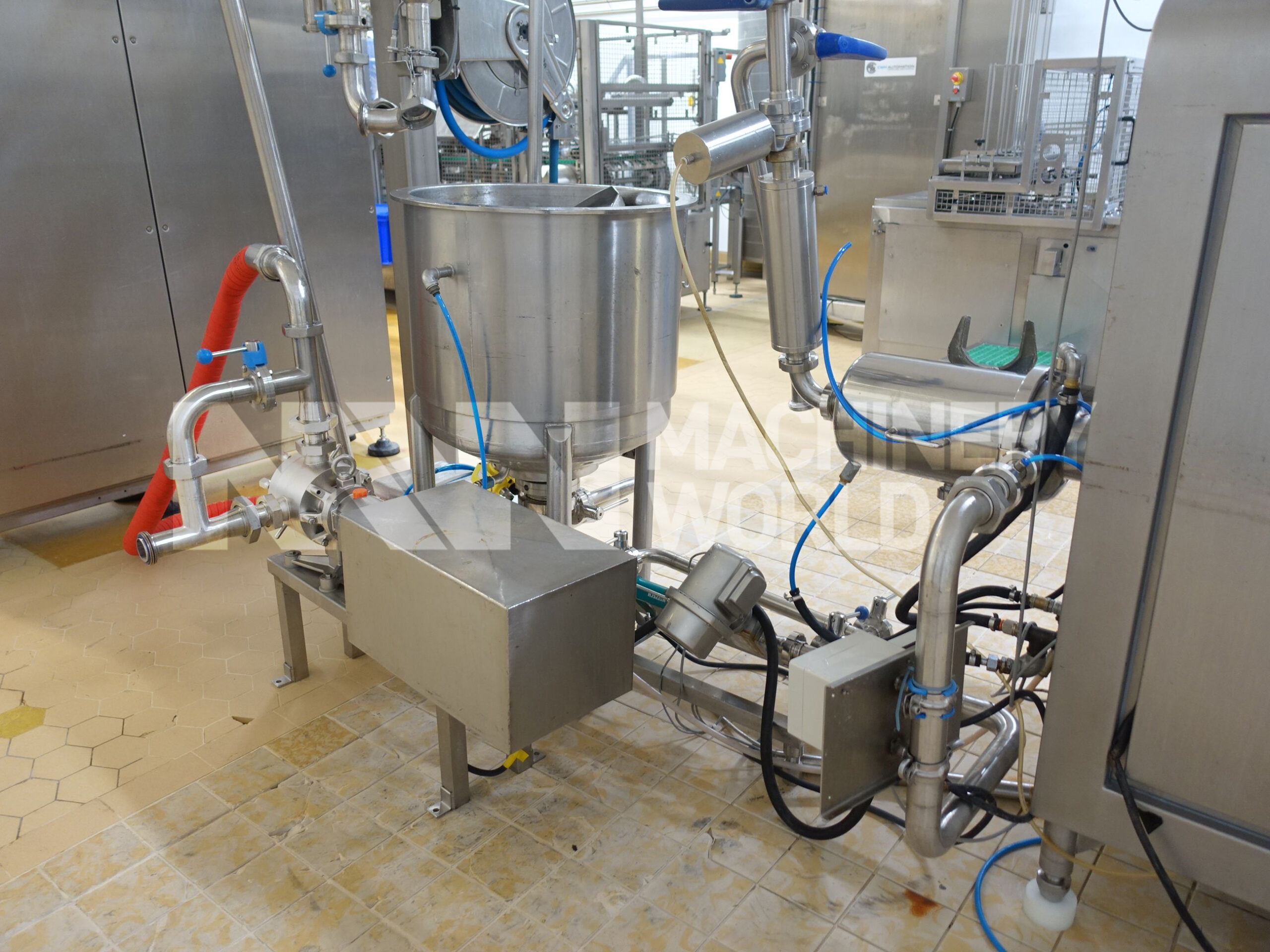

• Includes Mono Pump (Positive Displacement Pump) for Product Feed-In with Aprrox 100 Ltr Stainless Steel Jacketed Balance, Valves and Endress & Hauser Flowmeter.

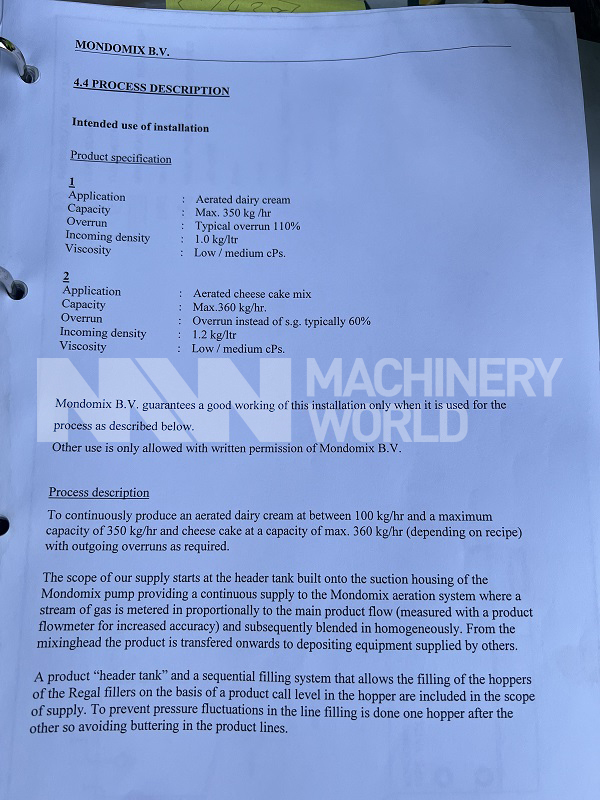

• Previous Used Product: Aerated Dairy Cream (Approx 350kg per hour) & Aerated Cheese Cake Mix (Approx 360kg per hour)

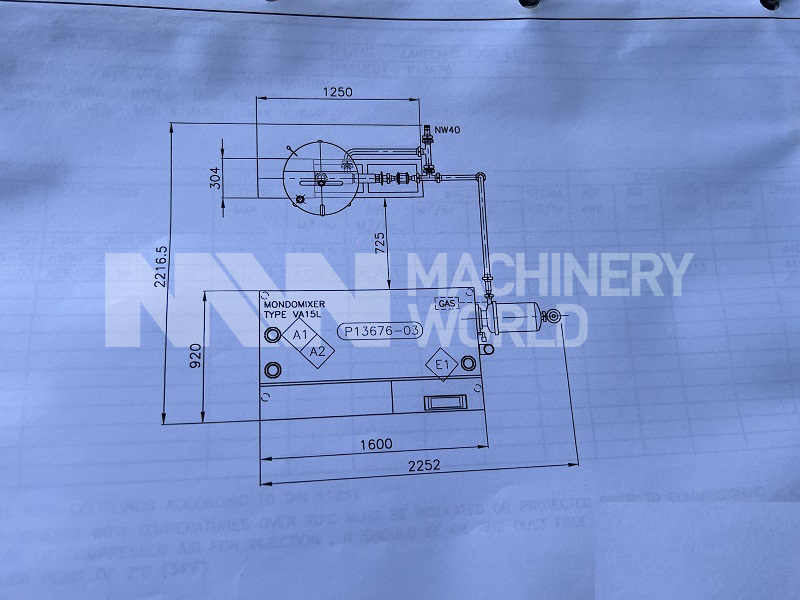

Dimensions

• Length: 2400mm
• Width: 1050mm
• Height: 1750mm
• Weight: Approx 700kg

Country of Origin

The Netherlands (Holland)
