100kg to 360kg per hour Mondomix VA 15L Continuous Aeration (Aerator) Creaming Mixer

SOLD - SOLD - SOLD - SOLD - SOLD

Add to quote
SKU: 21708 Categories: , , , Tag:
Description

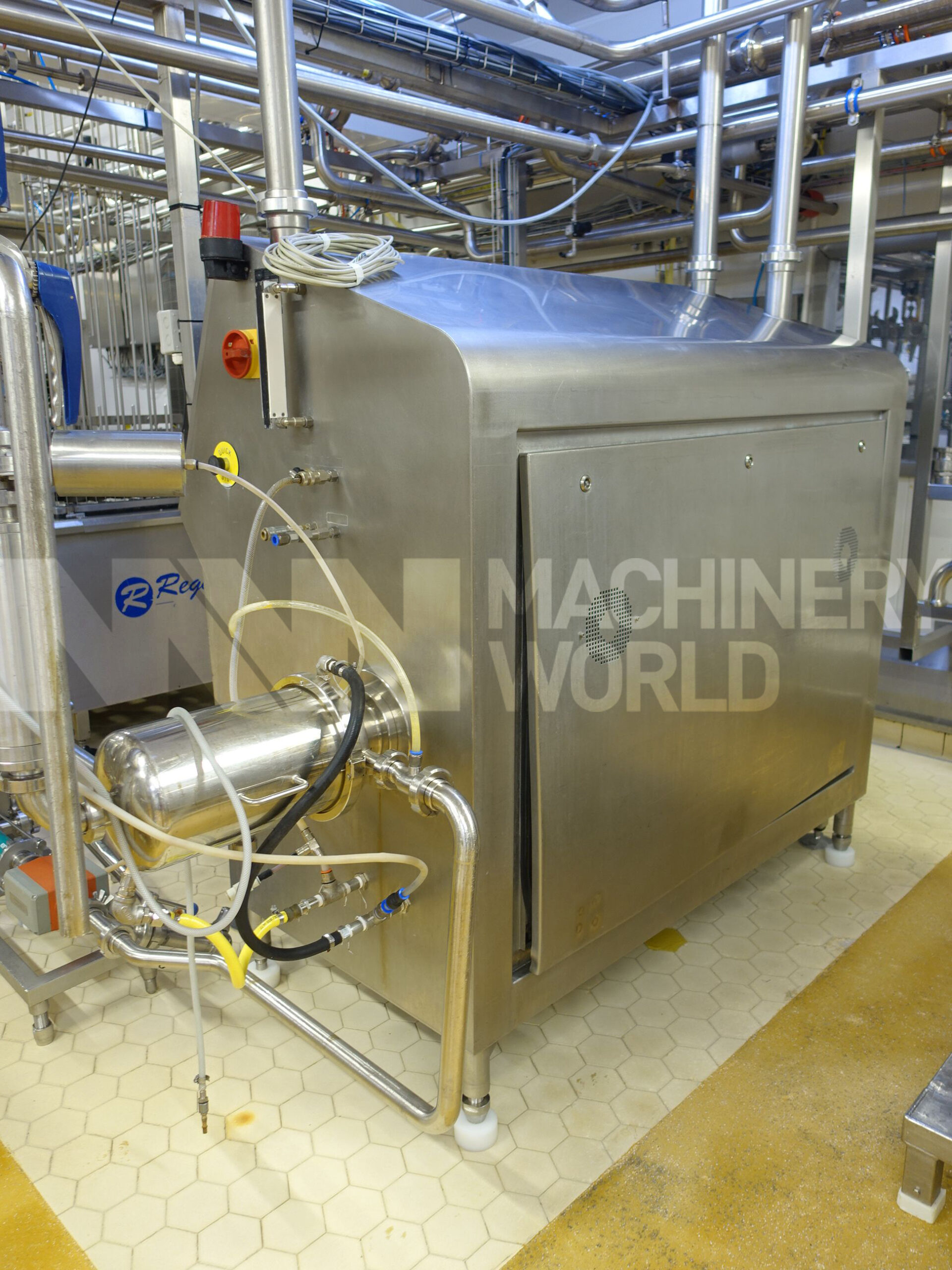

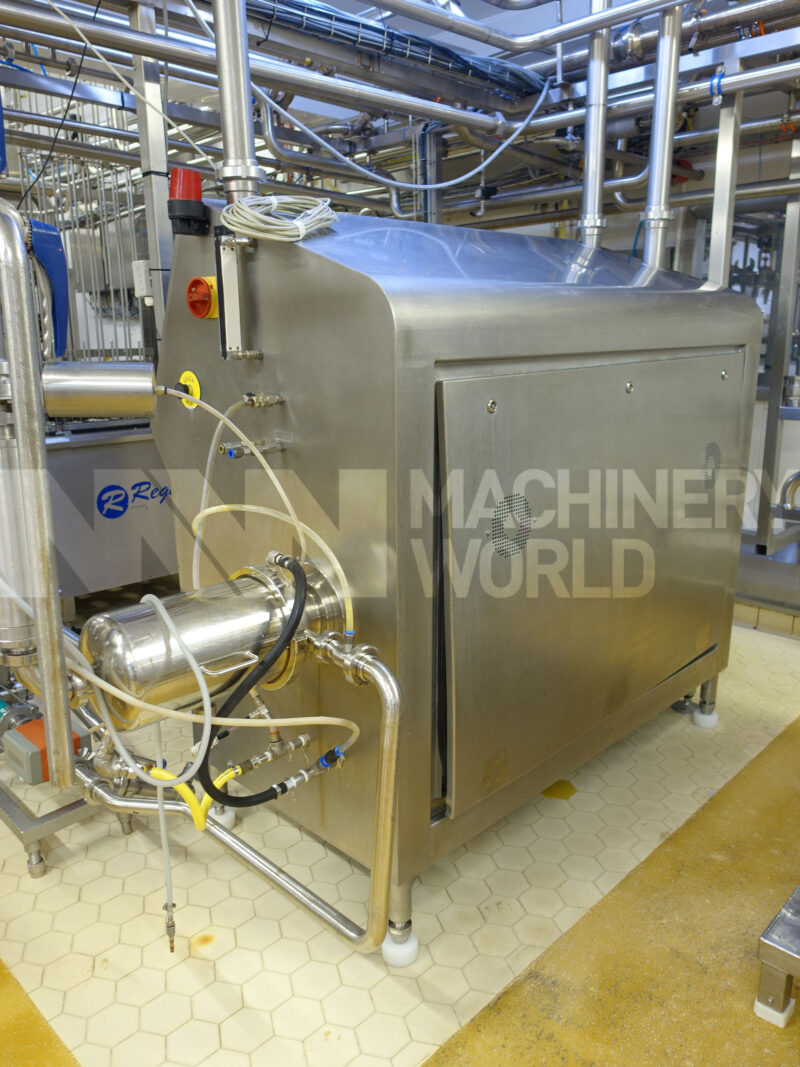

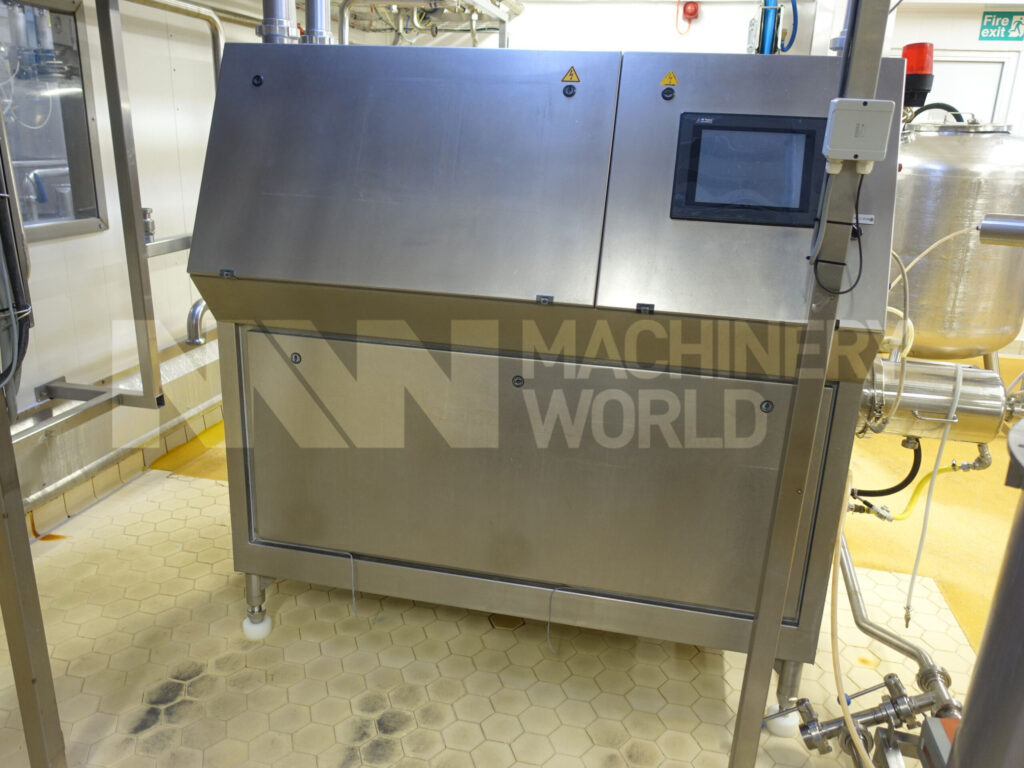

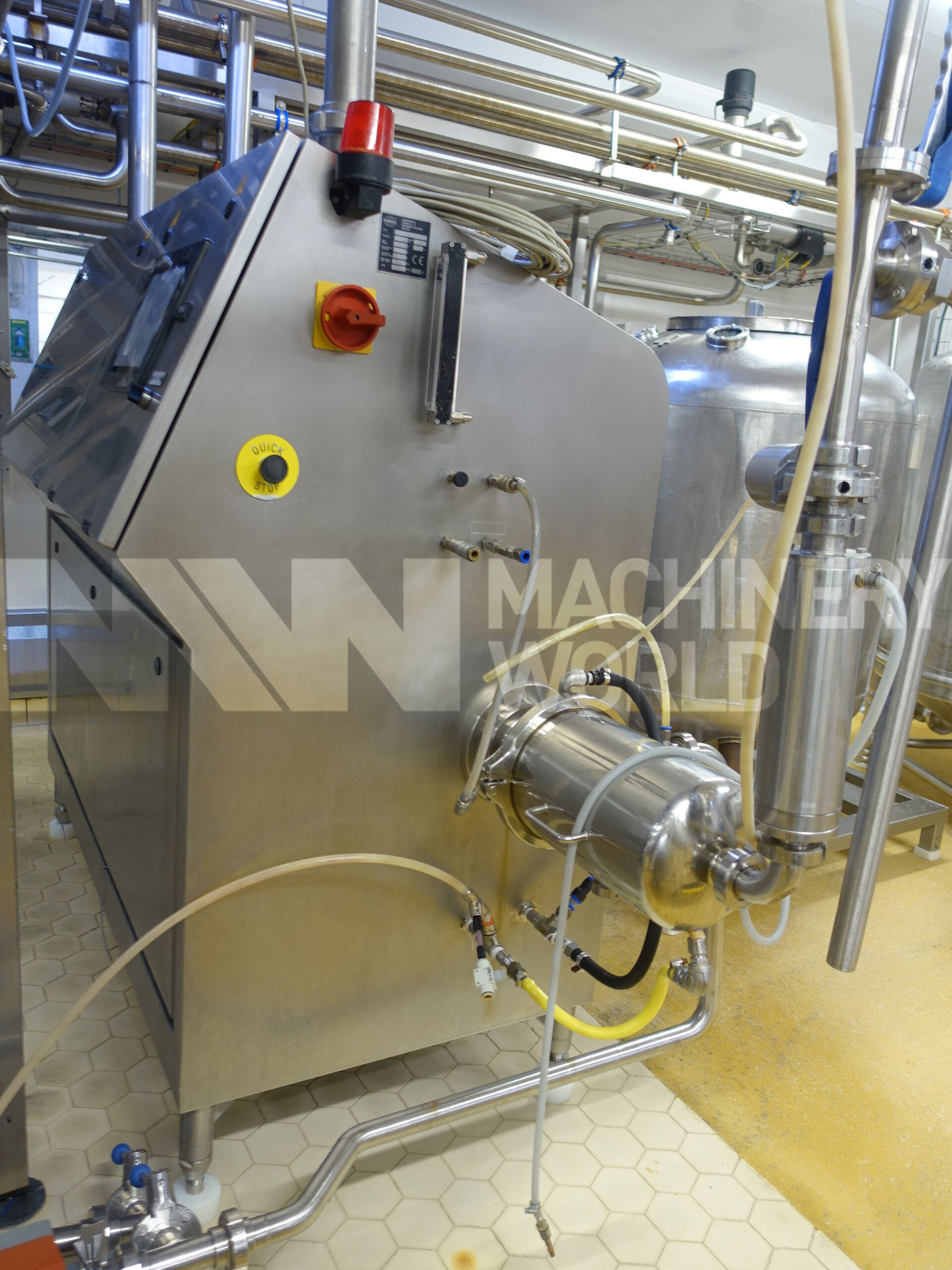

This is a Used Mondomix VA 15L Continuous Aeration (Aerator) Creaming Mixer with an approximate working capacity of 100kg to 360kg per hour and this capacity varies depending on the type of product, recipe and viscosity. This Mondomix VA 15L can be used for the continuous mixing and aeration of different types of products such as marshmallow, mousse, aerated dairy cream, whipped cream, light batters, fillings, chocolate, aerated cheese cake mix and other foams. Mondomix VA 15L Continuous Aeration (Aerator) Creaming Mixer is specially designed for thorough & even mixing and aeration of product and they work on the principle of Rotor Stator mechanism on its axial mixing head, where the Rotor & Stator are fitted with Multiple Pins, which inter-mesh to provide continuous shear of product including aeration. Currently held as stock, this Mondomix B25 Continuous Aeration (Aerator) Creaming Mixer is available for immediate sale. This used Mondomix VA 15L includes Mono Pump (Positive Displacement Pump) for Product In-Feed, with a Process Data PD340 Flow Transmitter and Stainless Steel Jacketed Product Balance Tank.

Features

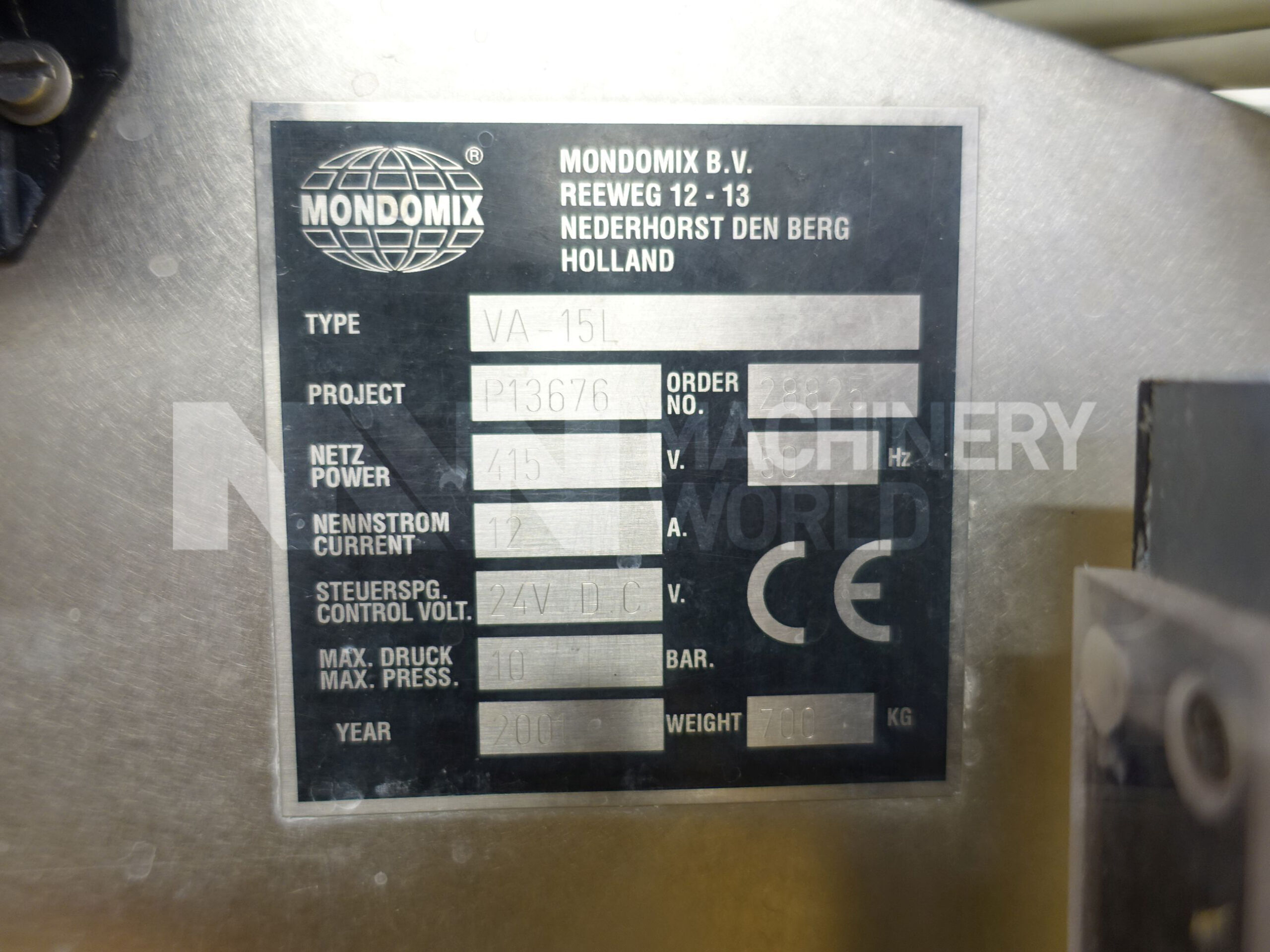

  • Manufacturer: Mondomix B.V, The Netherlands
  • Type: VA 15L
  • Order Number: 28825

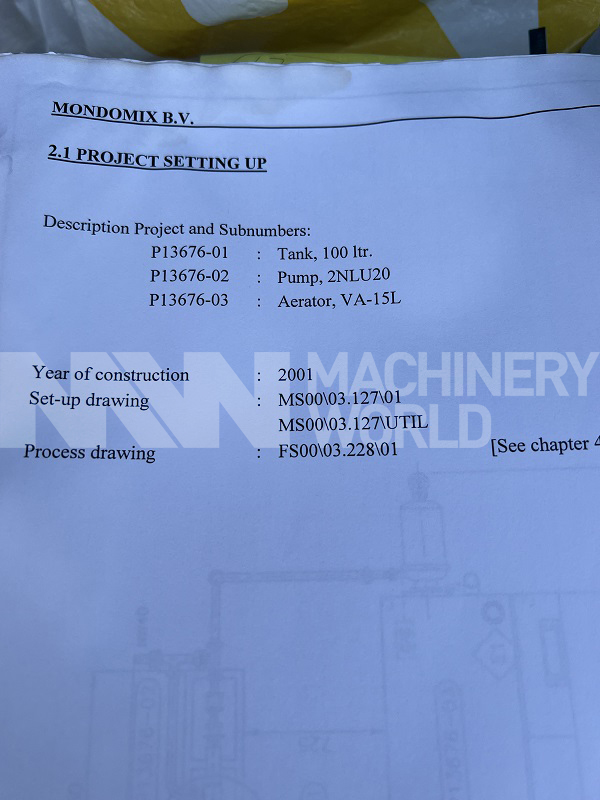

  • Project No: P13676
  • Year of Manufacture: 2001
  • Function: Aeration (Aerator) / Creaming / Mixer
  • Capacity: 100kg to 360 kg per hour (Varies depending on the type of product, recipe and its viscosity)
  • Mixing Head Speed: Variable (Comes with Frequency Controlled Inverter for precise Speed Control)
  • Max. Working Pressure:10 bar
  • Electrical Power: 4kw
  • Electrics: 415V / 3Phase / 50Hz

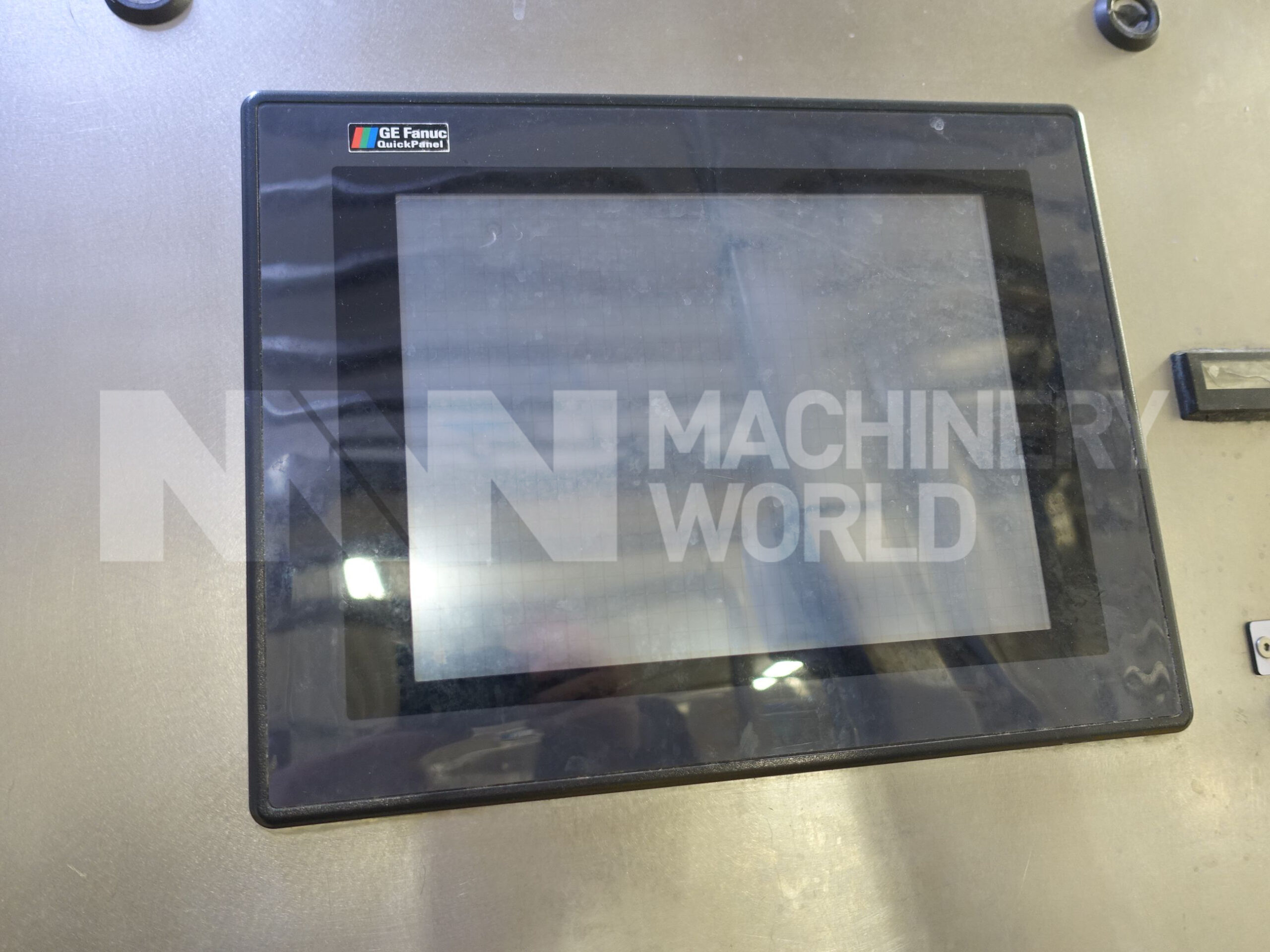

  • Control Panel: Fully Integrated and comes with Allen Bradley PLC and GE Fanuc Quick Panel HDMI Touchscreen Operators Console & Frequency Controlled Inverters for Speed Control.
  • Stainless steel construction

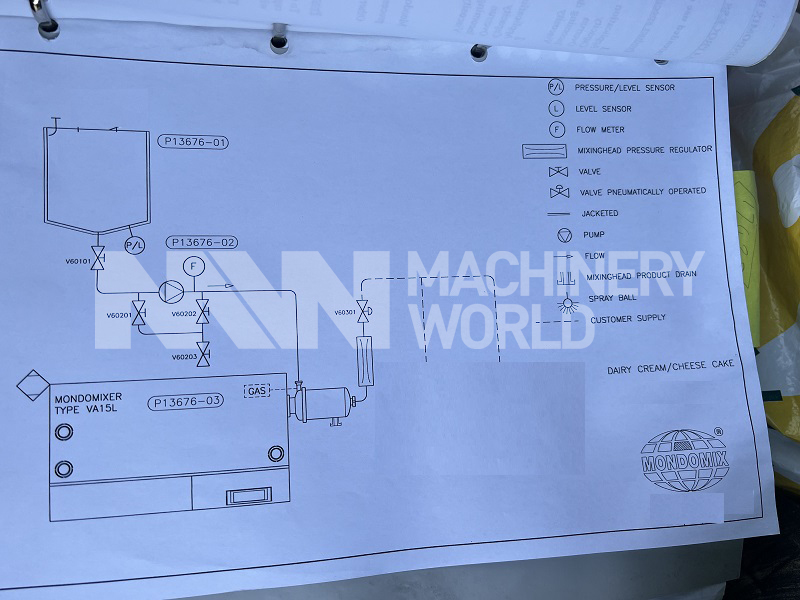

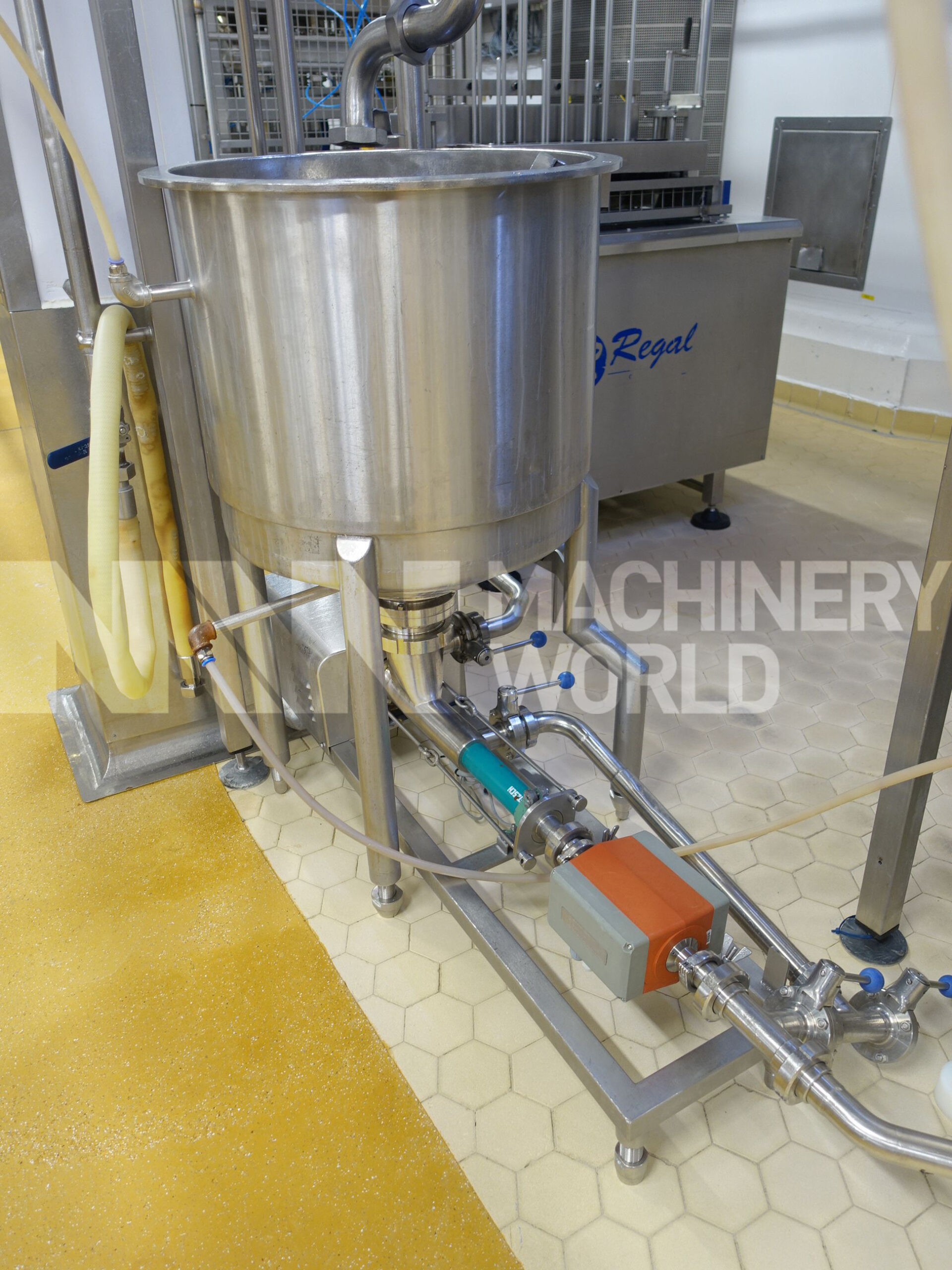

  • Additional Details: Includes Mono Pump (Positive Displacement Pump) for Product In-Feed, with a Process Data PD340 Flow Transmitter and Approx 100 Ltr Stainless Steel Jacketed Product Balance Tank.

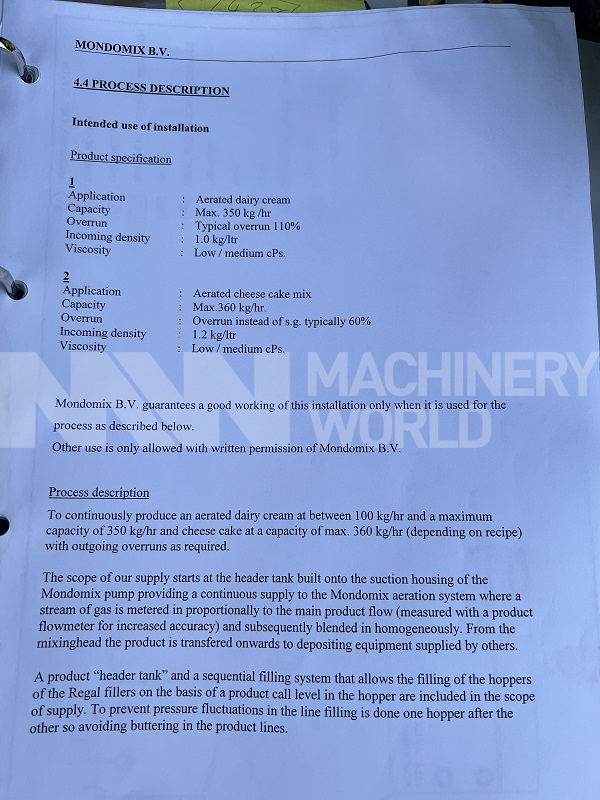

  • Previous Used Product: Aerated Dairy Cream (Approx 350kg per hour) & Aerated Cheese Cake Mix (Approx 360kg per hour)

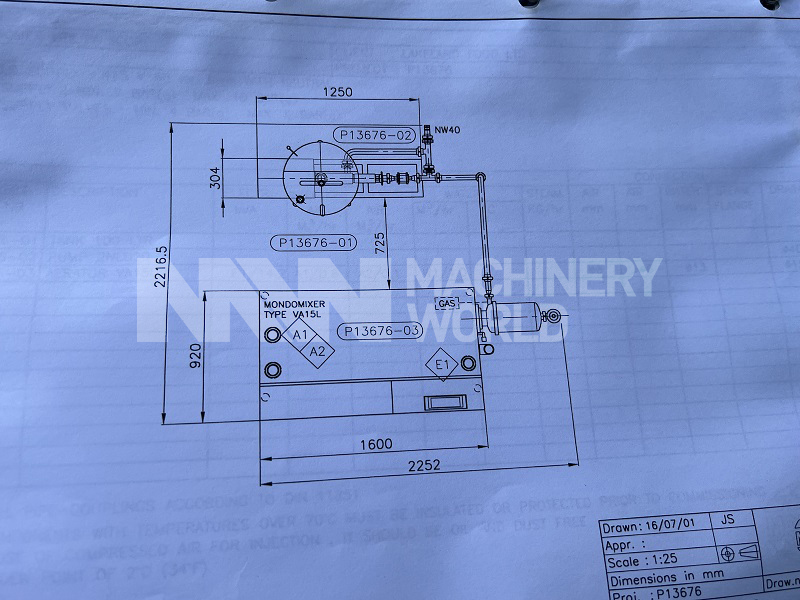

Dimensions
  • Length: 2400mm
  • Width: 1050mm
  • Height: 1750mm
  • Weight: Approx 700kg
Country of Origin

The Netherlands (Holland)
