5,000 LPH ROKK 6-Series (200 Bar) Homogeniser (Brand new)

Description

The ROKK 6-Series high-pressure homogenizers and piston pumps have excellent performance and reliability in the latest design concept. This ROKK 6-Series Homogeniser has a working capacity of approx 5,000 LPH at a maximum operating pressure of 200 Bar (2,900 PSI). The MonoBlock (compression head) is manufactured out of a high tensile, corrosion resistant, forged, ultra-high quality stainless steel and checked for imperfections using ultrasound equipment. The compression head for sanitary applications provides an in-line flow pattern and minimises the number of sealed areas. The block features removable top, bottom and front flanges for easy maintenance and has an ultra clean design without dead ends. The semi-spherical valves system allows smooth machine operation, for both low and high viscosity products.

Features

• Brand: ROKK Processing, United Kingdom
• Model: 6-Series
• Function: High Pressure Homogeniser

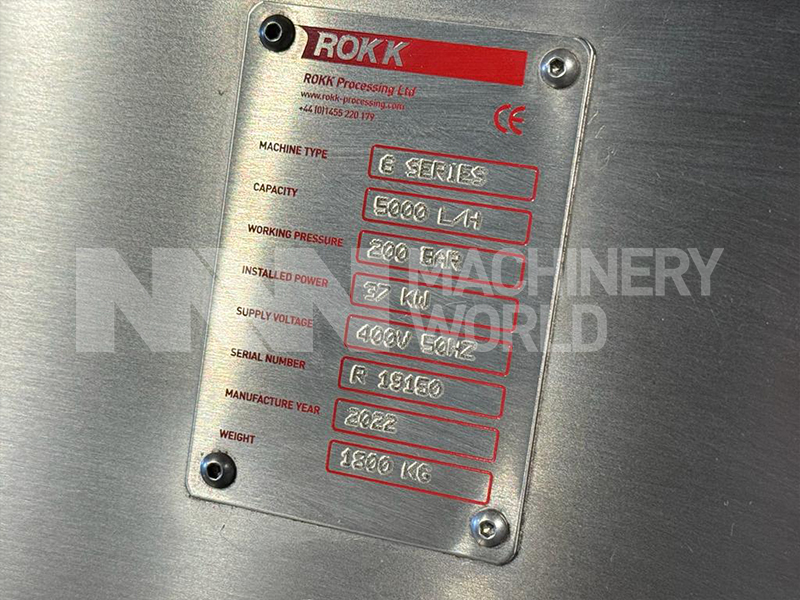

• Serial Number: R19150
• Capacity: 5,000 Litres / Hour
• Max. working pressure: 200 Bar (2,900 PSI)
• Total installed power: 37Kw
• Number of stages: 2-Stage Homogeniser
• Valve Design: Mushroom
• Piston Design: Stainless steel (Ceramic coated)
• Tungsten Carbide Homogenising Valves
• Number of Plungers (Pistons): 3x Plungers (Pistons)
• Electrics: 400V / 50 Hz / 3 Phase
• Finish: Complete Stainless Steel

Dimensions

• Depth: 205 cms
• Width: 125 cms
• Height: 121 cms
• Weight: 1800 kgs
