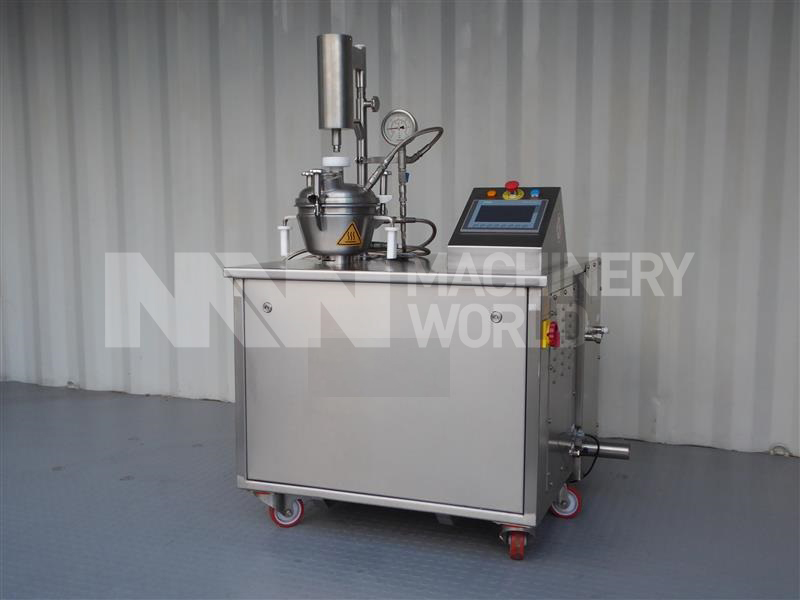

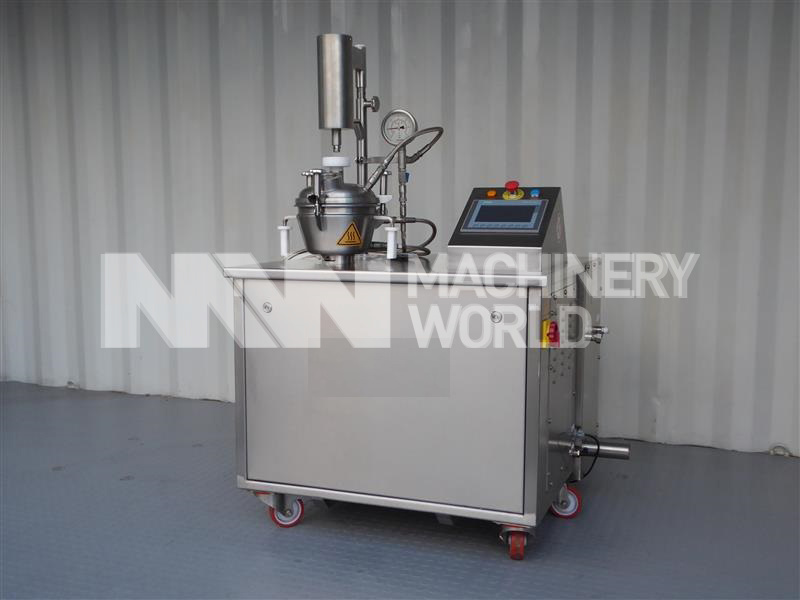

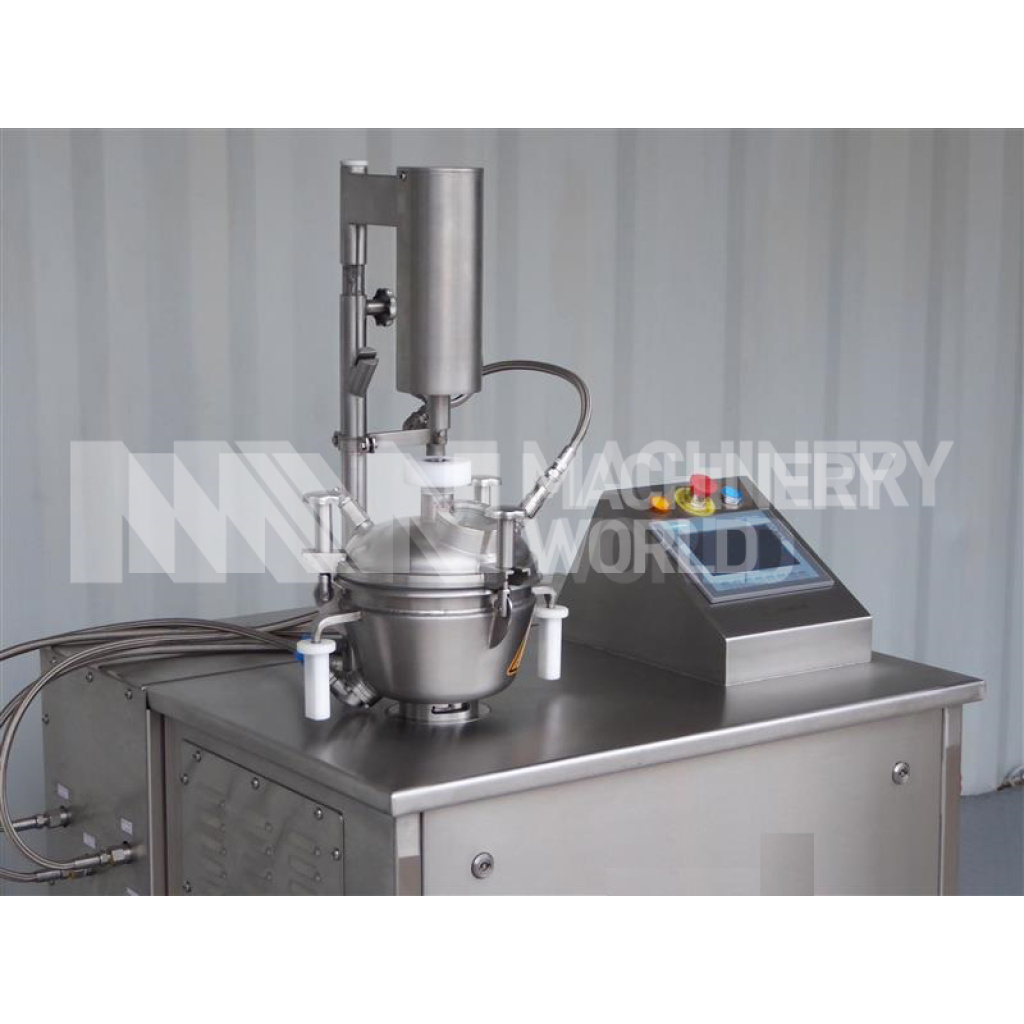

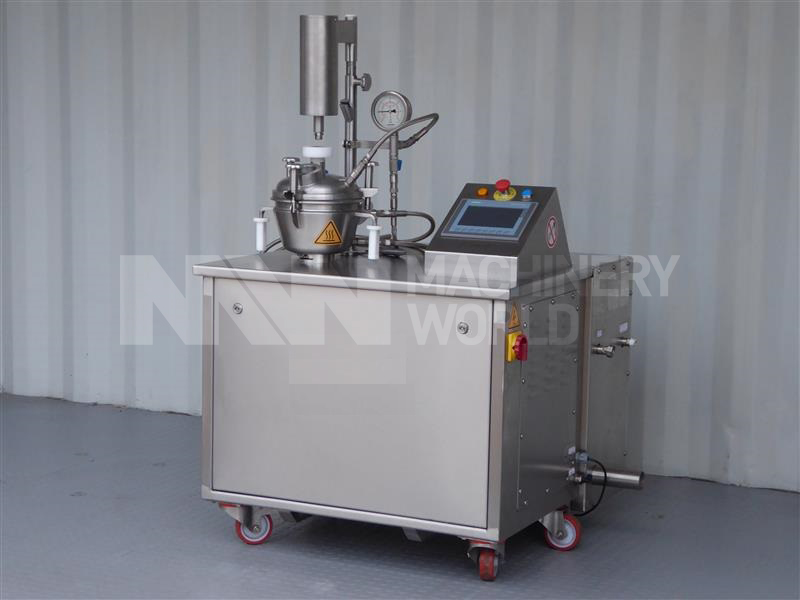

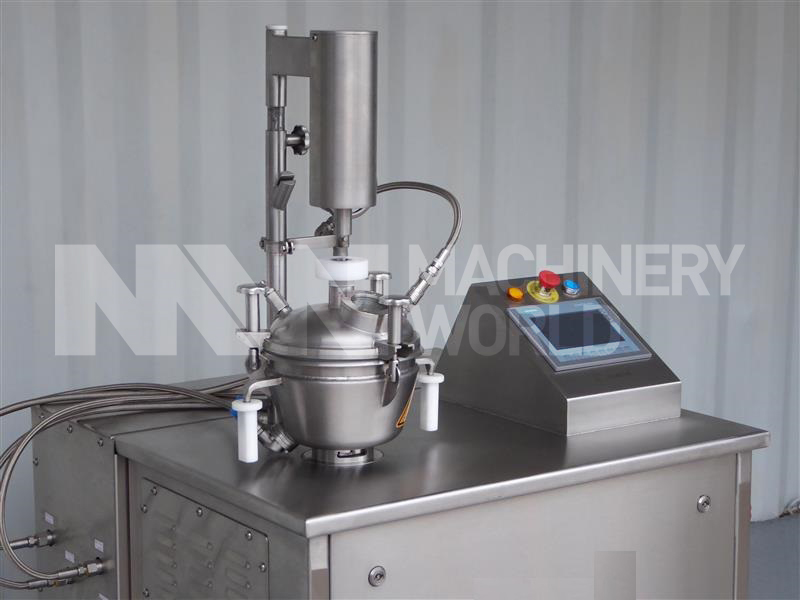

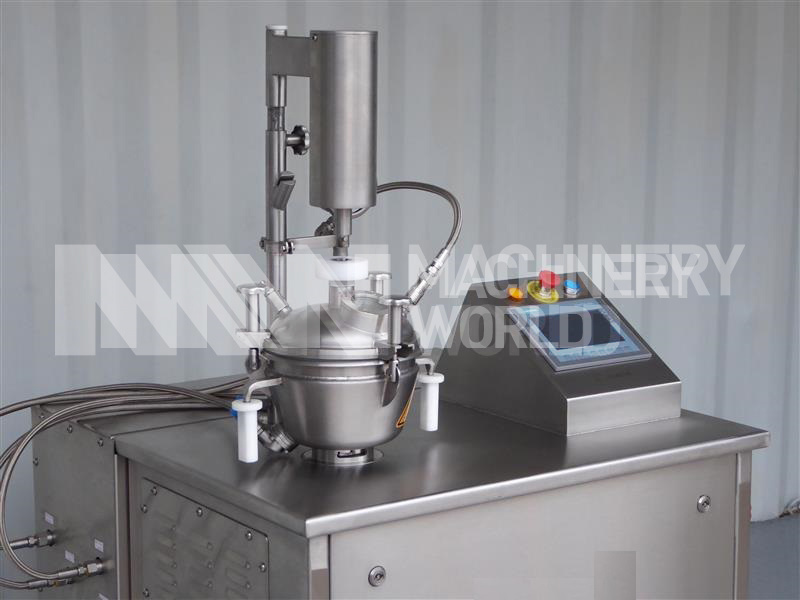

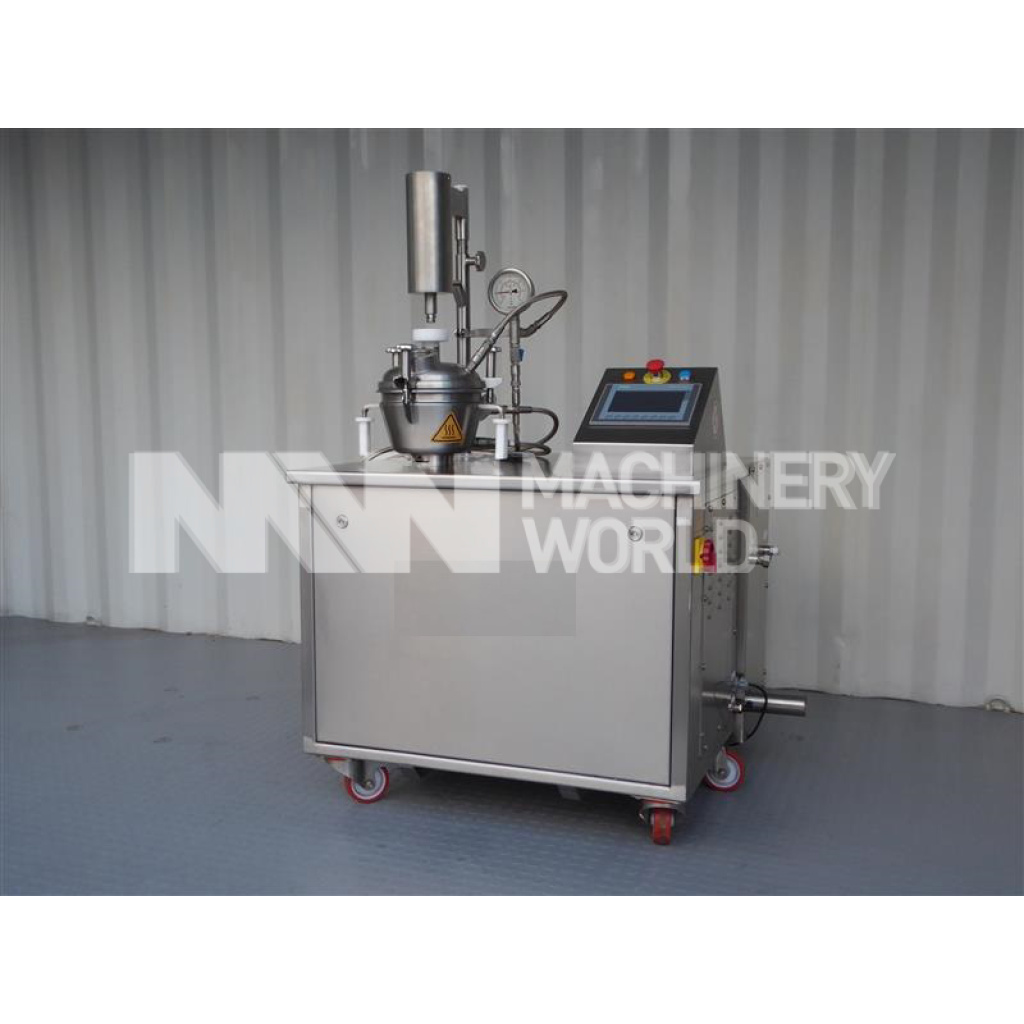

ROKK CCM-5 Multifunctional Laboratory Mixer / Cooker

Description

The ROKK Multifunctional Industrial Mixers (Cooker & Cooler & Mixer) are configurable for many different applications, some examples are processed cheese, dressings, sauces, baby food, confectionery fillings, almond paste, mayonnaise & ketchup and be able to handle with different tasks such as mixing, heating up, cooling, grinding, emulsifying, size reduction, direct or indirect cooking under vacuum, deaerating (vacuum) and homogenizing.

Features

• Manufacturer: ROKK
• Function: CCM-5
• Bowl capacity: 5 litre
• Batch quantity (product dependent) 2-5 litres
• Processing temperature (max): 110°C
• Main power: 0,75 kW
• Agitator power: 0,75 kW
• Vacuum pump: 20 kW
• AISI 304 quality stainless steel
• Direct steam injection, 1 nozzle
• Double jacket (heating and cooling)
• Vacuum pump

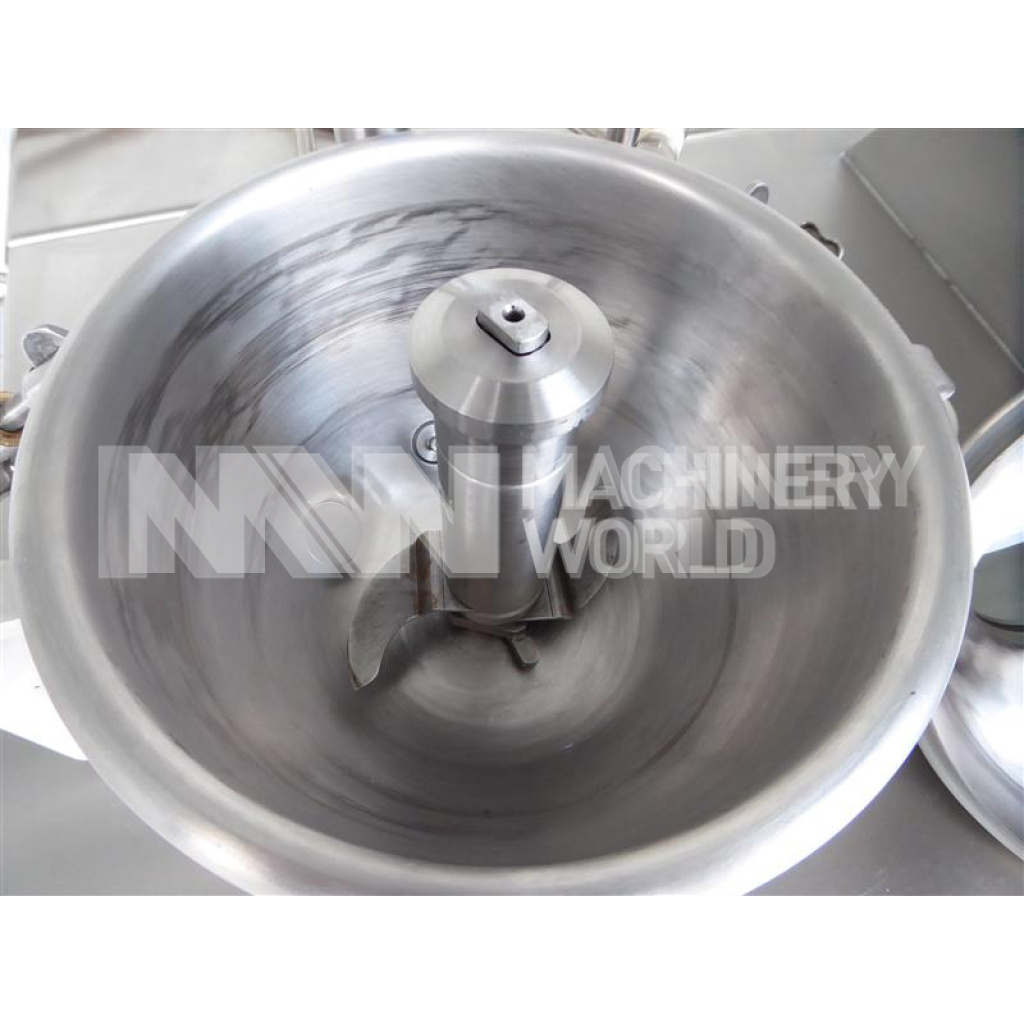

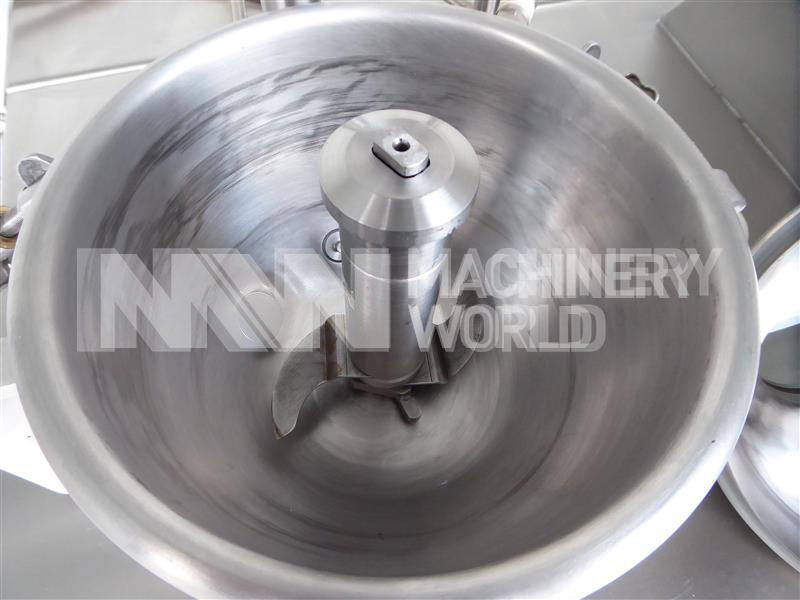

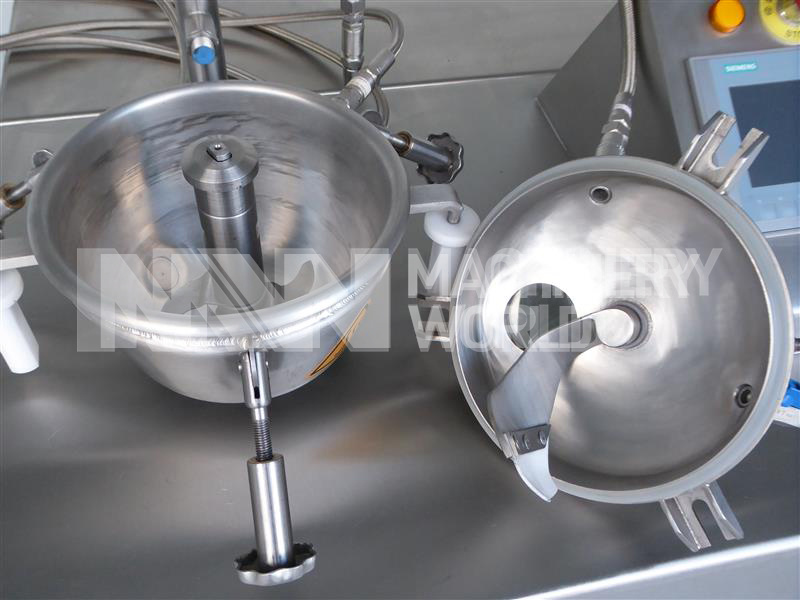

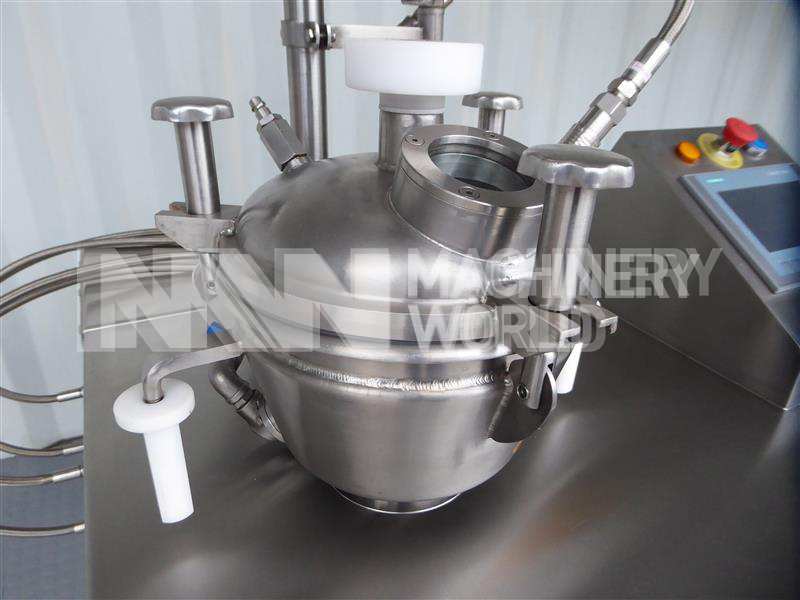

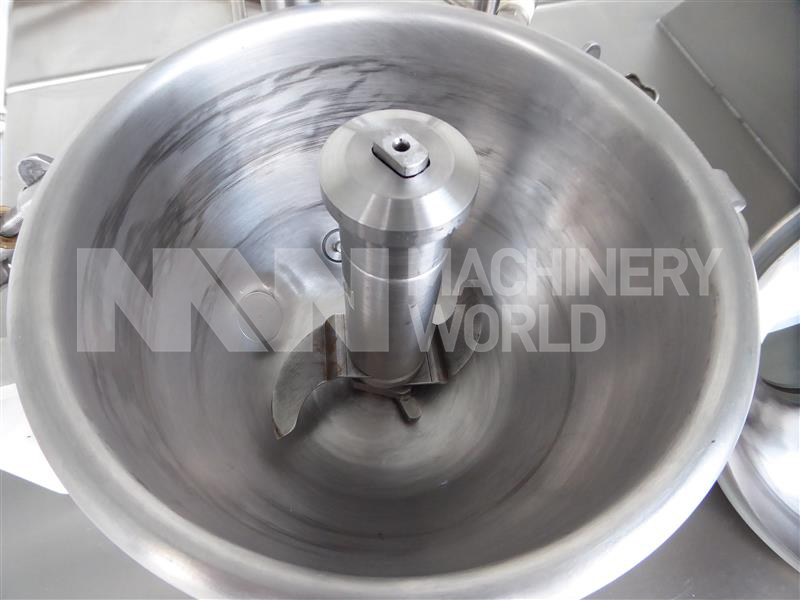

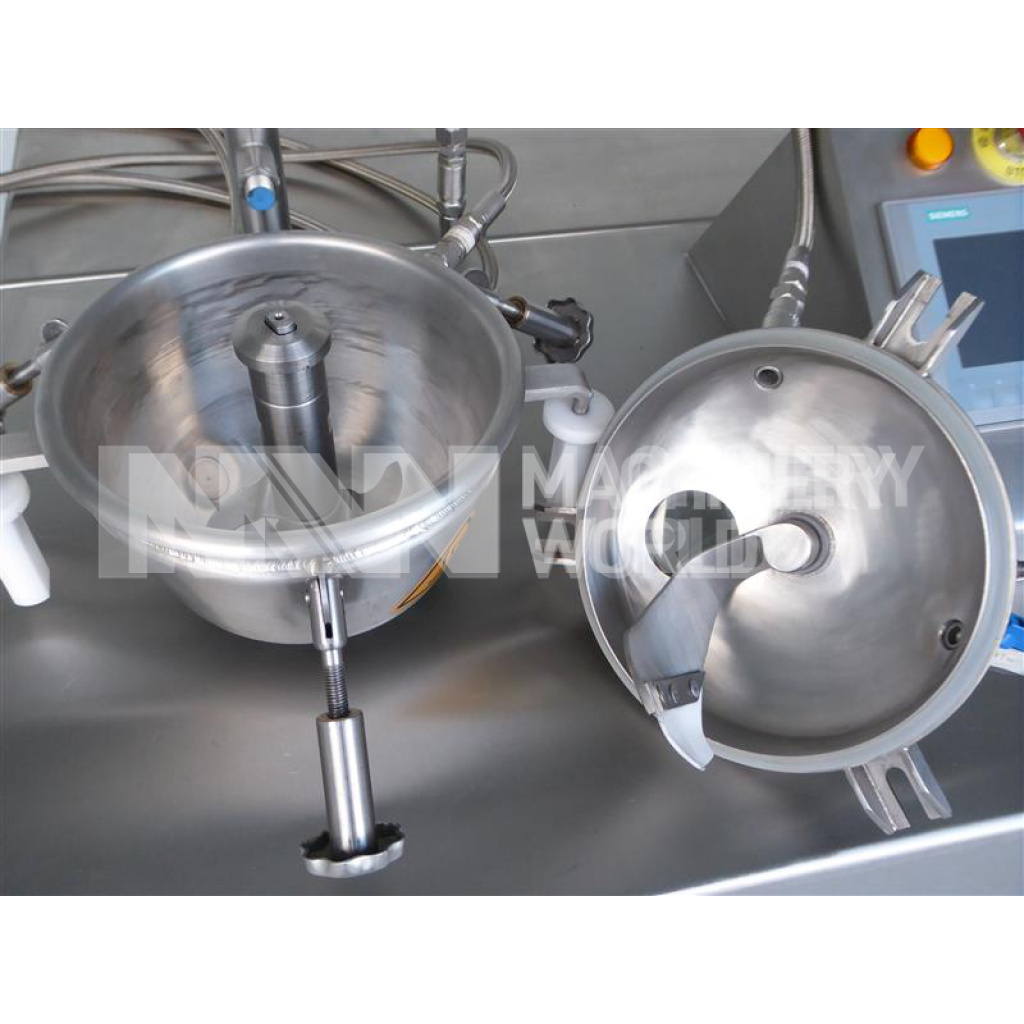

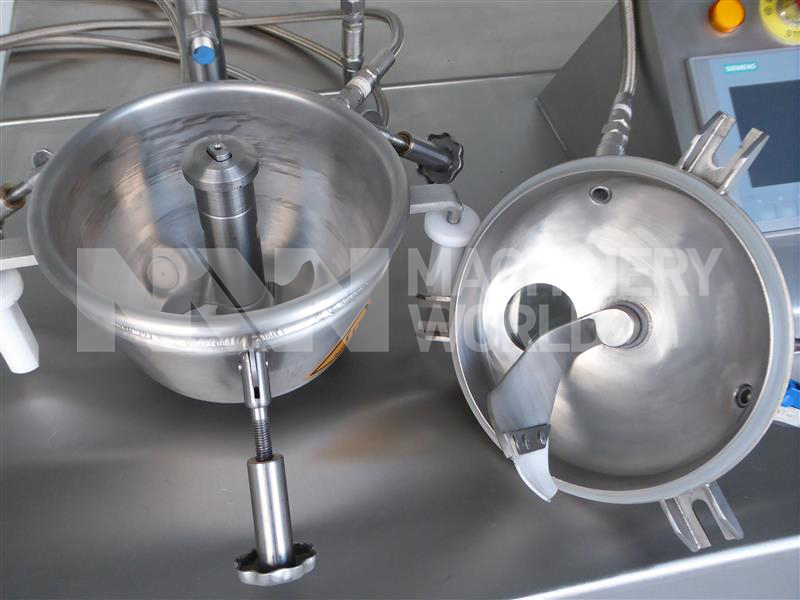

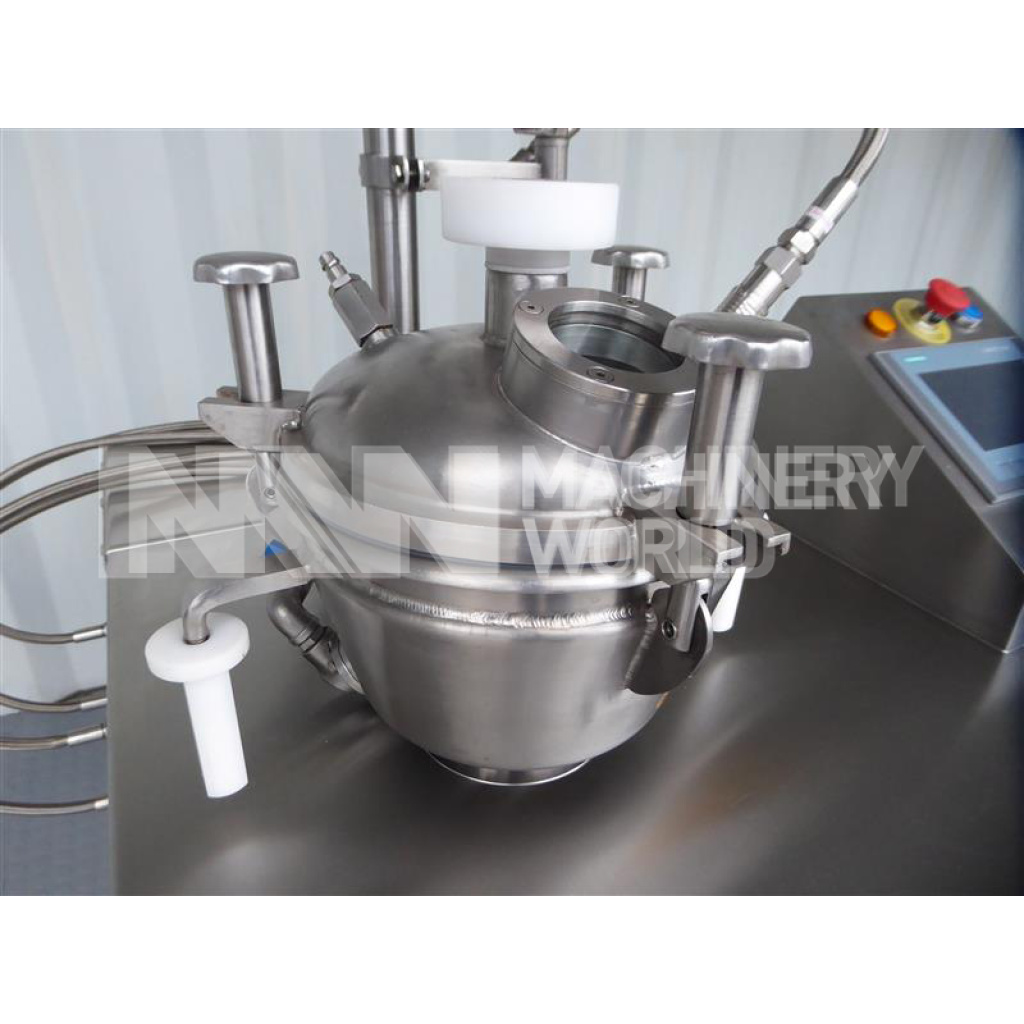

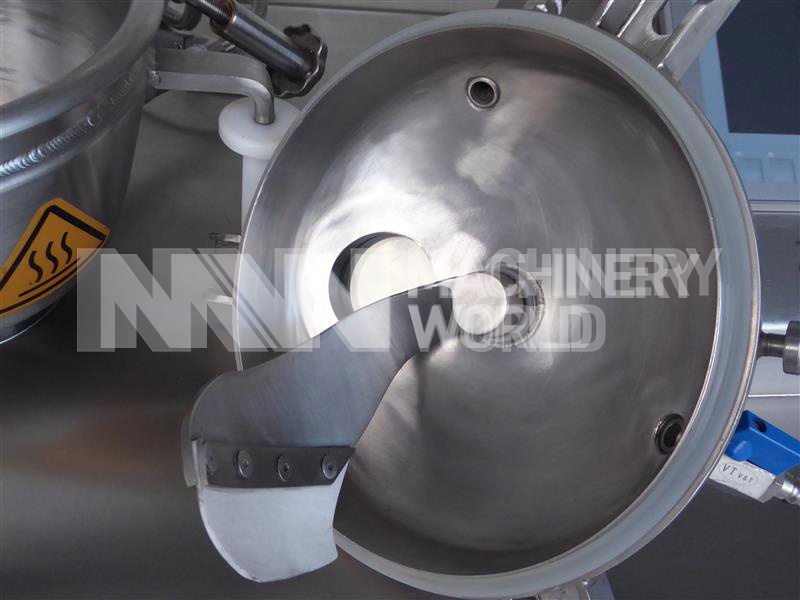

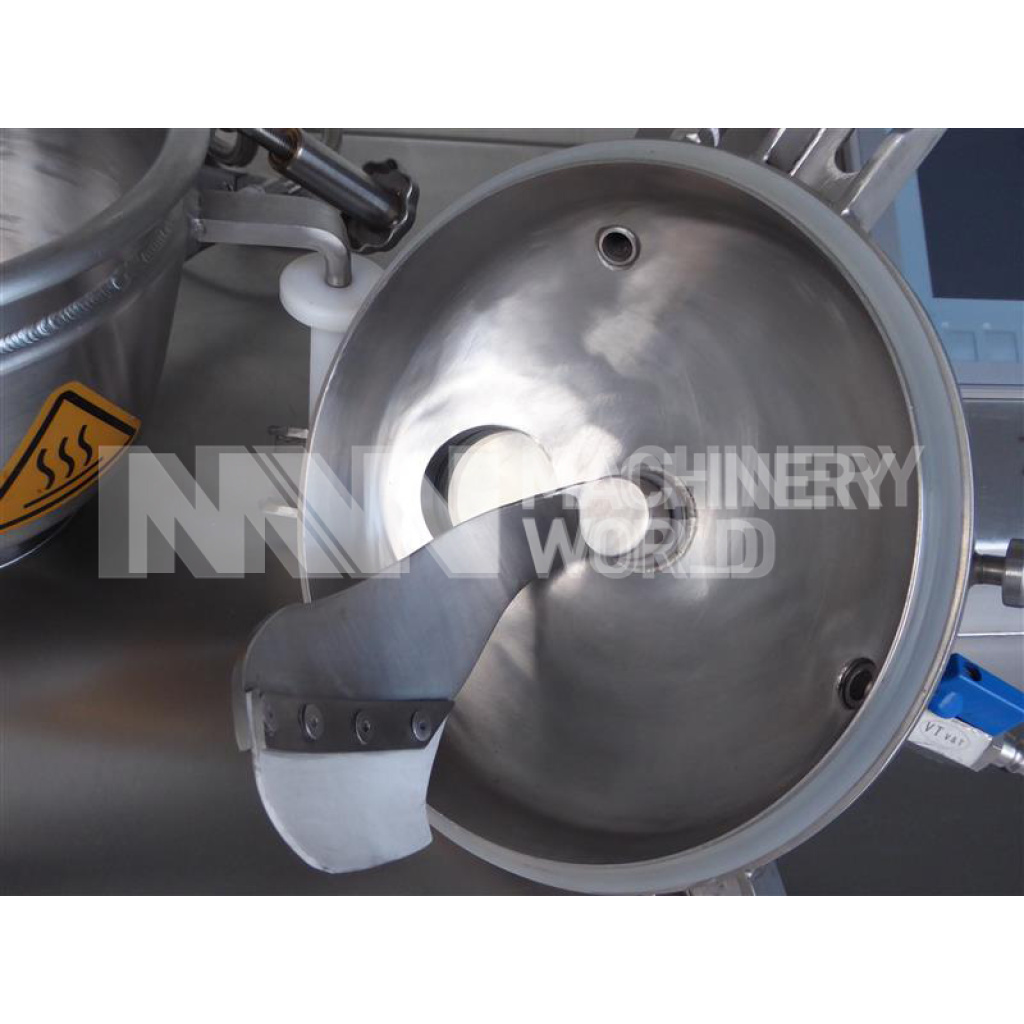

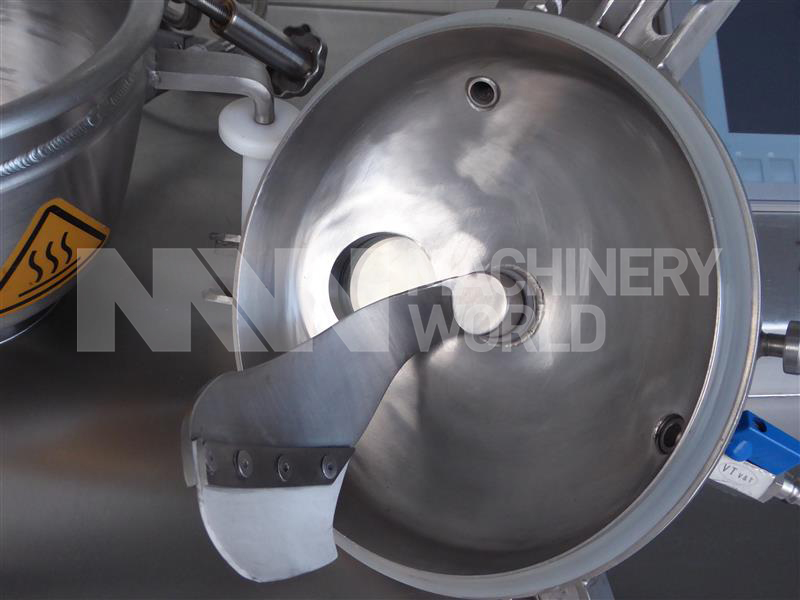

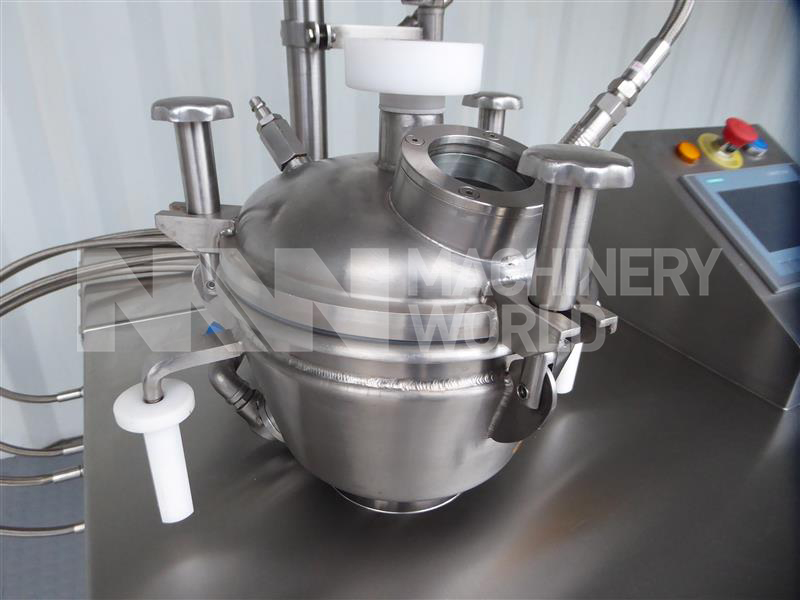

• Manually removable bowl
• Manually removable cover

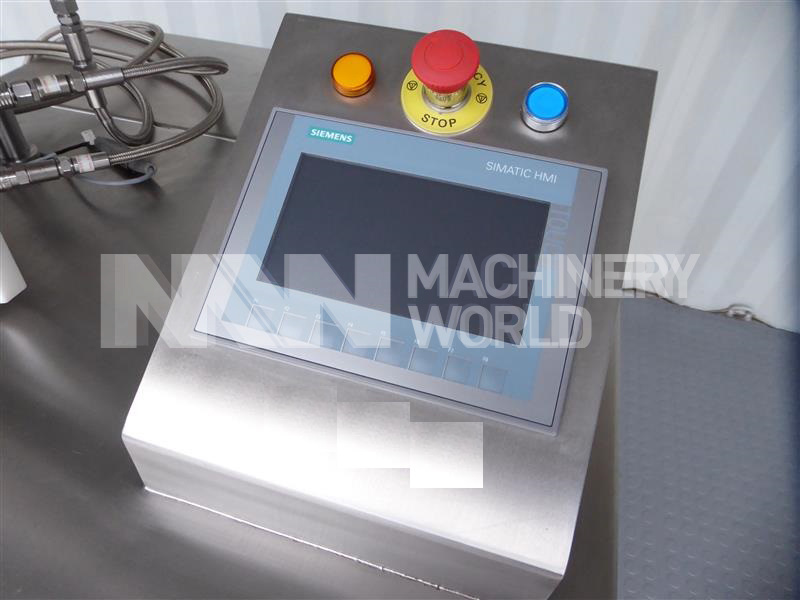

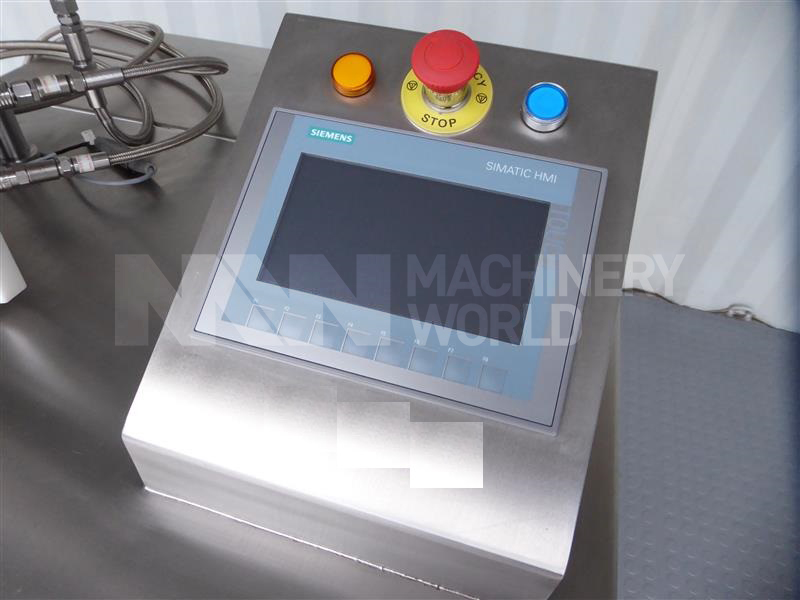

• PLC and touch screen
• Thermometer
• Frequency controlled main motor 0-3000 RPM
• Steam filter

Advantages

• Short batch time
• 220V operating voltage
• Energy efficient
• PLC process controlling system
• Configurable for many different applications
• Complete product emptying (minimal losses)

Dimensions

• Length: 106 cms
• Width: 92,5 cms
• Height: 140 cms
