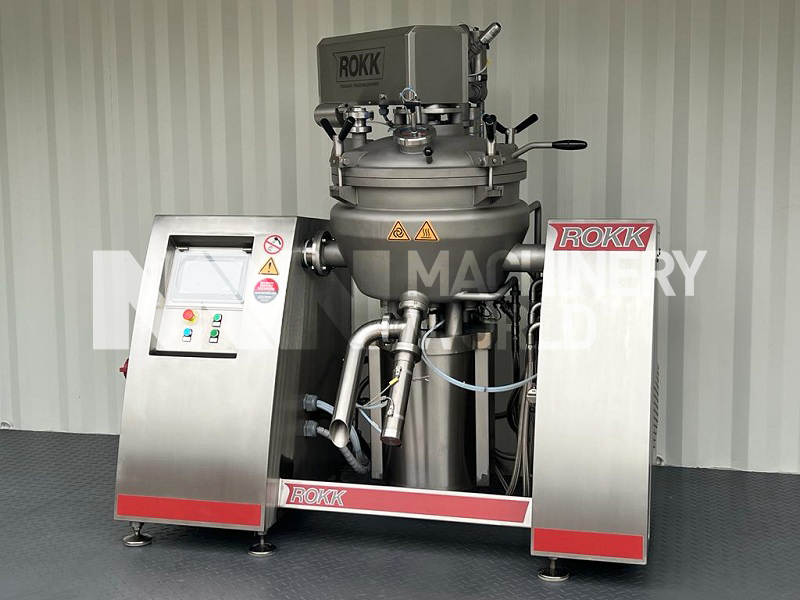

ROKK CCM110 Vacuum Rated Universal Process Mixer – Brand New

Add to quote
SKU: ROKK CCM110 Categories: , , , ,
Description

These Universal Multi-functional Process Cutters – Mixers (CCM – Cooker Cooler Mixer) are configurable for many different applications, some examples are processed cheese, dressings, sauces, baby food, confectionery fillings, almond paste, mayonnaise & ketchup and be able to handle different tasks such as mixing, emulsifying, heating up, cooling, grinding, emulsifying, size reduction, direct or indirect cooking under vacuum, deaerating (vacuum) and homogenizing.

Features

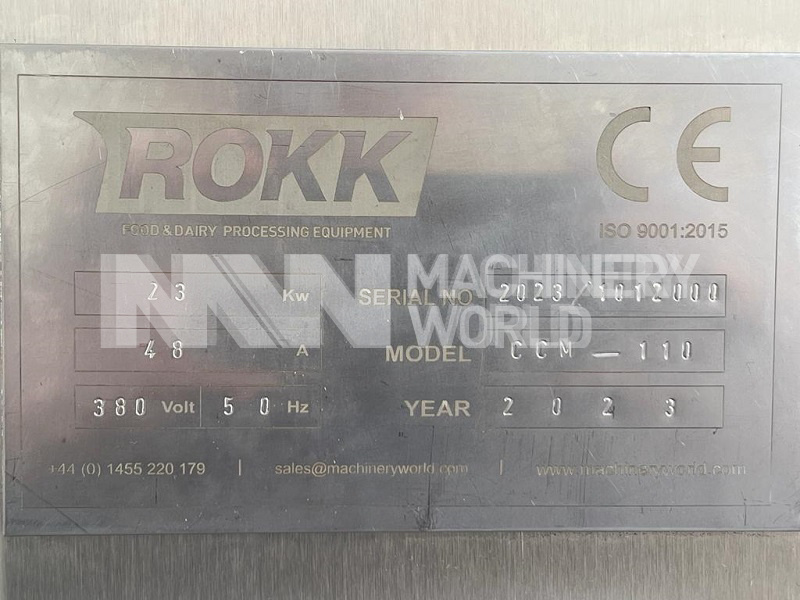

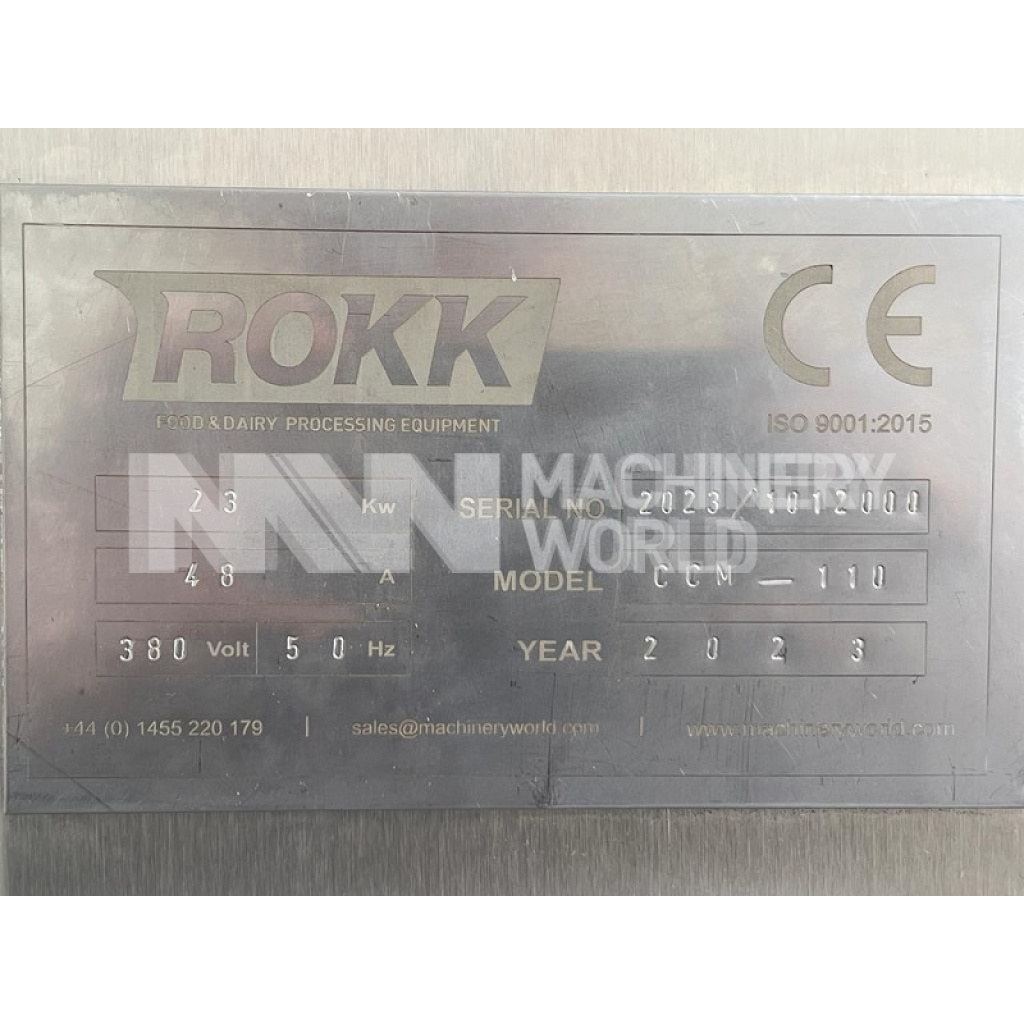

  • Make: ROKK Processing, UK
  • Model: CCM110
  • Function: Universal mixing cooker
  • Bowl Internal Volume: Approx 110 Liters
  • Year of manufacture: 2023
  • Max Product Working Capacity: Approx 80 liters/ batch
  • Batch Processing Time: Approx 4-6 minutes (Varies depending on type of product & process)
  • Max Processing Temperature: 95 deg C
  • Hydraulic Tilting Assembly

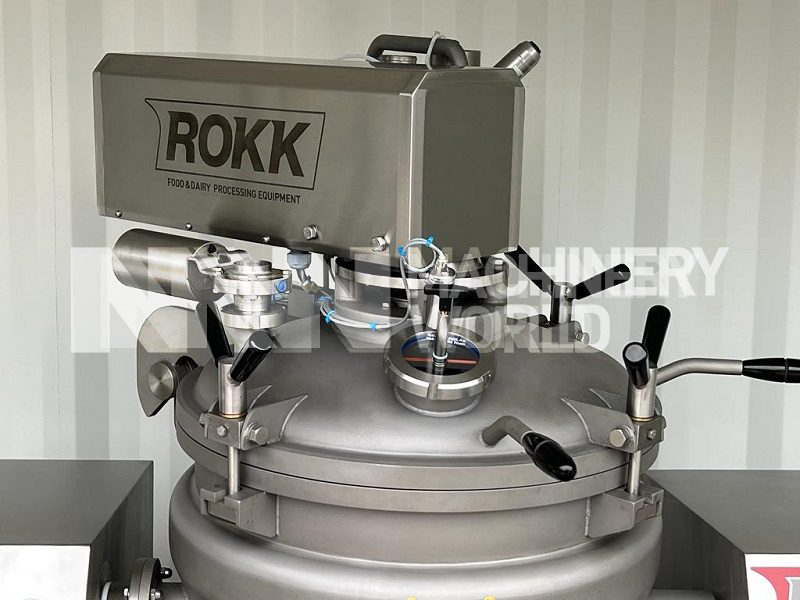

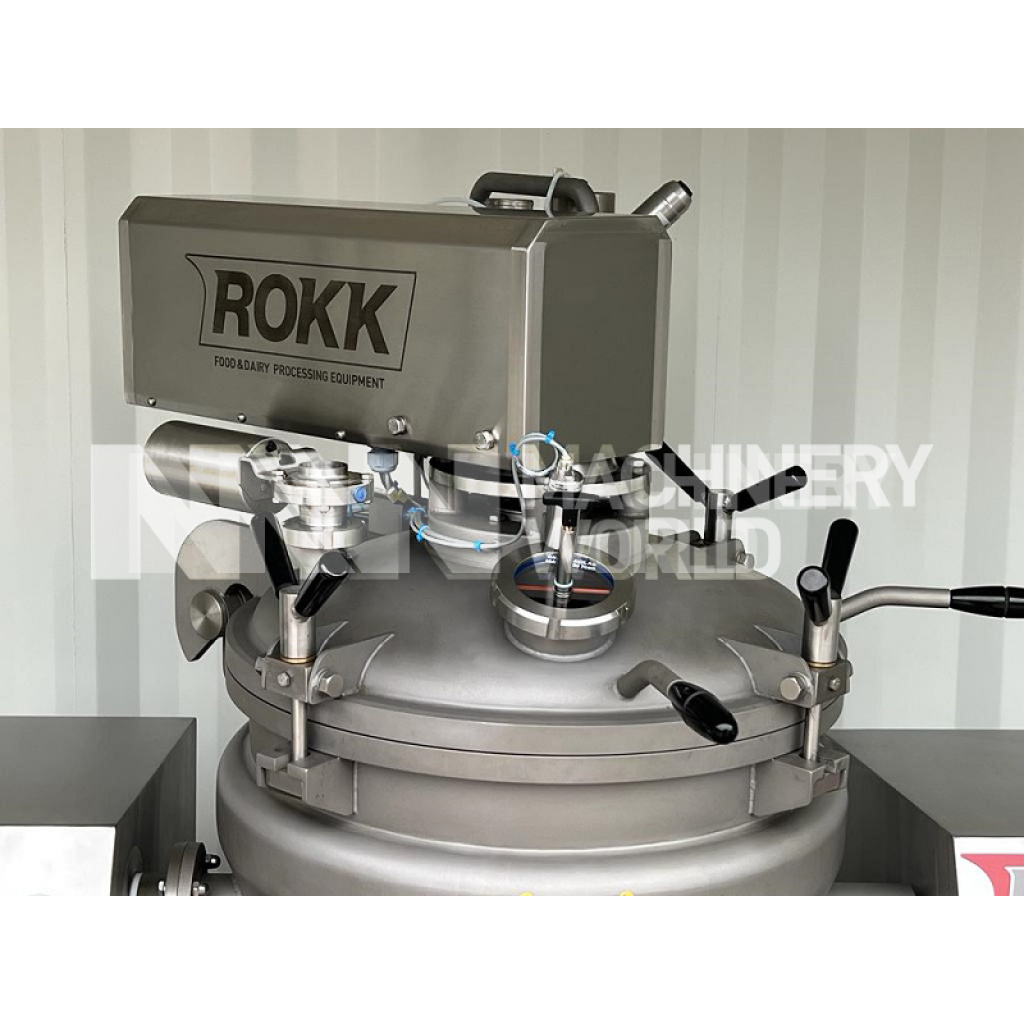

  • Manual Opening & Closing of Lid
  • Direct Steam Injection

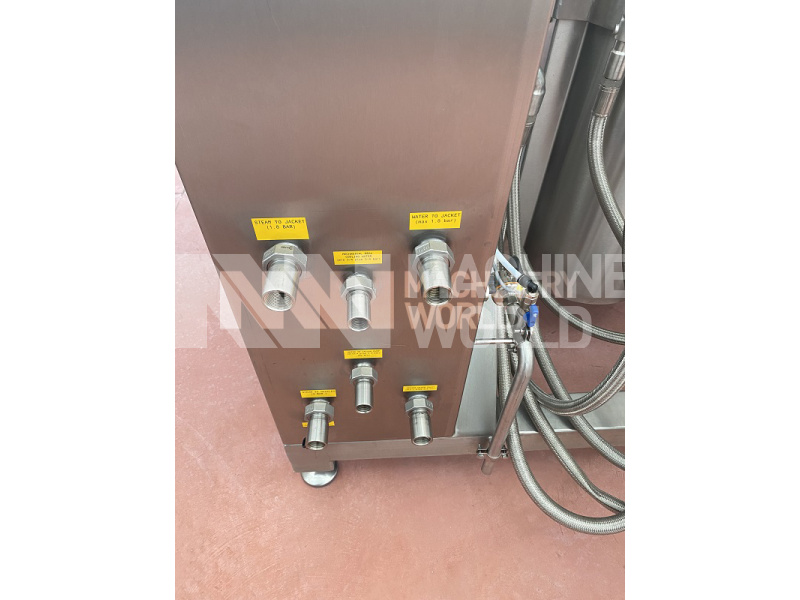

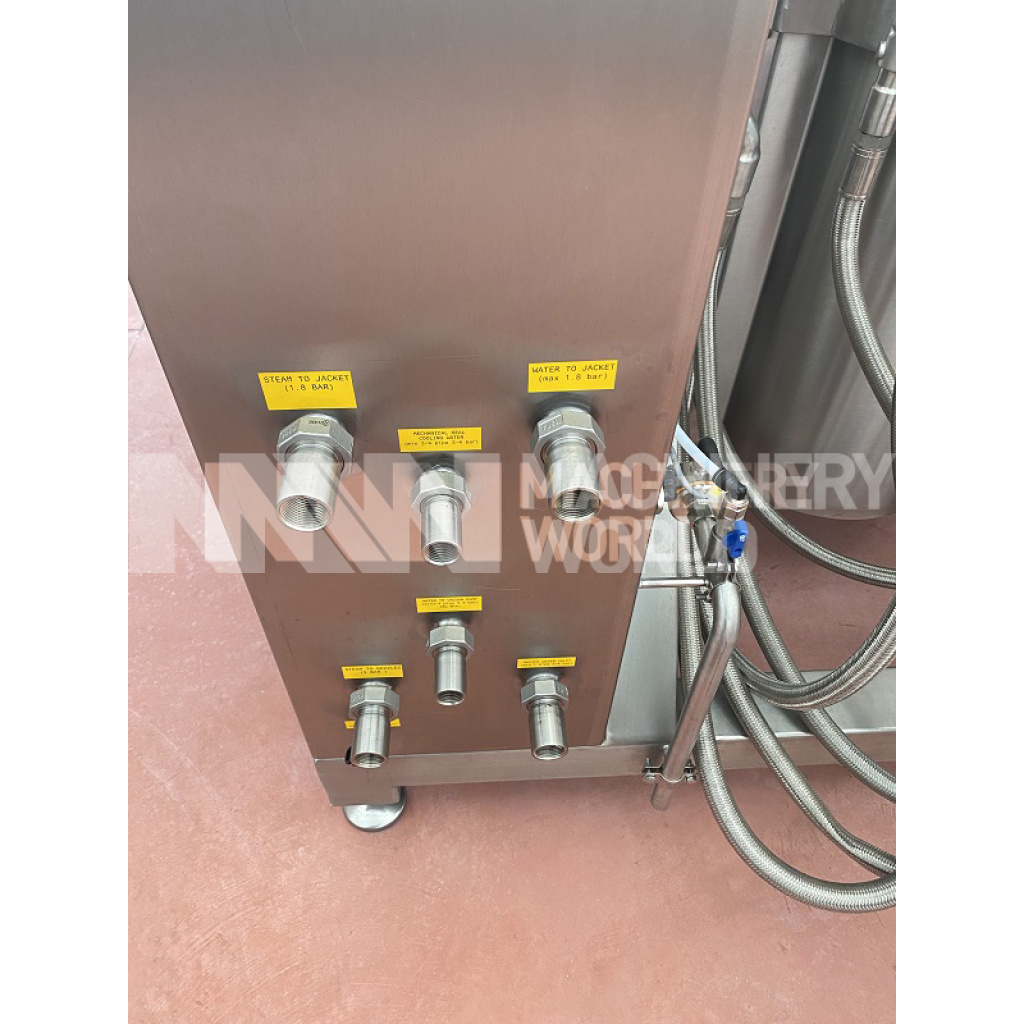

  • Double Jacket (Heating [or] cooling)
  • Double Jacket Working Pressure: 2 Bar
  • Vacuum Rated with In-built Vacuum Pump
  • Vacuum Pump Motor: 2.2kw, 3-Ph, 380V

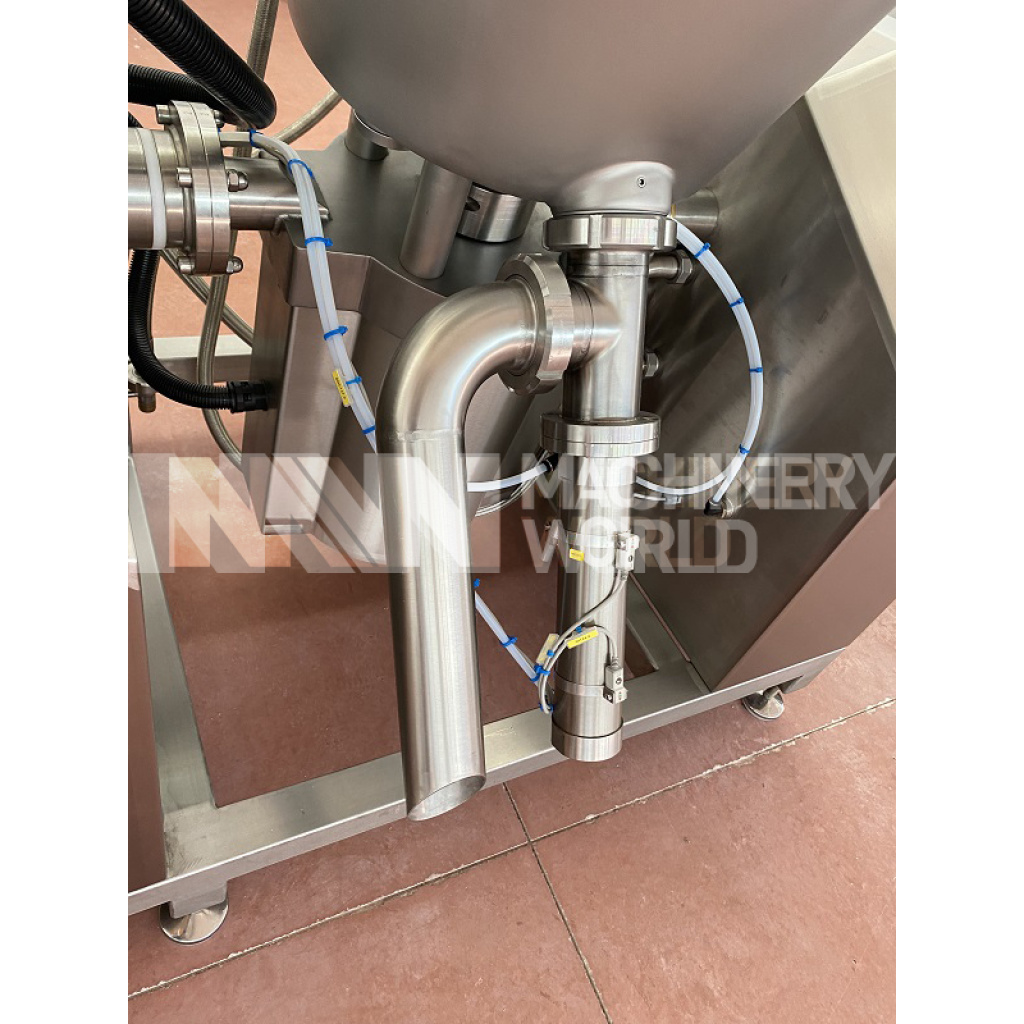

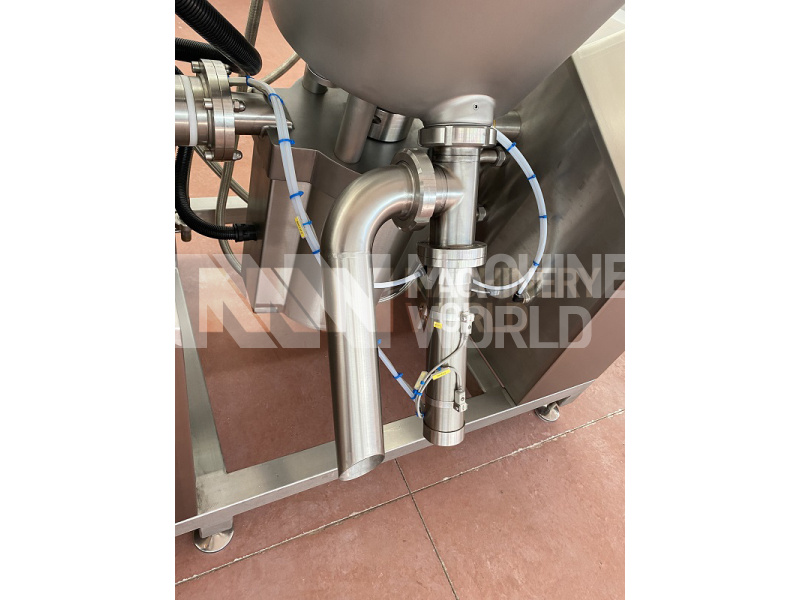

  • Pneumatic Flushed Discharge Valve
  • PLC with Touch Screen HDMI Panel
  • Main Bottom Drive Motor: 18.5kw 3-Ph, 380V

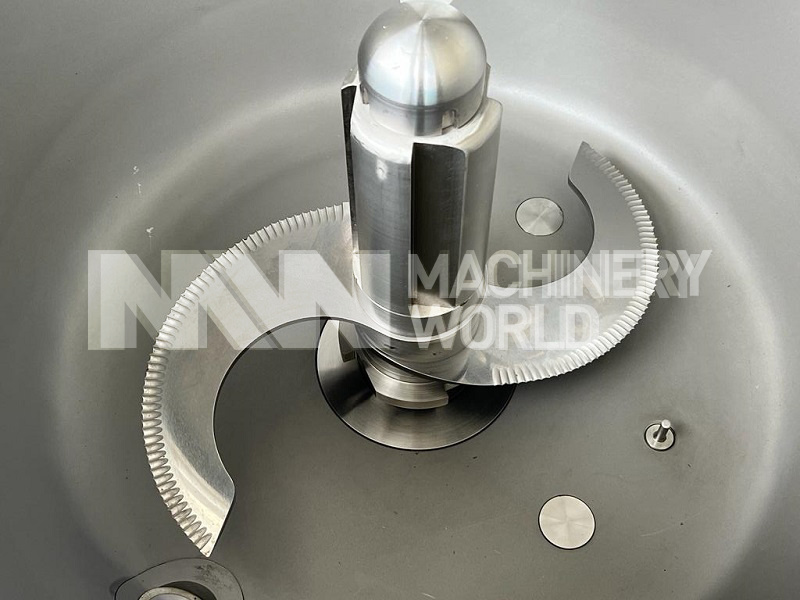

  • Bowl Cutter: 2 Knives
  • Bottom Cutter Speed: 0 to 3000 RPM (Max)
  • Frequency Controlled Inverter for main Motor (Precise Speed Control)
  • Side & Top Scrapper: Top Mounted
  • Side & Top Scraper Motor: 1.5kw, 3-Ph, 380V
  • Direct Steam Injection – Filter Station with Culinary Steam Filters Installed
Optional
  • Max Processing Temperature: 125 deg C
  • Hydraulic Lid Opening & Closing
  • Buffer Tank
  • Discharge Pump
  • Flowmeter for Oil or Liquid Ingredient Dosing
  • Floor Mounted Hoppers for Dry Ingredient Feed via Vacuum Suction
  • Top Mounted Funnel for Ingredient Feed-In
  • Inline Mechanical High Shear Homogeniser (MicroCUT)
Advantages
  • Short Batch Time
  • Energy Efficient
  • Easy Integration into existing Production Line
  • PLC Process Controlling System – User Managed Recipe Control
  • Component from the reliable brands
  • Configurable for many different product applications
  • Complete product emptying (Minimal Product Losses)
