Description

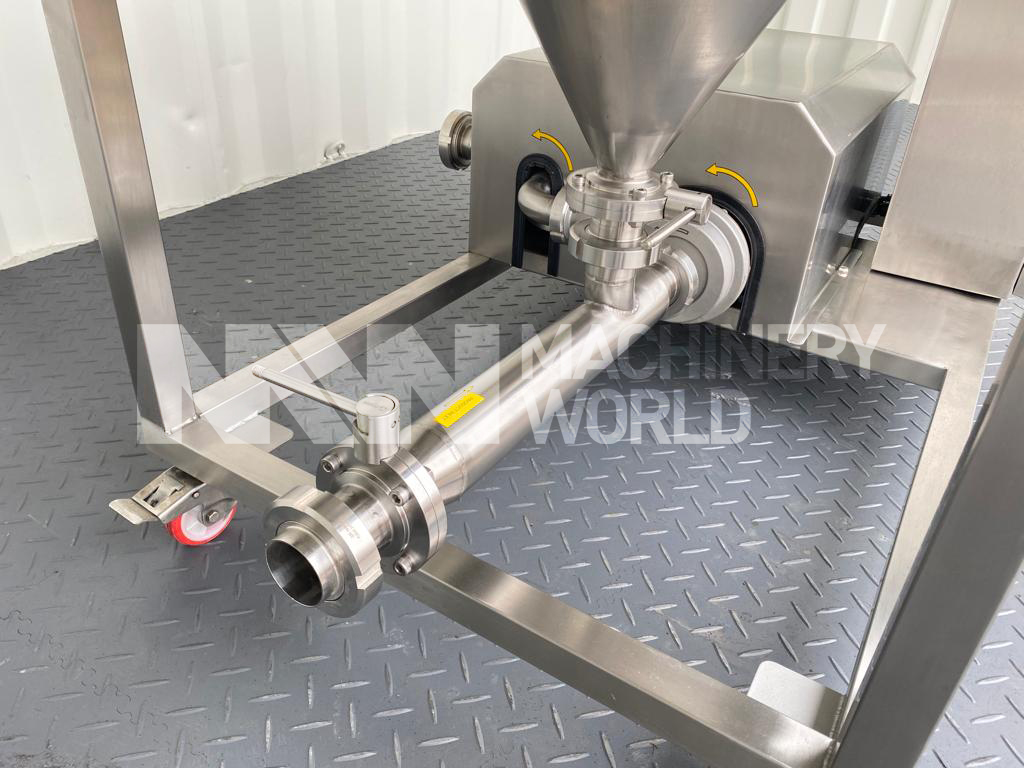

ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Flashblend Mixers & Blenders are practical and flexible systems for Homogeneous and rapid flash blend mixing of different types of solid material without the incorporation of air into the product. ROKK Flashblend Powder-Liquid Inline Mixer forces the liquid through a ventury, which sucks the powder into the flow stream while on its way to the inline high shear mixer/homogeniser
Specification

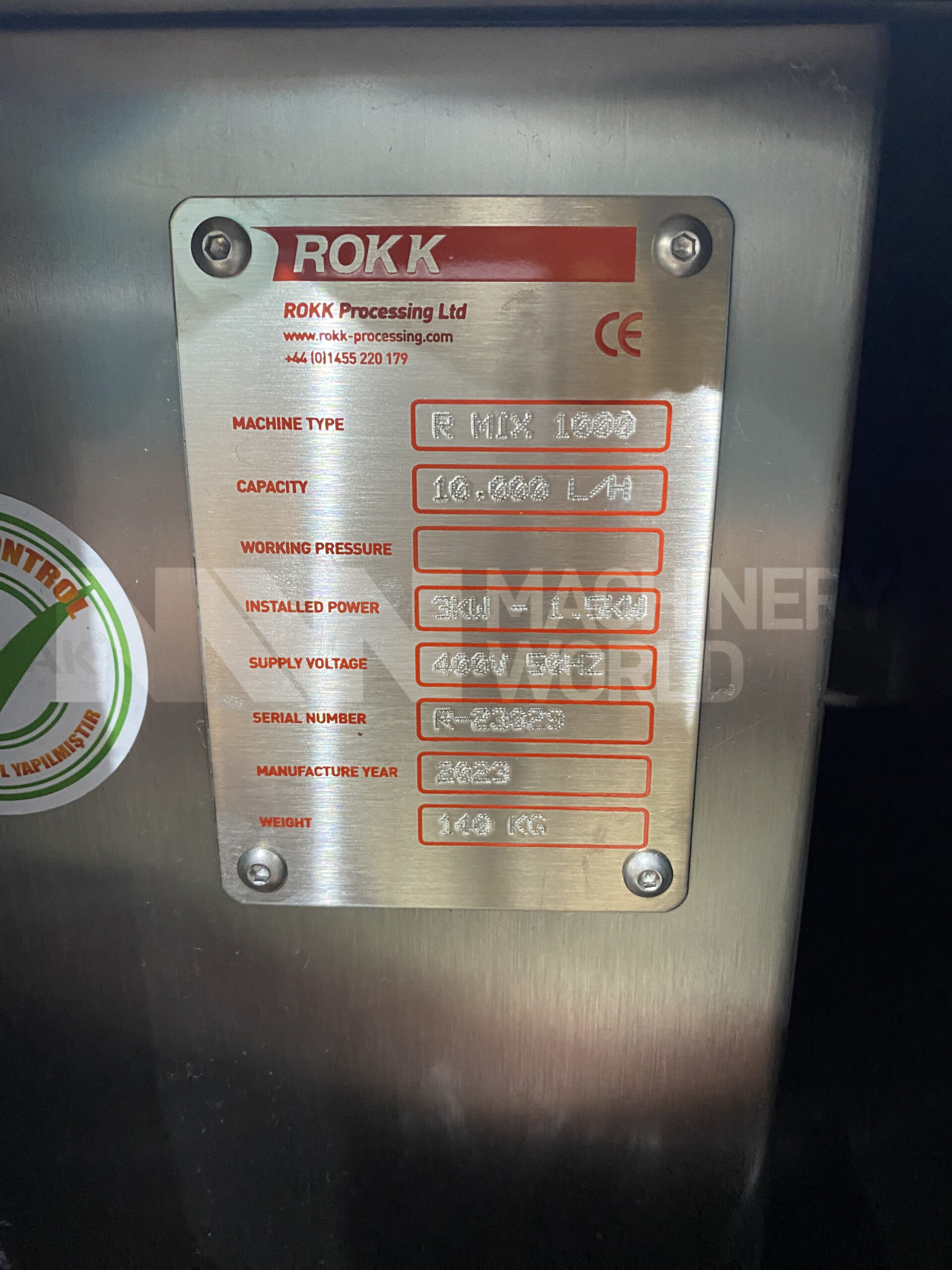

- Machine Type: RMIX1000+
- Serial Number: R-23029
- Year of Construction: 2023
- Material of Construction: 316 Grade Stainless Steel Contact Parts
- Powder Capacity: Approx 1,000 Kg per Hour (Product Dependent)
- Liquid-Fluid Capacity: Approx 10.000 LPH (Product Dependent)

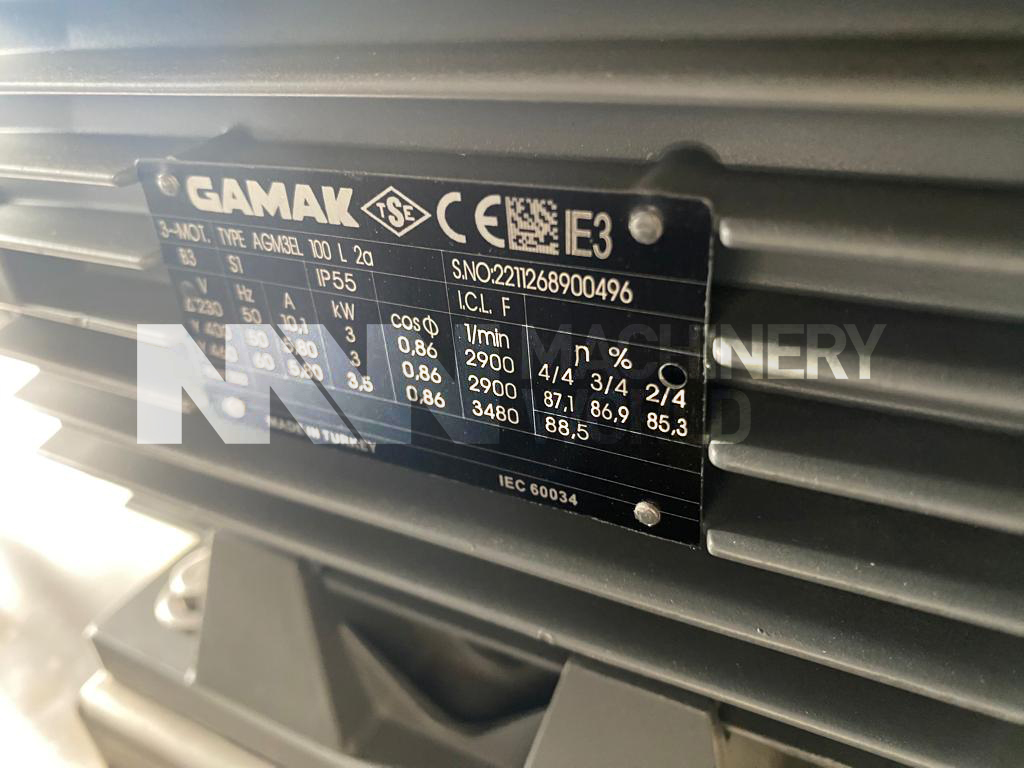

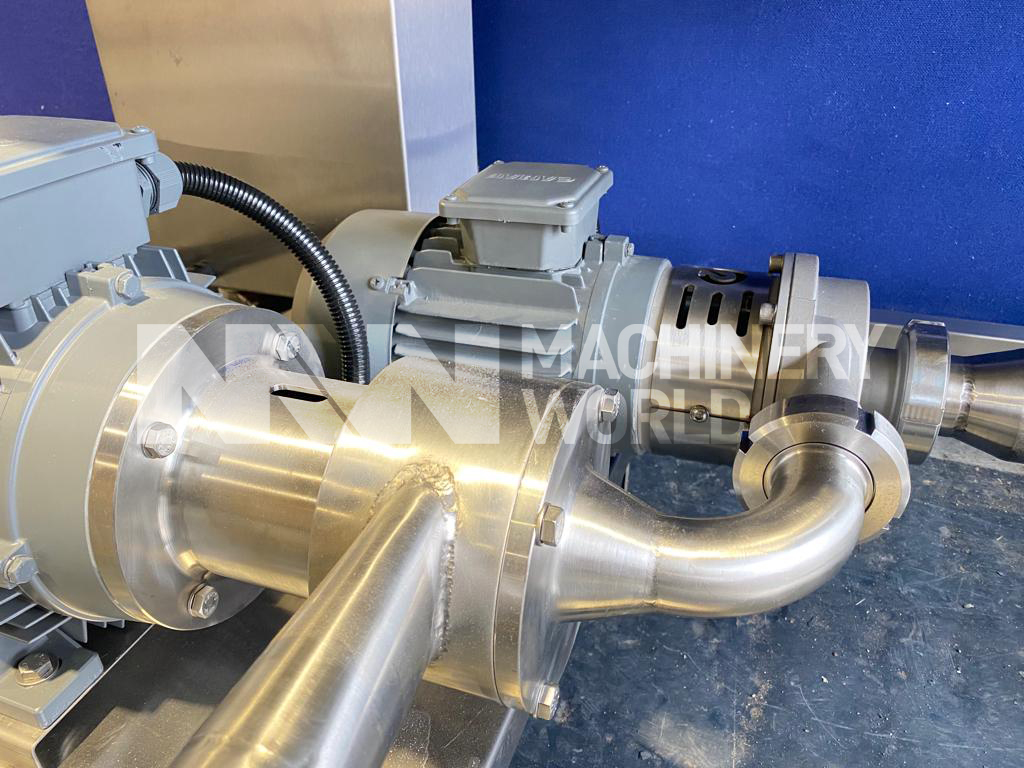

- Motor Power (Inline High Shear): 3kw, 3-Ph & 50Hz

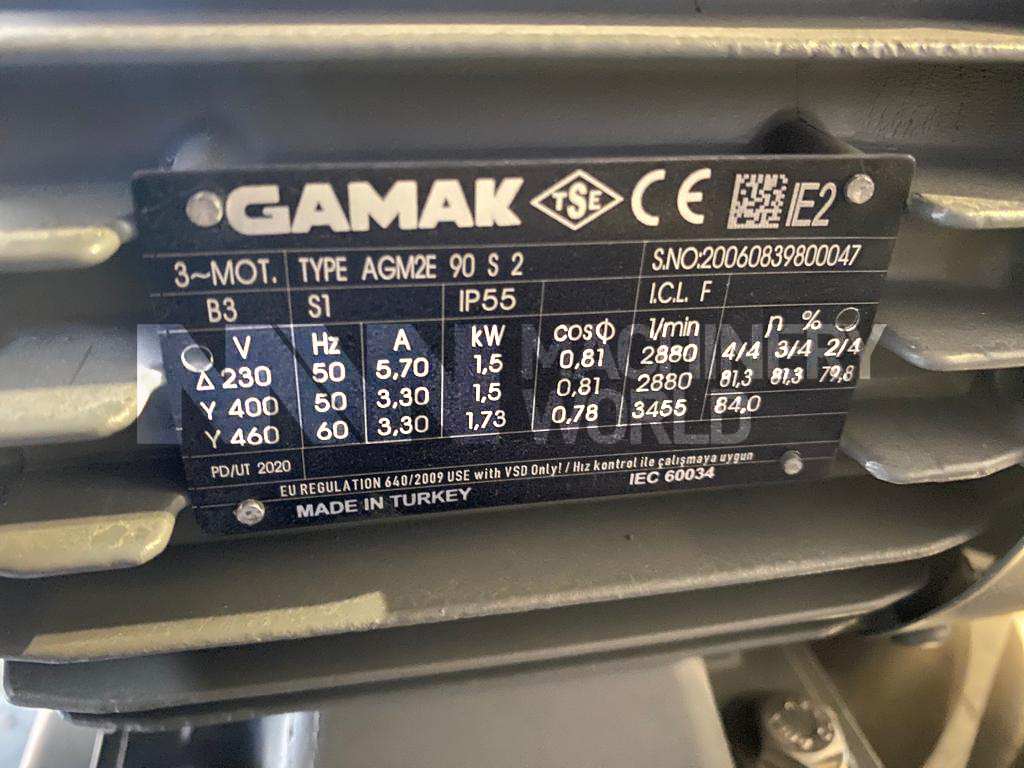

- Motor Power (Centrifugal Pump): 1.5kw, 3-Ph & 50Hz
- Liquid Inlet: 2 inch
- Height of Inlet: 260mm from Finished Floor Level
- Fluid Outlet: 2 inch
- Height of Outlet290mm from Finished Floor Level
- Powder Inlet: 2 inch with Manual Butterfly Valve
- Powder Hopper Dimensions: 490mm Dia & 400m High
- Powder Hopper Volume: Approx 25 Ltr Volume
- Dimensions (L x W x H) in mm: 1300 x 730 x 1000
- Nett Weight: 120 Kg
- Control Panel: Mounted on Skid
- Additional Information: Built on Stainless Steel Skid and Mounted on Caster Wheels
Features
- The parts in contact with the product are made of 316L Stainless Steel
- The frame is made of 304 Stainless Steel

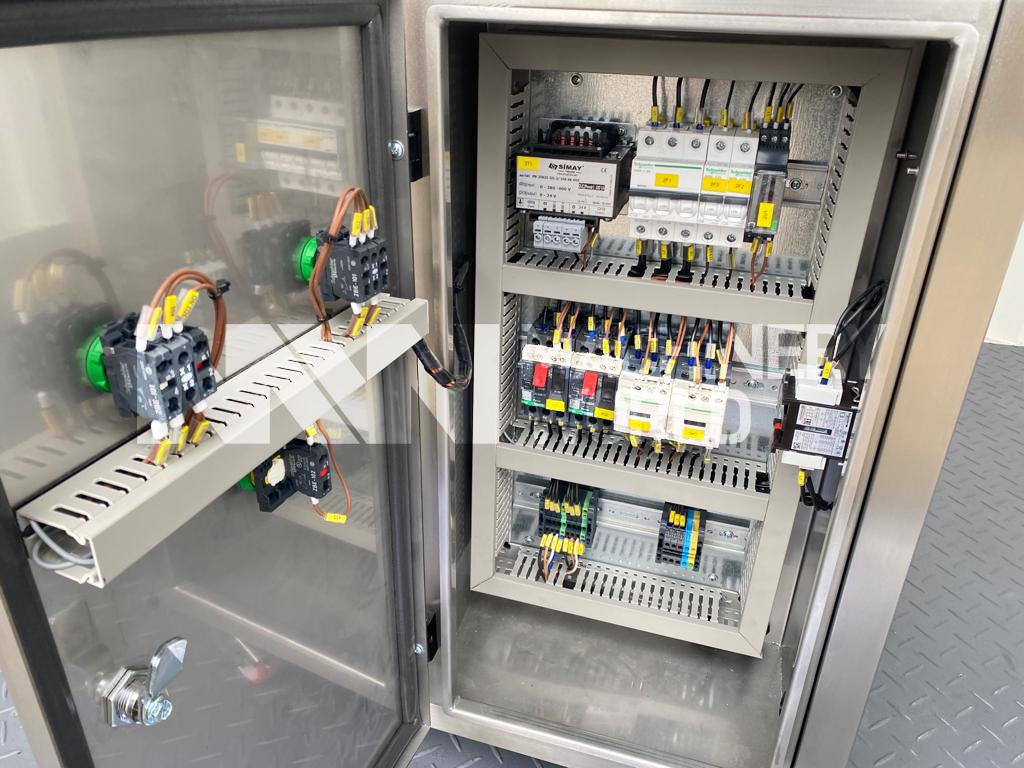

- Stainless Steel Electrical Control Panel (IP65)
- Specially Designed Rotor – Stator Disintegration System
- Application specific High Cutting Force
- Operator Controlled Powder-Fluid distribution
- AC Motor
- Design Suitable for ClP
- Low Energy Consumption and High Performance
