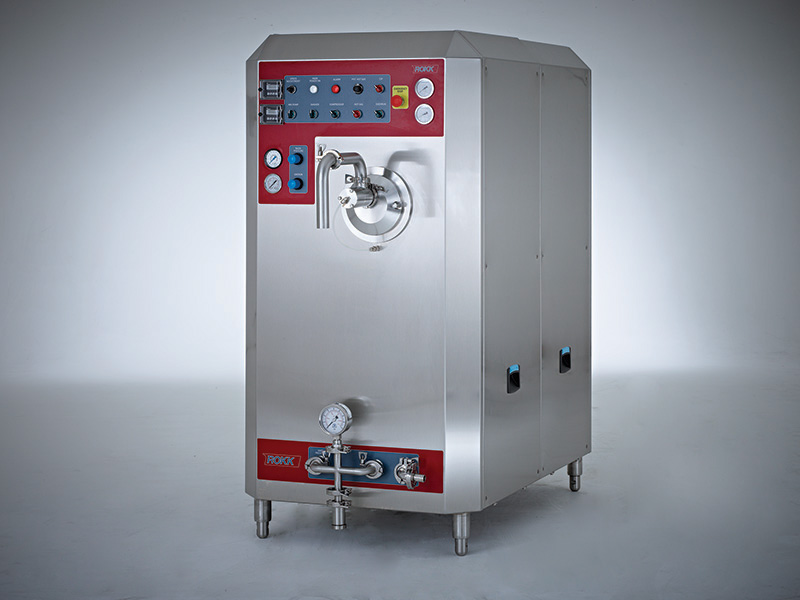

ROKK’s RFE continuous freezer range comprises of 13 machines, each varying in size and power, but all being ideal for use in small laboratories all the way up to large factories. Equipped with self-contained Bitzer freon ‘refrigeration’ compressors, each machine in the RFE continuous freezer series has been designed for easy installation and increased mobility in the factory.
The range boasts uniquely designed high efficiency ‘Veloce’ barrels that are capable of cooling an entering ice cream mix to ultra-low temperatures in a matter of seconds. As a result of this exceptionally quick ability to freeze, the machines ensure that ice molecules don’t have time to form, producing a hard, dry and luxurious end product each and every time.
As well as an automatic hot gas defrosting system to provide an accurate regulation of viscosity and automatic freeze-up protection, each RFE continuous freezer is fitted with either a single piston mix pump (on ‘A’ series machines) or powerful twin piston mix pumps and on the larger models rotary extraction pumps to ensure that seeds, fruit and other particles are passed through easily without the risk of causing blockages and disruption to the business through subsequent downtime.
The RFE continuous freezer range is available as an artisan machine in sizes from 200 litres per hour up to 400 litres per hour for customers who wish to replicate their batch freezer production but on a larger scale or the full industrial range which comes in sizes from 400 litres per hour up to 1600 litres per hour.
(Figures are based on a standard recipe and may vary)
|Maximum capacity||800 ltr/hr|
|Minimum capacity||250 ltr/hr|
|Air consumption||15 NLt/min|
|Power Requirement||26 kW|
|Water consumption||1500 ltr/hr|
|Refrigeration gas||R 404a|
|Dimensions (mm)||1600 x 870 x 1720h|
Simple to operate: Each machine in the RFE series is fitted with electromechanical controls to provide complete yet simple control throughout the freezing process.
Quick and efficient freezing: Each machine is host to an industry unique, high-efficiency barrel to ensure a rapid freezing procedure that doesn’t allow for ice crystals to form within the product.
Powerful pumps: Powerful twin piston pumps allow for seeds and fruit pulp to pass through easily without risk of causing blockages.
Consistent aesthetic fill design: The RFE series provides a steady and controlled output to ensure easy product management and consistent, aesthetically pleasing fill designs.
Well engineered and highly reliable: the range has been designed and manufactured around ROKK’s core principles of being ‘simple, solid and dependable’, resulting in only the very best, industry-recognised, components being used to ensure each machine is of the highest quality, versatile and extremely reliable.
Chassis: The over-sized chassis’ used to construct the RFE series are built entirely out of premium stainless steel and aluminium to maximise performance and reduce vibrations and sound pollution.
- Overrun control
- Twin piston mix and rotary output ice cream pumps where applicable
- Automatic viscosity control
- Industrial pumps and gearboxes
- Ice cream hardness indicator
- Bitzer compressor
- Water cooled
- Low power and water consumption
