ROKK Robbie 5 Litre Robotic Ice Cream Filling Machine (Year 2011)

Description

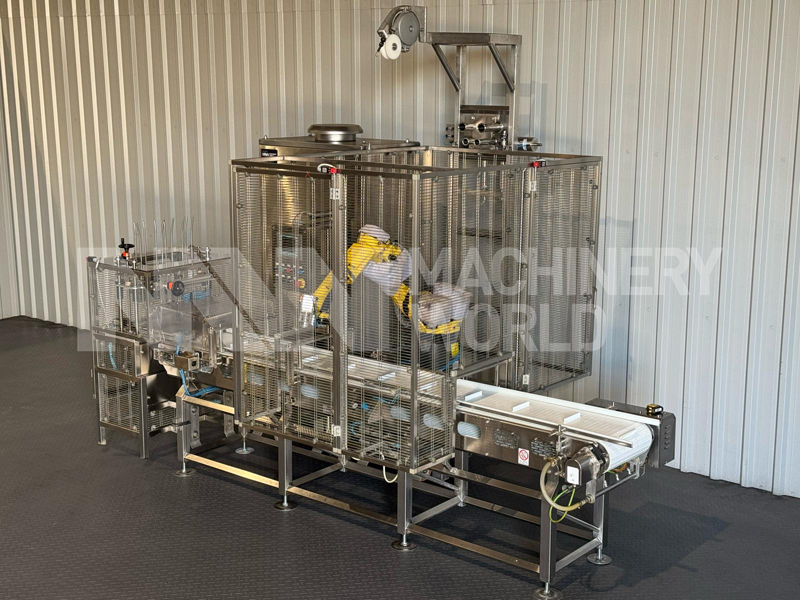

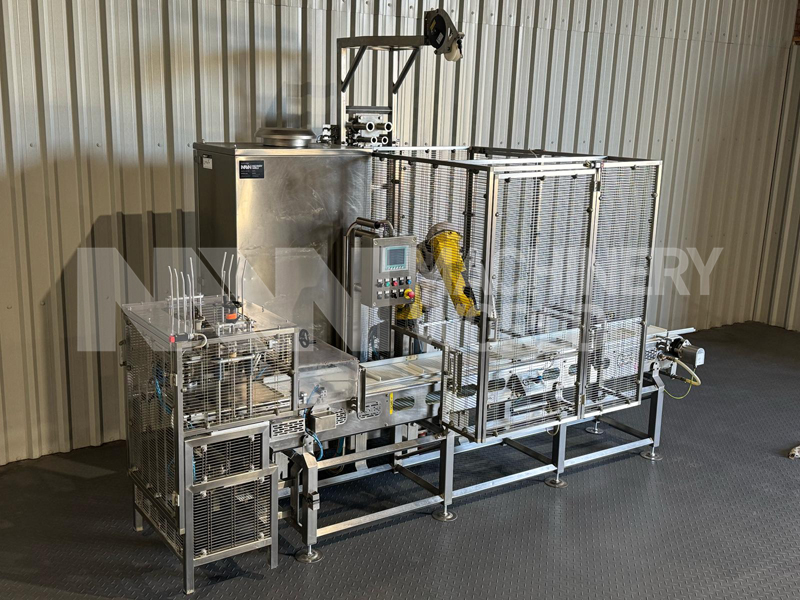

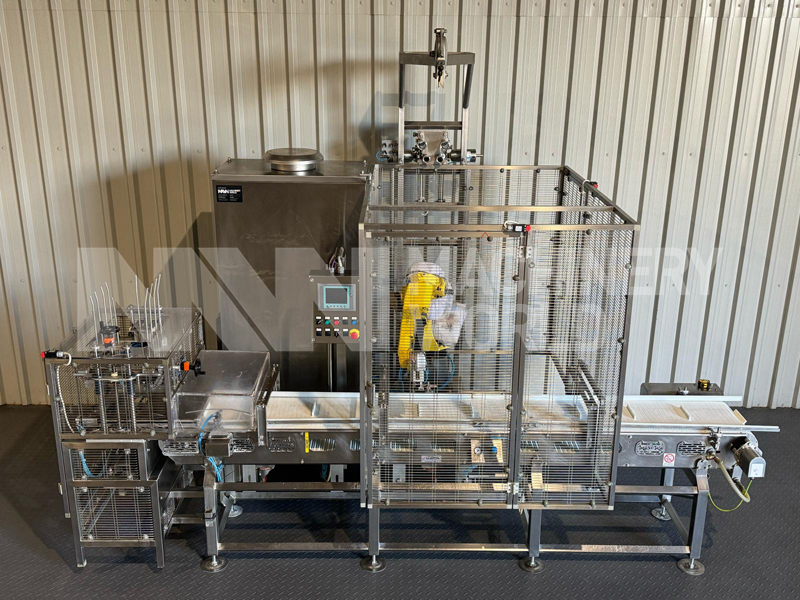

This is a pre-owned in-line automatic robotic machine, manufactured in 2011 by ROKK. The machine is equipped with a 6-axis Fanuc Robot and supplied with 5L change parts for 360x250mm & 360x160mm pans. Additional change parts and programs are available for purchase at an extra cost. See video below of this machine in operation.

Features

• Manufacturer: ROKK
• Model: Robbie
• Function: Robotic Ice Cream Filling Machine
• Year of manufacture: 2011

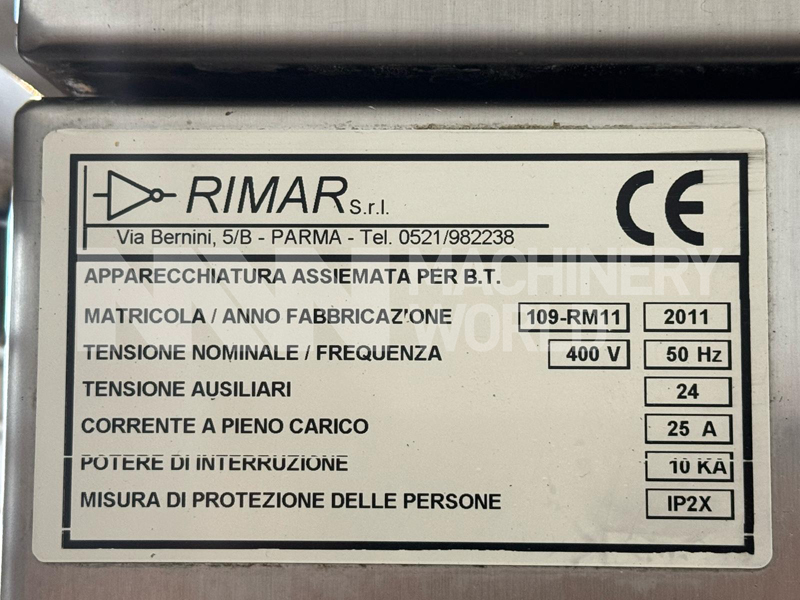

• Serial number: 109-RM11
• Serial number: 12-0001
• Model: M1-002-A1-0022
• Maximum capacity: Approx. 600 tubs/ hour (assuming 5L Napoli)

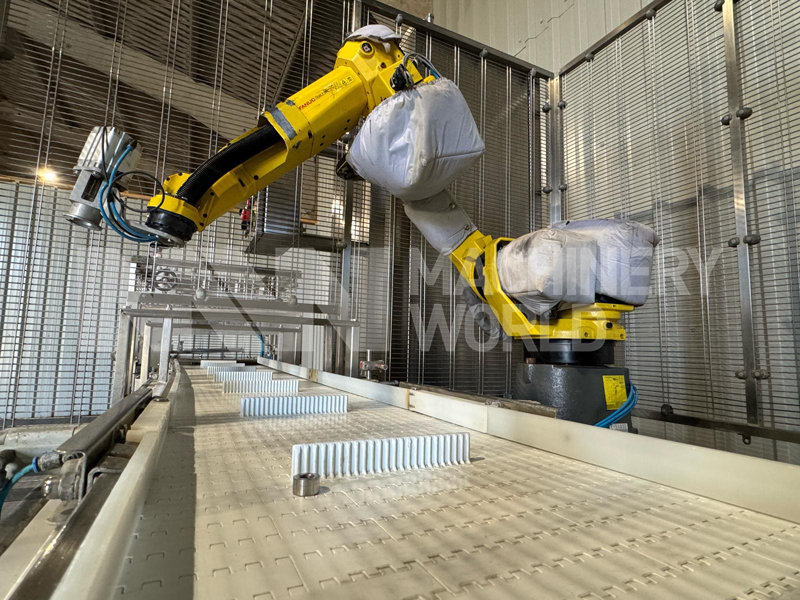

• Equipped with a '6 AXIS' Fanuc robot
• Previously filling 2 size pans: 360x250mm and 360x160mm.

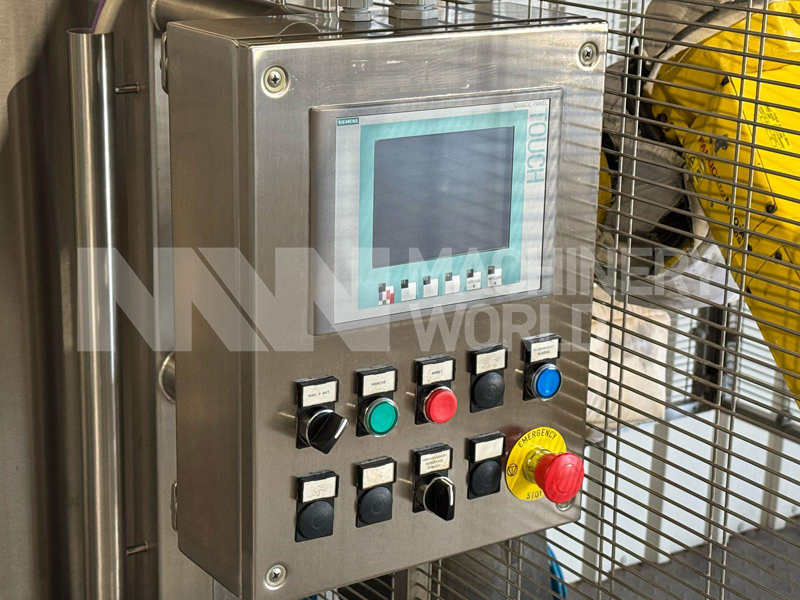

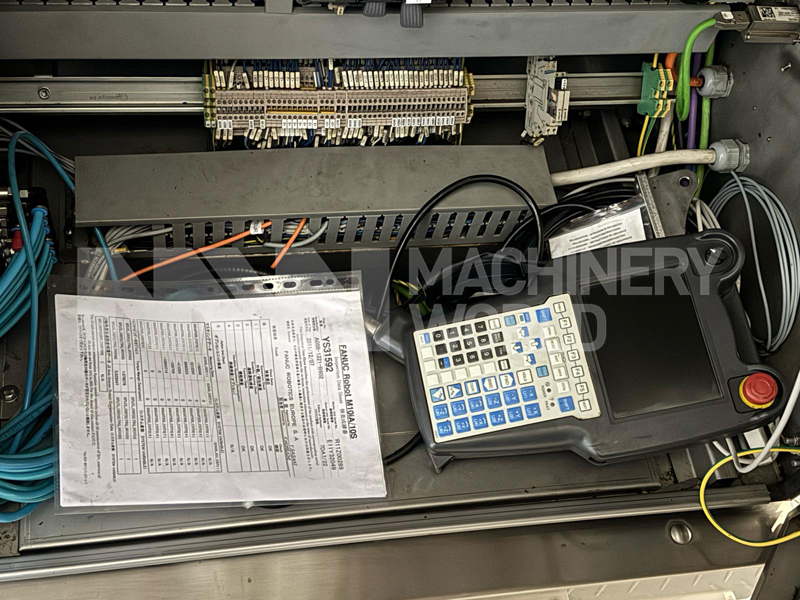

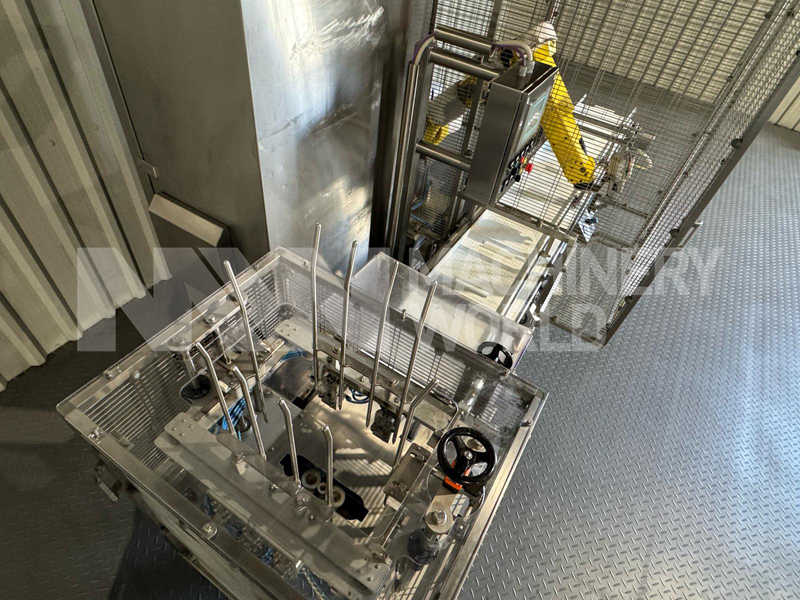

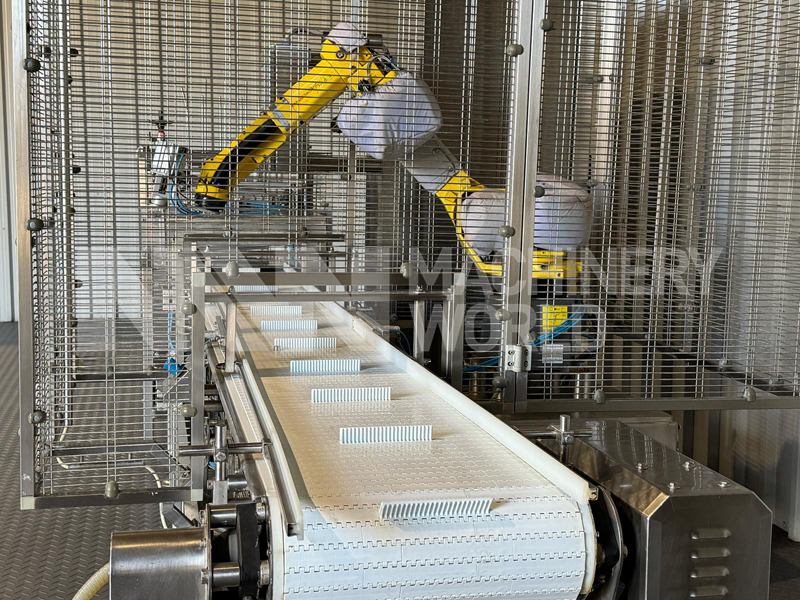

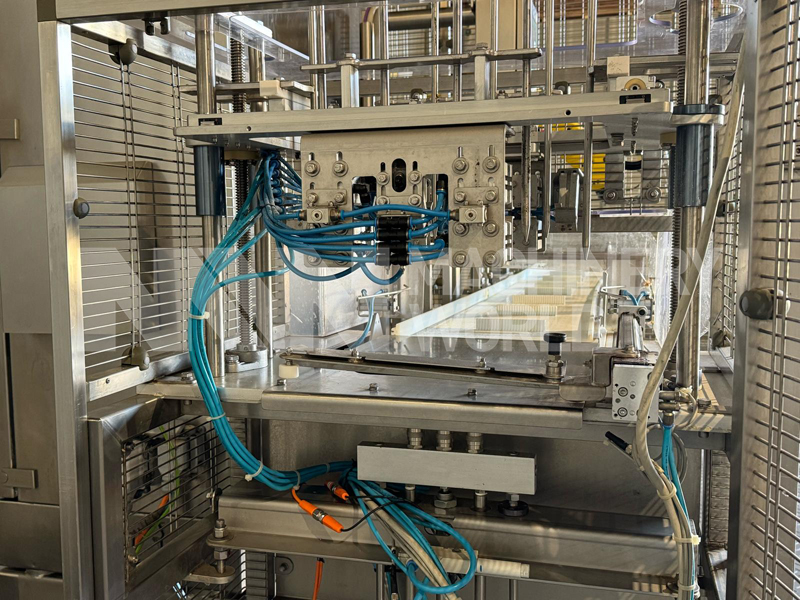

• Key components: 1) Electrical Panel 2) Tray Dispenser 3) Ice Cream Dispending Robot with Dosing Nozzle 4) Tray Conveyor Belt 5) Stainless Steel Guarding
• Stainless steel construction
• Fully guarded
• Voltage: 400V / 50Hz / 3 Phase
• Includes Technical & Spare Parts documentation

Dimensions

• Length: 380 cms
• Width: 210 cms
• Height: 280 cms
• Weight: 2230 kgs

Country of manufacture

Italy
