Description

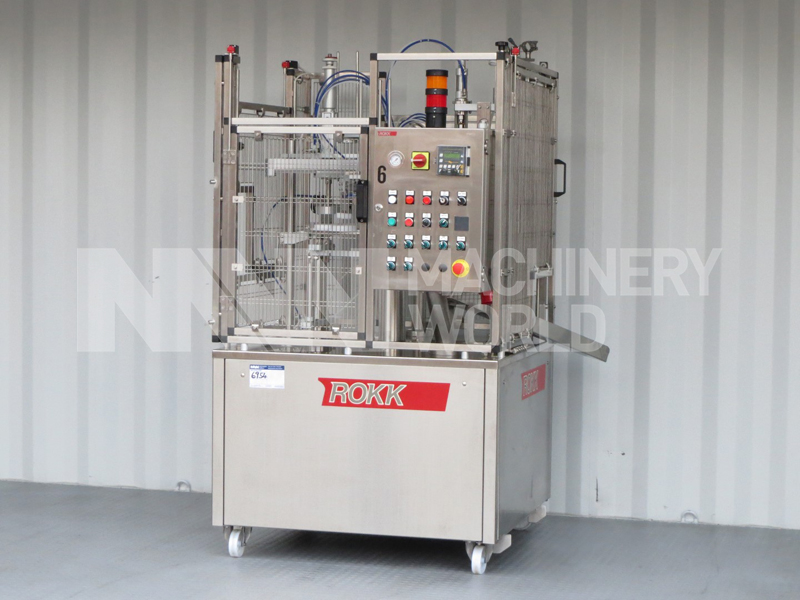

The RR3800 is a formidable rotary ice cream filling machine, capable of facilitating up to 3,800 units (per row) every hour. With adjustable fill volumes of between 50ml and 1litre and a mechanicaldrive system that uses a combination of standard gearboxes and bespoke lift cams to ensure an accurate movement, the RR3800 is an extremely versatile machine that will have a positive impact on even the smoothest of production lines.
The filling assembly of the RR3800 rotary ice cream filling machine is also easily adaptable to suit individual needs and can be fitted with a wide range of nozzles suitable for ripples, inclusions and a multitude of other options including colour separation.
Features
- Manufacturer: ROKK Processing Ltd
- Model: RR3800
- Function: Rotary ice creamtub filler
- Serial number: 011-11
- Capacity:3,800 pieces/per hour
- Maximum fill volume:750 ml
- Minimum fill volume:80 ml
- Number of rows possible: 1
- Machine stations include: Cup drop, Cup fill (Rotating nozzle), Syrup topping,Top dressing/sprinkles,Lid applicator, Lid closing device& Eject.
- Electrical consumption:1.5 kW
- Air consumption:650 Nl/min
- Year of manufacture:2011
- Stainless steel construction
- Fully guarded
- Voltage: 400V/50Hz/3 Phase
- Instruction manual supplied
- Videos available of the machine in operation
Dimensions
- Length:105 cms
- Width:105 cms
- Height:185 cms
- Weight:640kgs
Download Technical Doc
