Silverson FLB30S Flashblend Powder-Liquid Inline High Shear Mixer Dissolver

Description

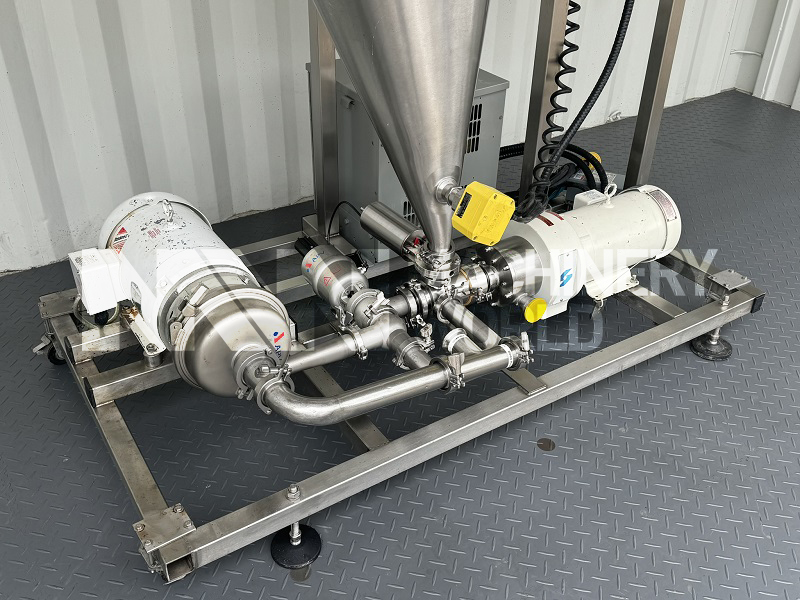

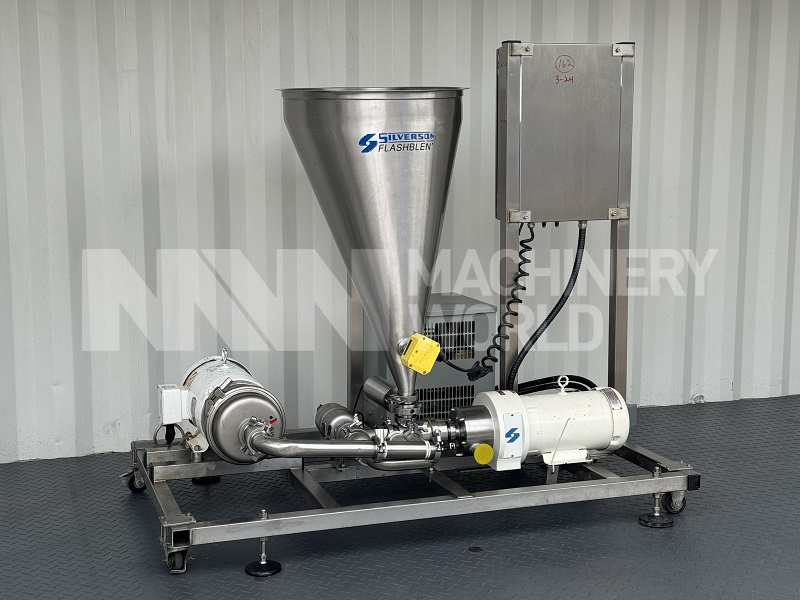

This is an used Silverson FLB30S Inline High Shear Mixer Dissolver. Silverson FLB30S Inline High Shear Mixer Dissolvers have a recommended powder feed capacity flow rate of approx 3,000kg per hour (varies depending on the type of powder and solubility of the liquid being pumped through). Silverson FLB30S Flashblend Inline High Shear Mixer Dissolver is specifically designed to wet powders into liquids rapidly. Silverson FLB30S Flashblend Inline High Shear Mixer Dissolver processes various kinds of powders which forms low viscous liquids when dissolved to form a viscous gel. Silverson FLB30S Flashblend Inline High Shear Mixer Dissolver comprises of the following: 1) Silverson Inline High Shear Mixer, 2) APV Puma Centrifugal Pump, 3) Blend Injector or Venturi, 4) Powder Hopper with Level Probe, 5) Pneumatically Operated Actuated Butterfly Valve, 6) Pneumatically Operated Actuated Divert Valve for CIP Mode & 7) Electrical Control Panel. This Used & Refurbished Silverson FLB30S Inline High Shear Mixer Dissolver is available for immediate sale. Note: Download brochure available on ‘Technical Doc’ link and specification shown below, are for information purpose only, as mentioned on manufacturer’s brochure, and the actual machine’s capabilities and efficiencies might vary.

Specification

• Make: Silverson Machines Ltd
• Type: Flashblend FLB30S
• Model: Flashblend Inline High Shear Mixer Dissolver

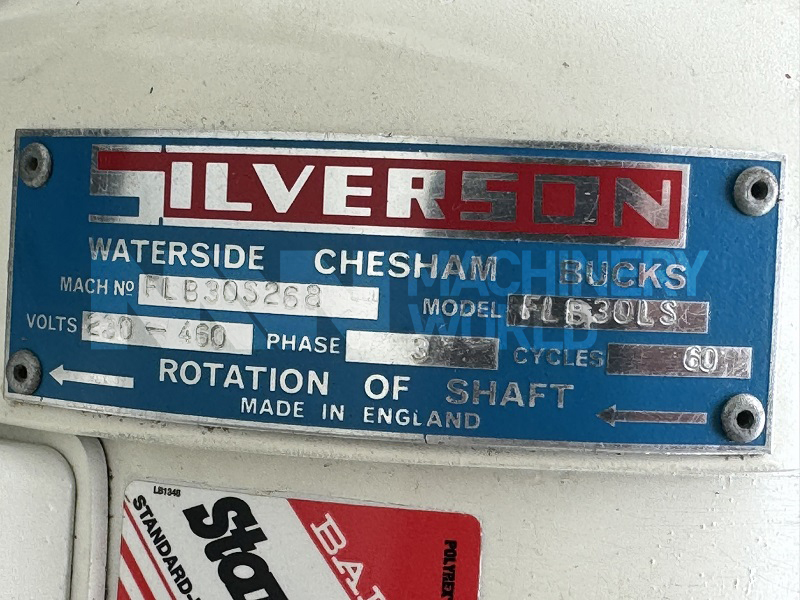

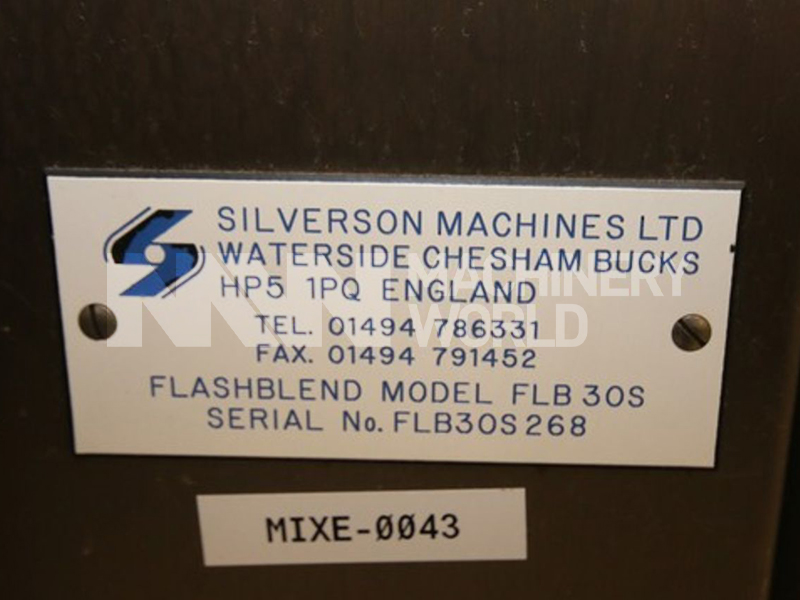

• Serial Number: FLB30S 268
• Construction: 316 grade Stainless Steel Product Contact Parts
• Typical Powder Flow Rate: 3,000kg per hour (Varies depending on the type of powder and solubility of the liquid being pumped through)
• Nominal Flow rate during Mixing Operation: Approx. 18,000 LPH
• Nominal Flow rate during CIP Cleaning Operation: Approx. 32,000 LPH
• Motor Power:

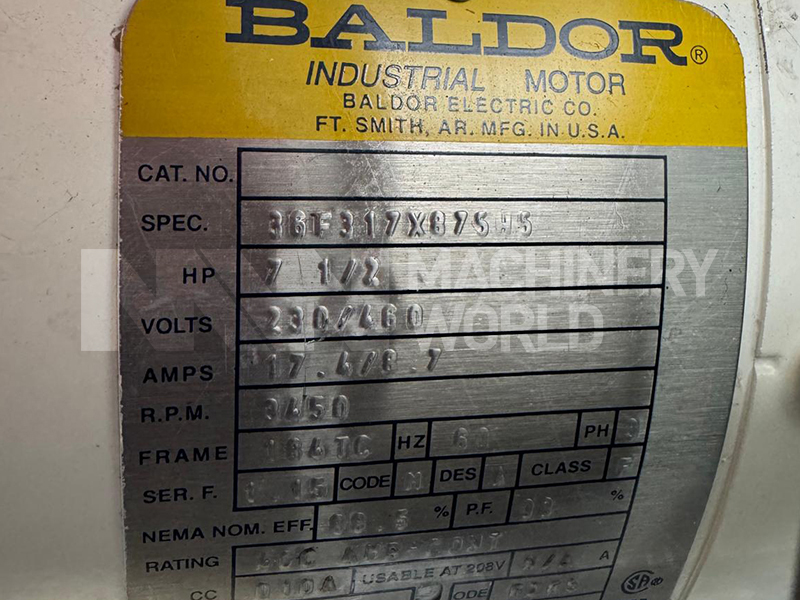

  Silverson Inline High Shear: 7.5HP (5.5Kw), 230/460V, 3450RPM & 60Hz

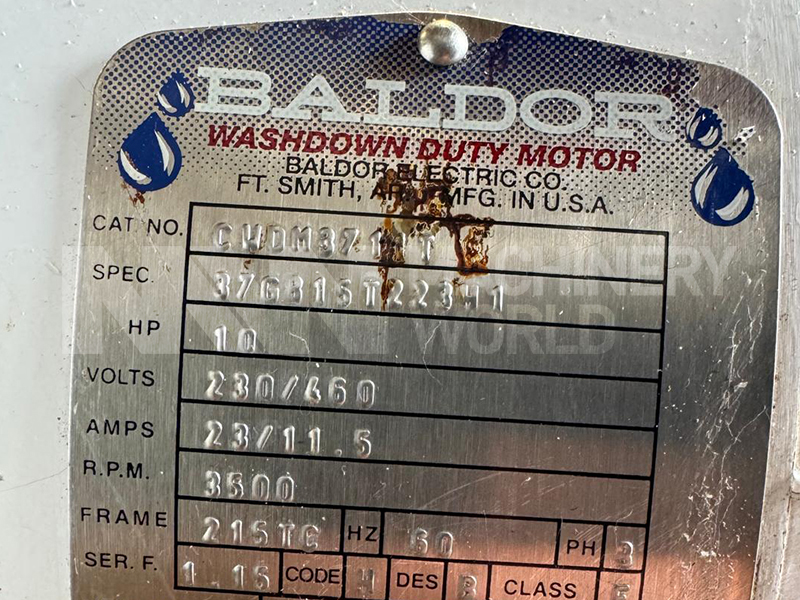

  Centrifugal Re-circulation Pump: 10HP (7.5kw), 230/460V, 3500RPM & 60Hz
• Standard Hopper Volume: Approx. 100 Litres

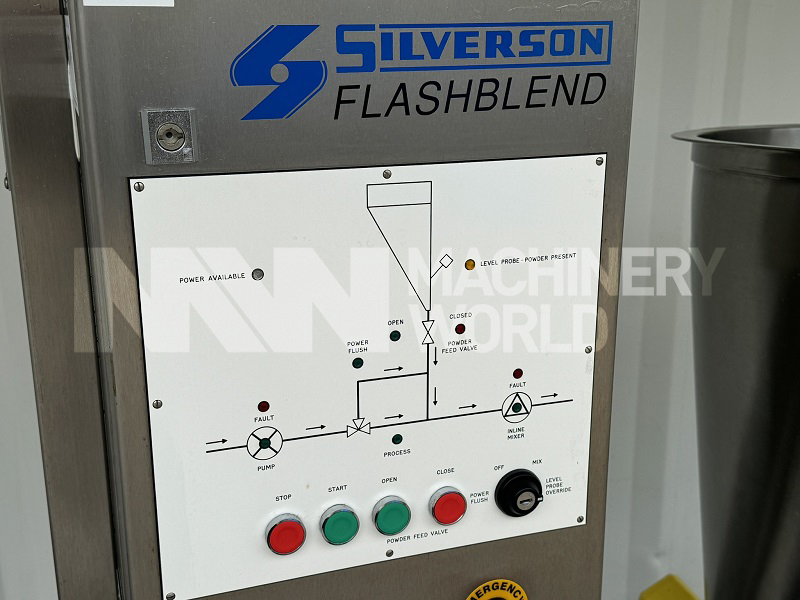

• Control Panel: Comes Fully Integrated

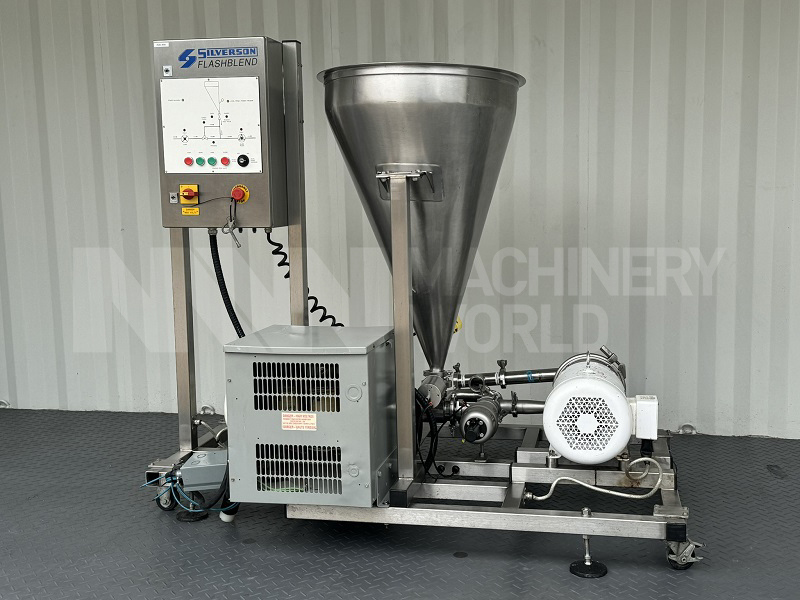

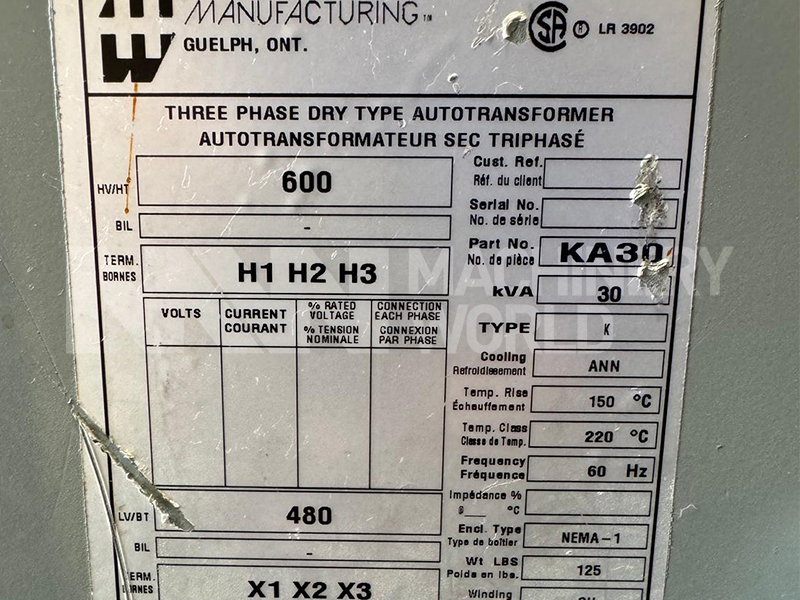

• Additional Details: Silverson Flashblend Mixer comes built on Stainless Steel Skid and comes with a 600V/480V Step Down Auto-Transformer.

Dimensions

• Overall Length: 1520mm
• Overall Width: 1000mm
• Overall Height: 1330mm

Country of Manufacture

England
