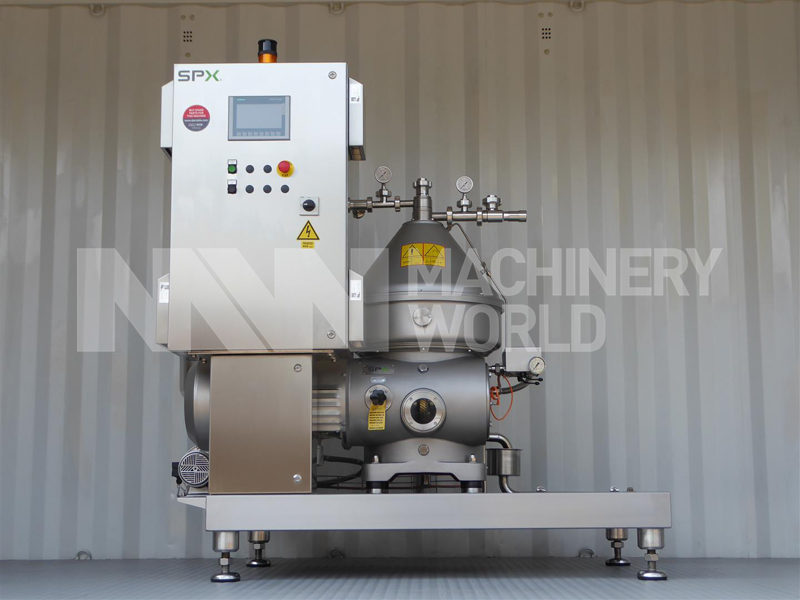

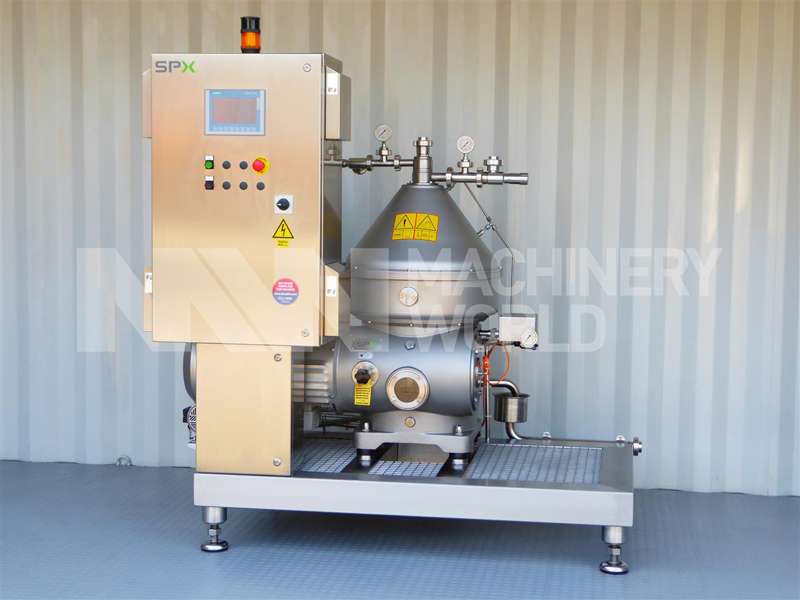

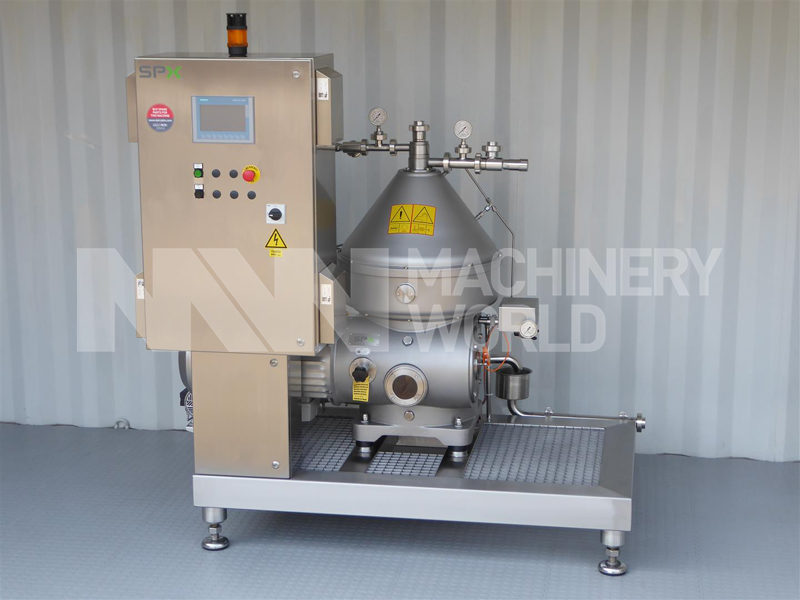

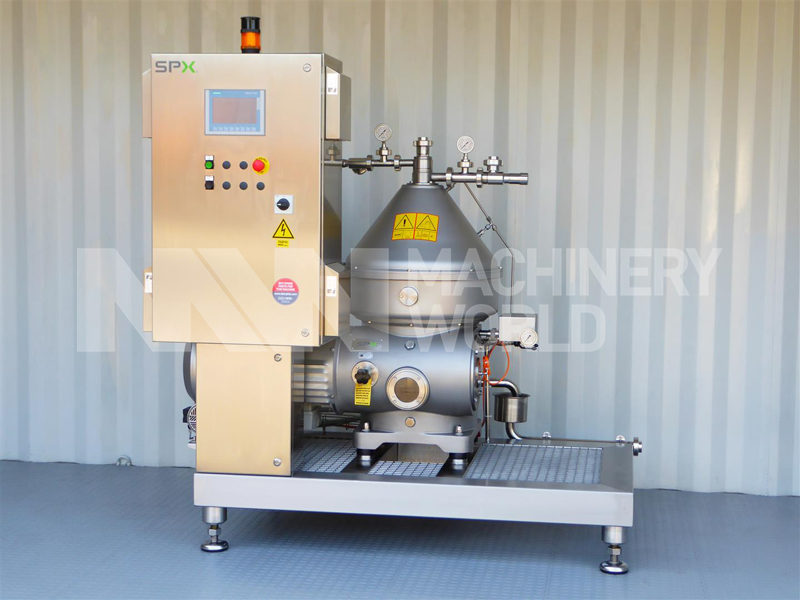

SPX Seital SE20X ‘Brand New’ Milk Separator – 5.000 l/h

Description

The SPX Seital SE20 X is a self-cleaning centrifugal separator for milk skimming, standardization, cleaning, and whey skimming. The machine is constituted by a cast-iron frame coated by stainless steel, on which are installed the following components;

• two shafts with a couple of helicoidal gears with orthogonal axes, elastic coupling, ball bearings, etc.

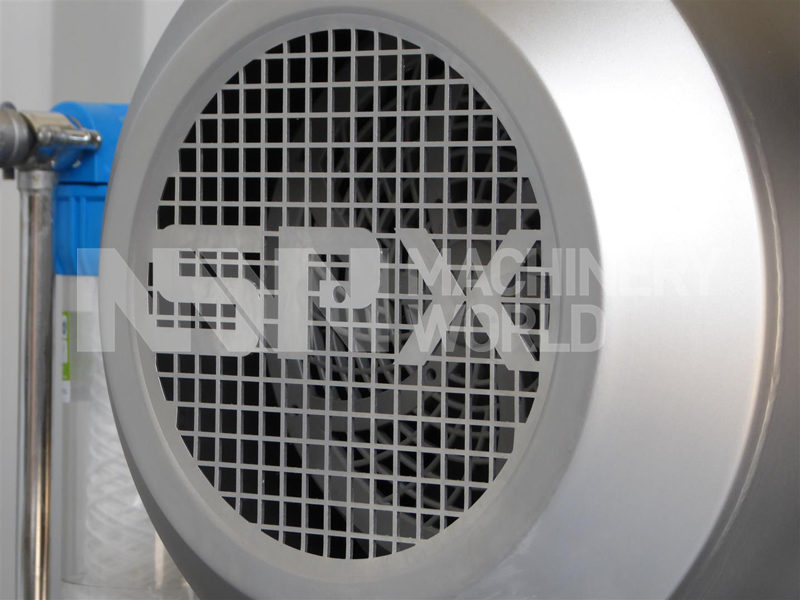

• motor
• manual brake
• speed sensor

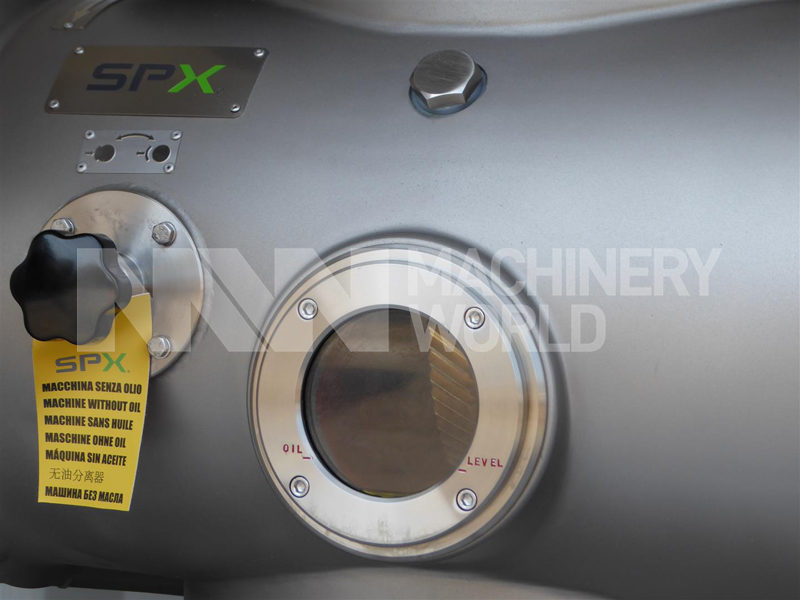

• sight glass to check the movement of the gear (bowl) and oil gauge glass
• bowl
• annular cyclone collecting the sludge discharge and the bowl protection cover
• inlet - outlet flow unit
• device for operating water injection in the bowl

The supply also includes the electric panel, the operating water system (surge tank, filter, pressure reducer, and pressure switch) and a set of special spanners for the bowl.

Features

• Manufacturer: SPX Seital
• Model: SE20X
• Function: Milk skimming, standardization and cleaning
• Serial number: M03029
• Includes 12 months manufacturers warranty
• Year of manufacture: 2019
• Milk skimming capacity: 5,000 litres / hour
• Standardization / cleaning capacity: 8,000 litres / hour
• Solid chamber capacity: 2,7 litre
• Bowl speed: 7,500 RPM
• Motor speed: 1,450 RPM
• Maximum product density: 1,1 kg/dm3
• Maximum sludge density: 1.35 kg/dm3
• Maximum product temperature: 95degC
• Minimum product temperature: 3degC
• Processing temperature: 45-55 degC
• Total installed power: 11 kW
• Electrics: 400 Volts / 3 Phase / 50 Hz
• Skimming efficiency: 0.040% - 0,0055% (Rose Goblieb System)
• Bowl: Superduplex, duplex and AISI 304
• Mounted to stainless steel skid with adjustable feet
• Includes electrical control panel
• Documentation included

Dimensions

• Depth: 118.5 cms
• Width: 180.5 cms
• Height: 176.8 cms
• Weight: 950 kgs

Country of Manufacture

Italy
