Stephan UM130 Double Jacketed Universal Process Mixer (Year 2016)

IN STOCK AVAILABLE TODAY

Description

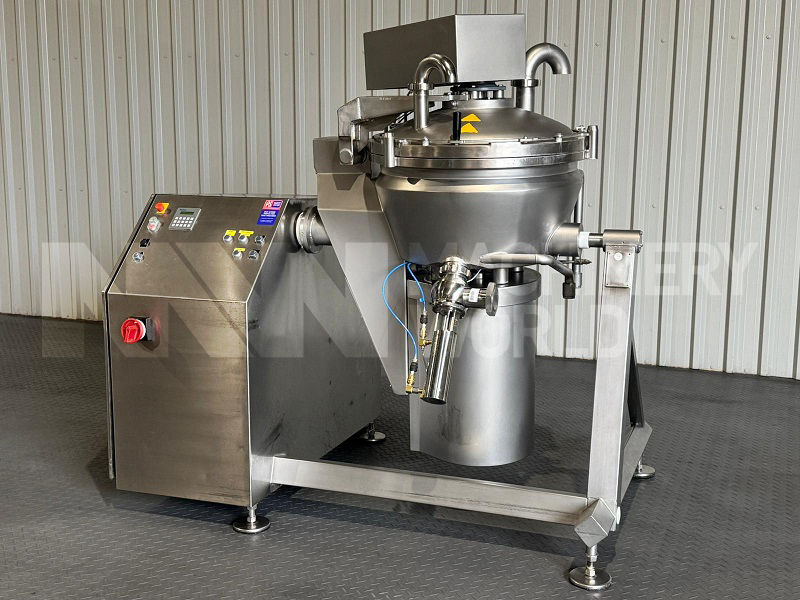

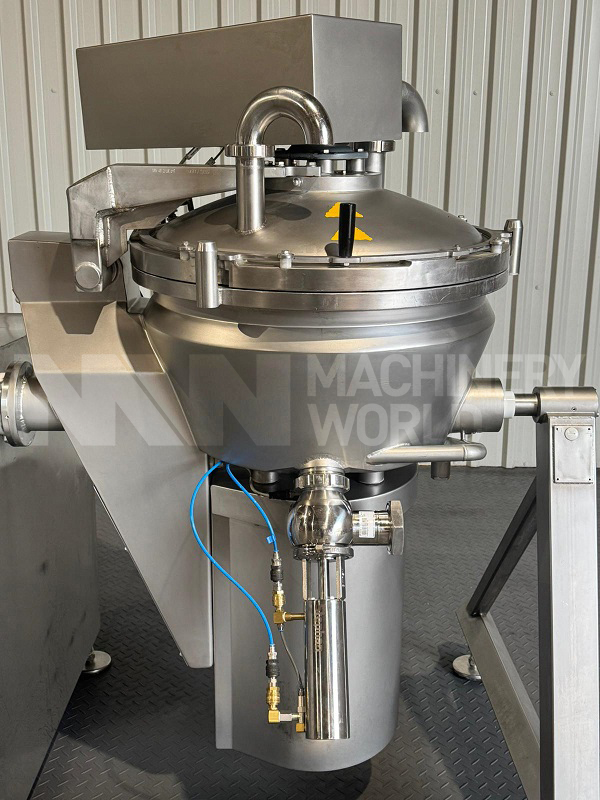

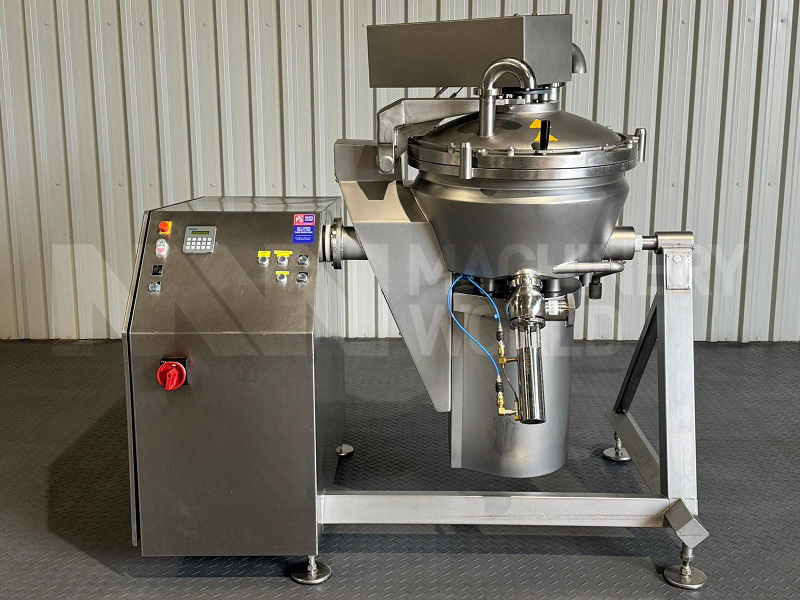

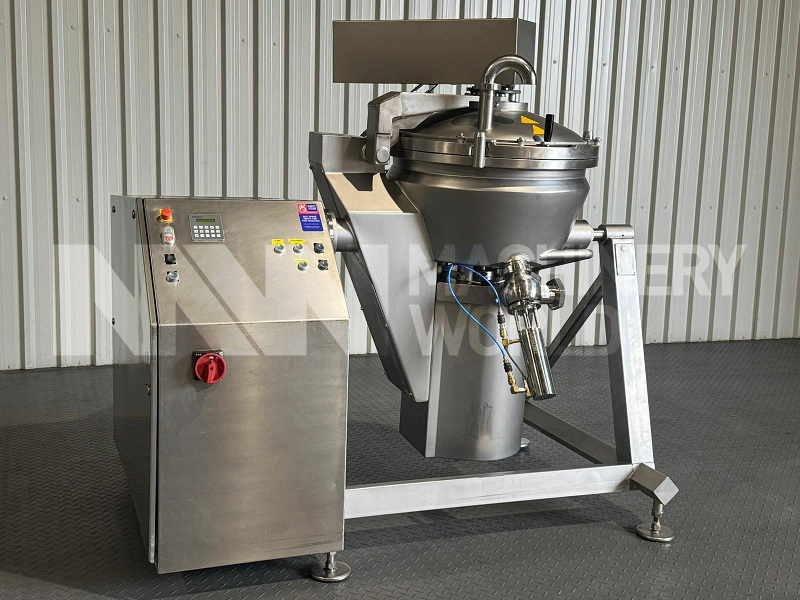

This is a used Stephan UM130 Double Jacketed Universal Process Mixer. This Stephan UM130 Double Jacketed Universal Process Mixer has a Bowl Volume of about 120 Litres and working Volume (Batch Size) of Approx 90L, which varies depending on the type of product being mixed. This UM130 Universal Process Mixer has a Double Jacket which can be utilsed for Heating or Cooling and this Mixer has a Maximum operating temperature of 95 deg C. It comes with tiltable bowl, which is operated by an electro mechanical piston and pneumatically operated locking ring for the Lid assembly. Stephan UM130 Double Jacketed Universal Process Mixer comes with 3-Blade Cutter Assembly and Top Mounted Scraped Surface Mixer. Currently held as stock, this Stephan UM130 Double Jacketed Universal Process Mixer is available for immediate sale.

Specification

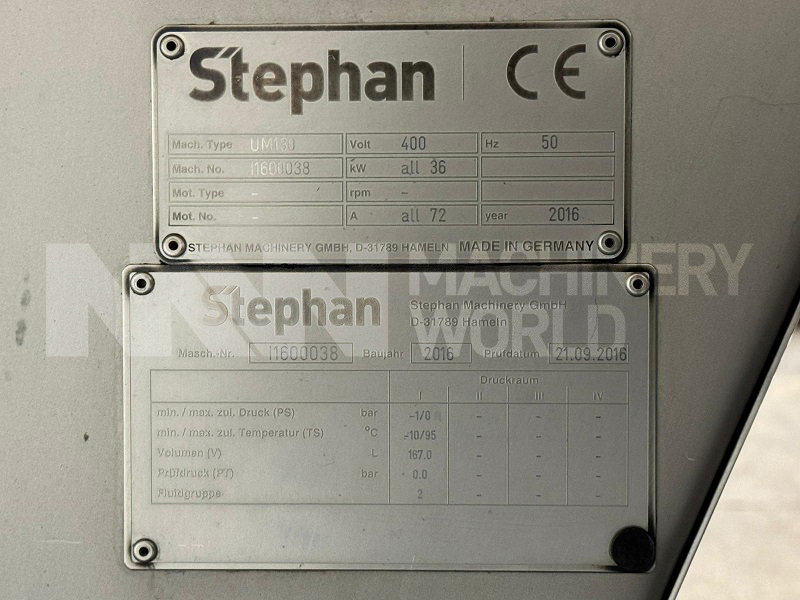

  • Make: Stephan Machinery GmbH, Germany
  • Machine Type: UM130
  • Model: Universal Double Jacketed Vertical Cutter Process Mixer
  • Machinery Number: I1600038
  • Year of Manufacture: 2016
  • Installed Power: 36kw, 3-Ph, 400V & 50Hz
  • Bowl Internal Volume: Approx  120 Litres
  • Max Working Volume (Batch Size): Approx 90 Litres (Varies Depending on Product)
  • Jacket: Yes, Double Jacketed (Installed, but Never Used)
  • Mixer:
    • Bottom High Speed Cutter Mixer
    • Top Scraped Surface Mixer
  • Maximum Operating Temperature: 95 deg C
  • Construction: 304 Grade Stainless Steel Construction
  • Bowl Tilt: Titable Bowl

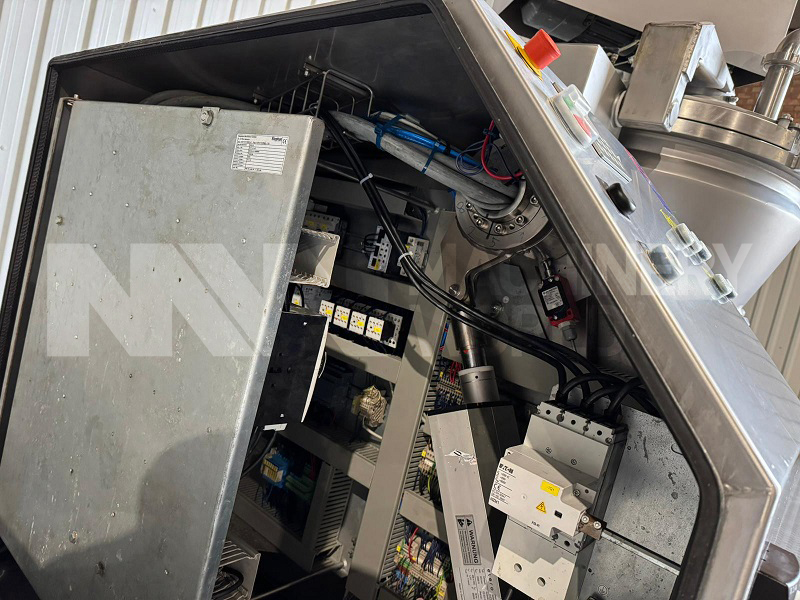

  • Controls: Comes Fully Integrated.
  • Additional Details: Comes with selection of Spares.
Dimensions
  • Length: 1760mm
  • Width: 1400mm
  • Height: 2200mm
  • Weight: Approx 1,250kg
Country of Manufacture

Germany
