Stephan UM60E Double Jacketed Universal Vacuum Process Mixer

Description

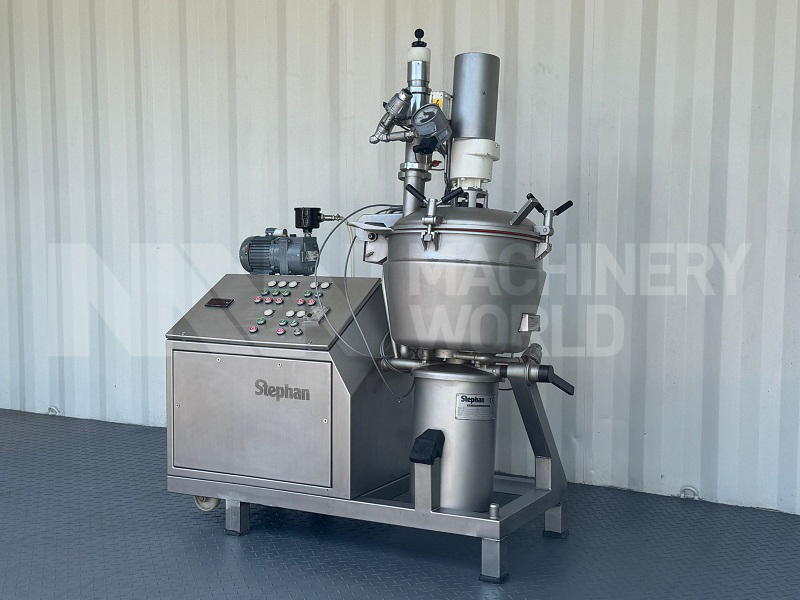

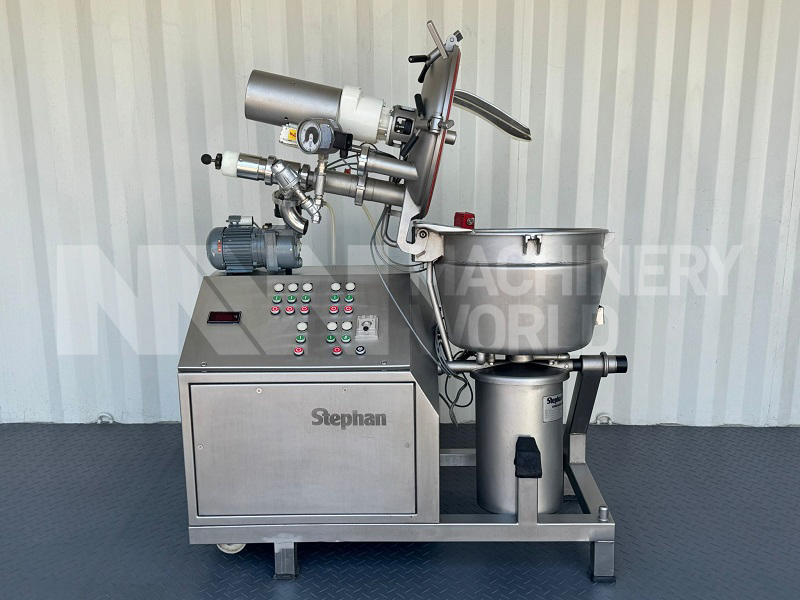

This is a pre-owned Stephan UM60E Double Jacketed Universal Vacuum Process Mixer which features Direct Steam Injection and has a Bowl Volume of approximately 60L, with a working Volume (Batch Size) of around 40L, which may vary based on the product being mixed. The Stephan UM60E Universal Process Mixer is equipped with a Double Jacket that can be used for Heating or Cooling, and it supports Direct Steam Injection, and has a maximum operating temperature of 127 degrees celsius and comes with fully integrated Vacuum Pump. It includes a manually tiltable bowl and a manual lid assembly. The Stephan UM60E Double Jacketed Universal Vacuum Process Mixer is fitted with a 2-Blade Cutter Assembly, paired with a dual-speed main drive motor and a Top Mounted slow-speed Scraped Surface Mixer. Currently in stock, this Stephan UM60E Double Jacketed Universal Vacuum Process Mixer is ready for immediate sale.

Specification

• Make: Stephan GmbH & Co, Germany
• Machine Type: UM60E
• Model: Universal Double Jacketed Vertical Cutter Process Mixer with Direct Steam Injection

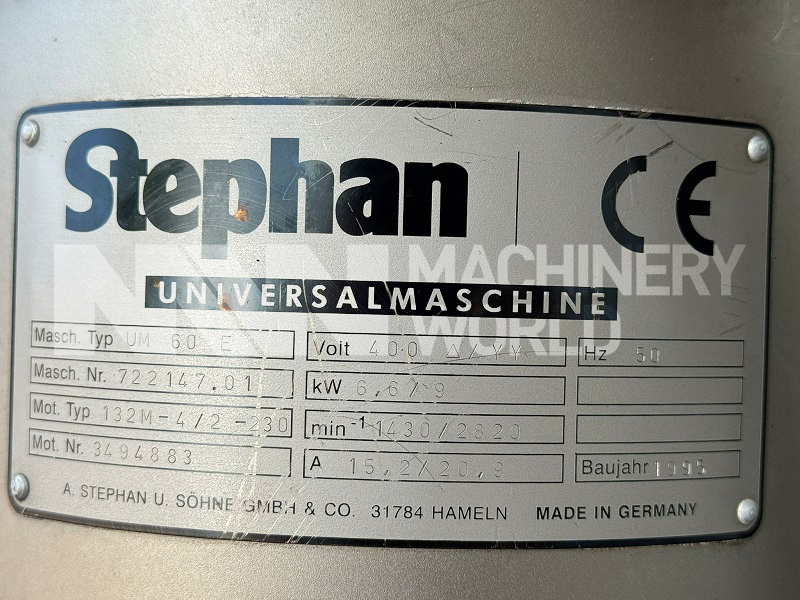

• Machinery Number: 722147.01
• Installed Power: 6.6/9kw, 3-Ph, 400V & 50Hz
• Bowl Internal Volume: Approx  60 Litres
• Max Working Volume (Batch Size): Approx 40 Litres (Varies Depending on Product)
• Jacket: Yes, Double Jacketed
• Steam Injection: Internal Direct Steam Injection
• Mixer:
  • Bottom High Speed Cutter Mixer
  • Top Scraped Surface Mixer

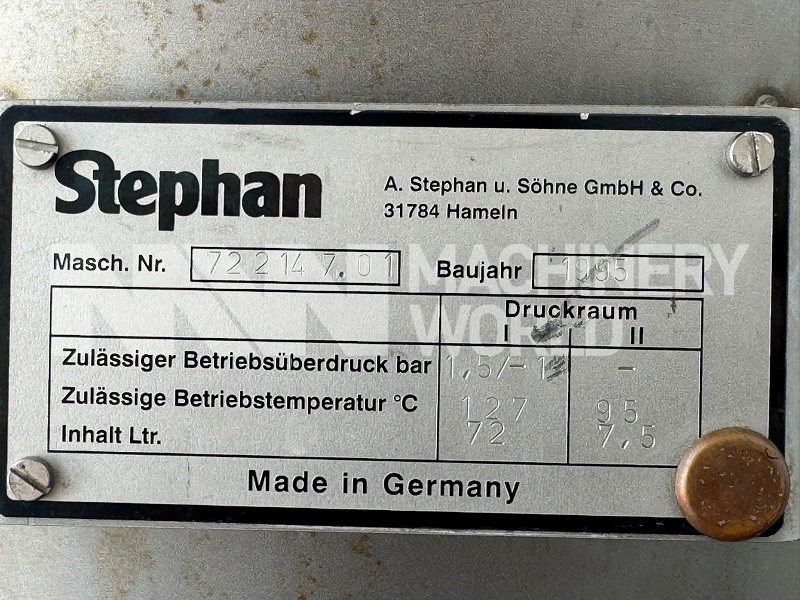

• Maximum Operating Temperature: 127 deg C
• Construction: 304 Grade Stainless Steel Construction

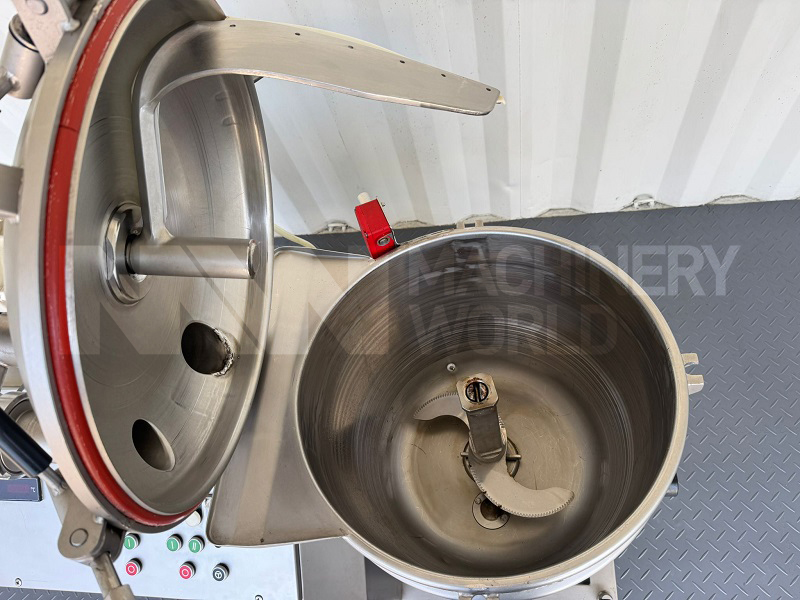

• Bowl Tilt: Manual Titable Bowl
• Vacuum: Fully Integrated Vacuum Pump installed.

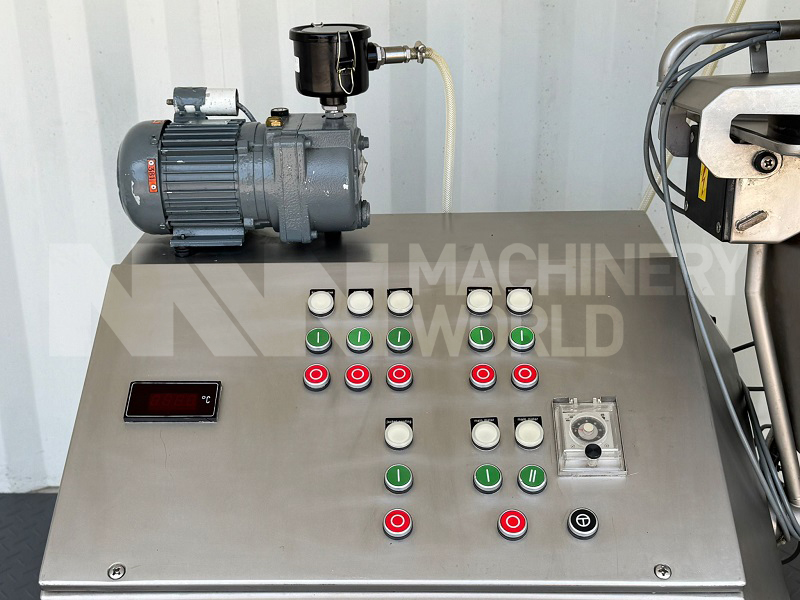

• Controls: Comes Fully Integrated.

Dimensions

• Length: 1500mm
• Width: 700mm
• Height: 1900mm

Country of Manufacture

Germany
