Stephan UM74E Universal Process Mixer (Year 2020)

Description

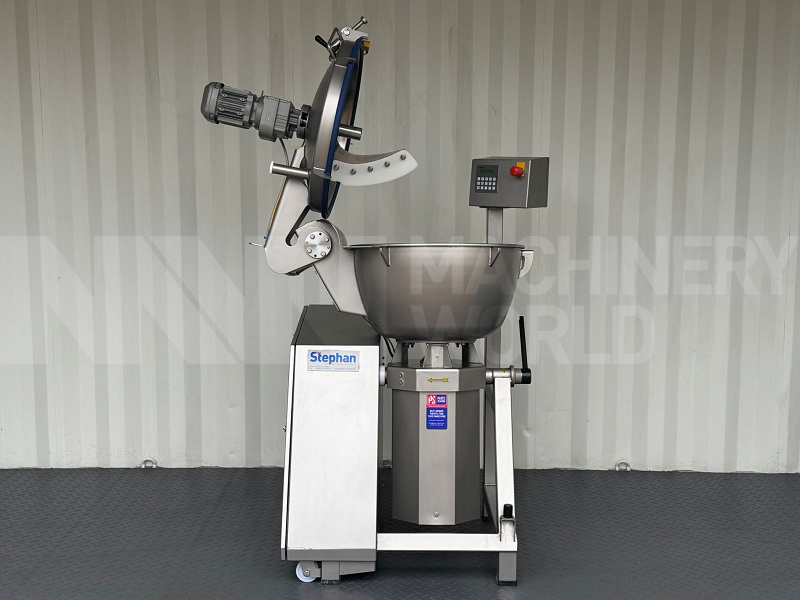

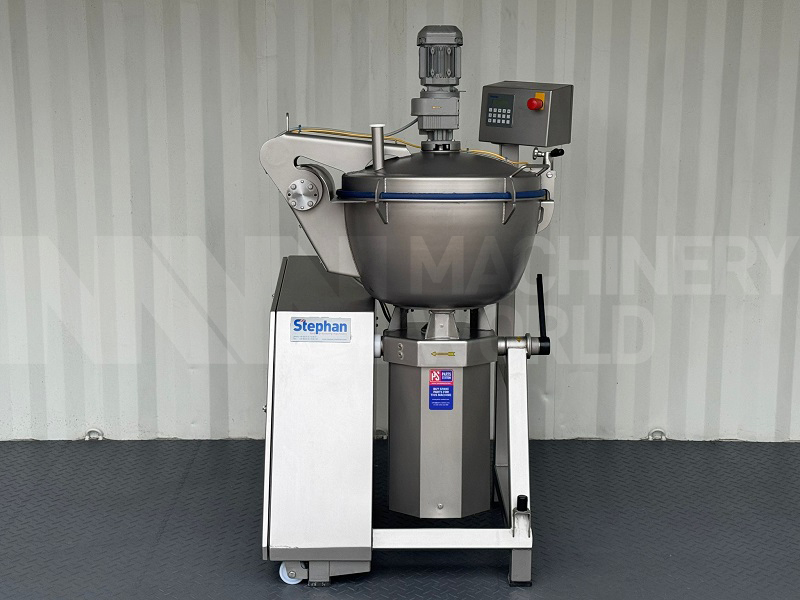

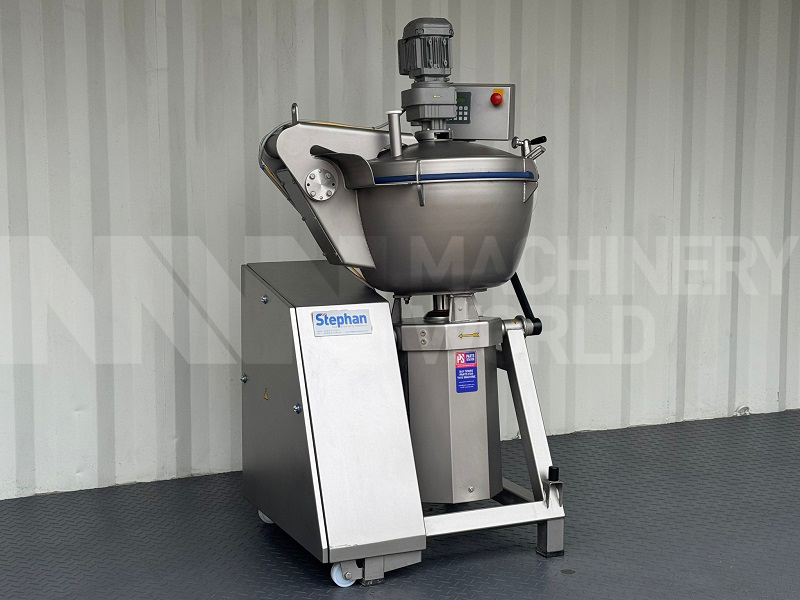

This is a used Stephan UM74E Universal Process Mixer. This Stephan UM74E Universal Process Mixer, manufactured in year 2020 has a maximum working Volume (Batch Size) of Approx 55L & minimum working volume of approx 15L, which varies depending on the type of product being mixed. This UM74E Universal Process Mixer has a single skin construction, with Maximum operating temperature of 95 deg C. It comes with manual tiltable bowl, for discharge of product. Stephan UM74E Universal Process Mixer comes with 2-Blade Cutter Assembly and Top Mounted Scraped Surface Mixer. Currently held as stock, this Stephan UM74E Universal Process Mixer is available for immediate sale. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Specification

• Make: Stephan Machinery GmbH, Germany
• Machine Type: UM74E
• Model: Universal Vertical Cutter Process Mixer

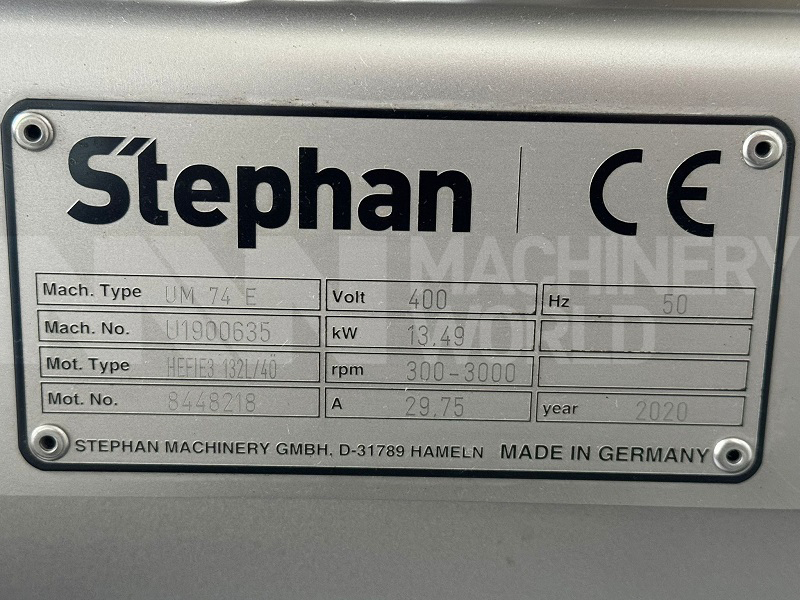

• Machinery Number: U1900635
• Year of Manufacture: 2020
• Installed Power: 13.5kw, 3-Ph, 400V & 50Hz
• Mixer Speed: 300 to 3,000 RPM
• Max Working Volume (Batch Size): Approx 55 Litres (Varies Depending on Product)
• Min Working Volume (Batch Size): Approx 15 Litres (Varies Depending on Product)
• Bowl Construction: Single Skin Construction
• Mixer:

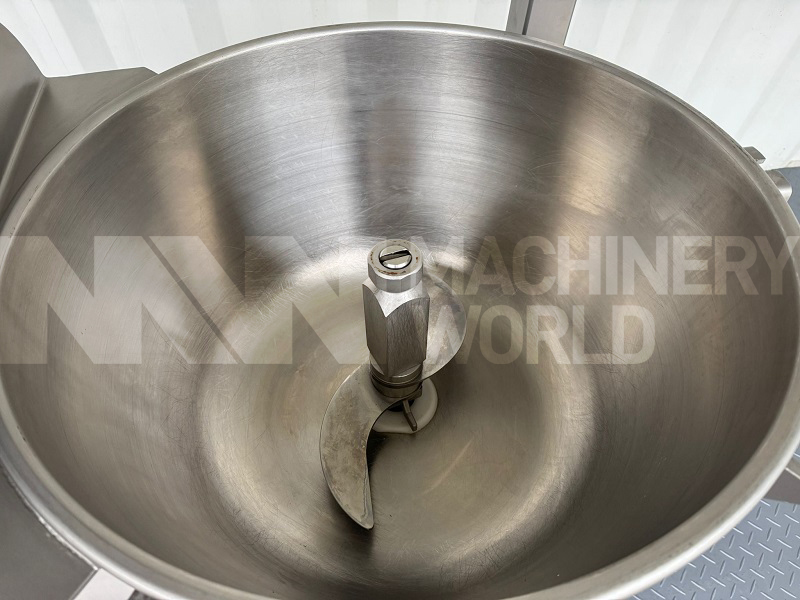

  • Bottom High Speed Cutter Mixer

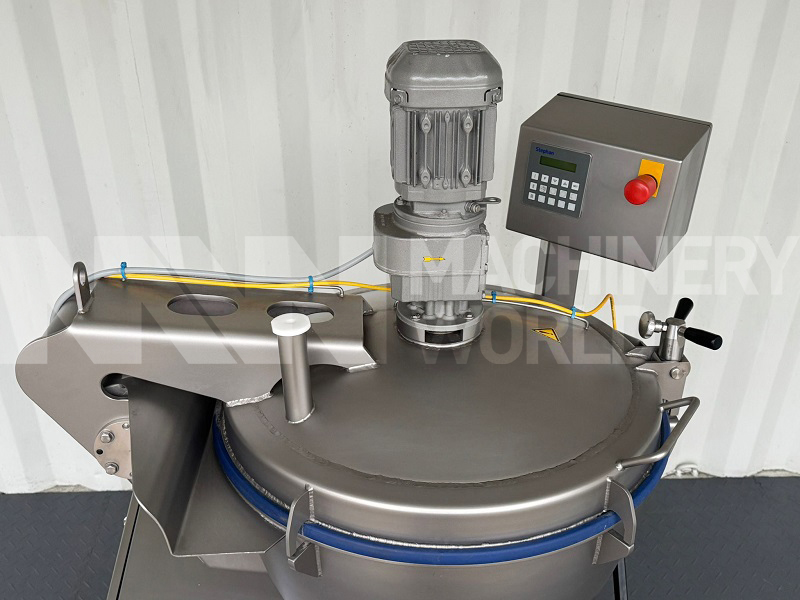

  • Top Slow Speed Scraped Surface Mixer
• Maximum Operating Temperature: 95 deg C
• Construction: 304 Grade Stainless Steel Construction
• Bowl Tilt: Manual Tilting Bowl
• Controls: Comes Fully Integrated.

Dimensions

• Length: 908mm
• Width: 1000mm
• Height: 1640mm

Country of Manufacture

Germany
