Description

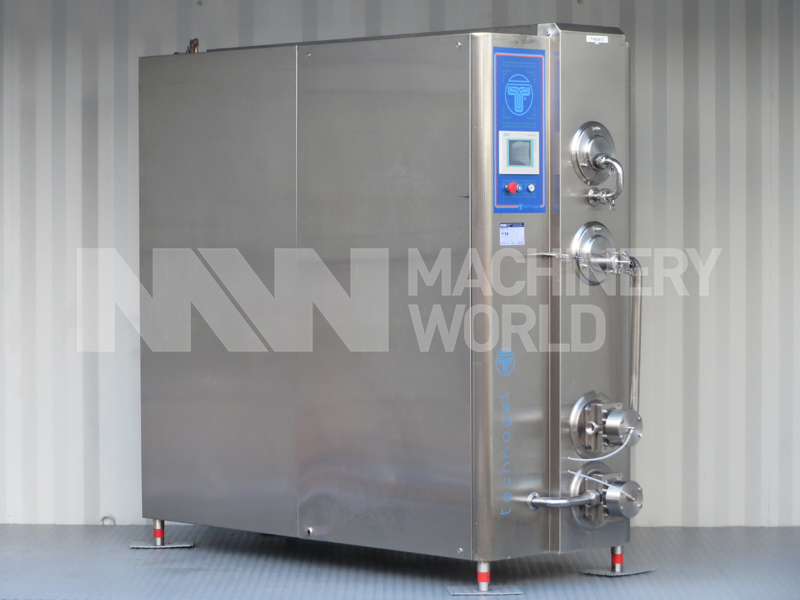

TheTechnogel Explorer 1500 LPis suited for medium sizes companies. The freezer with its double freezing stage produces up to 1500 litres of ice cream per hour (100% overrun). The two cylinders are completely independent, each with their own refrigerating plant, control selector and separate control device.
Features
- Manufacturer:Technogel
- Model: Explorer 1500
- Function: Continuous ice cream freezer
- Year of manufacture: 2011
- Serial number: 004971/01F
- Capacity:500 – 1500 litres/per hour
- Refrigerant: R404A (7KG x 2)
- Stainless steel cladding
- Twin lobe pumps (Inlet & Outlet)
- Total installed power:40 kW
- Horizontal barrel
- Air cooled (Includes air cooling unit)
- Cleaning in Place (CIP)
- Voltage: 400V / 50Hz / 3 Phase
- See’Technical Doc’ link for further details
Dimensions
- Length:235 cms
- Width:70 cms
- Height:210 cms
- Weight:920 kgs
Country of Manufacture
Italy
Download Technical Doc
