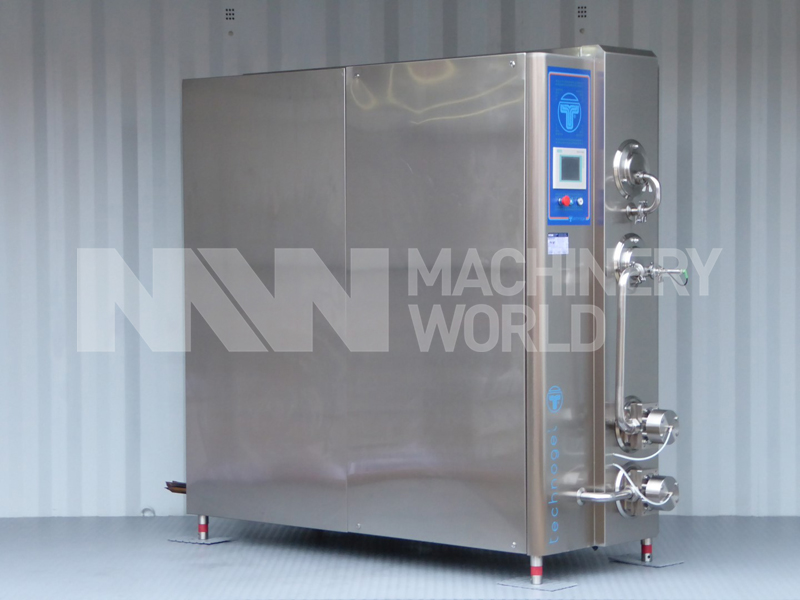

Technogel Explorer 1500 LP Ice Cream Continuous Freezer

SKU: 7131 Category: Tag:
Description
TheTechnogel Explorer 1500 is suited for medium sizes companies. The freezer with its double freezing stage produces up to 1500 litres of ice cream per hour (100% overrun). The two cylinders are completely independent, each with their own refrigerating plant, control selector and separate control device.
Features
  • Manufacturer:Technogel
  • Model: Explorer 1500
  • Function: Continuous ice cream freezer
  • Year of manufacture: 2014
  • Serial number: 006659L
  • Capacity:500 – 1500 litres/per hour
  • Refrigerant: R404A (7KG x 2)
  • Stainless steel cladding
  • Total installed power:40 kW
  • Twin lobe pumps (Inlet & Outlet)
  • Horizontal barrel
  • Air cooled (Includes air cooling unit)
  • Cleaning in Place (CIP)
  • Voltage: 400V / 50Hz/ 3 Phase
  • See’Technical Doc’ link for further details
Dimensions
  • Length:235 cms
  • Width:70 cms
  • Height:210 cms
  • Weight:920 kgs
Country of Manufacture

Italy


Download Technical Doc
