Description

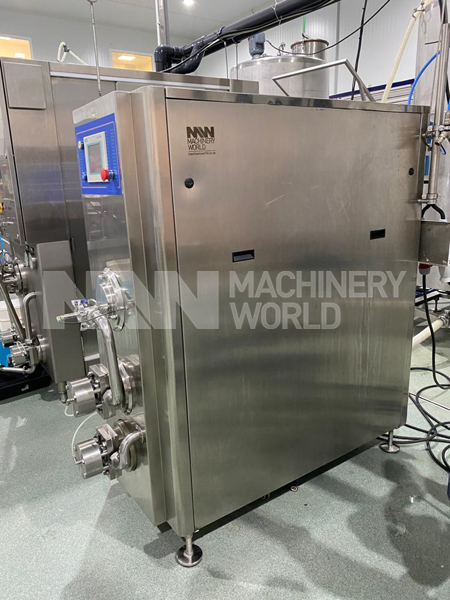

Self-contained continuous freezer for ice cream production, with lobe pumps. The turbine of hollow type with eccentric shaft in stainless steel is provided with scraper blades, also in stainless steel, and by rotating at high speed, produces an ice cream of a fine & creamy structure.
In the lower part is situated the double-lobe-pump group:
the first one for pumping the ice cream mix (in liquid solution at 4°C) in to the freezing cylinder;
the second to discharge the ice cream from the cylinder.

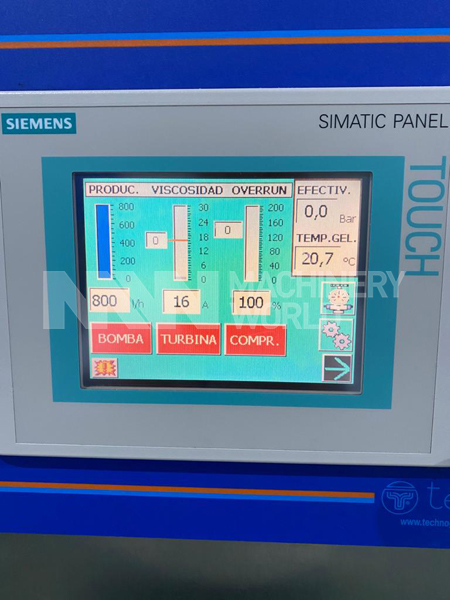

Both pumps are equipped with independent moto-reducer, controlled by inverter and PLC for the set-up and control of the production parameters, like quantity, overrun, and viscosity.
The pump body is made from a single S/S piece, and it is equipped with pneumatic bypass for a perfect CIP cleaning. The air for the overrun, metered by a mass flow meter then filtered, is injected directly into the freezing cylinder, obtaining an ice cream with volume increase from 30% to 140%. The pressure cylinder is automatically controlled.
Features

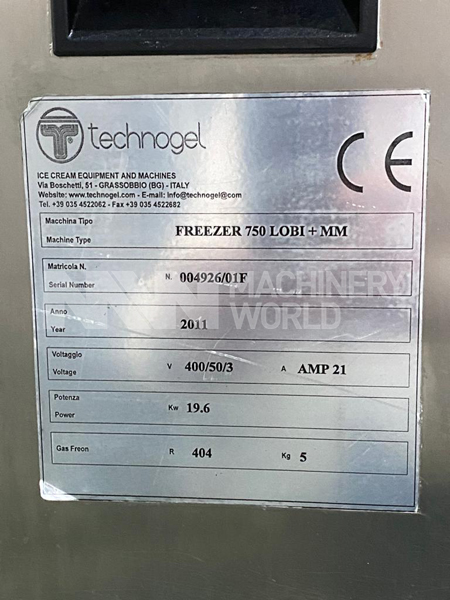

- Manufacturer: Technogel
- Model: Explorer 750 LOBI +MM
- Function: Continuous ice cream freezer
- Year of manufacture: 2011
- Serial number: 004926/01F
- Capacity: 750 litres/per hour
- Refrigerant: R404A (5 KG)
- Stainless steel cladding
- Total installed power:19.6 kW
- Horizontal barrel
- Water cooled
- Cleaning in Place (CIP)
- Voltage: 400V / 50Hz / 3 Phase
Dimensions
- Length: 210 cms
- Width: 85 cms
- Height: 200 (+35) cms
- Weight: 920 kgs
Country of Manufacture
Italy
