Description

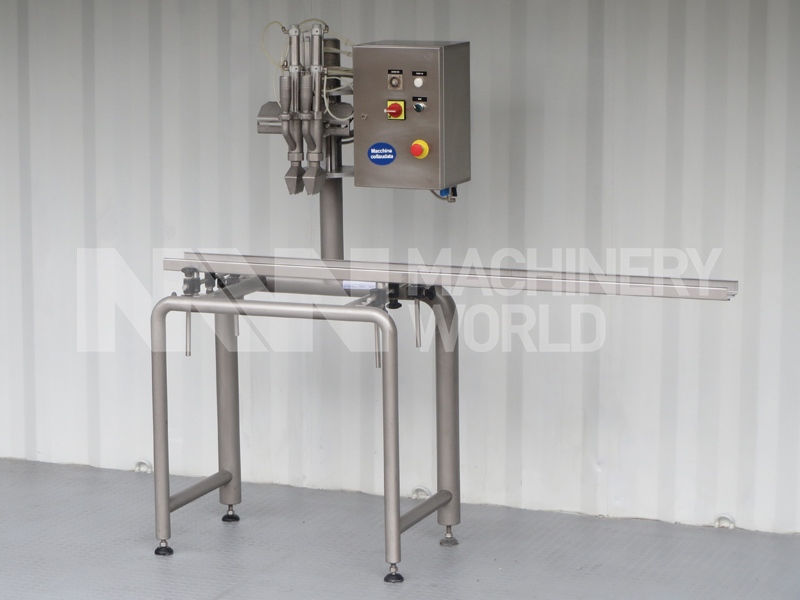

The Tekno-Ice CF3 is ideal for filling of cups and bulks, having a capacity of approximately 1 to5 litres.TheCF3 is a semi-automatic dispenser provided with 1, 2 or 3 dosage.Connected toa line of ice cream continuous freezers, this machine can simultaneously fill tubs with a maximum of three flavours.
Features
- Manufacturer: Tekno-Ice
- Model: CF3
- Serial number: CF081306
- Function: Semi-automatic filling machine
- Year of manufacture:2008
- Capacity (Ice cream):200 -2,000 litres/hour
- Air consumption:200 Nl/min
- Total installed power: 0.5 kW
- Stainless steel construction
- Equipped with2 dosers
- Pneumatic driver, fixed on the structure for vertical movement of the dosing unit
- Adjustable dosing cycle through a timer
- Adjustable waiting time between two successive dosing cycles
- Two nozzles for flower kind filling with external rippling effect
- Voltage: 220V / 50Hz / Single phase
- Instruction manual included
- See ‘Technical Doc’ link for further details
Dimensions
- Depth:55 cms
- Width:85 cms
- Height:180 cms
- Weight:80 kgs
Country of Manufacture
Italy
Download Technical Doc
