Terlet Terlotherm Scraped Surface Heat Exchanger (Year 2014)

Description

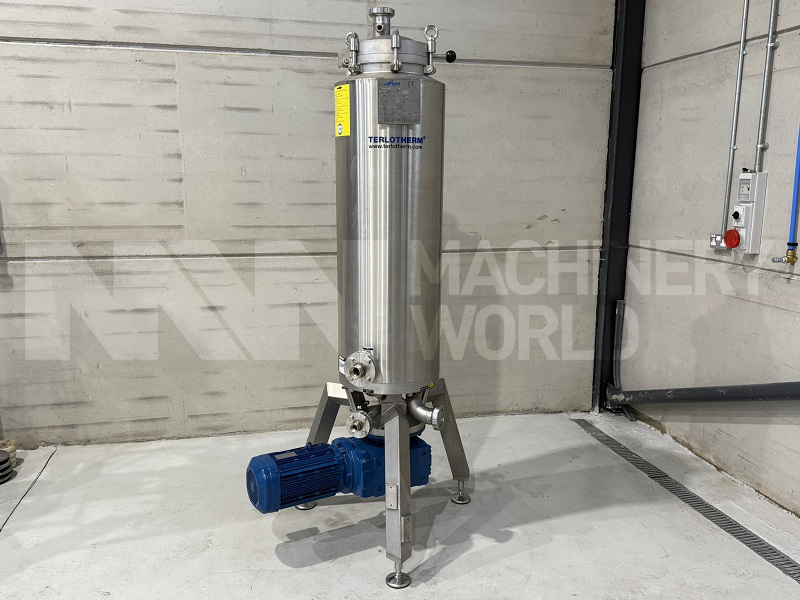

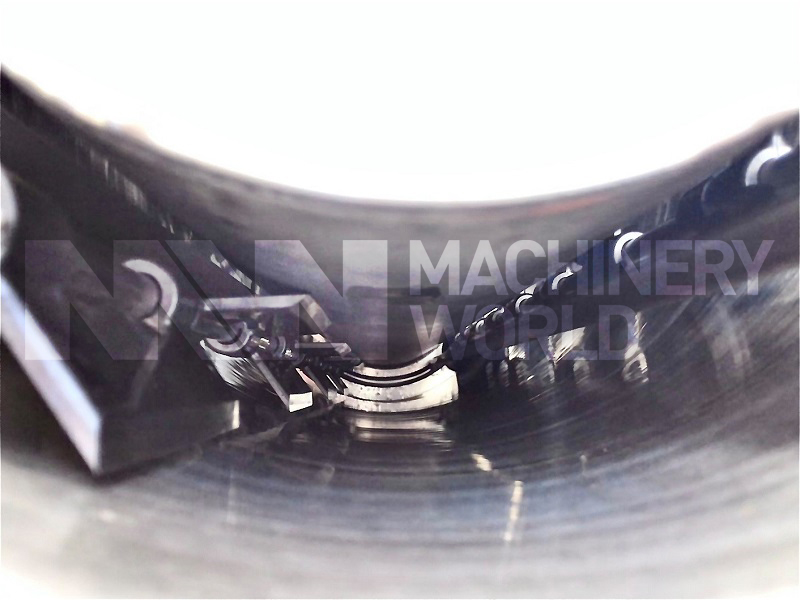

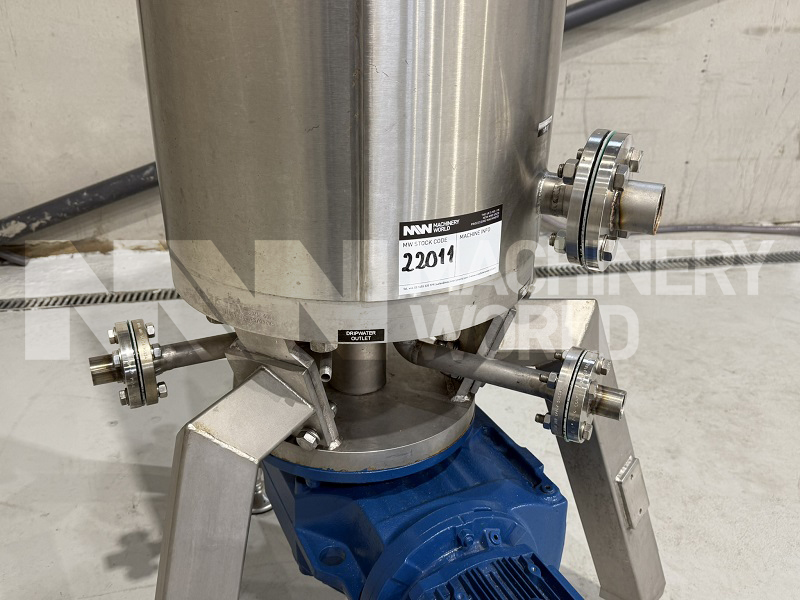

This is a used Terlet Terlotherm Scraped Surface Heat Exchanger. Terlet Terlotherm is a vertically oriented scraped surface heat exchanger that incorporates two concentric heat exchange surfaces to ensure optimal heat transfer. This configuration, along with additional features, presents several advantages. The vertical unit provides an extensive heat exchange surface area while occupying a minimal footprint, thereby preserving valuable production floor space. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Specification

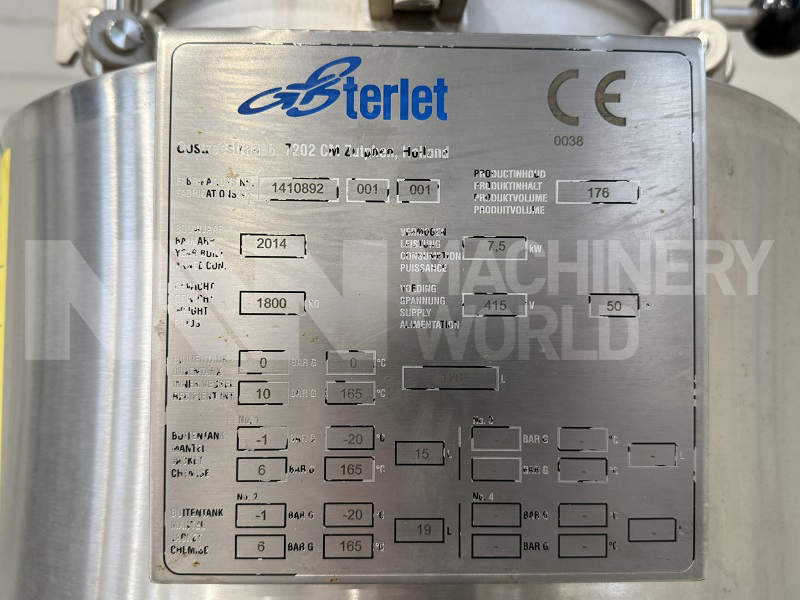

• Make: Terlet, Holland
• Type: Scraped Surface Heat Exchanger
• Serial Number: 1410892 001 001
• Year of Manufacture: 2014
• Product Volume: 176

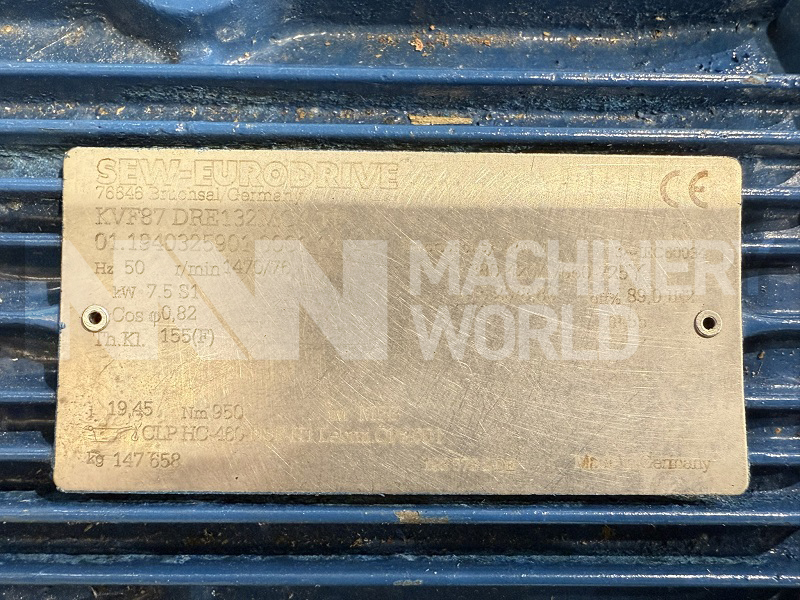

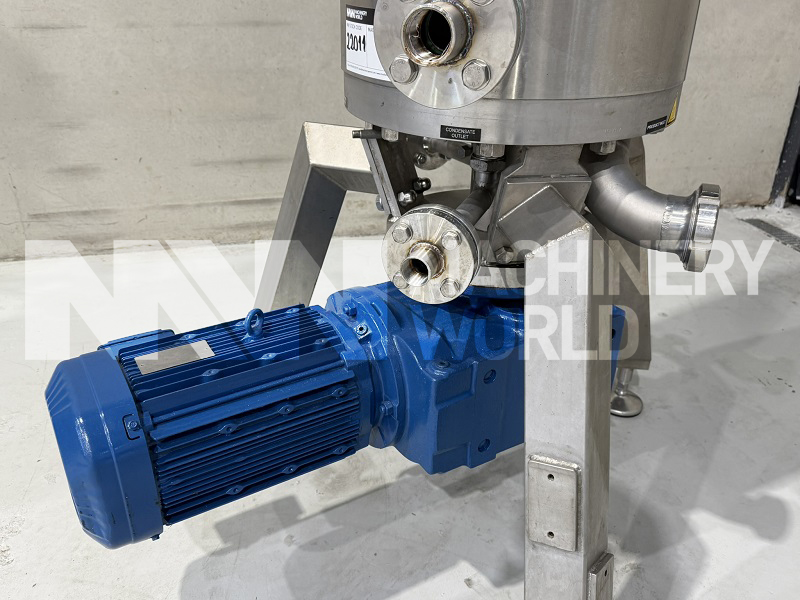

• Drive Motor Power: 7.5kw, 3-Ph, 415V & 50Hz
• Inner Vessel Operating Pressure: 10 Bar
• Inner Vessel Operating Temperature: 165 deg C
• Inner Jacket Min Operating Pressure: -1 Bar
• Inner Jacket Max Operating Pressure: 6 Bar
• Inner Jacket Min Operating Temperature: -20 deg C
• Inner Jacket Max Operating Temperature: 165 deg C
• Inter Jacket Volume: 15L
• Outer Jacket Min Operating Pressure: -1 Bar
• Outer Jacket Max Operating Pressure: 6 Bar
• Outer Jacket Min Operating Temperature: -20 deg C
• Outer Jacket Max Operating Temperature: 165 deg C
• Outer Jacket Volume: 19L

Country of Manufacture

Holland
