10,000 LPH Tetra Pak ALH25 (200 Bar) Homogeniser

Description

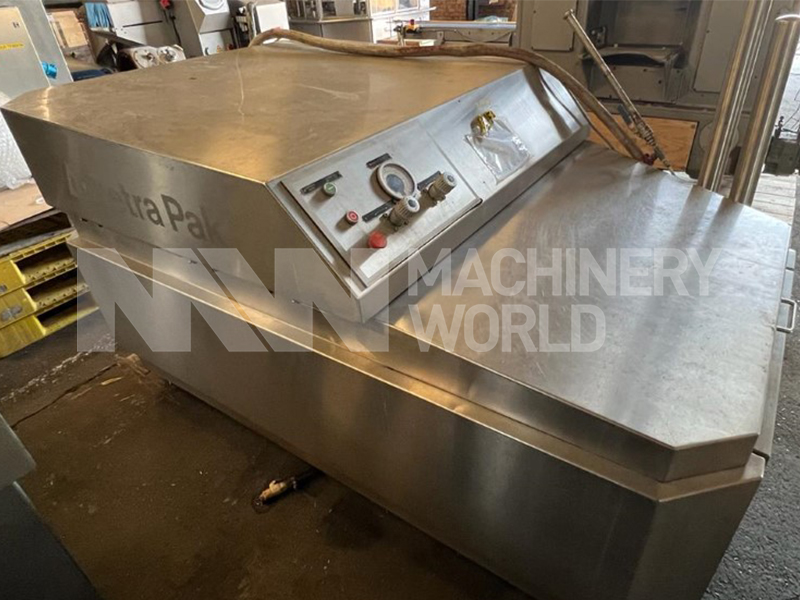

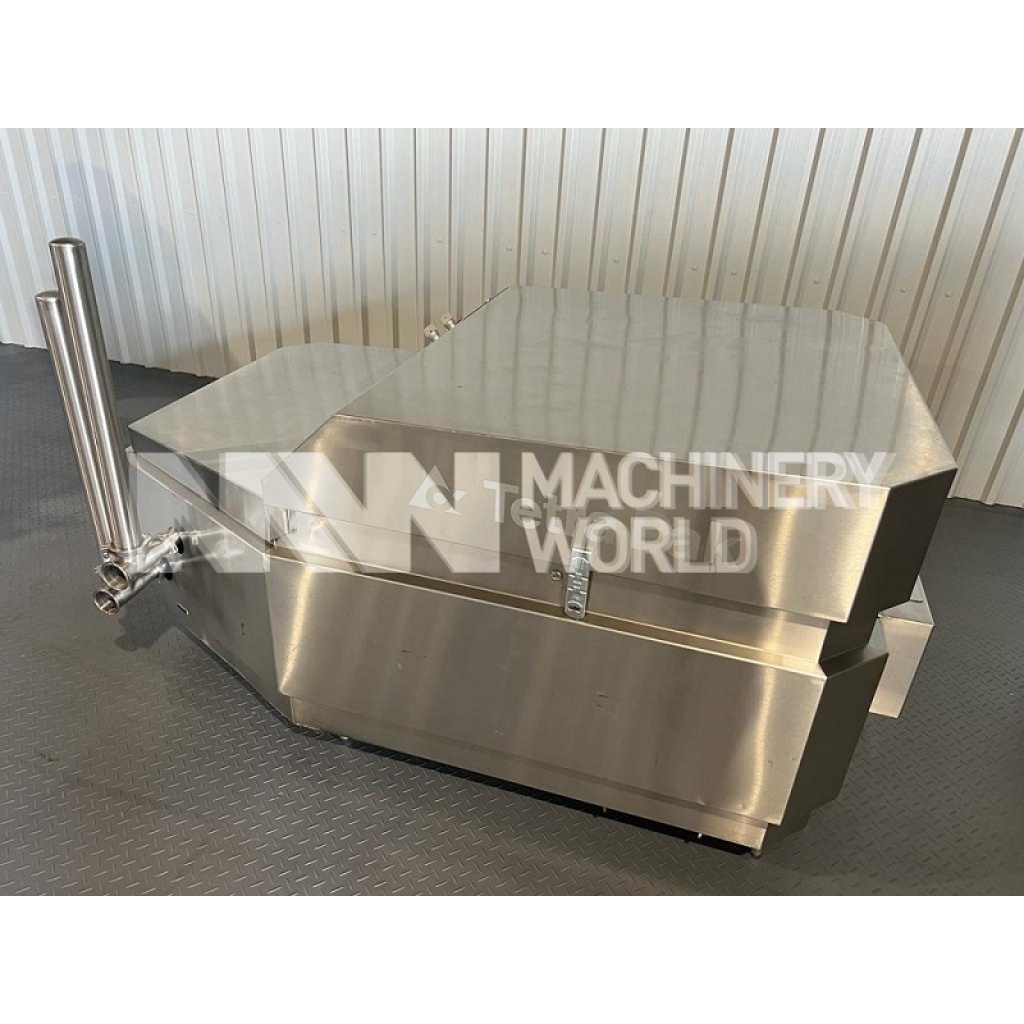

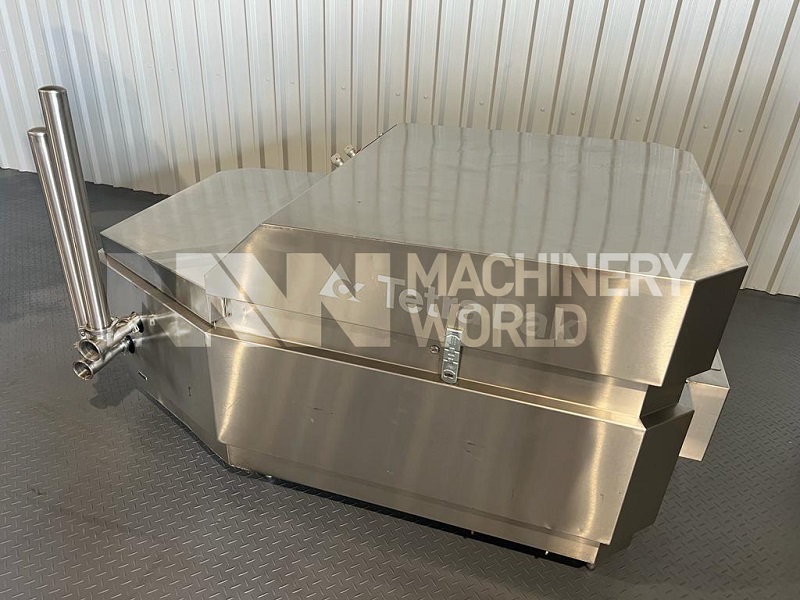

A Used Tetra Pak ALH25 homogeniser for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles. This used Tetra Pak ALH25 machine for high-pressure with a capacity of approx 10,000 LPH at a maximum operating pressure of 200 bar 2900 psi, with 2 Stages. This Used Tetra Pak Alex 25 machine for high-pressure Homogeniser was previously used on Milk at a dairy processing facility and available for immediate sale.

Features

• Manufacturer: Tetra Pak
• Model: ALH25

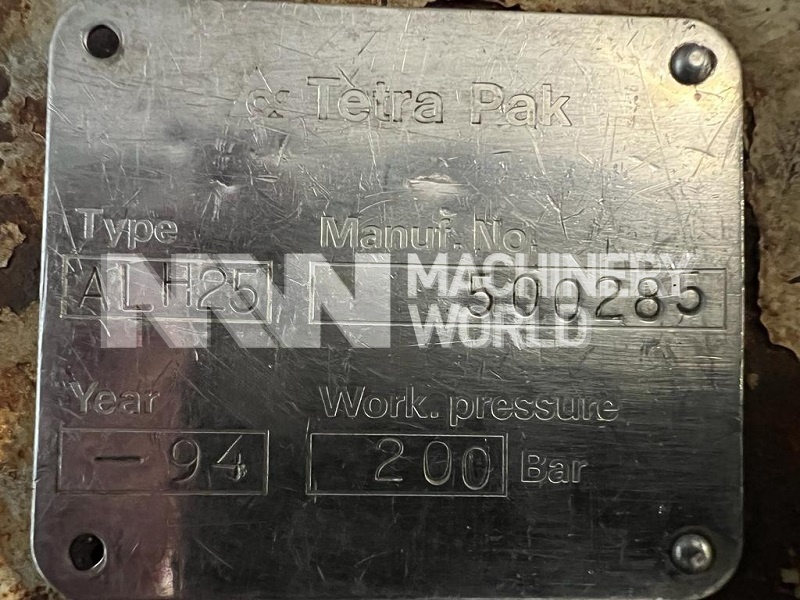

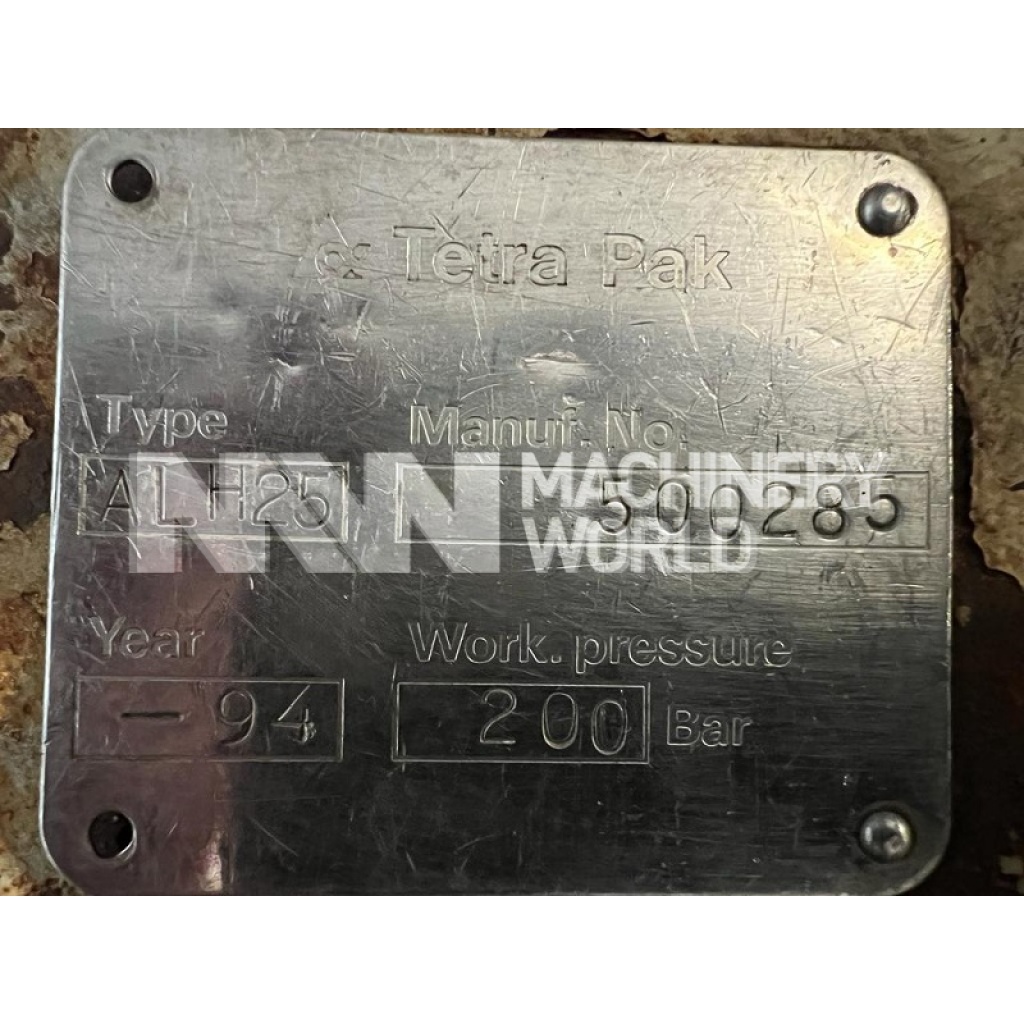

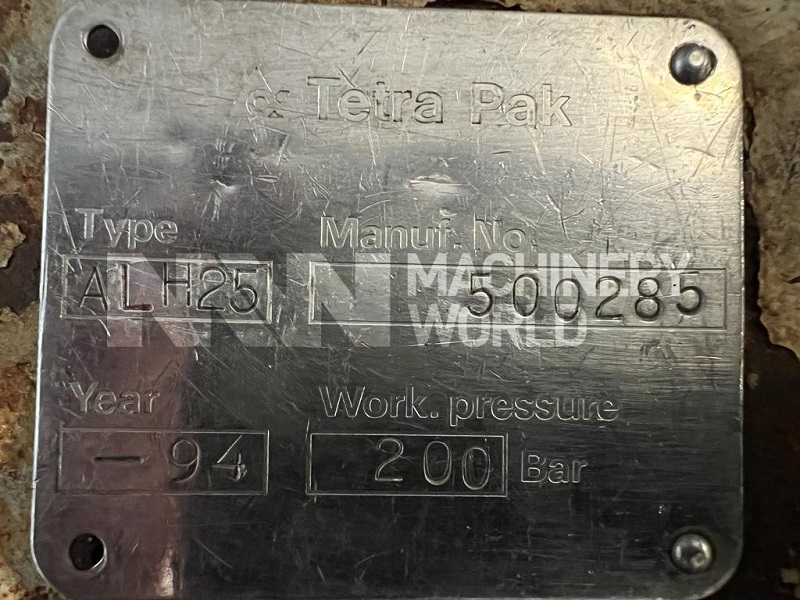

• Serial Number: 500285
• Function: Homogeniser
• Capacity: Approx 10,000 litres per hour

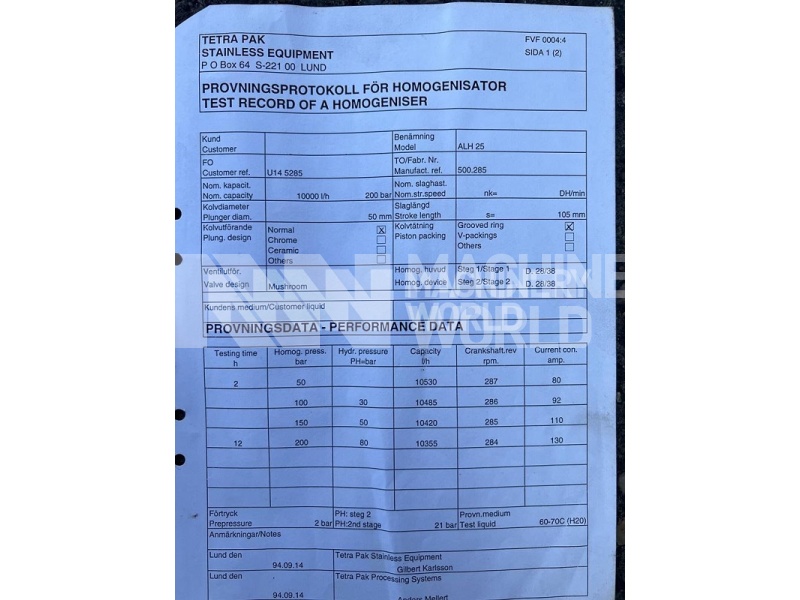

• Max. Working Pressure: 200 bar (2,900 psi)

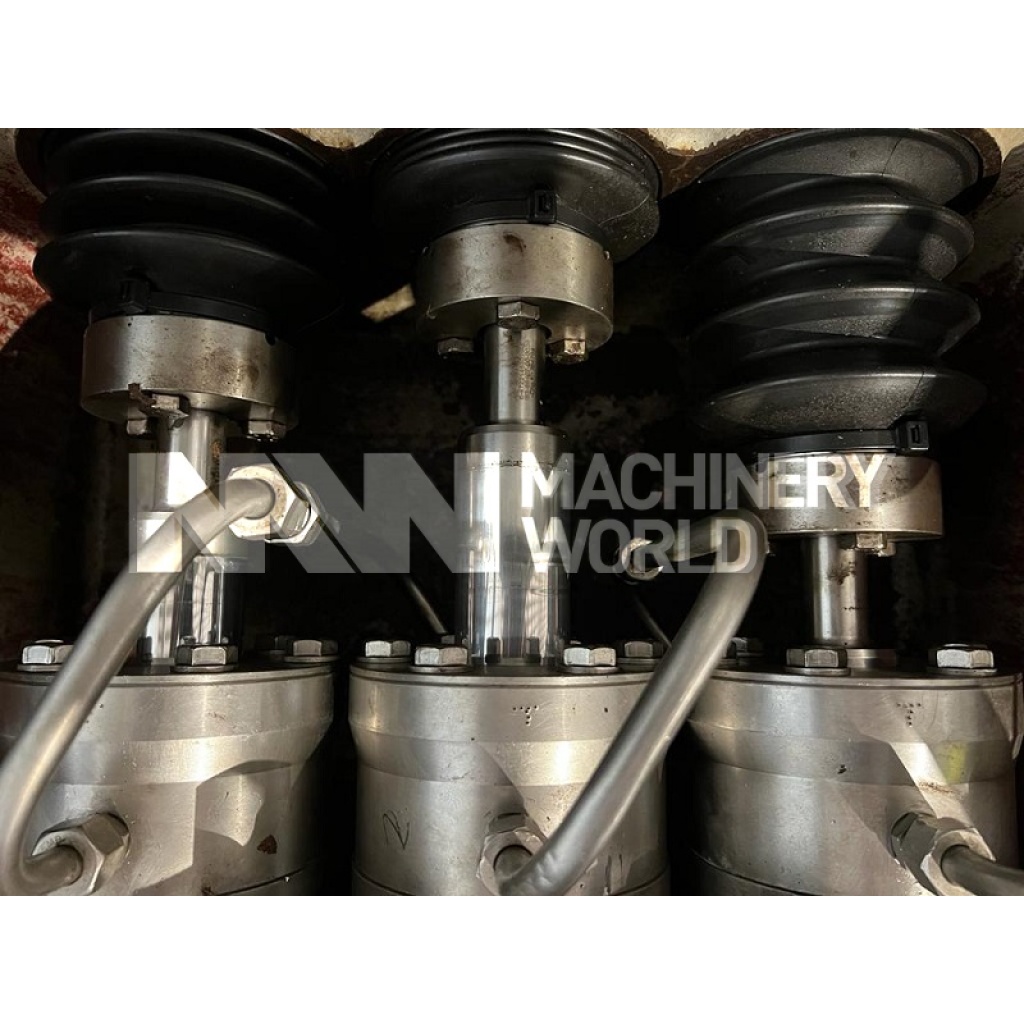

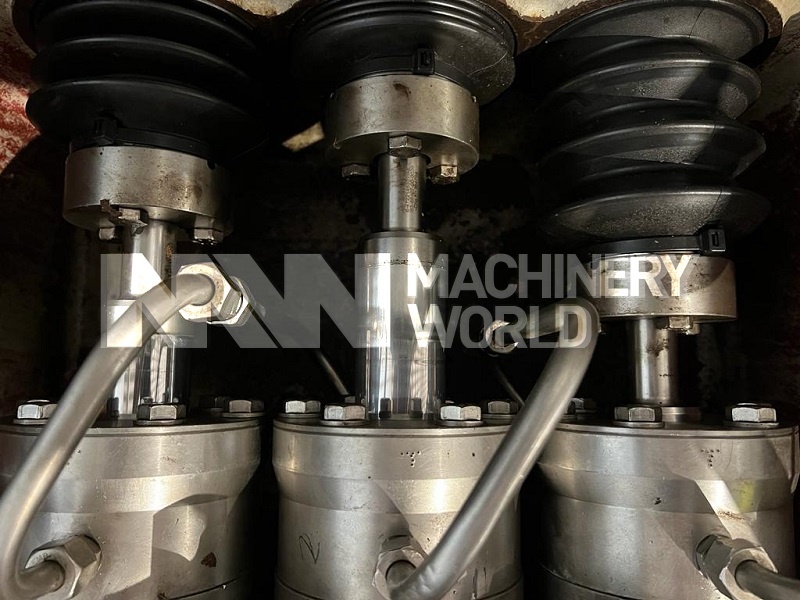

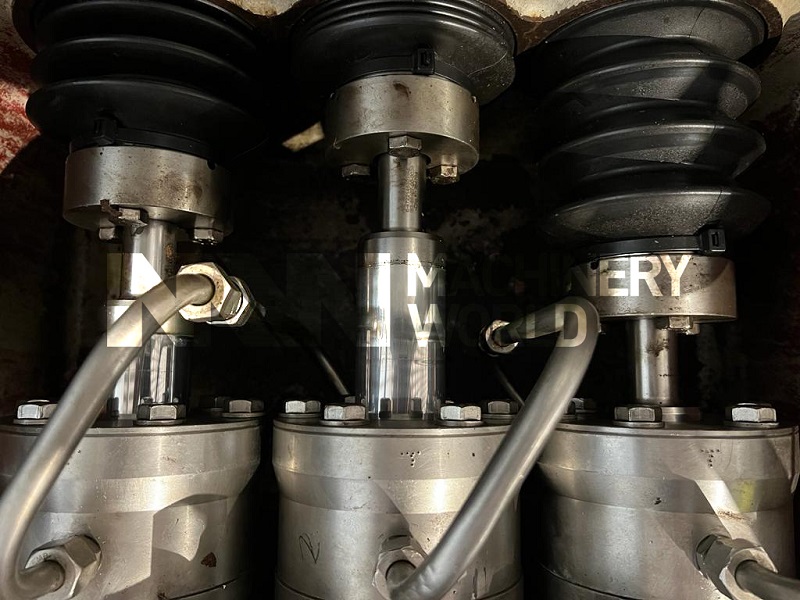

• Piston Diameter: 50mm
• Valve Type Design: Mushroom
• Piston Packing: Grooved ring
• Plunger Design: Normal

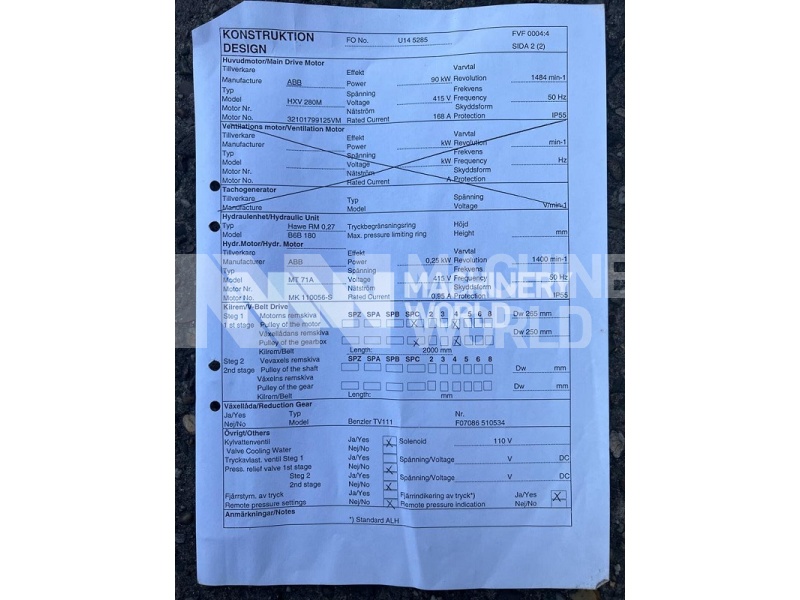

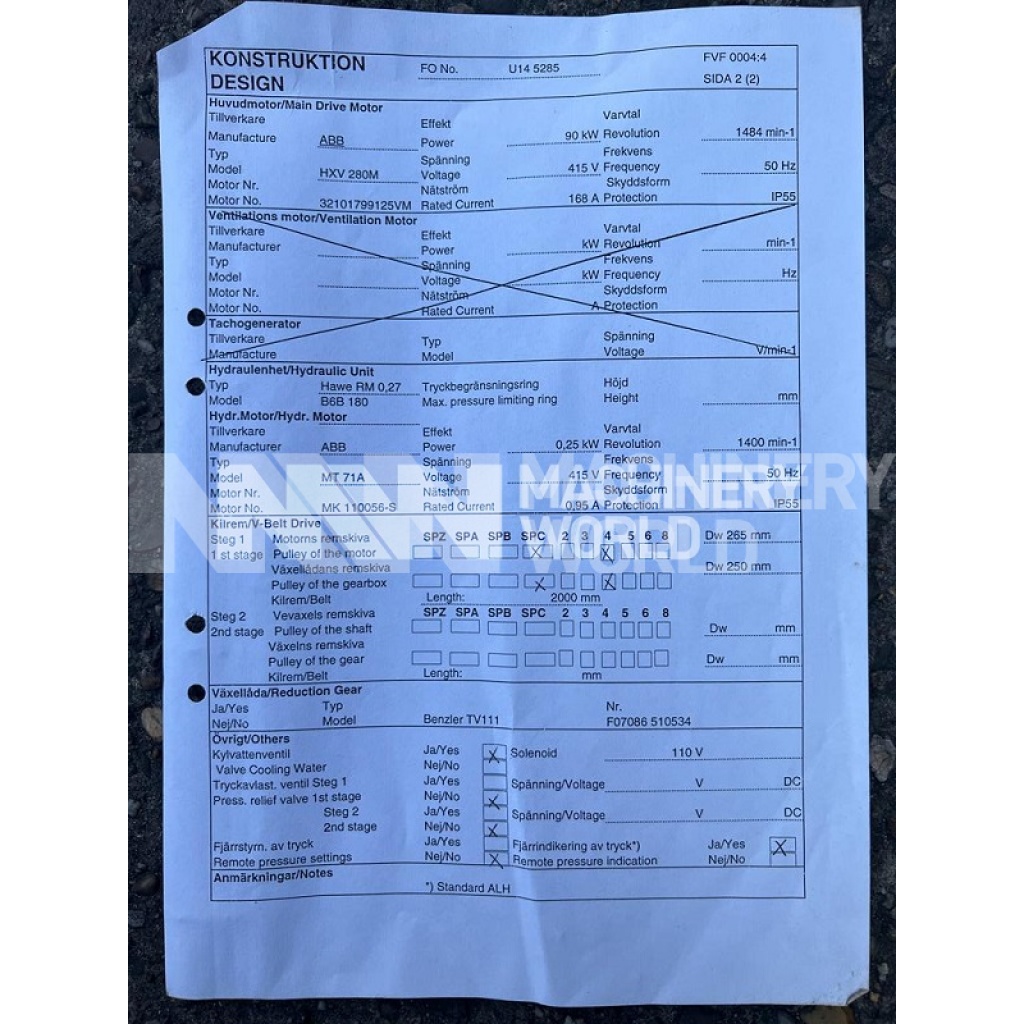

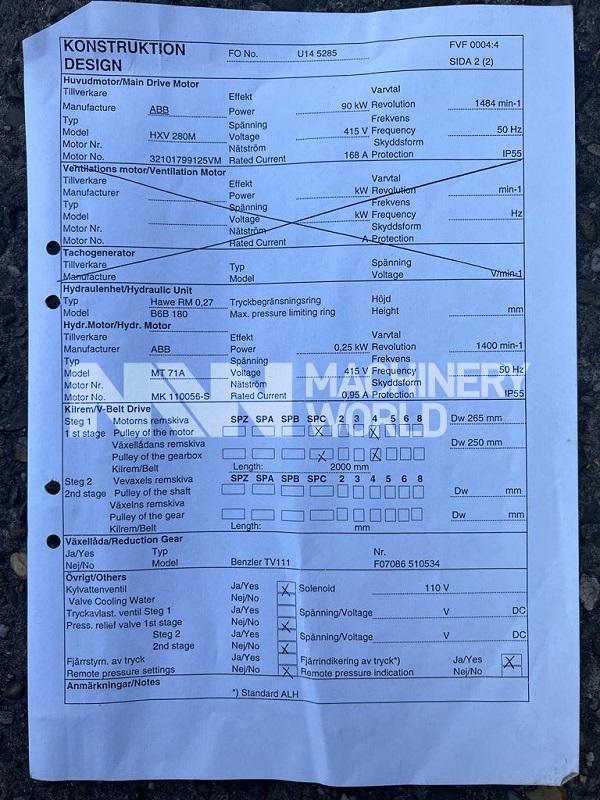

• Drive Motor Power: 90kw, 50Hz, 168 Amps (1484 r/min)

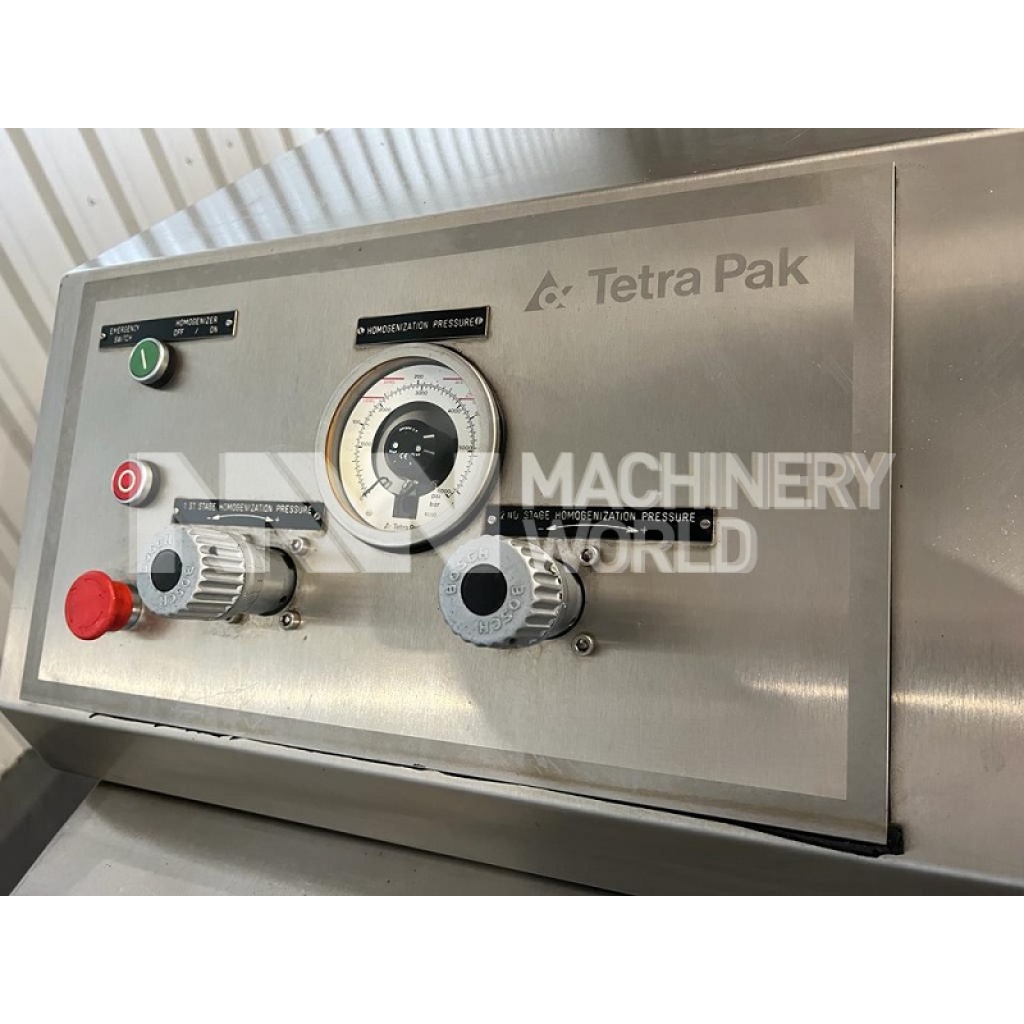

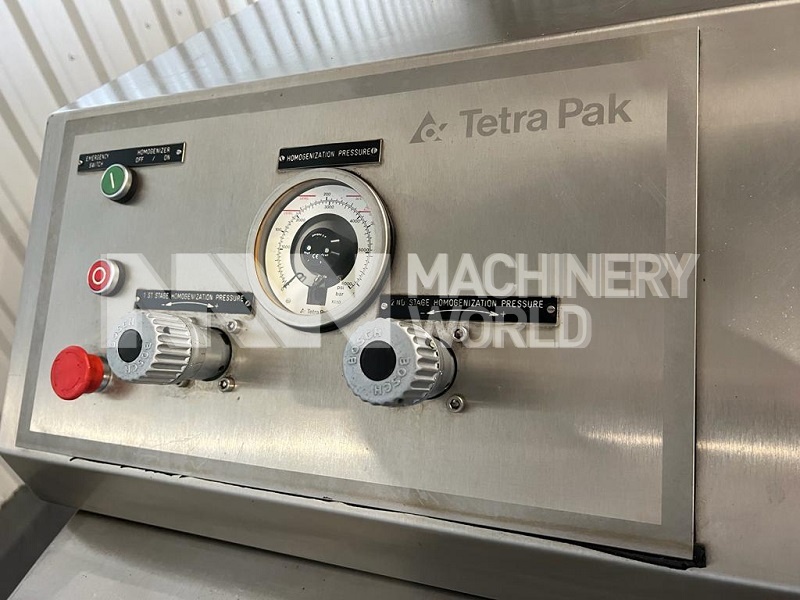

• Number of stages: 2-Stage

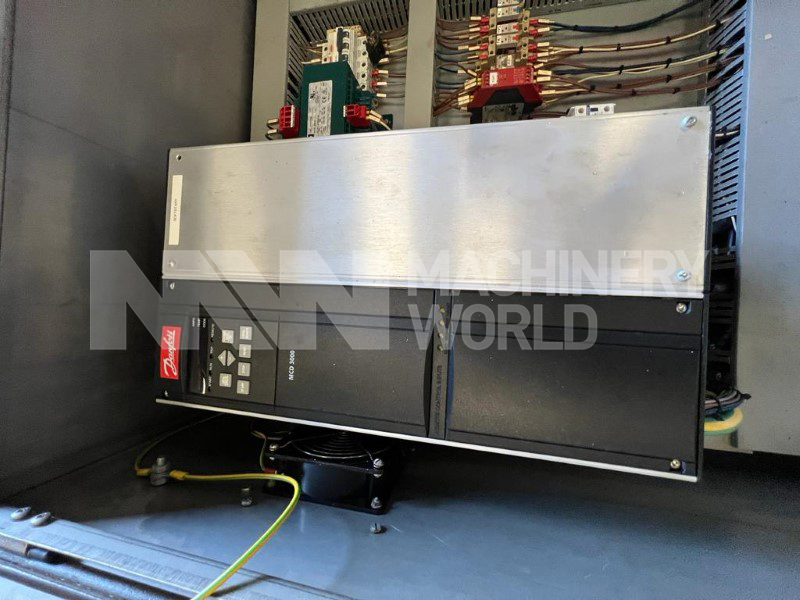

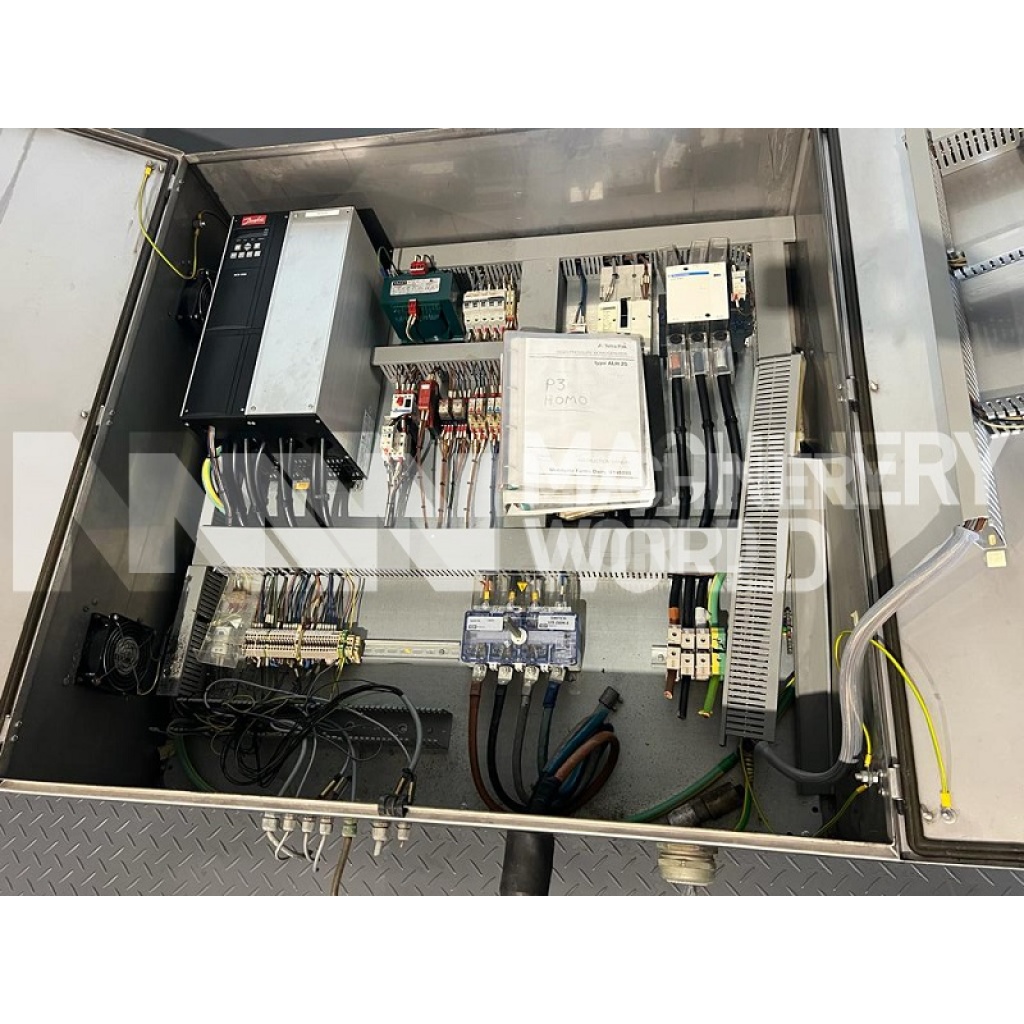

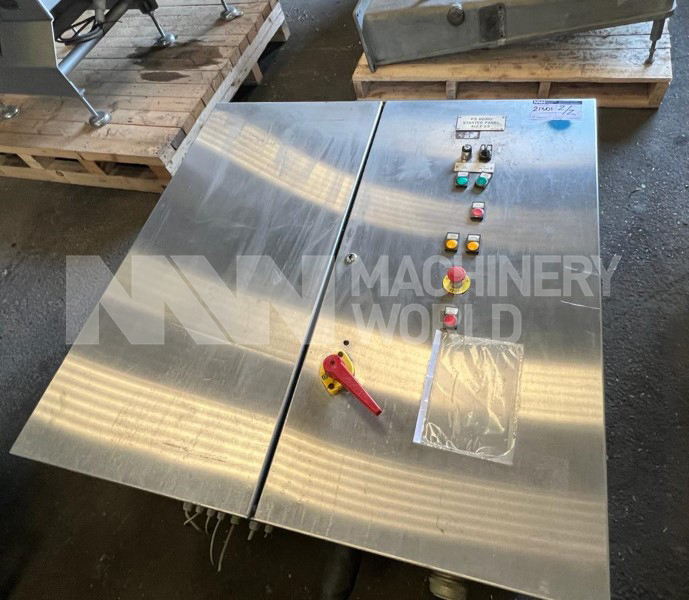

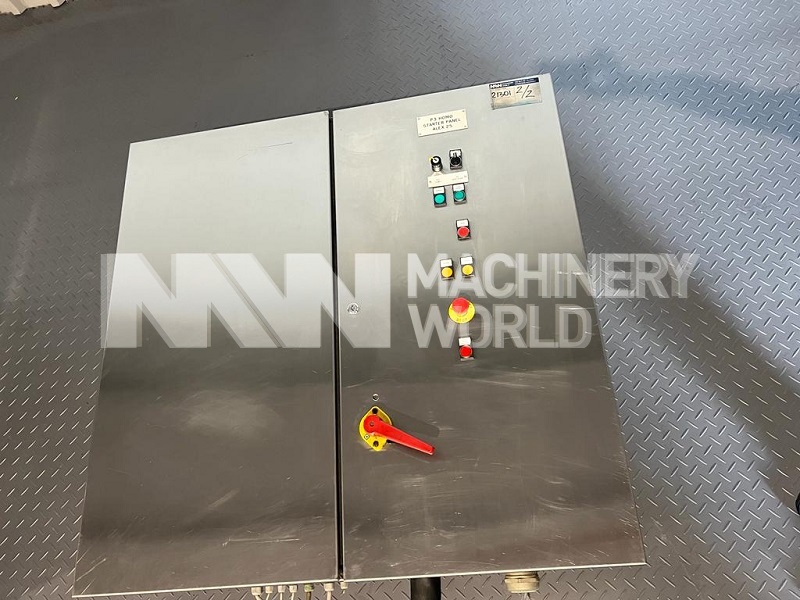

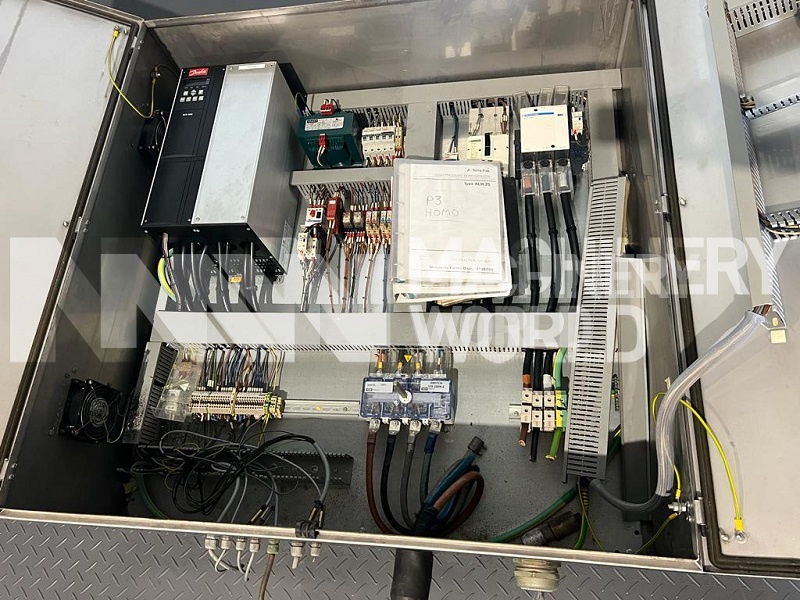

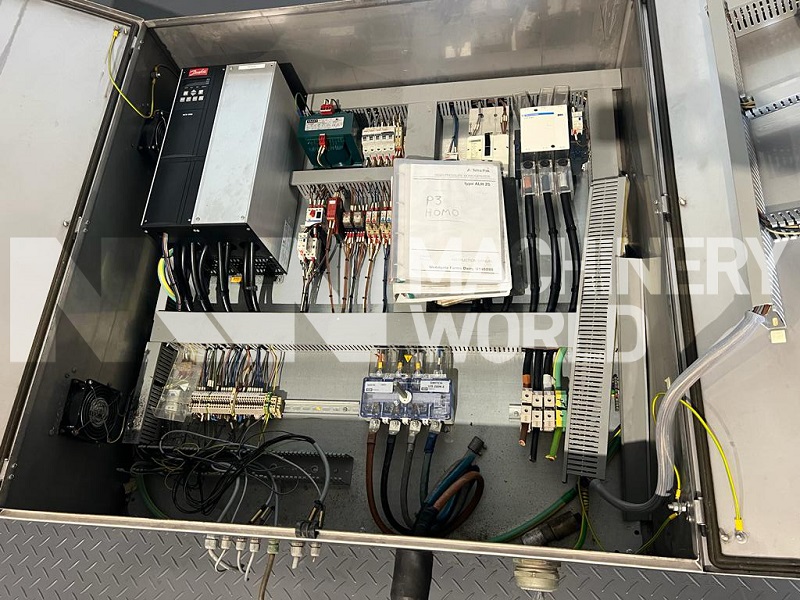

• Electrics: 415V / 50Hz / 3 Phase

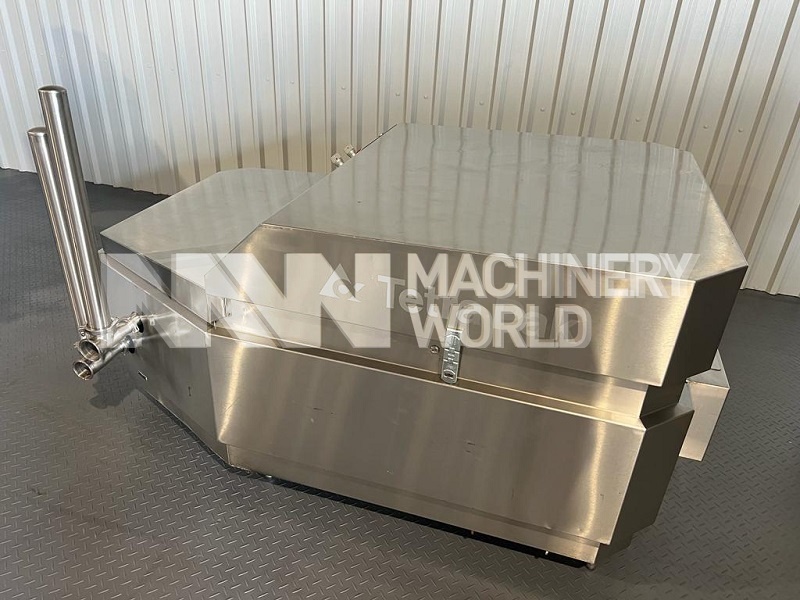

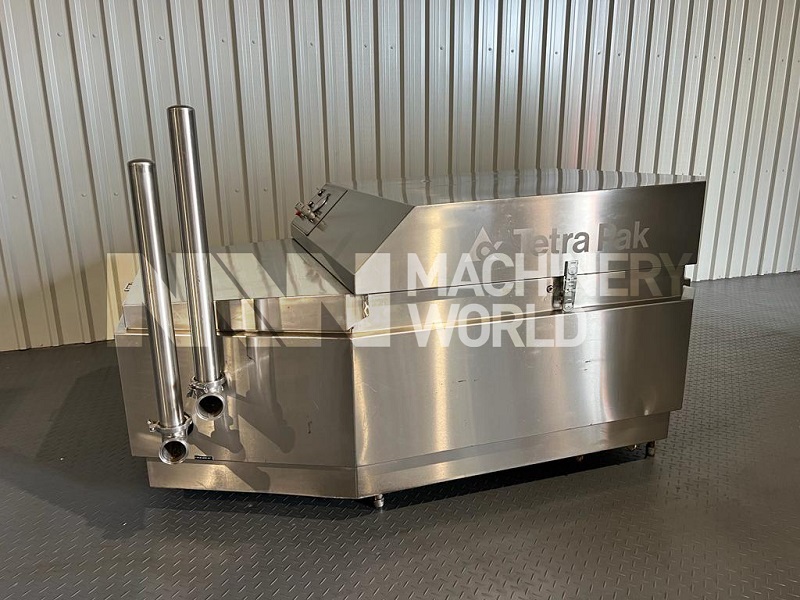

• Finish: Stainless Steel Covers

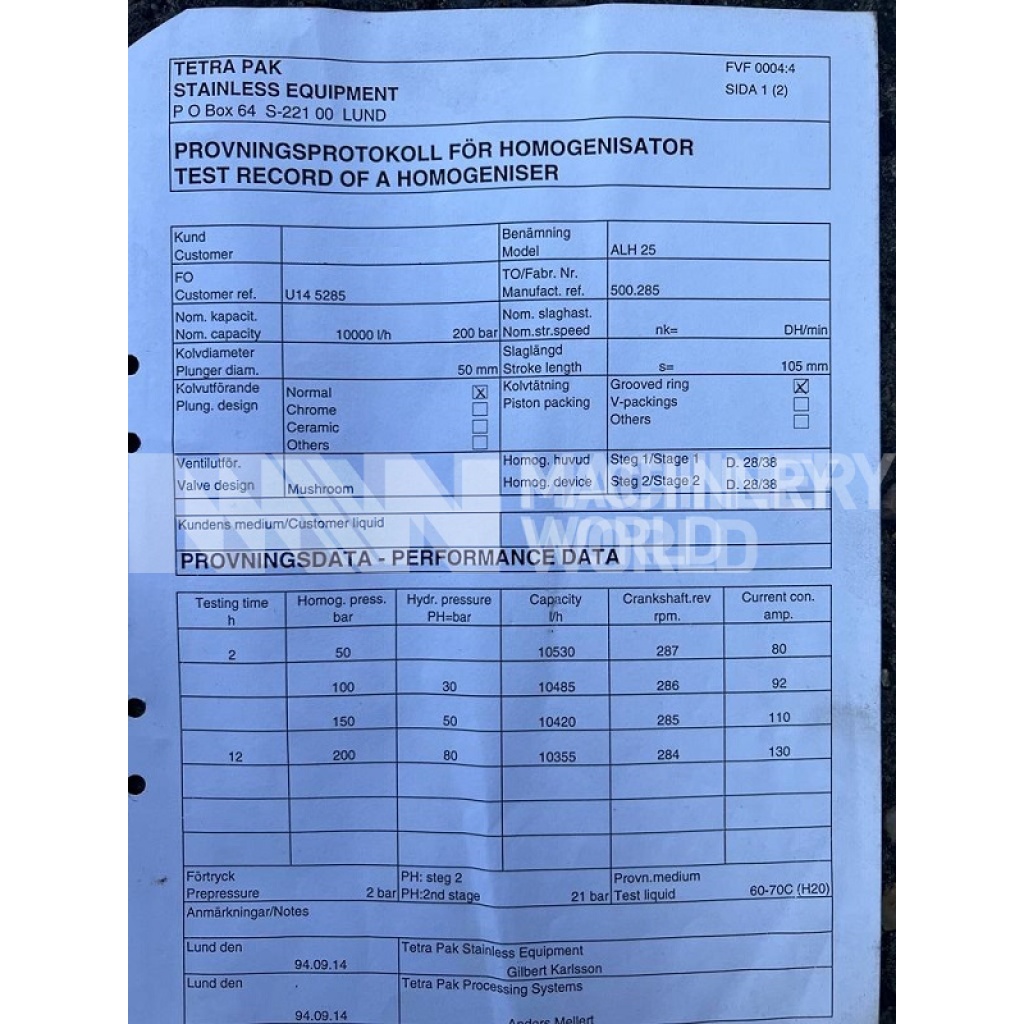

• Comes with Technical Manual

Dimensions

• Length: 267 cms
• Width: 170 cms
• Height: 110 cms
• Weight: 3525 kgs

Country of Manufacture

Sweden
