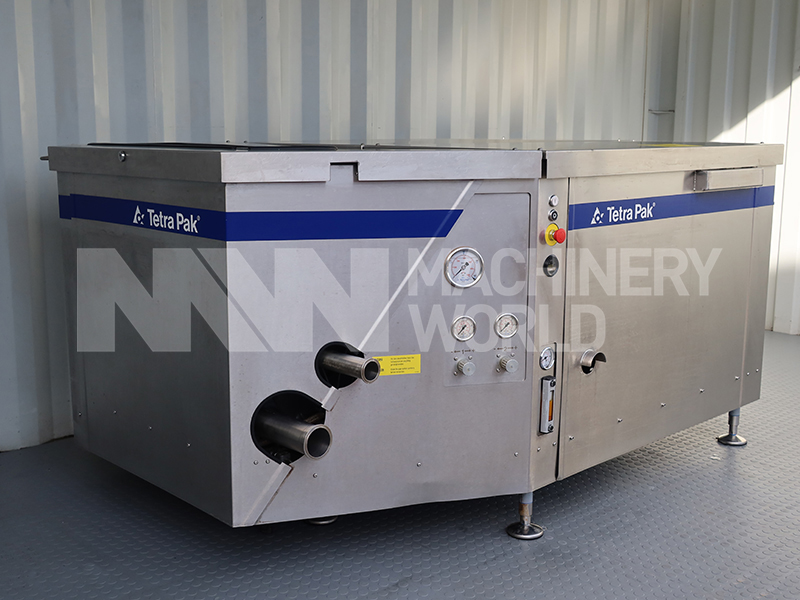

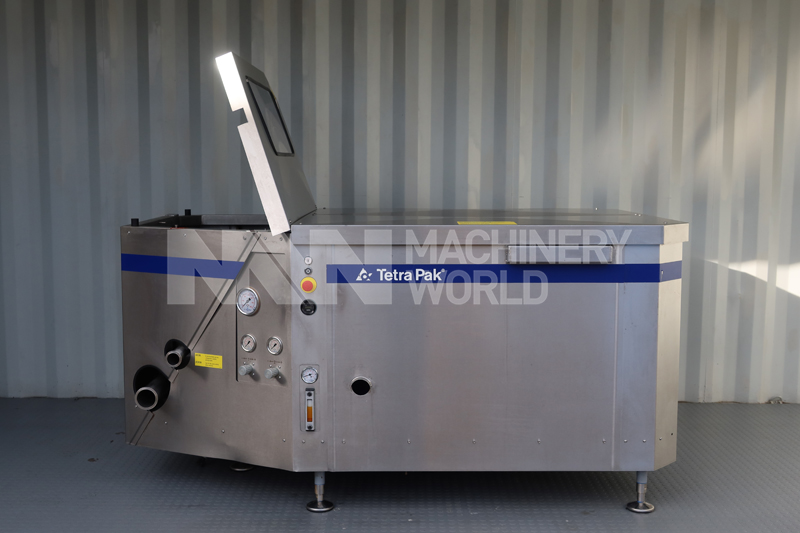

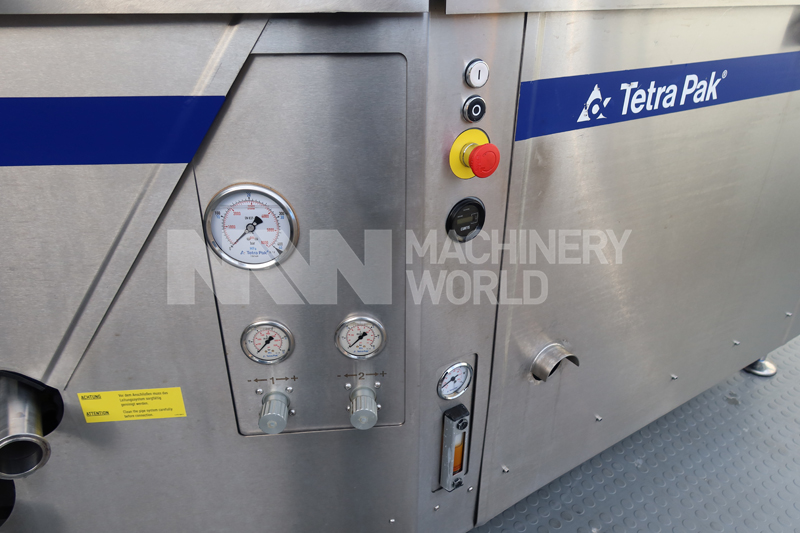

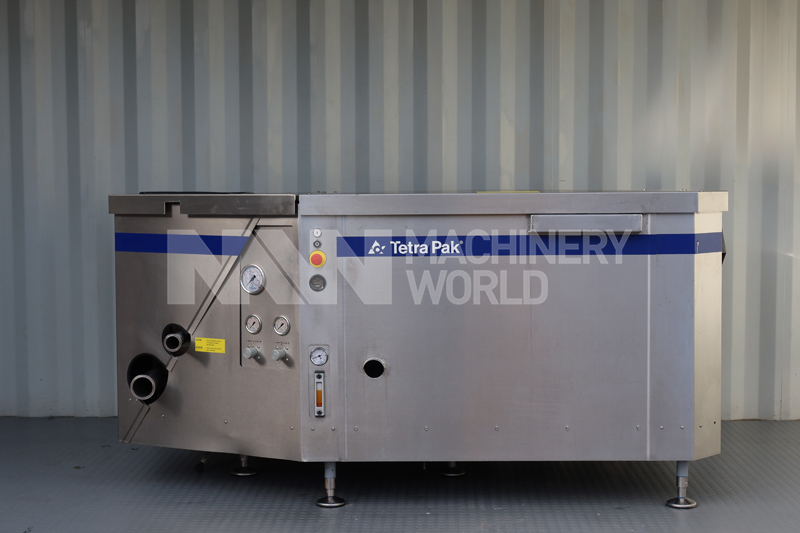

Tetra Pak Alex 25 Homogeniser, 8.000 l/h (Year of manufacture: 2017)

Description

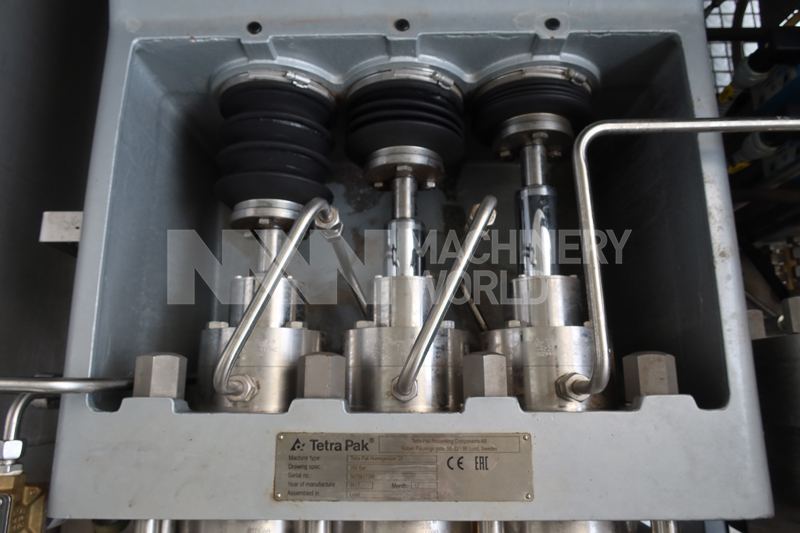

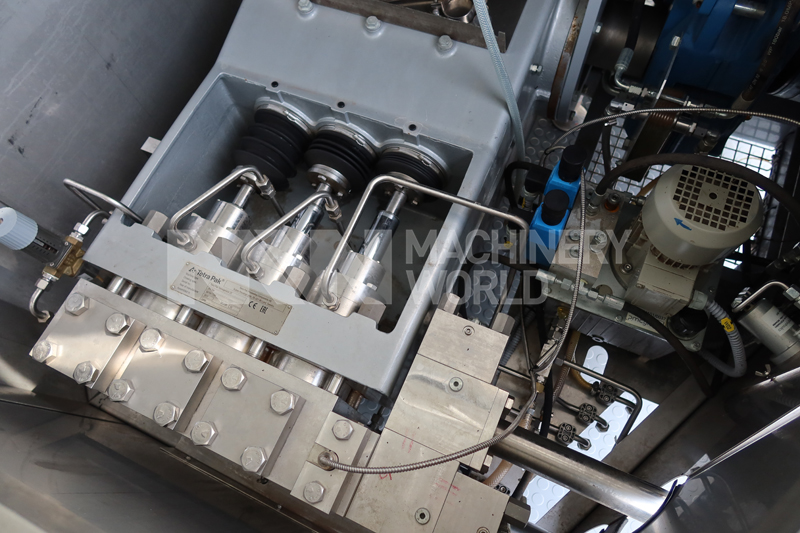

A Used Tetra Pak Alex 25 machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.

Features

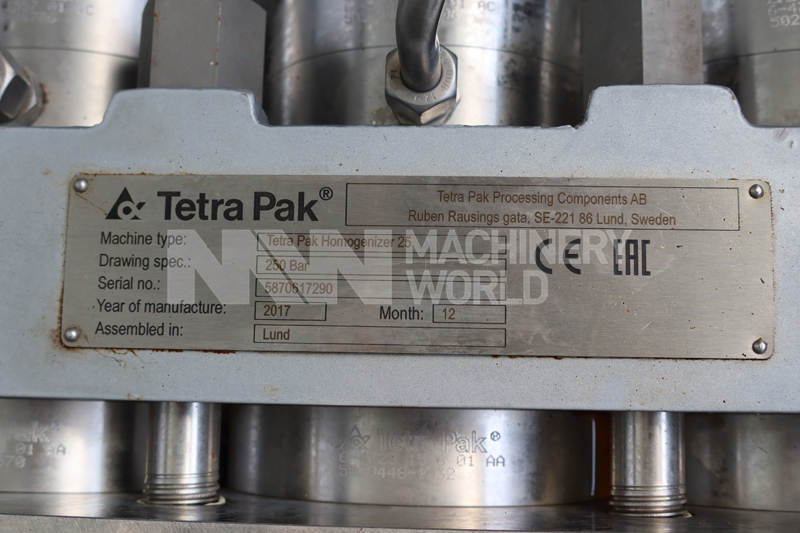

  • Manufacturer: Tetra Pak
  • Model: Alex 25
  • Serial Number: 5870617290
  • Function: Homogeniser
  • Capacity: 8,000 litres/per hour
  • Year of manufacture: 2017
  • Max. working pressure: 250 bar
  • Valve design: TD
  • Piston diameter: 45mm
  • Piston design: Chromium plated
  • Piston packing: PSB3
  • Total installed power: 75 kW (1480 r/min)
  • Number of stages: 2-Stage machine
  • Electrics: 380V / 50 Hz / 3 Phase
  • Finish: Stainless steel covers
  • Instruction manual included
  • See ‘Technical Doc’ link for further details
Dimensions
  • Length: 239 cms
  • Width: 144 cms
  • Height: 109 cms
  • Weight: 2220 kgs
Country of Manufacture

Sweden
