Description

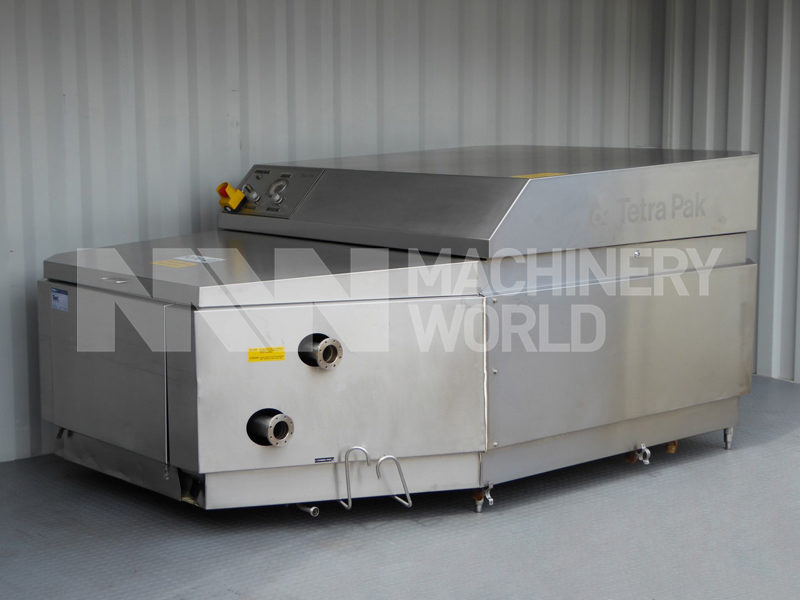

A Used Tetra Pak Alex 30 machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.
Features
- Manufacturer: Tetra Pak
- Model: Alex 30
- Serial Number:T4625133
- Function: Homogeniser
- Capacity: 6.500 – 13.000 litres/per hour
- Year of manufacture: 1995
- Max. working pressure: 200 bar
- Valve design: Cone
- Piston diameter: 63mm
- Piston design: Chromium plated
- Piston packing: Grooved
- Total installed power: 110 kW (1486 r/min)
- Number of stages: 2-Stage machine
- Electrics: 380V / 50 Hz / 3 Phase
- Finish: Stainless steel covers
- Instruction manual included
Dimensions
- Length:268 cms
- Width:172 cms
- Height:125 cms
- Weight:3770 kgs
Country of Manufacture
Sweden
