Tetra Pak CPS Skid Mounted Small Scale Pilot Incubation Pasteurisation Plant (YOM 2009)

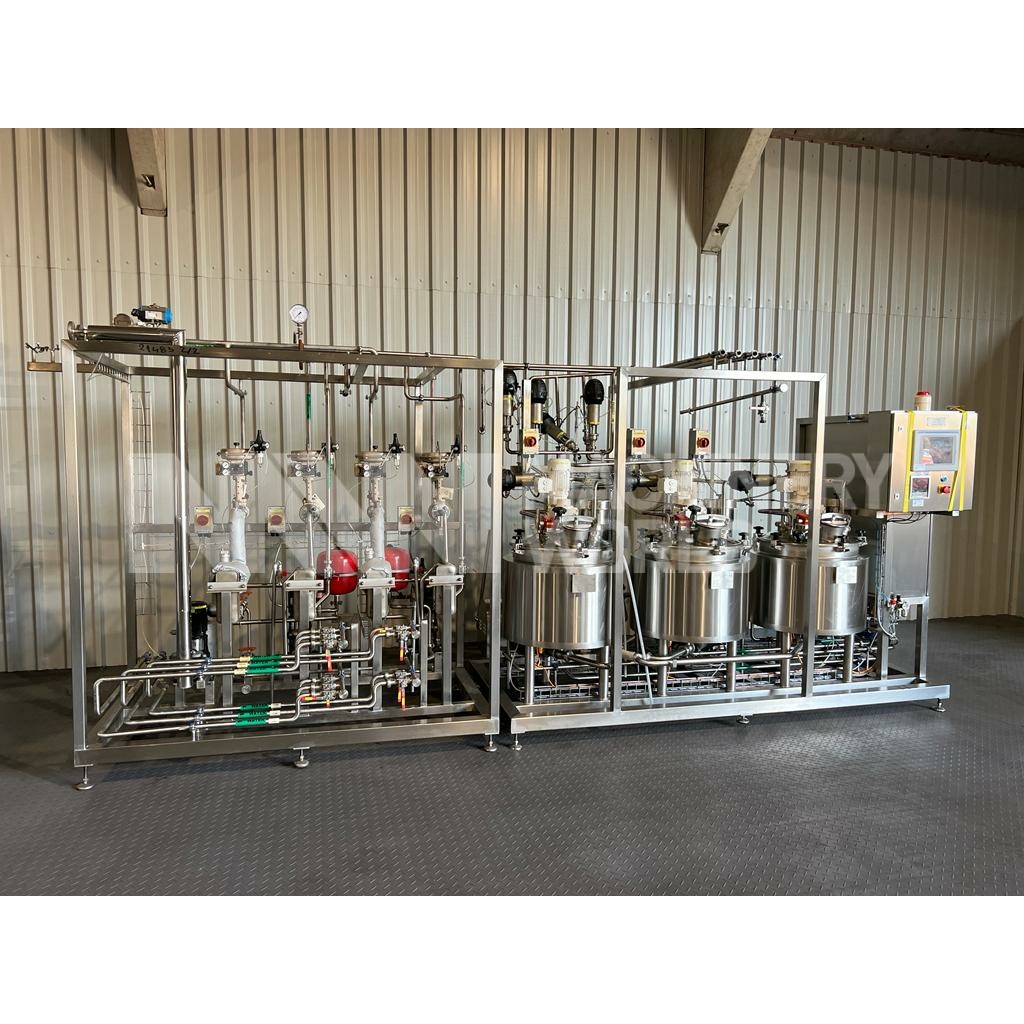

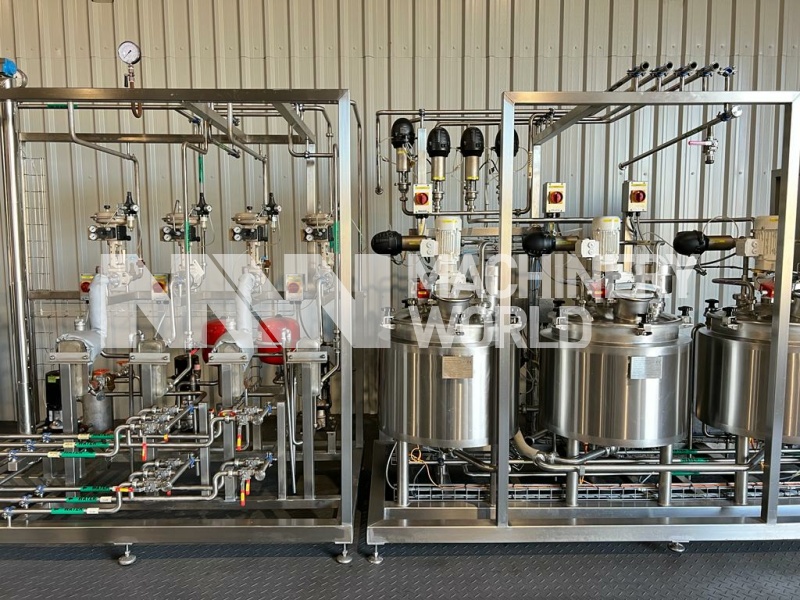

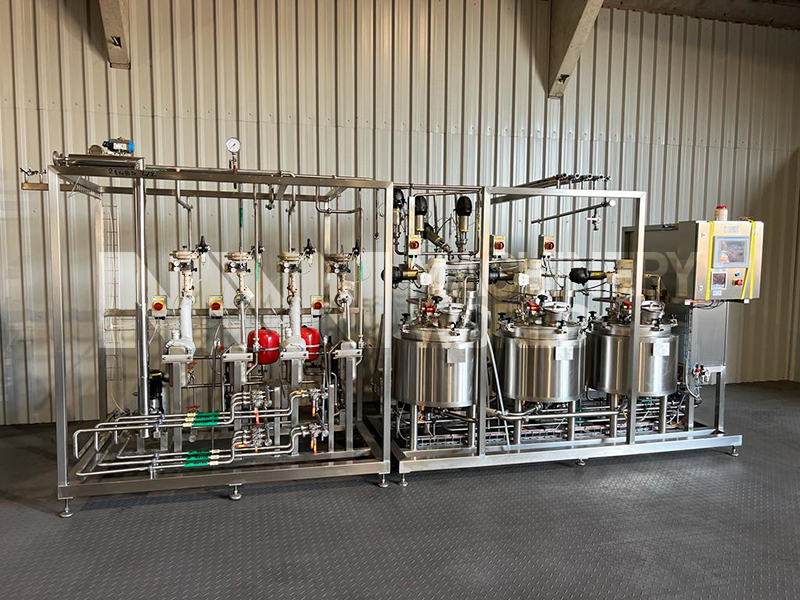

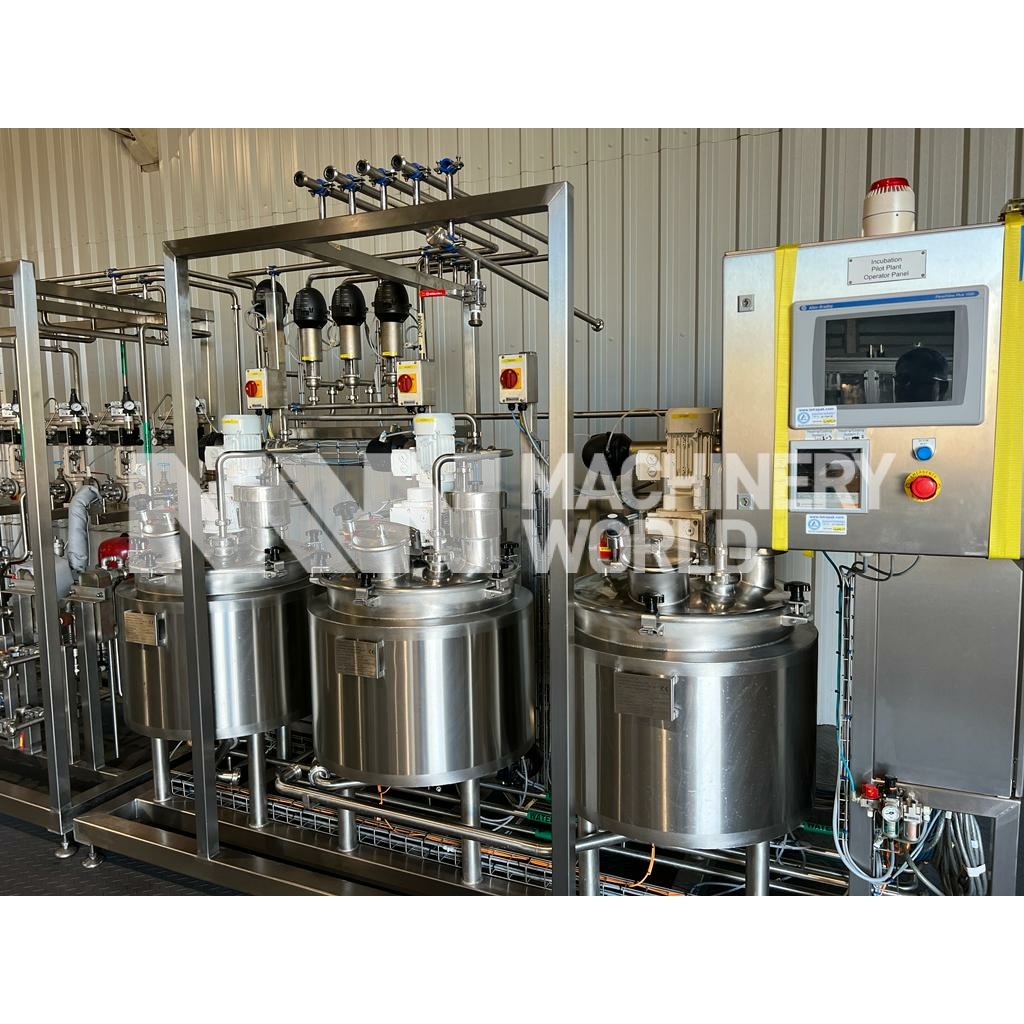

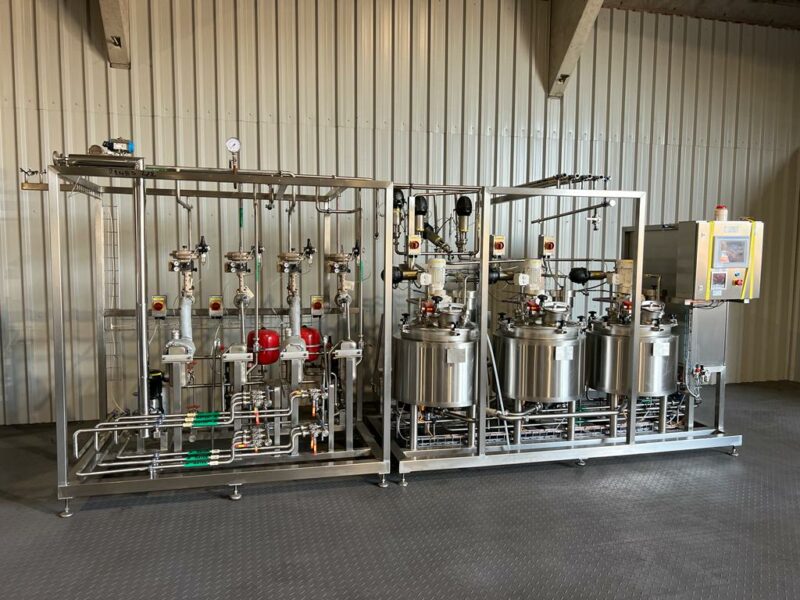

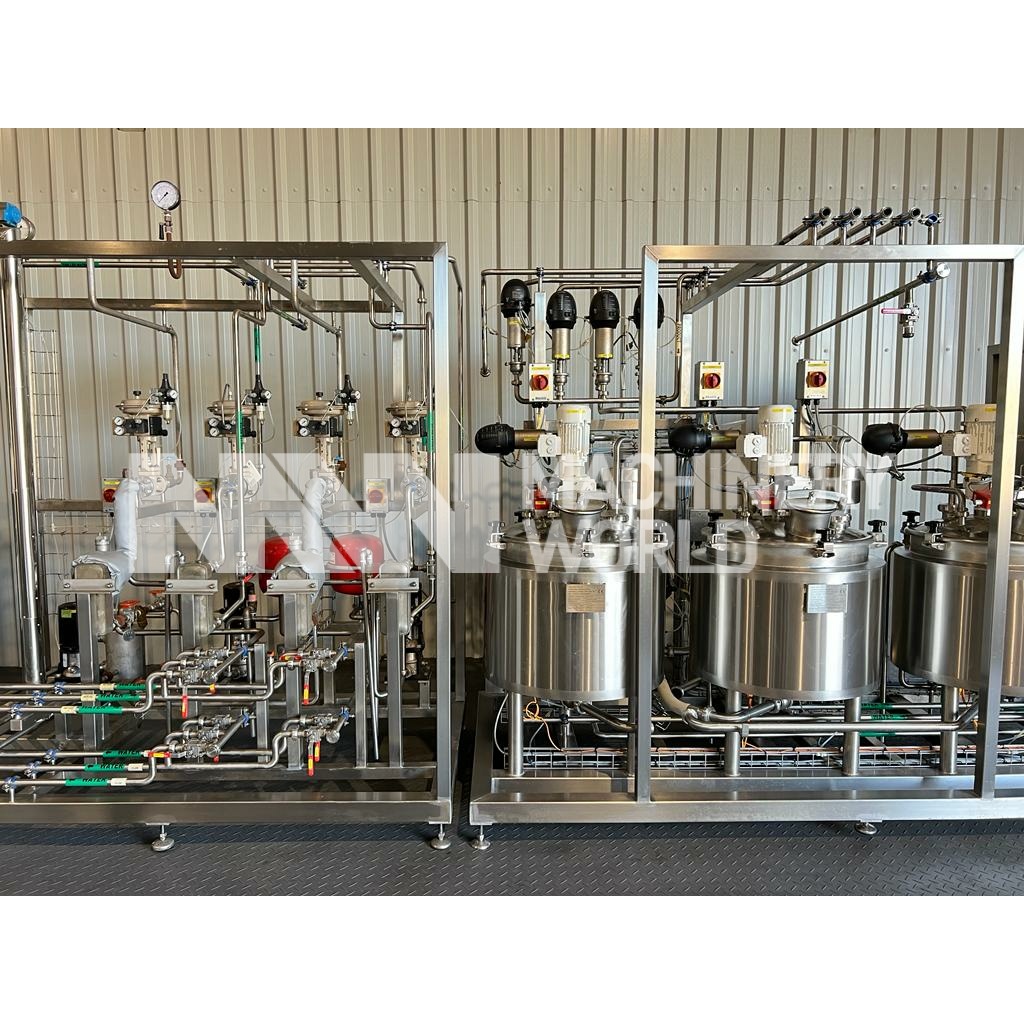

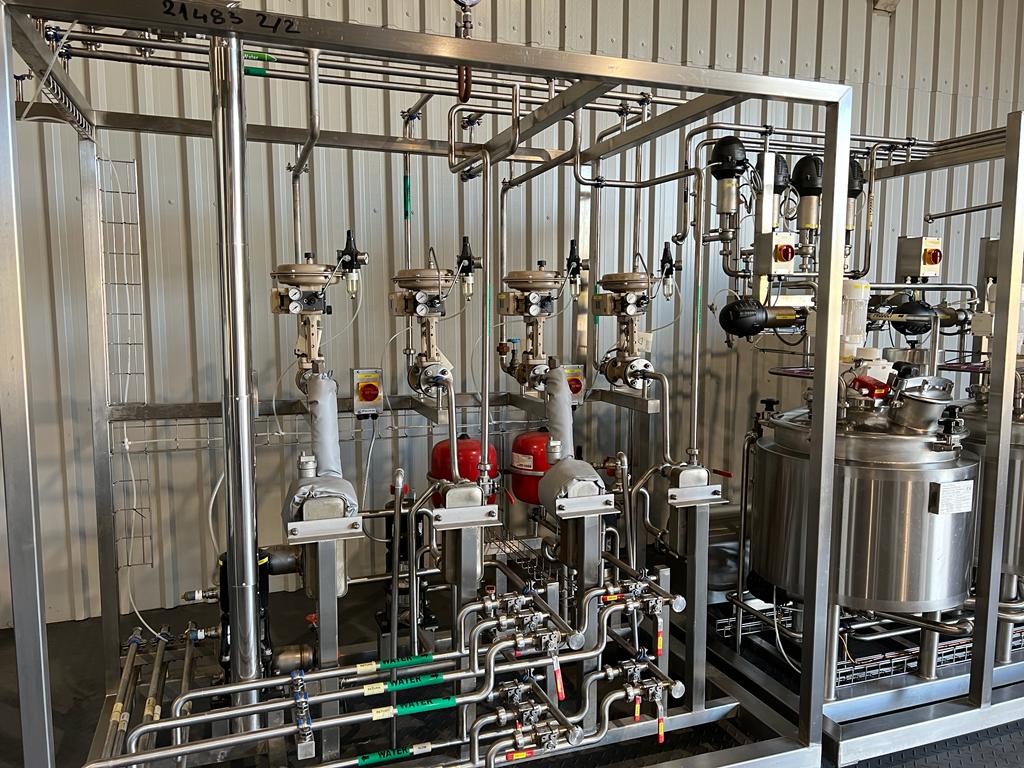

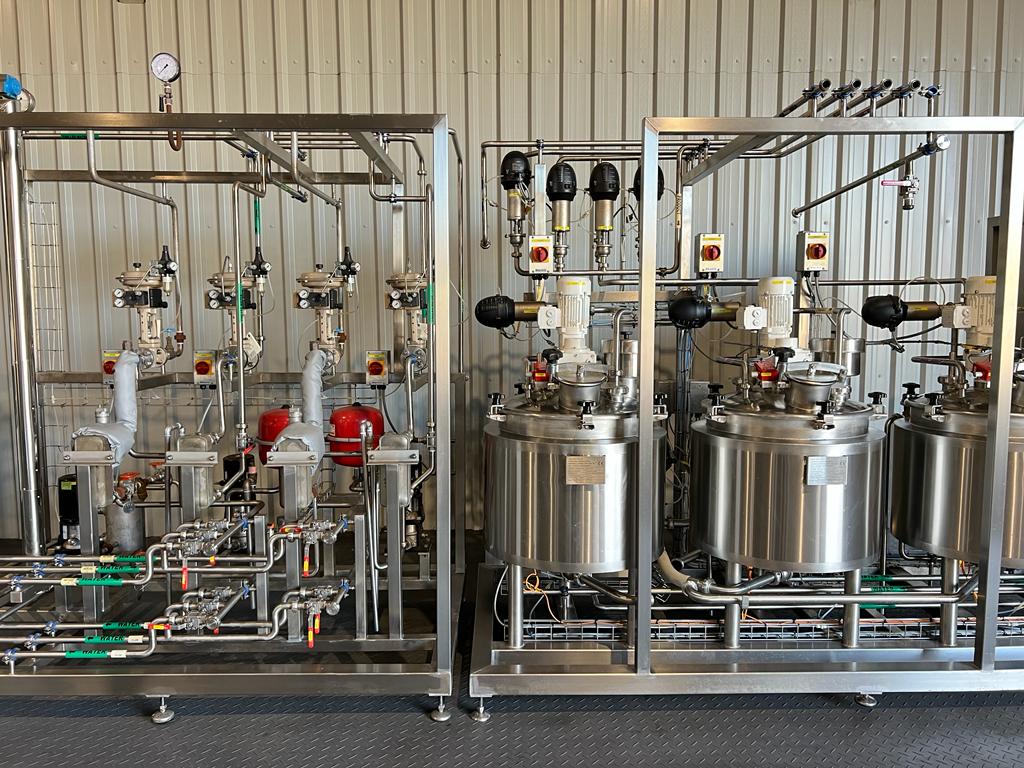

This is a very sparingly used Tetra Pak CPS Small Scale Pilot Incubation Pasteurisation Plant. This Tetra Pak CPS Small Scale Pilot Incubation Pasteurisation Plant comes completely Skid mounted and it comprises of 3x 75L Stainless Steel Jacketed Incubation / Pasteurisation Tanks complete with Gate Type Mixers, Alfa Laval ThinkTop Valve manifold, Braced Plate Heat Exchangers for Heating and/or Cooling, Grundfos Pumps, Alfa Laval OptiLobe 22 Positive Lobe Pump, Alfa Laval LKH10 Centrifugal Pump and this complete Plant comes with Fully Integrated Control Panel with Allen Bradley PLC, Allen Bradley PanelView 1000 Touchscreen HDMI Panel, Eurotherm Chessell Digital Paperless Touchscreen Data Recorder, Allen Bradley PowerFlex 70 Frequency Inverter for precise speed control of the plant. Very sparingly used at a major multinational food company, this Tetra Pak CPS Small Scale Pilot Incubation Pasteurisation Plant is available for immediate sale.


Incubation Plant:

  • Manufacturer: Tetra Pak CPS UK Ltd
  • Drawing Number: DFB-5632-01

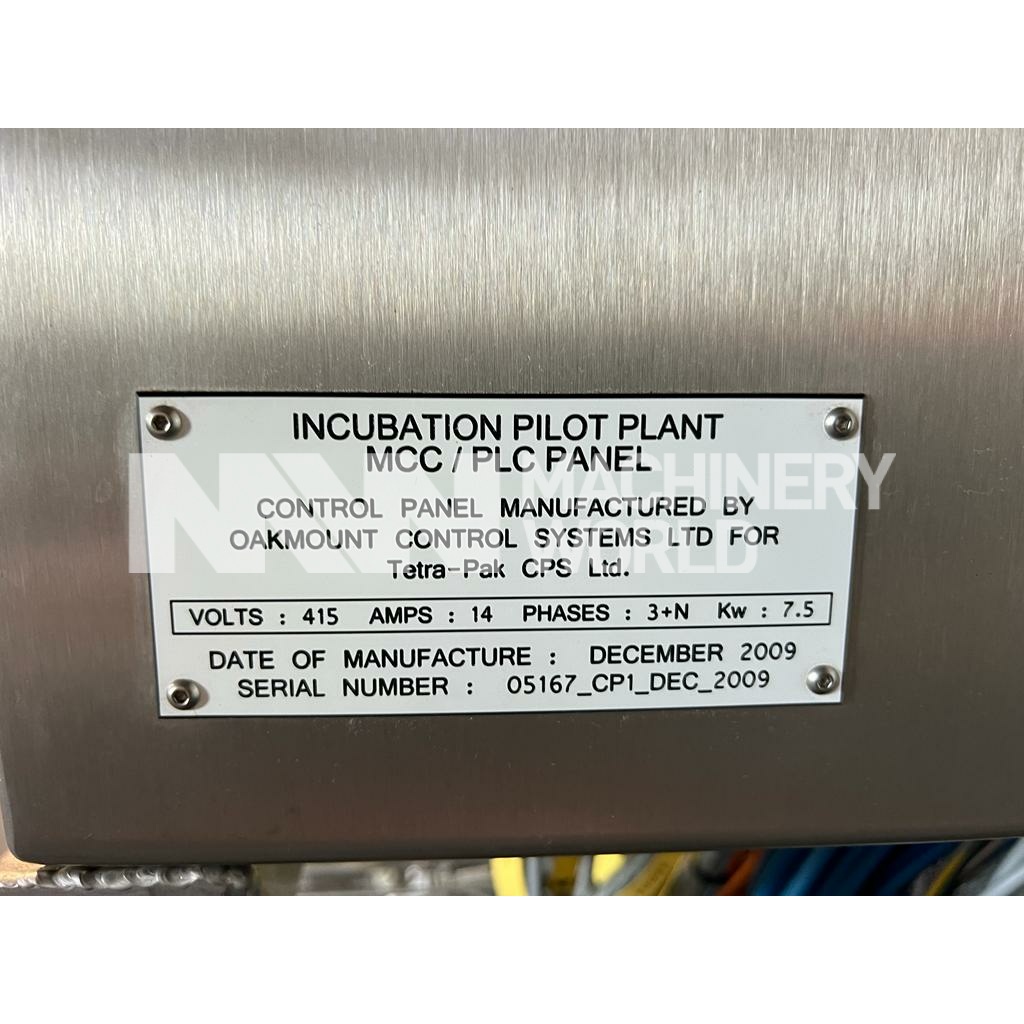

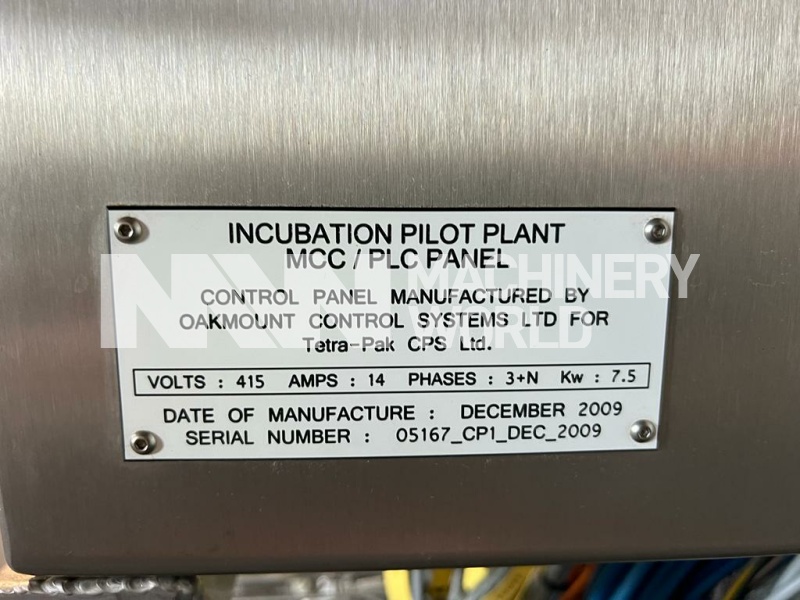

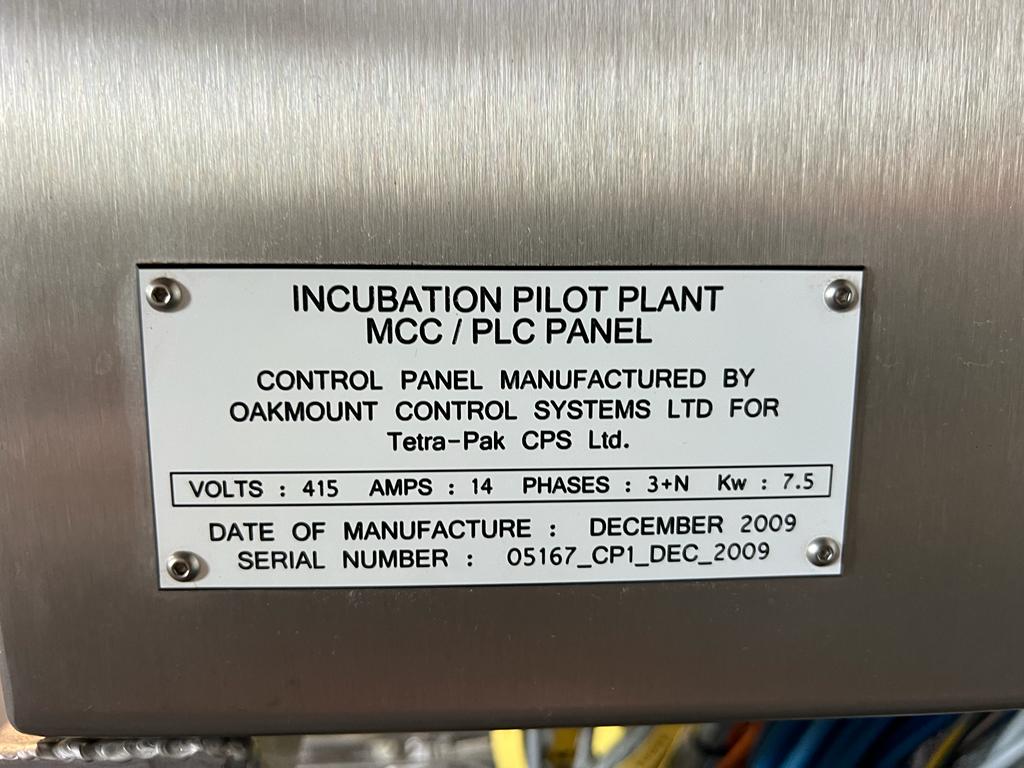

  • MCC Serial Number: 055167_CP1_DEC_2009
  • Type: Incubation + Hot/Cold Water System
  • Year of Manufacture: 2009

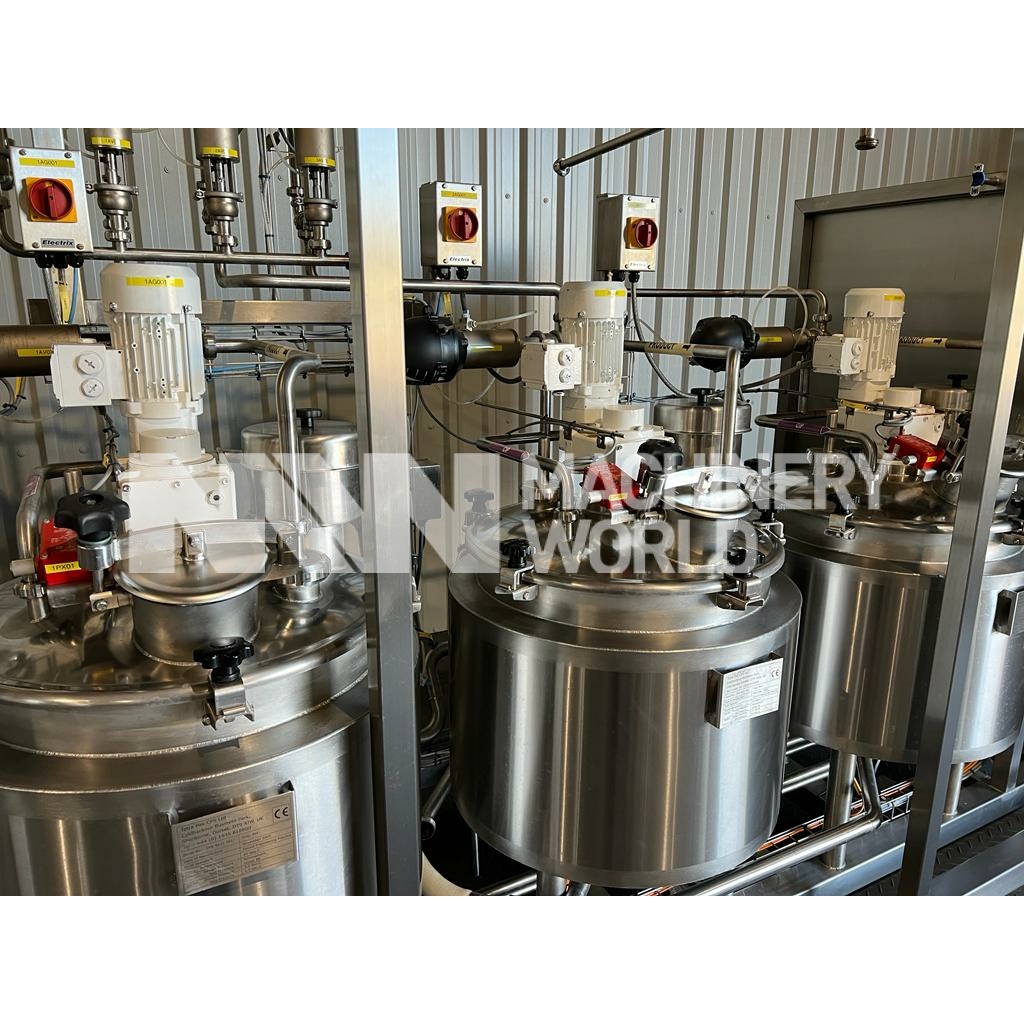

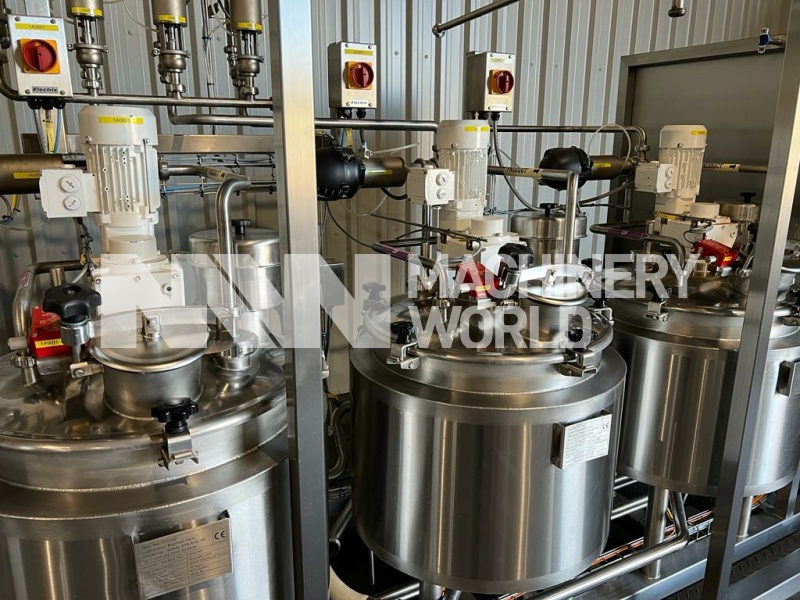

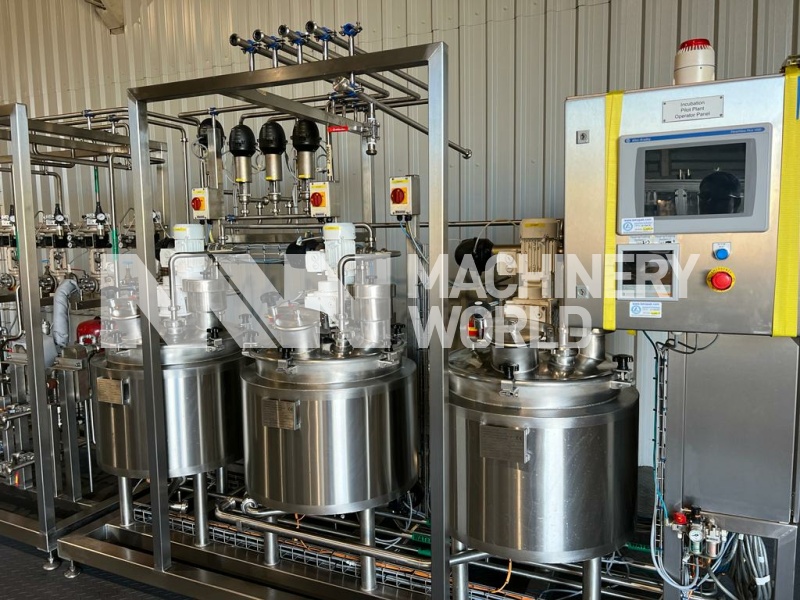

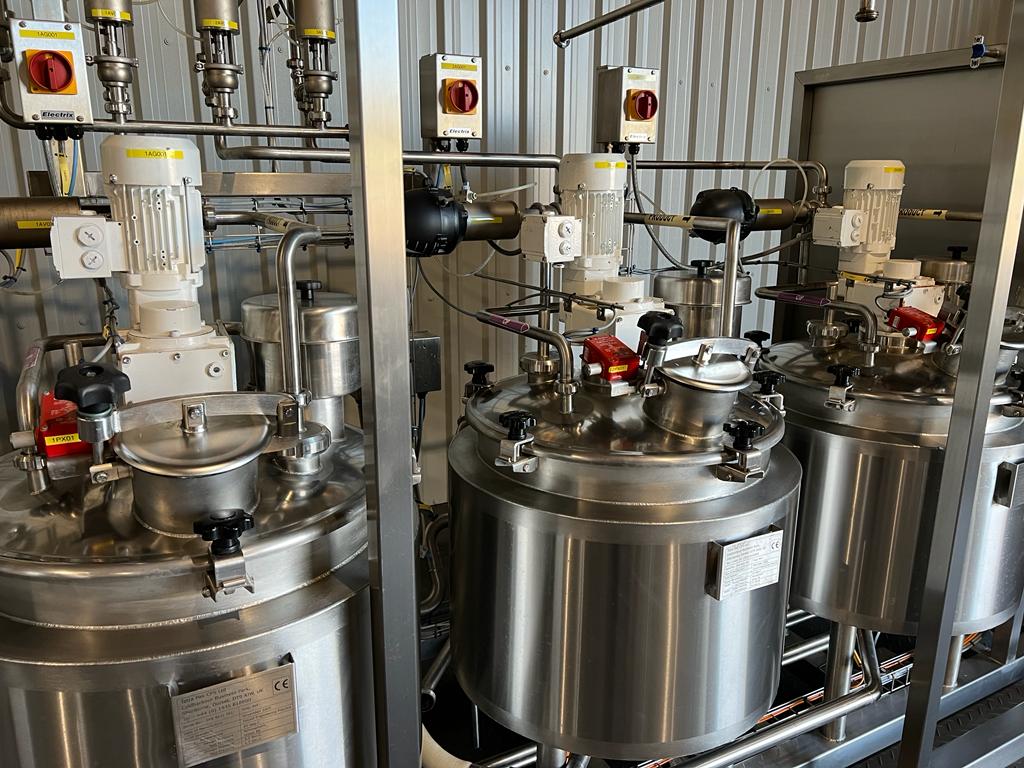

Incubation – Pasteurisation Tanks:

  • Make: Tetra Pak CPS UK Ltd
  • Serial Number: DFB 5631 TK1, DFB 5631 TK2, DFB 5631 TK3
  • Number of Tanks on Skid: 3x Tanks
  • Volume of Each Tank: Approx 75 Litres
  • Re-circulation Jacket: Yes, Jacketed
  • Insulation: Yes, Insulation & Stainless Steel Clad
  • Material of Construction: Stainless Steel
  • Jacket Design Pressure: 3 Bar
  • Design Temperature: 85 deg C

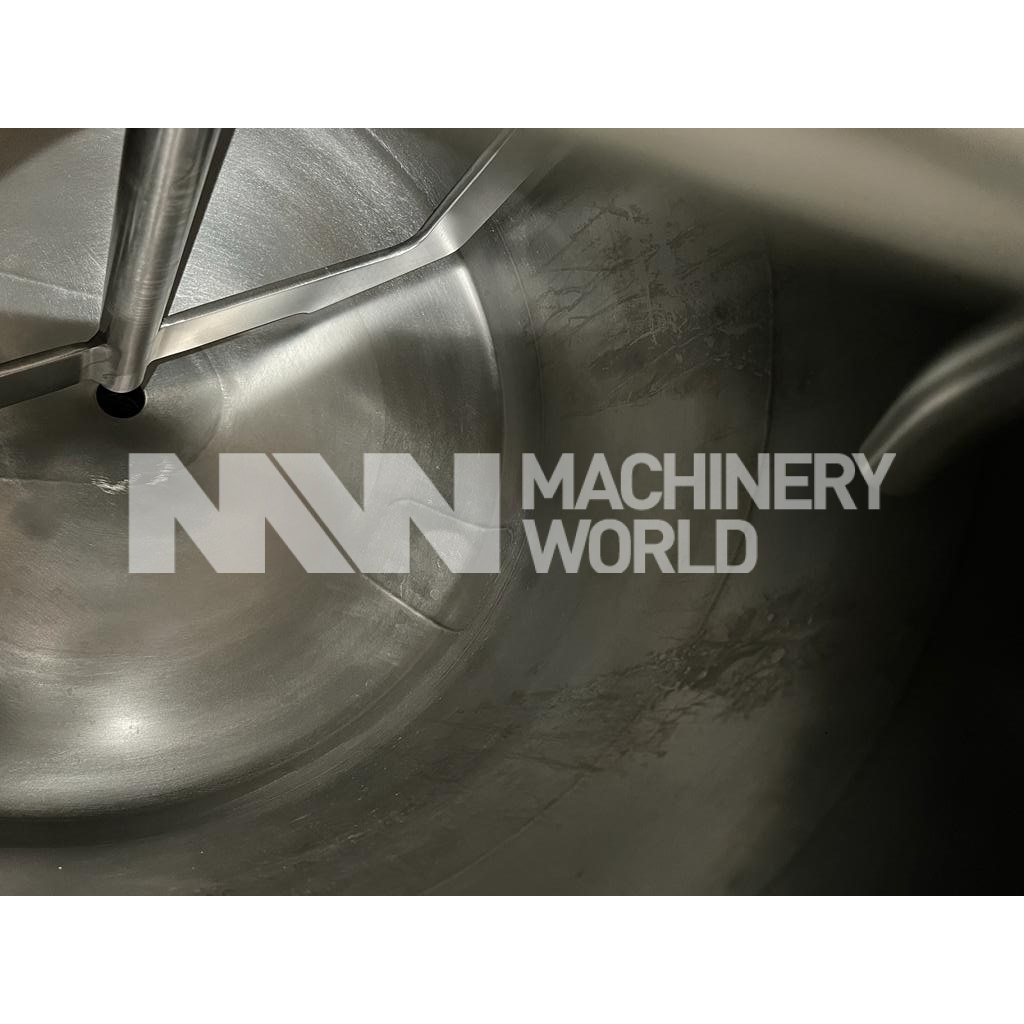

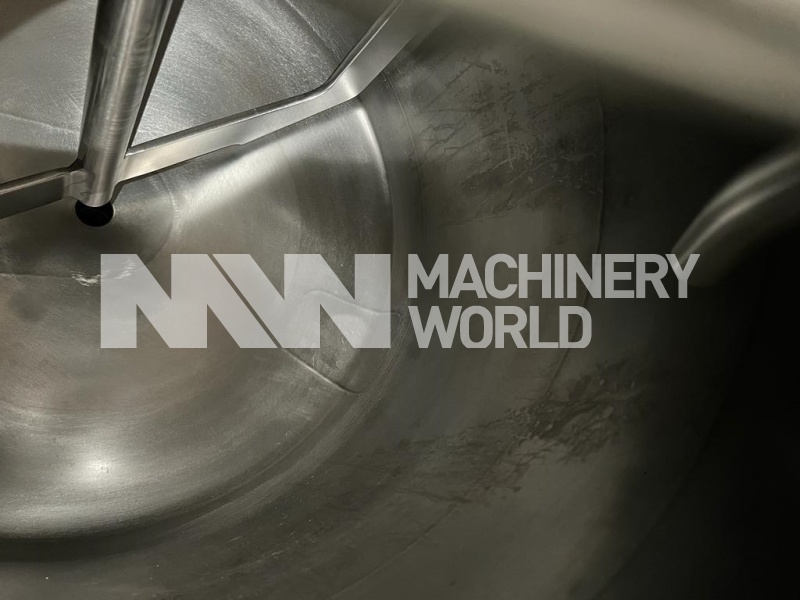

  • Mixer: Top Mounted Gate Type Anchor Mixer
  • Mixer Make: TransKem
  • Motor Size: 0.55kw
  • Mixer Speed: 21 RPM
  • Tank Base: Dished Bottom with Centrally Located Self Draining Outlet
  • CIP: 2x Top Mounted CIP Spray Heads
  • Inspection Hatch: Top Mounted with Safety Grid & Secure Lid
  • Tank Top: Clamped and Removable with Mixer
  • Height of Top of Tank from Floor Level: 1200mm
  • Outlet: Centrally Located with Alfa Laval ThinkTop Actuated Valve

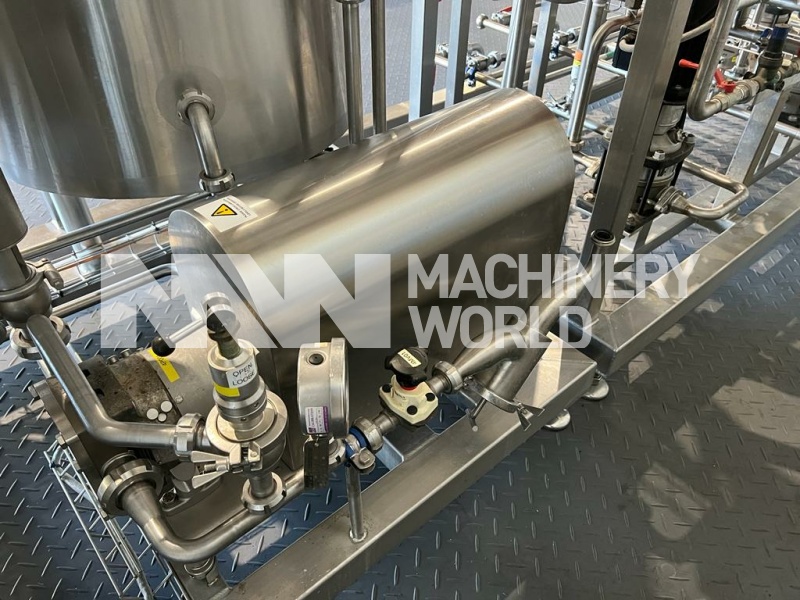

Product Pump:

  • Make: Alfa Laval
  • Type: Optilobe 22
  • Model: Positive Lobe Pump
  • Serial Number: 444798
  • Year of Manufacture: 2009
  • Size: 2 inch on Reducer
  • Comes fitted with Pressure Relief Valve & Pressure Gauge
  • Motor Size: 1.1kw

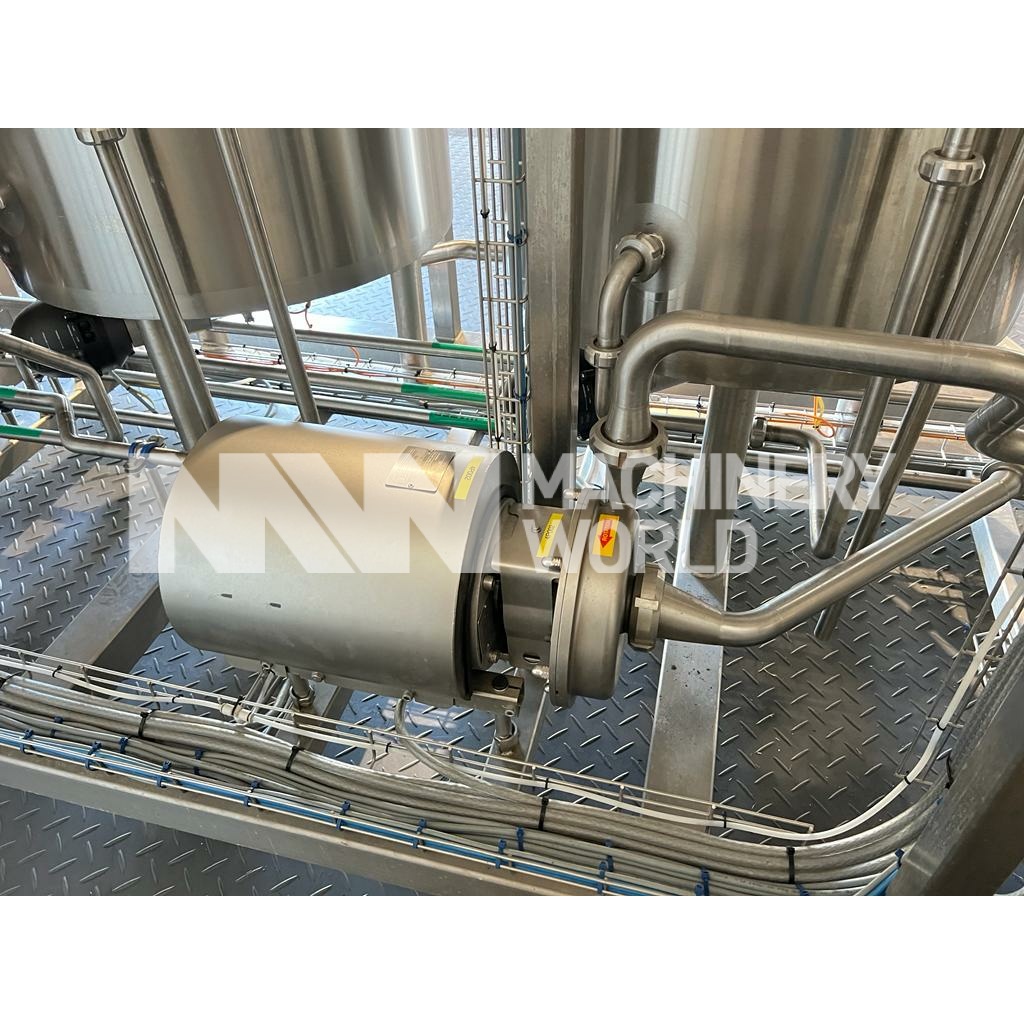

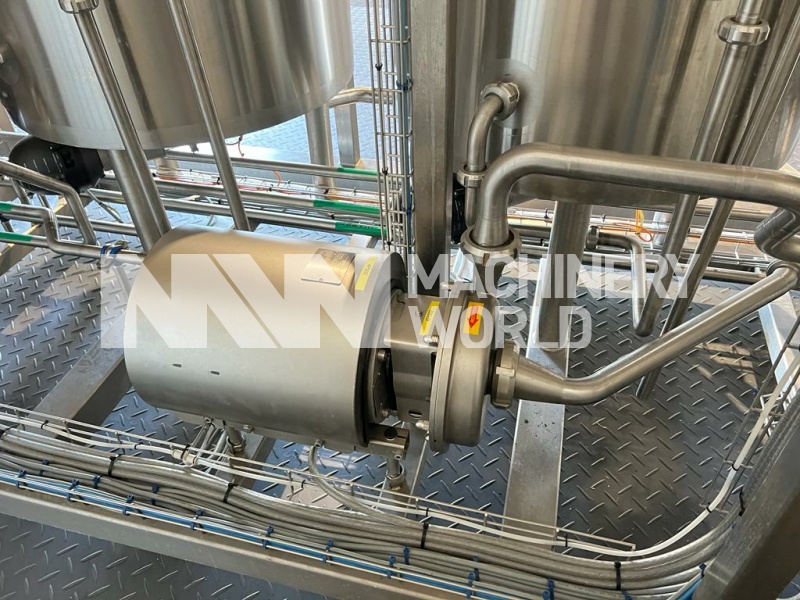

CIP Pump:

  • Make: Alfa Laval
  • Type: LKH 10/127 SSS
  • Model: Centrifugal Pump
  • Serial Number: 119382
  • Year of Manufacture: 2009
  • Motor Size: 1.5kw

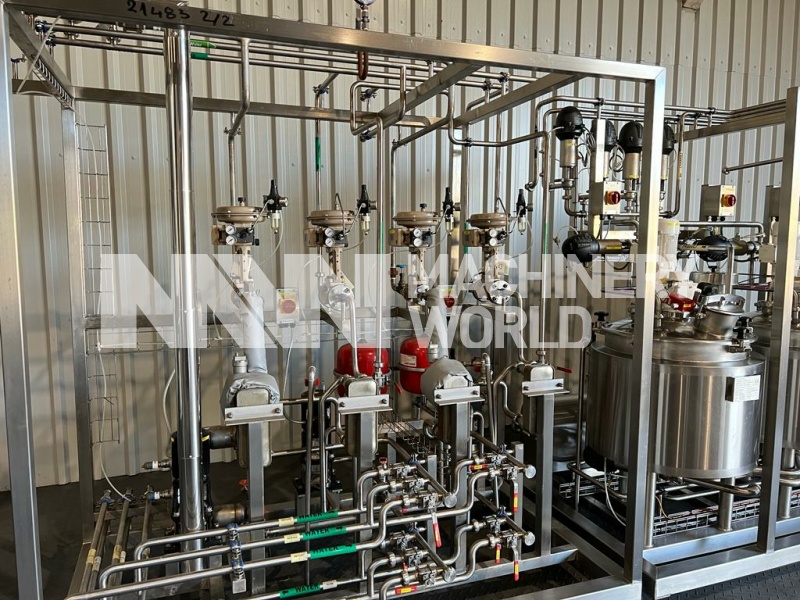

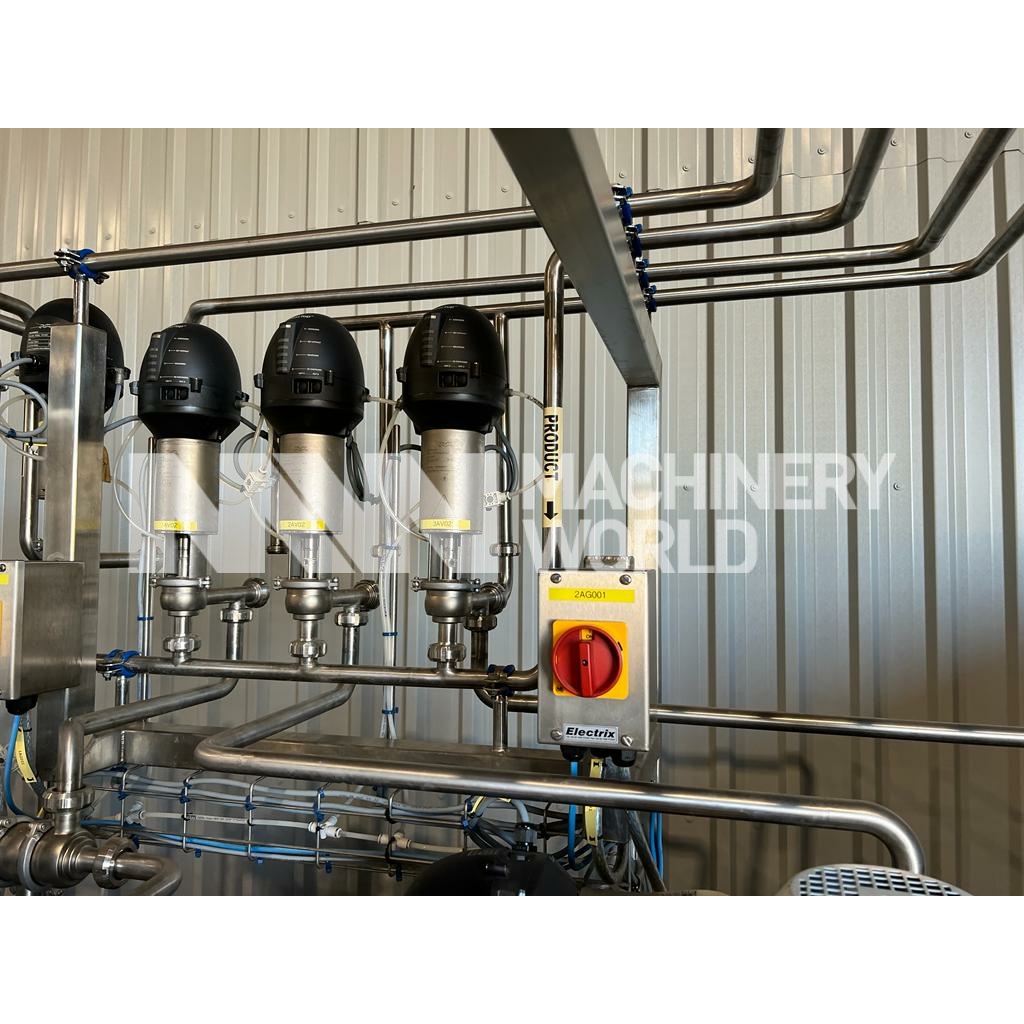

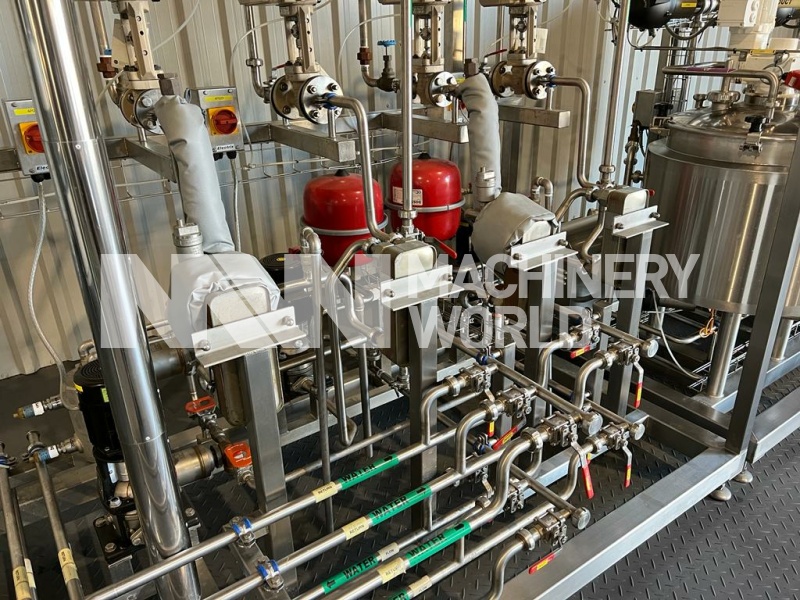

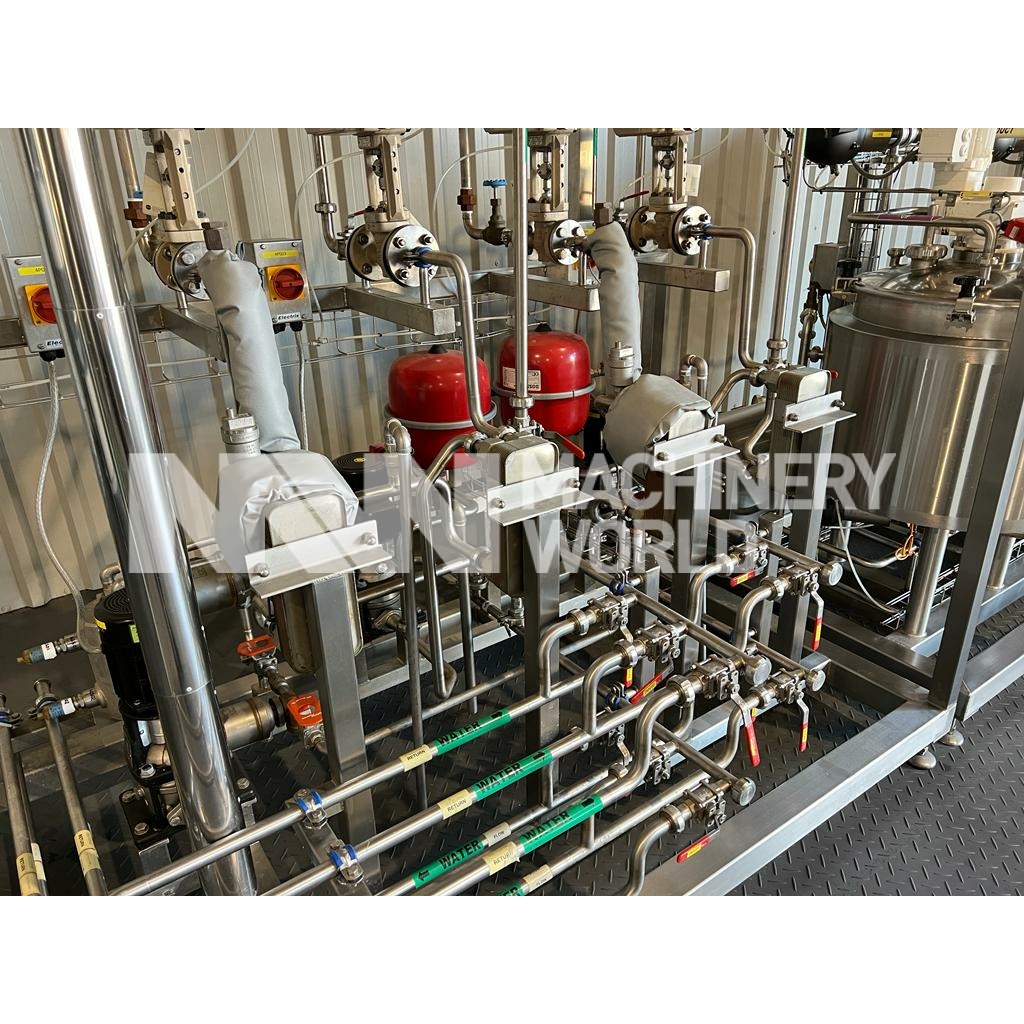

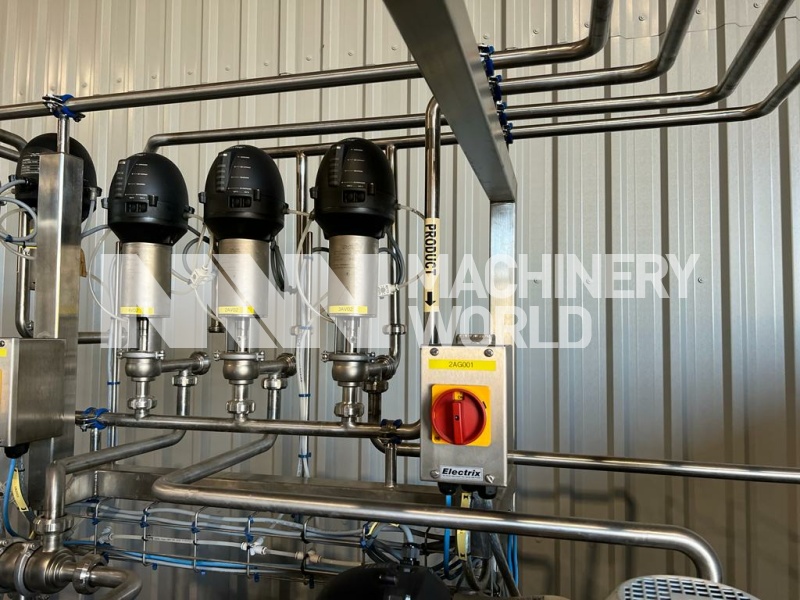

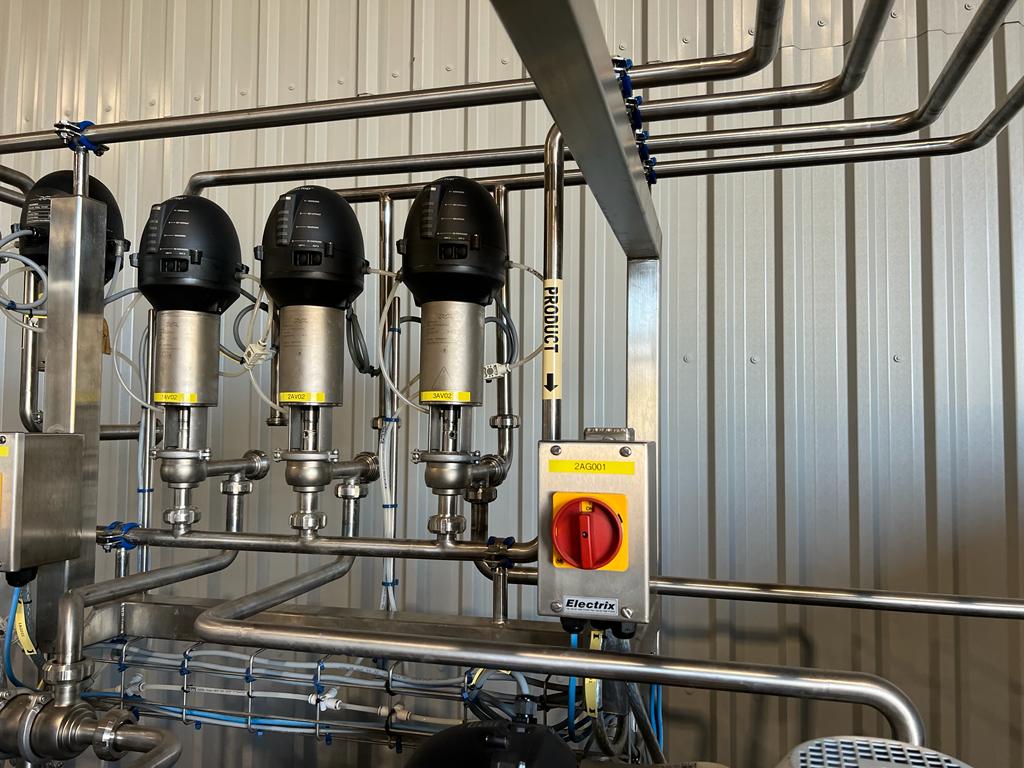

  • Valve: Alfa Laval Pneumatic Actuated Valves with ThinkTop Basic Valve Tops (11x valves Installed)

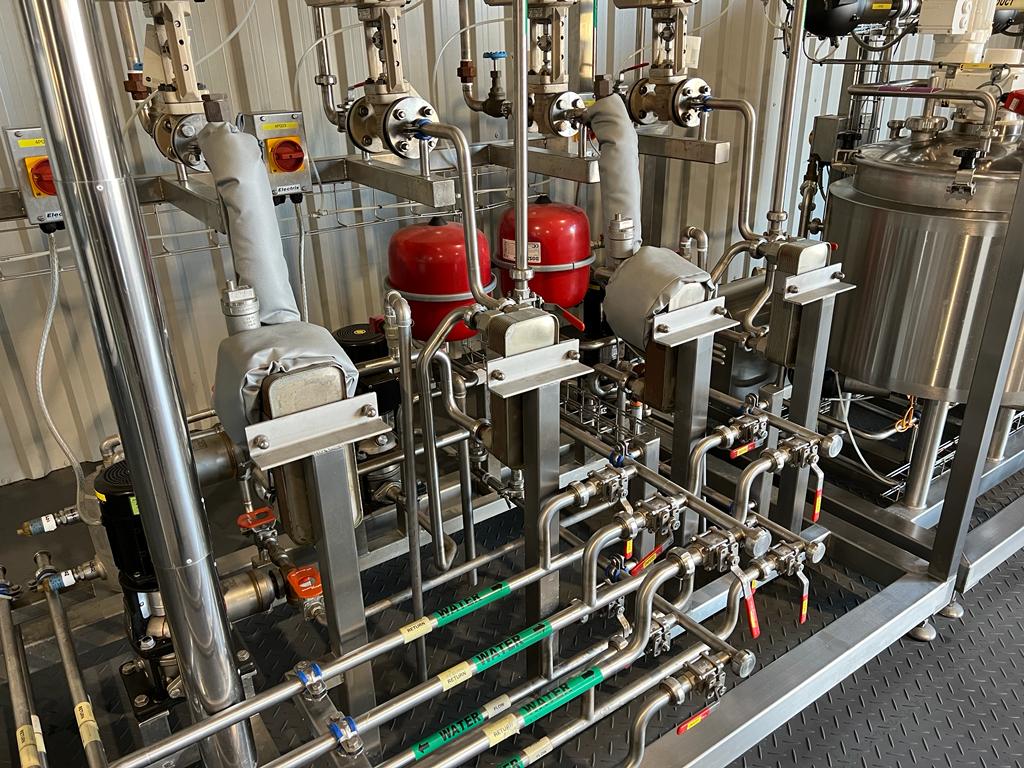

  • Alfa Laval Braced Heat Exchanger for Heating & Cooling (4x Heat Exchangers Installed)
  • Re-circulation Pumps: 0.37Kw Grundfoss CRI1S Pumps (3x Pumps Installed)

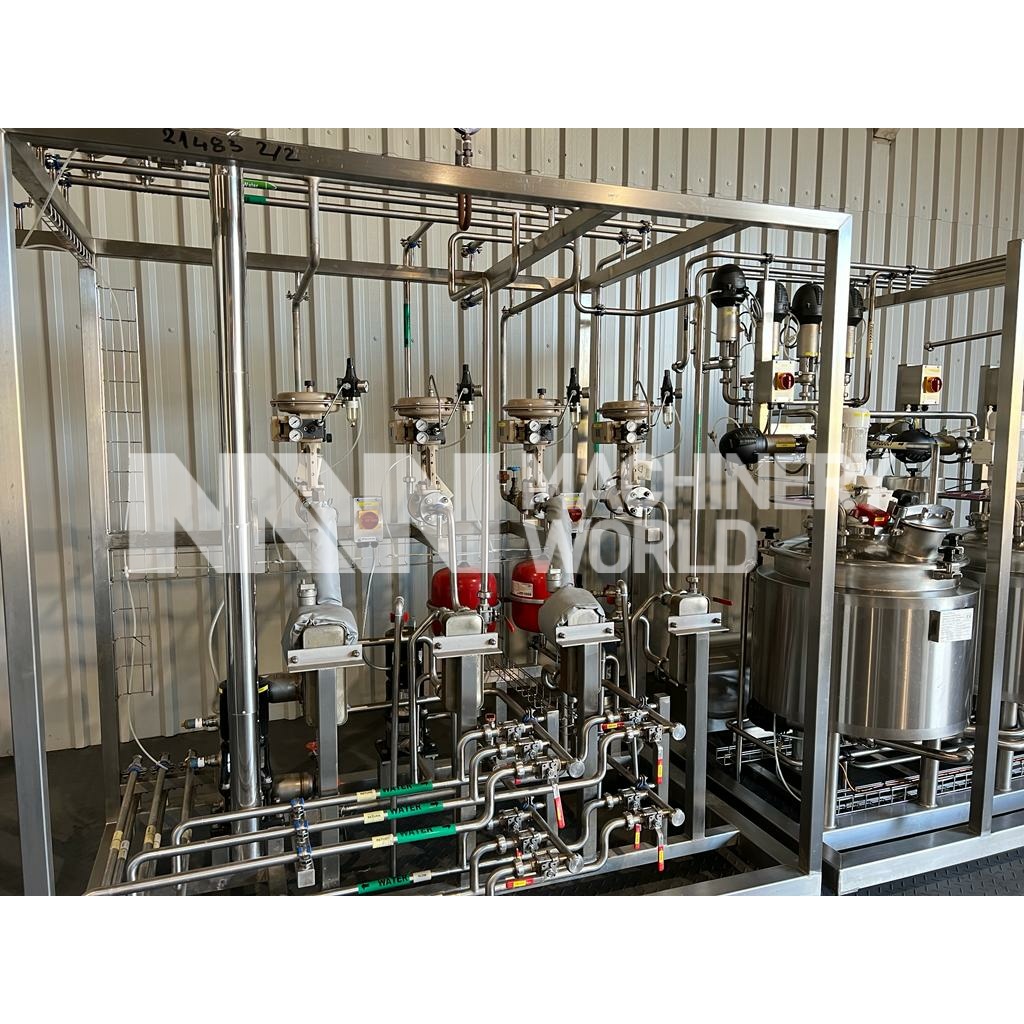

  • Positioner Valves: Samson 3277 Positioner Valves (4x valves Installed)

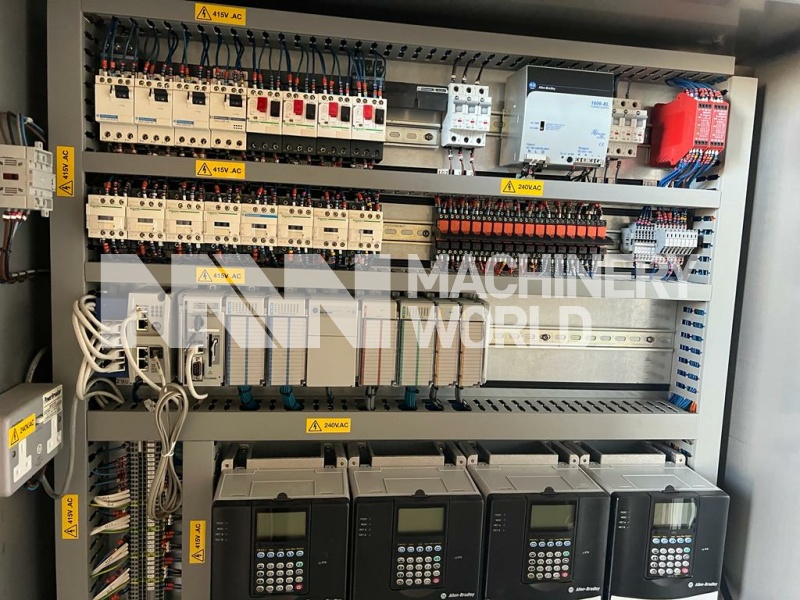

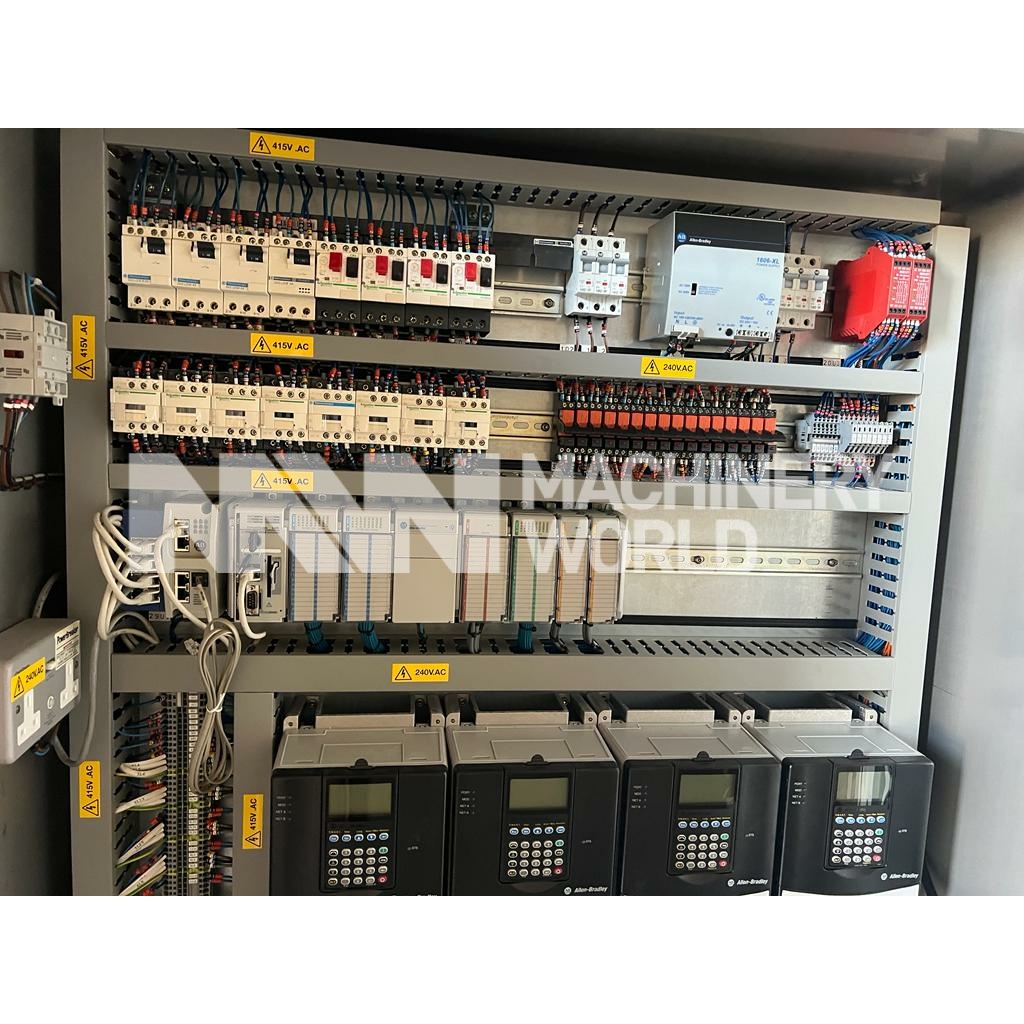

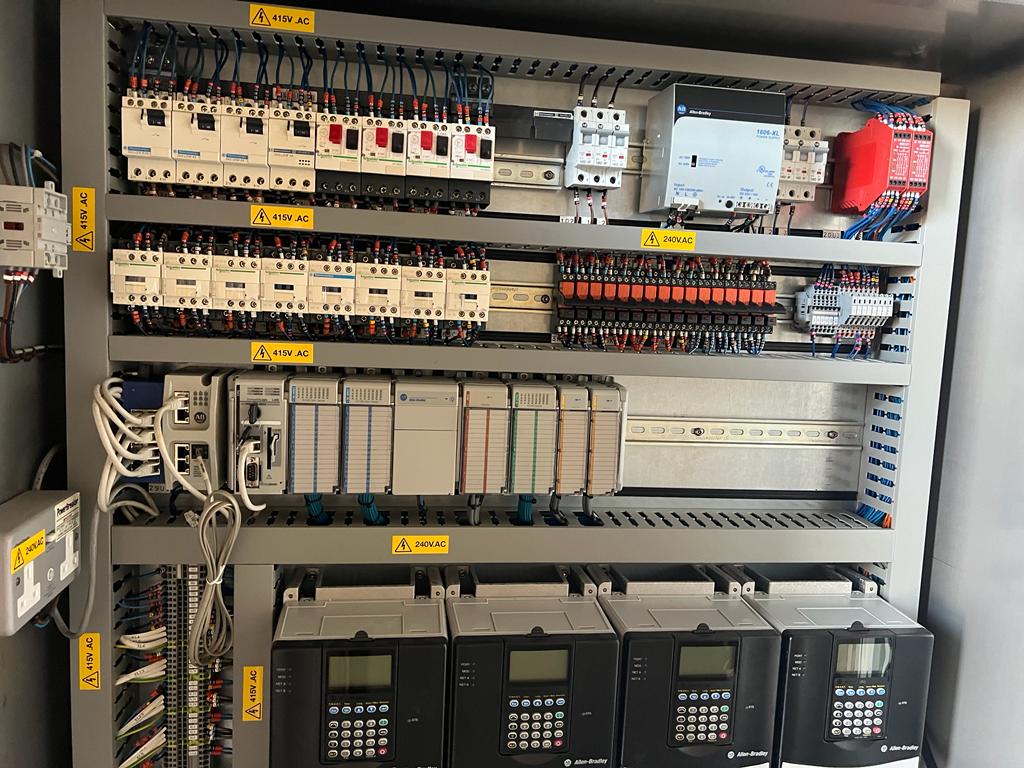

Control Panel:

  • PLC – Allen Bradley
  • Operator Console: Allen Bradley PanelView Plus 1000 Touchscreen
  • Speed Control Inverter: Allen Bradley PowerFlex 70 (4x inverters Installed)
  • Fully Integrated
  • Data Recorder: Eurotherm Chessell 6100XIO Paperless Touchscreen Data Recorder
Overall Dimensions
  • Length: 2900mm
  • Width: 2400mm
  • Height: 2400mm

Country of Manufacture

United Kingdom
