Description

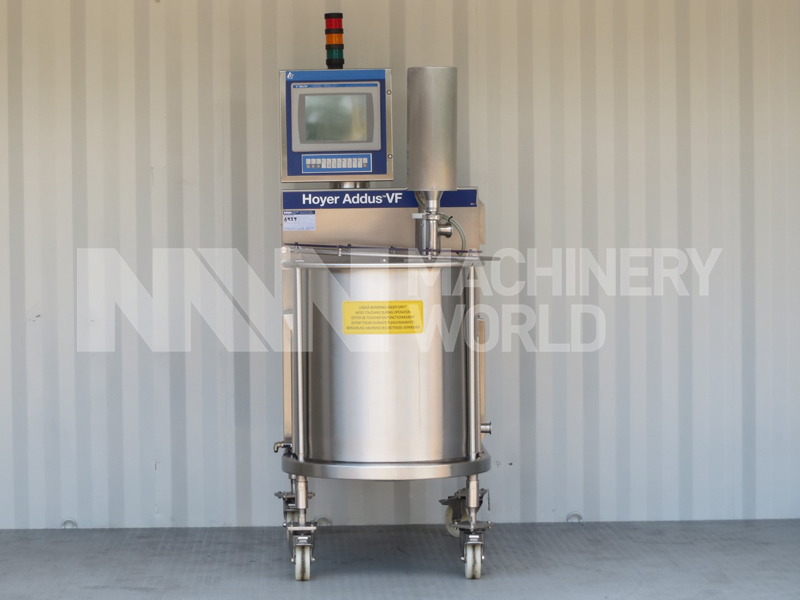

The VF 1000 F is a multi-purpose pump station for the accurate on-site supply of different liquid ingredients, e.g. chocolate, fruit puree, jam, caramel and similar substances.
The hopper is suspended on weighing cells and the control system is similar to the Hoyer Addus FF Fruit Feeder. Production parameters are constantly displayed and can be stored in the computer memory for next production run of the same product. The pump provides a constant, non-pulsating flow, ensuring a high level of dosing accuracy and uniform product appearance over time.
Features
- Manufacturer: Tetra Pak
- Model: Hoyer AddusVF 1000F
- Function: Ripple (sauce) pump
- Serial Number: Z2091013
- Year of manufacture: 2008
- Capacity: 150-1300 kg/hour
- Drawing specification: 59417521589
- Total installed power: 2.2 kW
- Electrics: 480V/60 Hz/3 Phase
- Stainless steelhopper and heated water jacket
- Max. capacity of hopper: 150 litres
- Mounted on swivel castors
- Stainless steel construction
- Instruction & spare parts manual included
- See ‘Technical Doc’ link for further details
Dimensions
- Length: 130 cms
- Width:85 cms
- Height:205 cms
- Weight:575 kgs
Country of Manufacture
Denmark
Download Technical Doc
