Tetra Pak HTST Ice Cream Process Plant – 4.000 L/h



Description

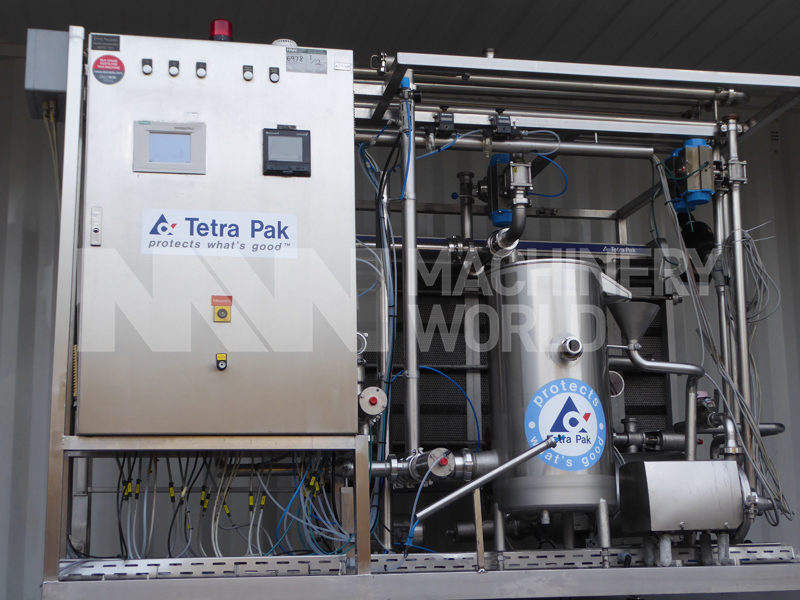

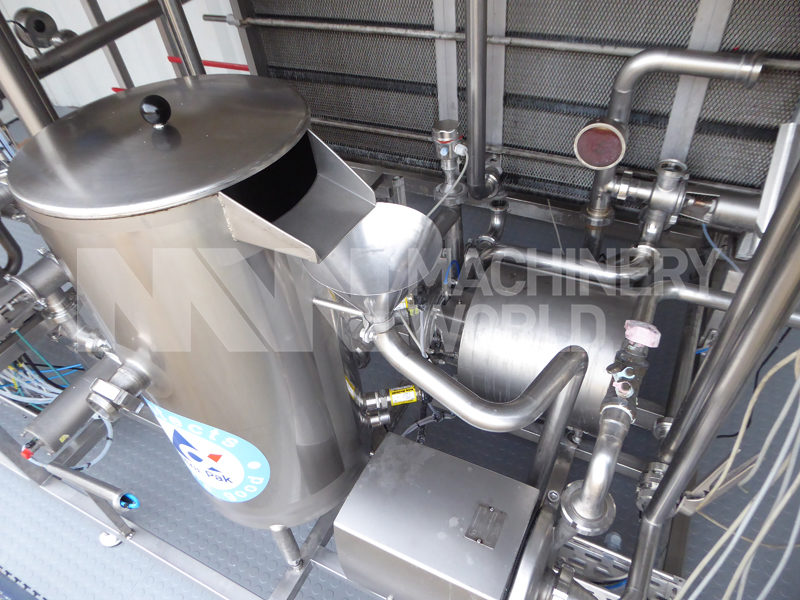

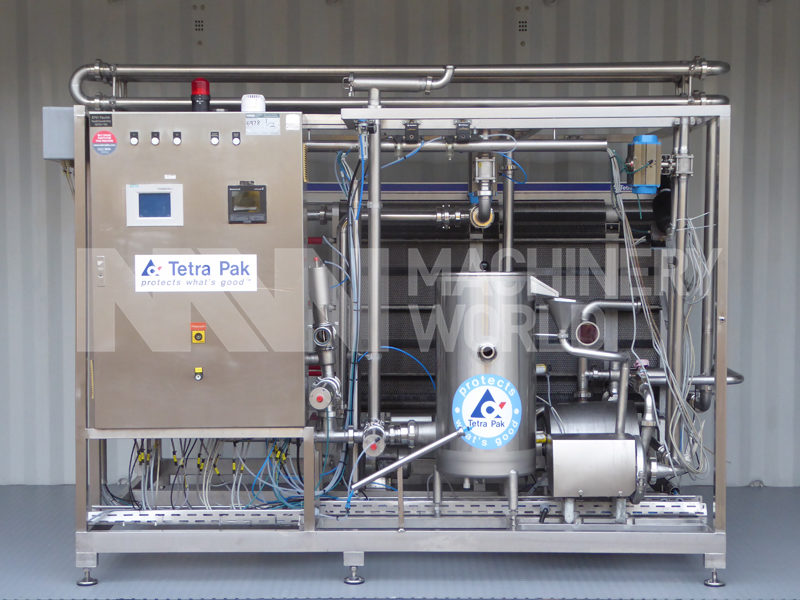

A 4000-litre ice cream HTST process plant from Tetra Pak. The skid-mounted unit homogenises, pasteurises and cools ready for freezing of the ice cream mix. No pre-heat tanks are included but can be offered at an additional cost upon request.

Features

• Manufacturer: Tetra Pak
• Model:HTST 4000
• Function: Ice cream mix process plant
• Year of manufacture: 2002
• Sterilization temperature: 85 degC
• Capacity: 4000 litres/per hour
• Technical documentation included
• Electrics: 380V/3 Phase/50 Hz

Includes

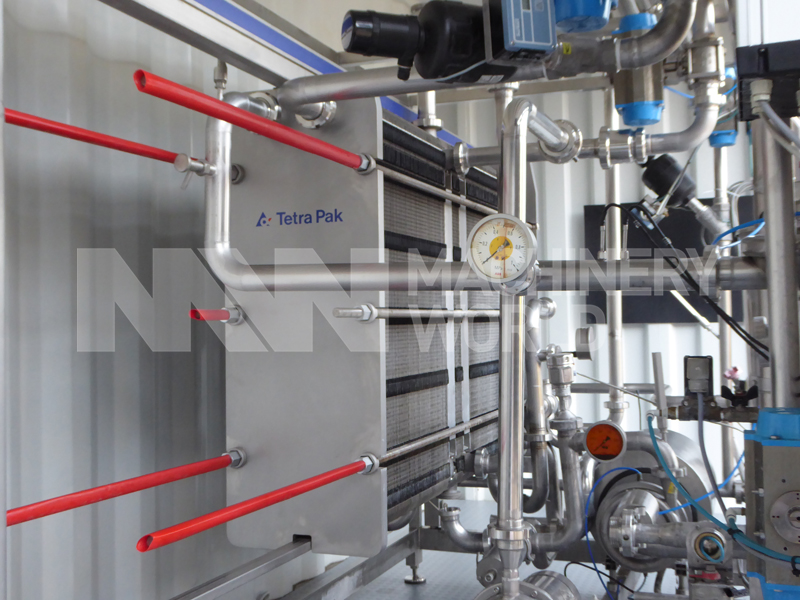

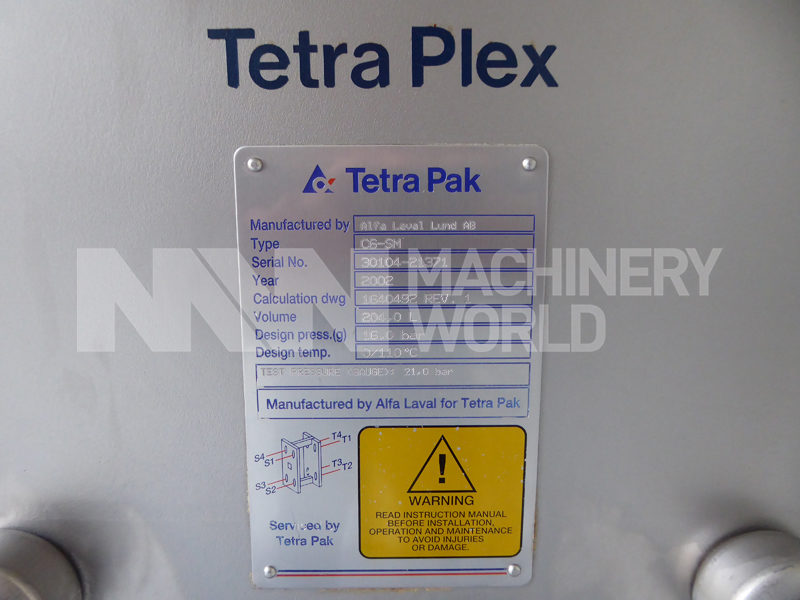

Alfa Laval C6-SM Plate Heat Exchanger:

• Manufacturer: Alfa Laval for Tetra Pak
• Model: C6-SM
• Serial number: 30104-21371
• Year of manufacture: 2002
• Volume: 204.0 L
• Design pressure: 16.0 bar
• Test pressure: 21.0 bar
• Design temperature: 0/110 degC

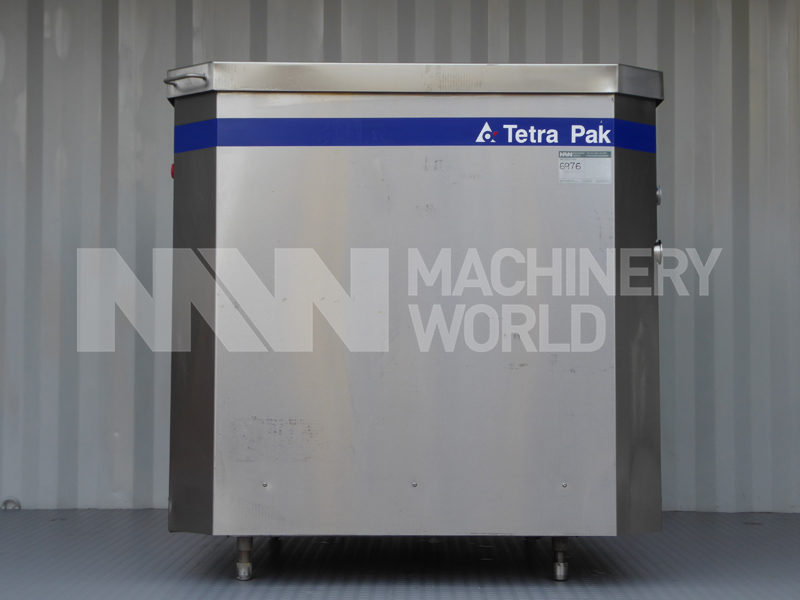

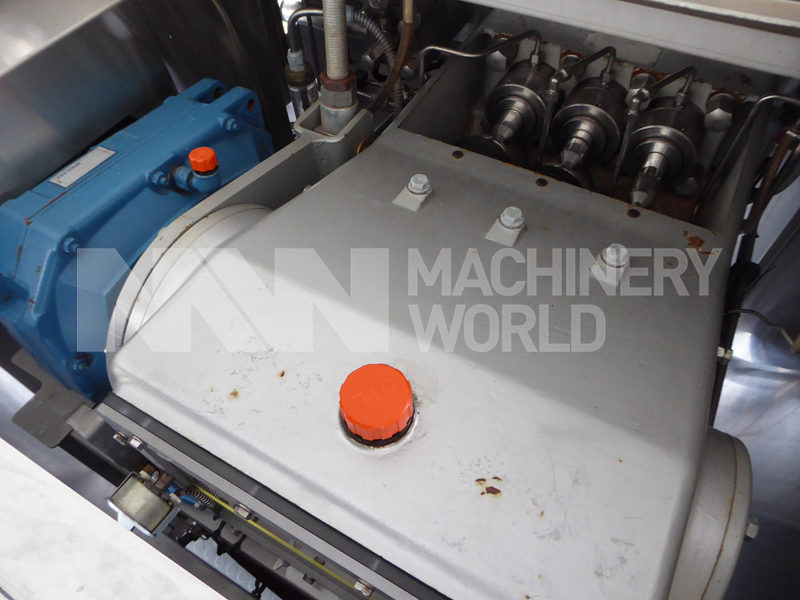

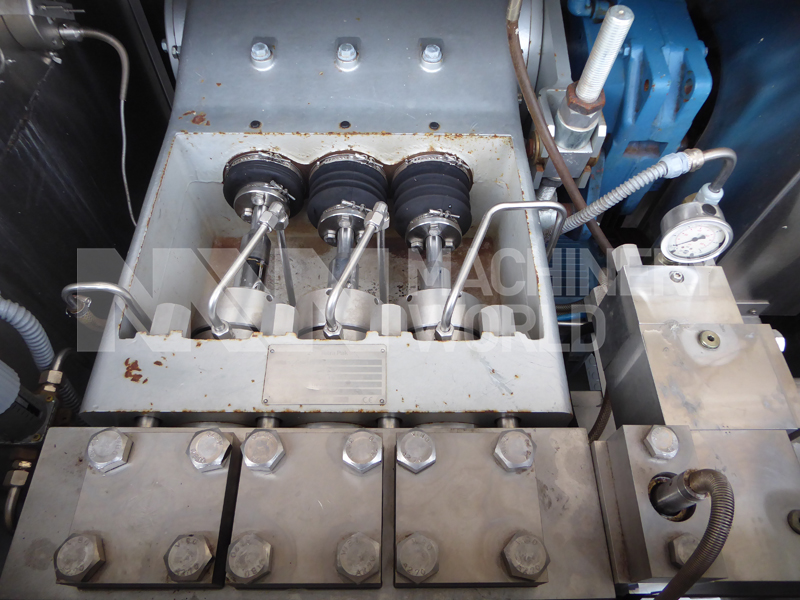

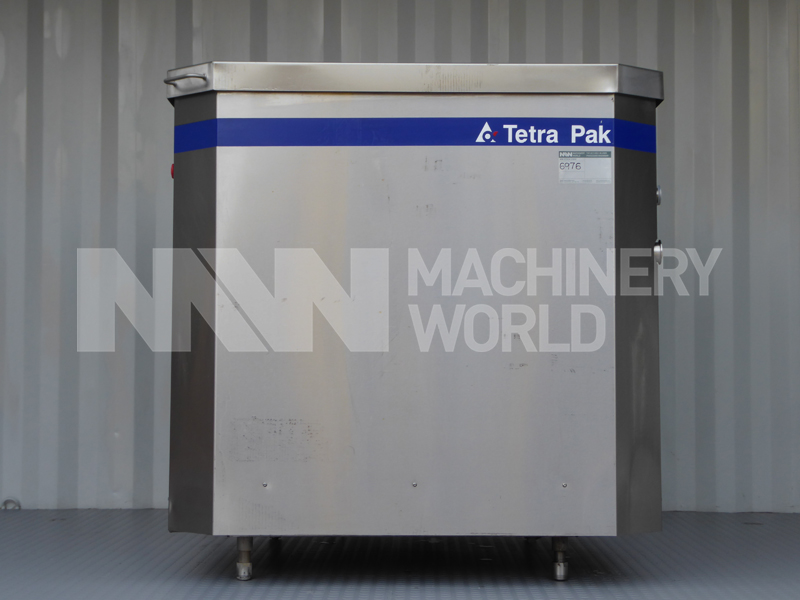

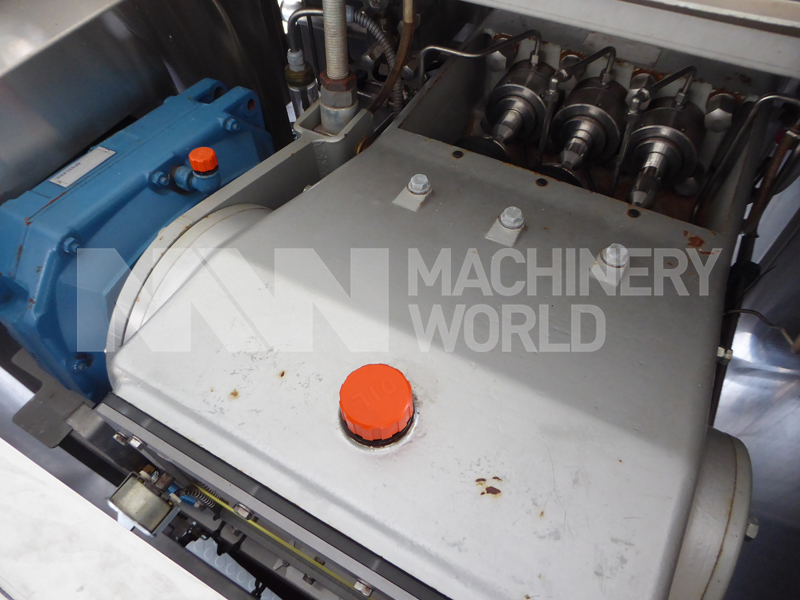

Tetra Pak Alex 20 Homogeniser:

• Manufacture: Tetra Pak
• Model: Alex 20
• Serial number: T5845512173
• Capacity: 4000 litres/hour
• Year of manufacture: 2002
• Country of manufacture: Sweden
• Max. working pressure: 250 bar
• Piston diameter: 50mm
• Valve design: Mushroom
• Number of stages: 2 stage
• Installed power: 37 kW (1475 r/min)
